Toyota HILUX Heating & Air Conditioning - Cooler Piping — Figure 8718

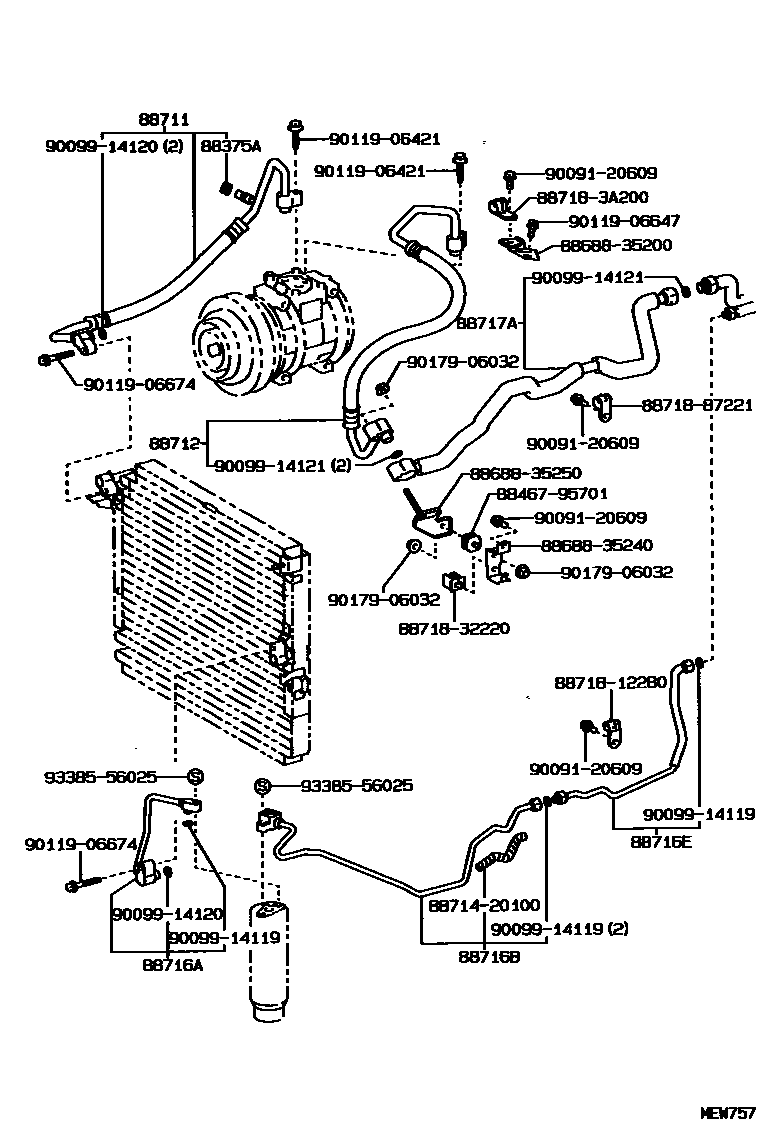

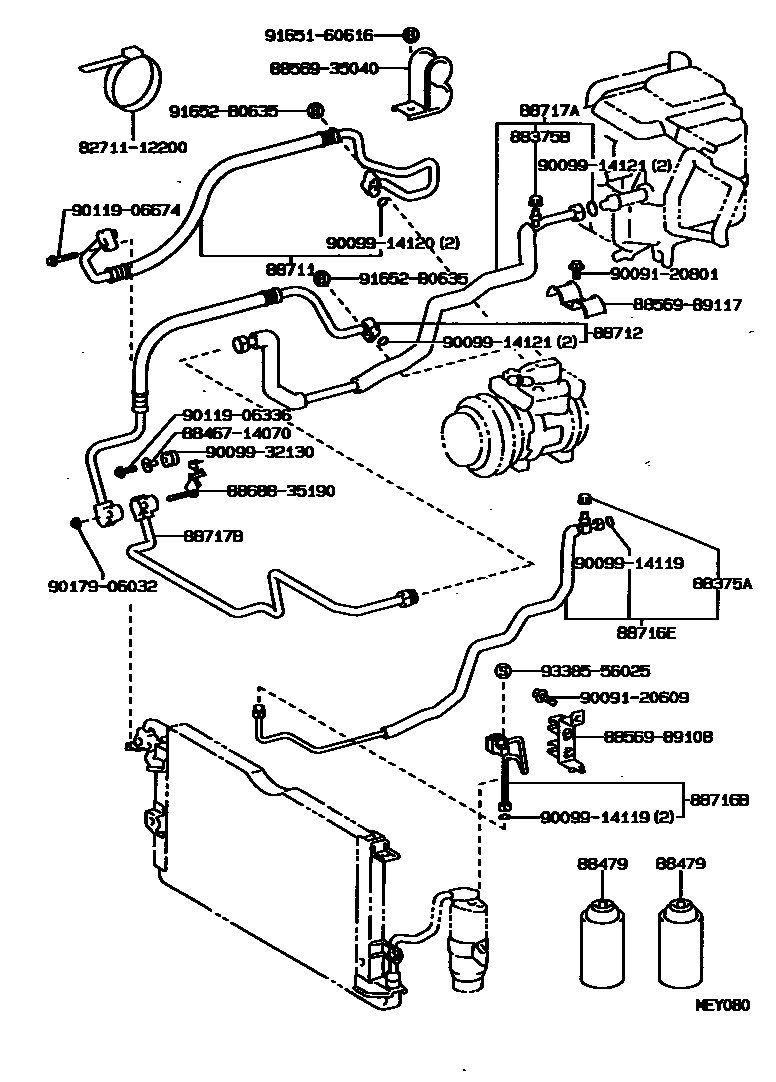

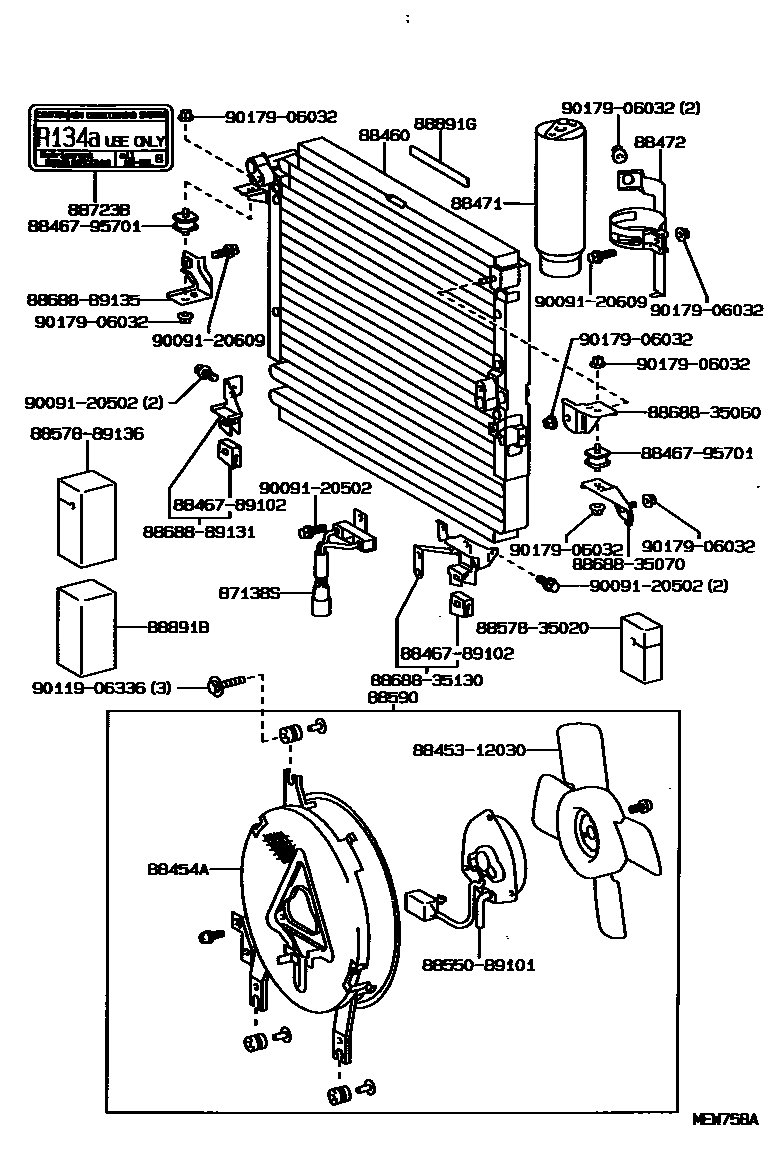

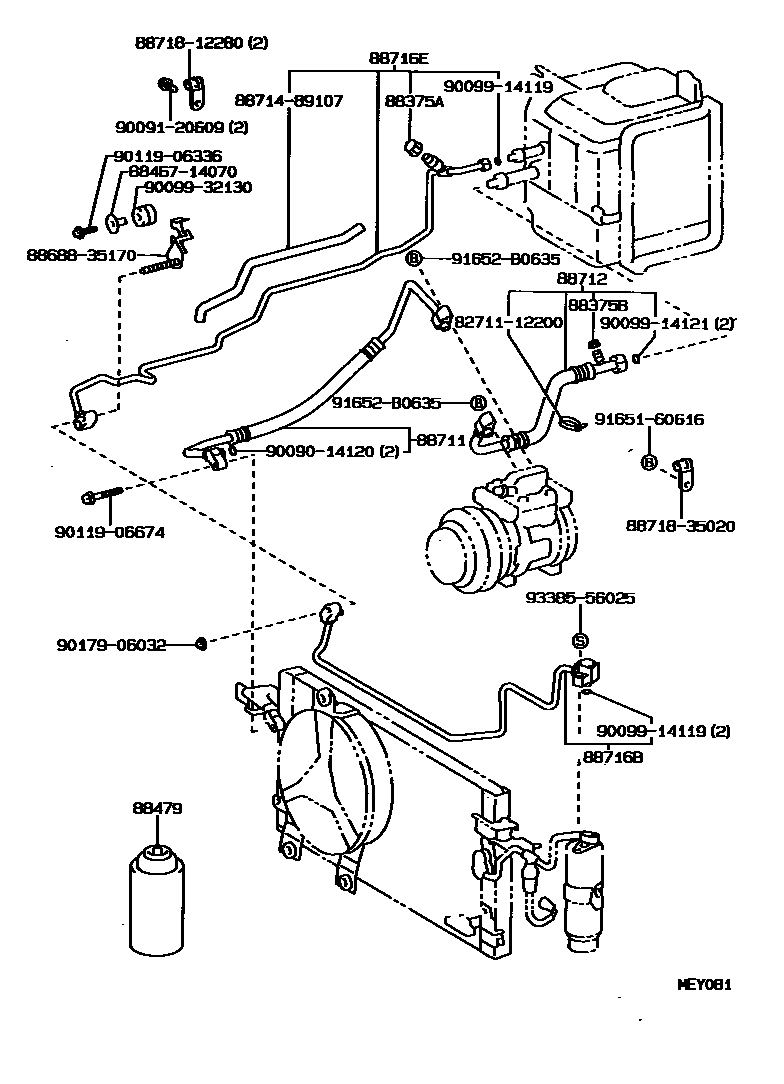

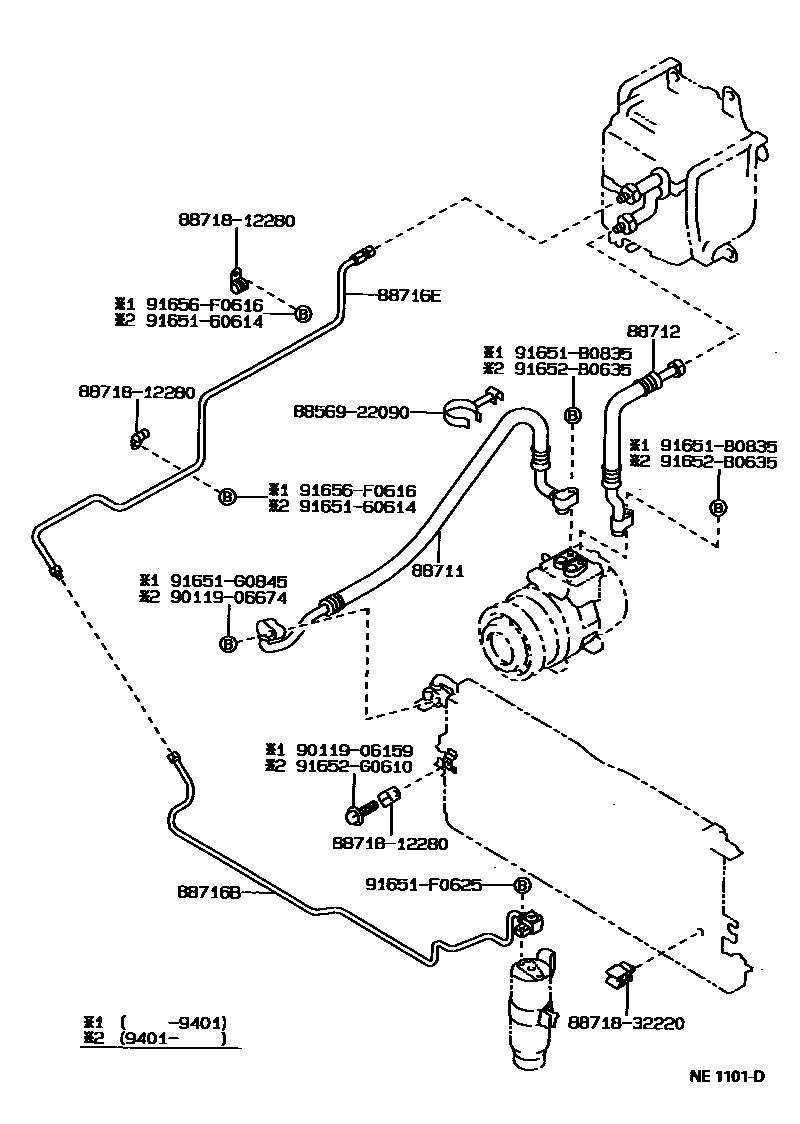

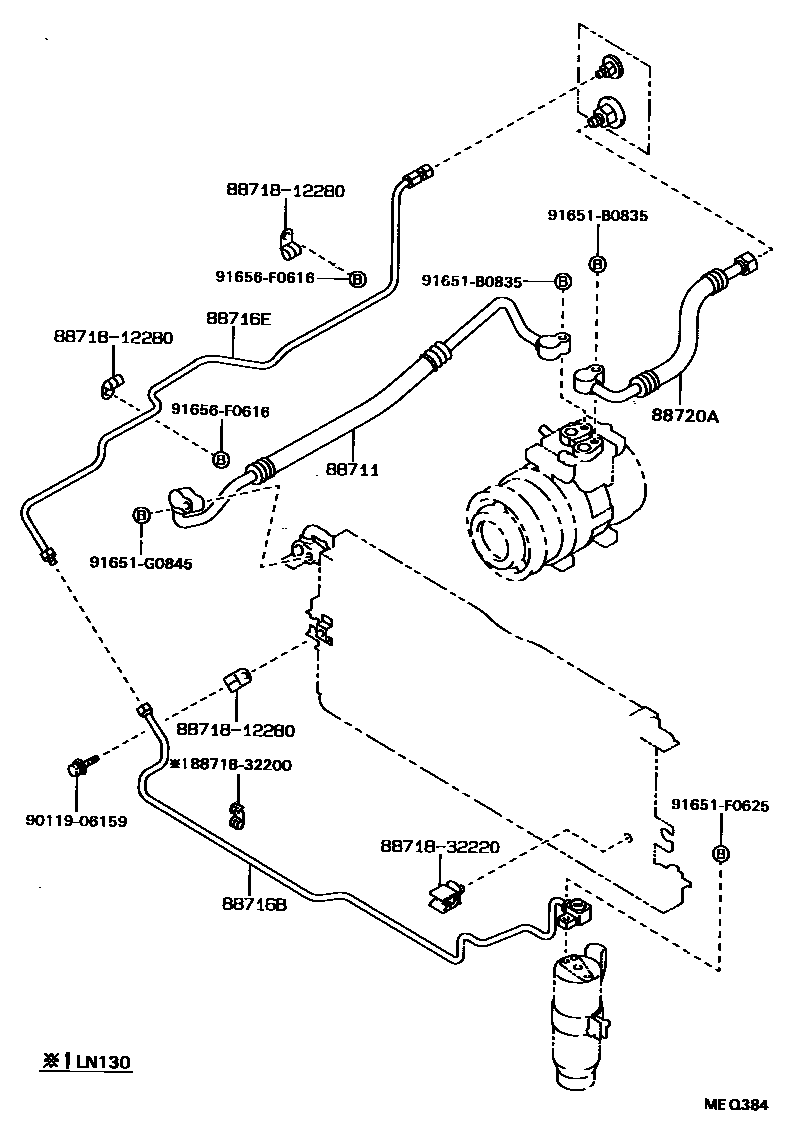

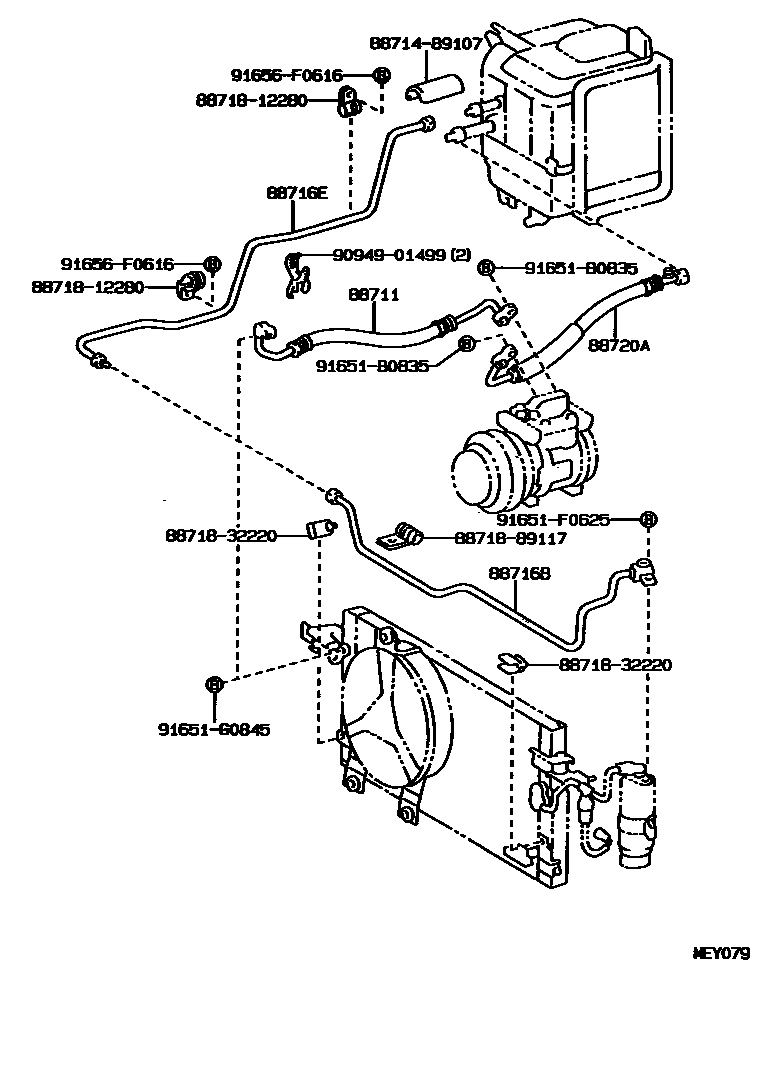

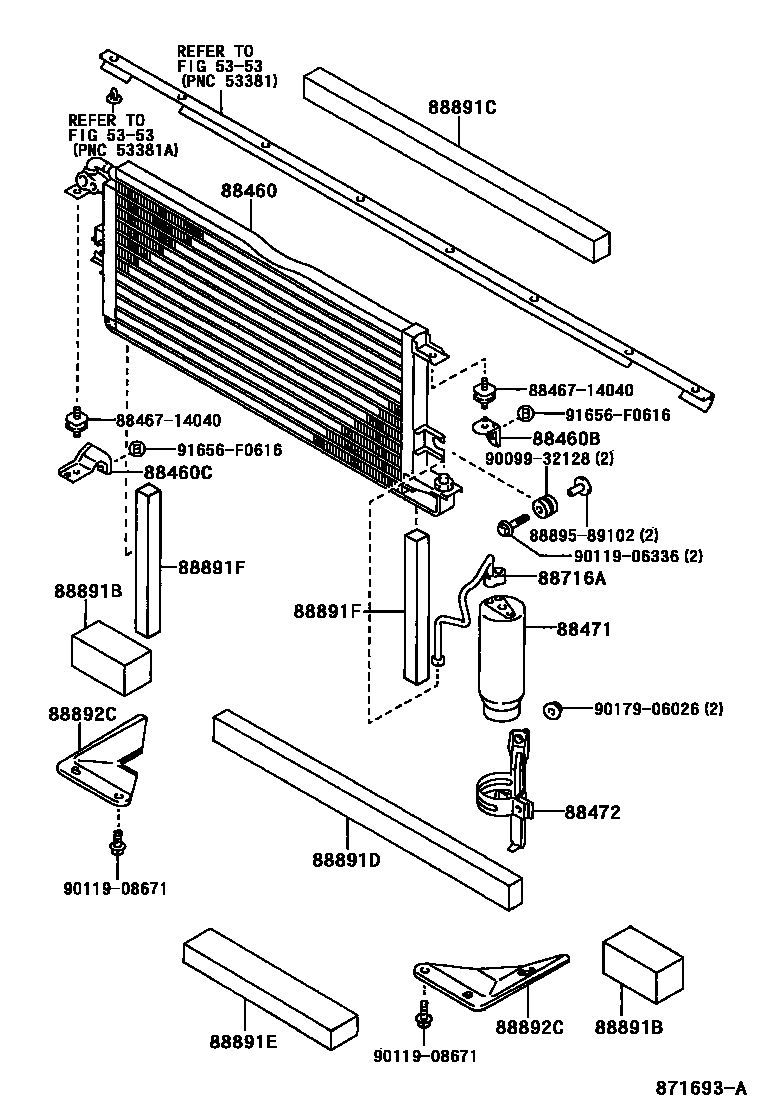

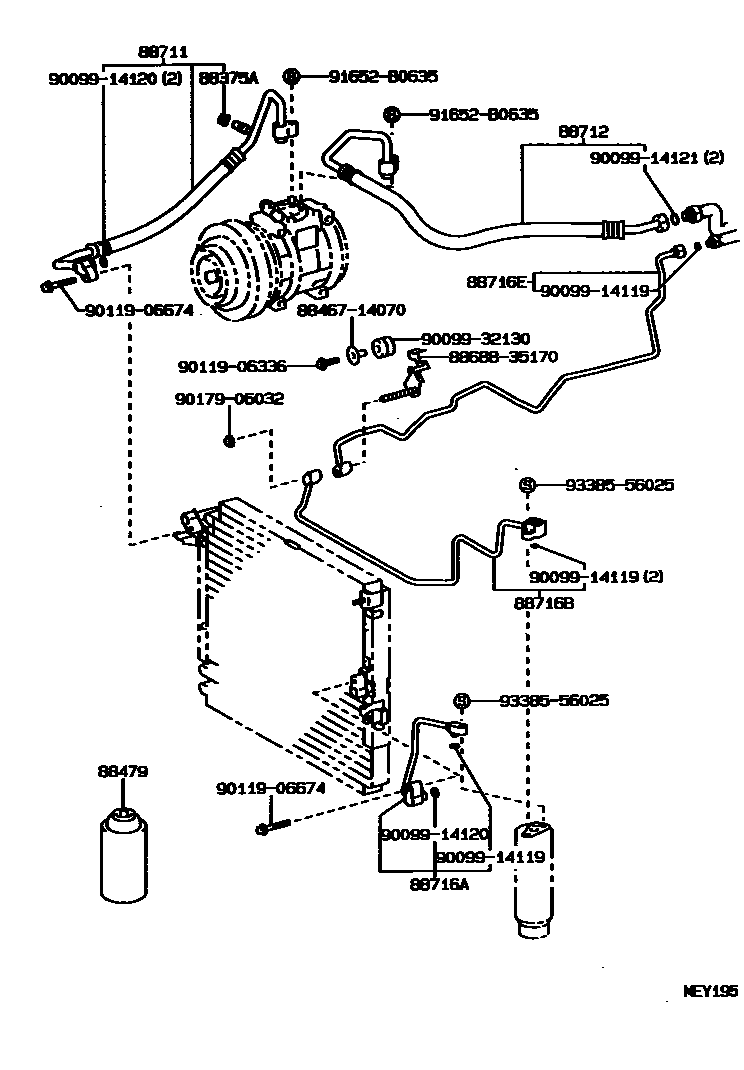

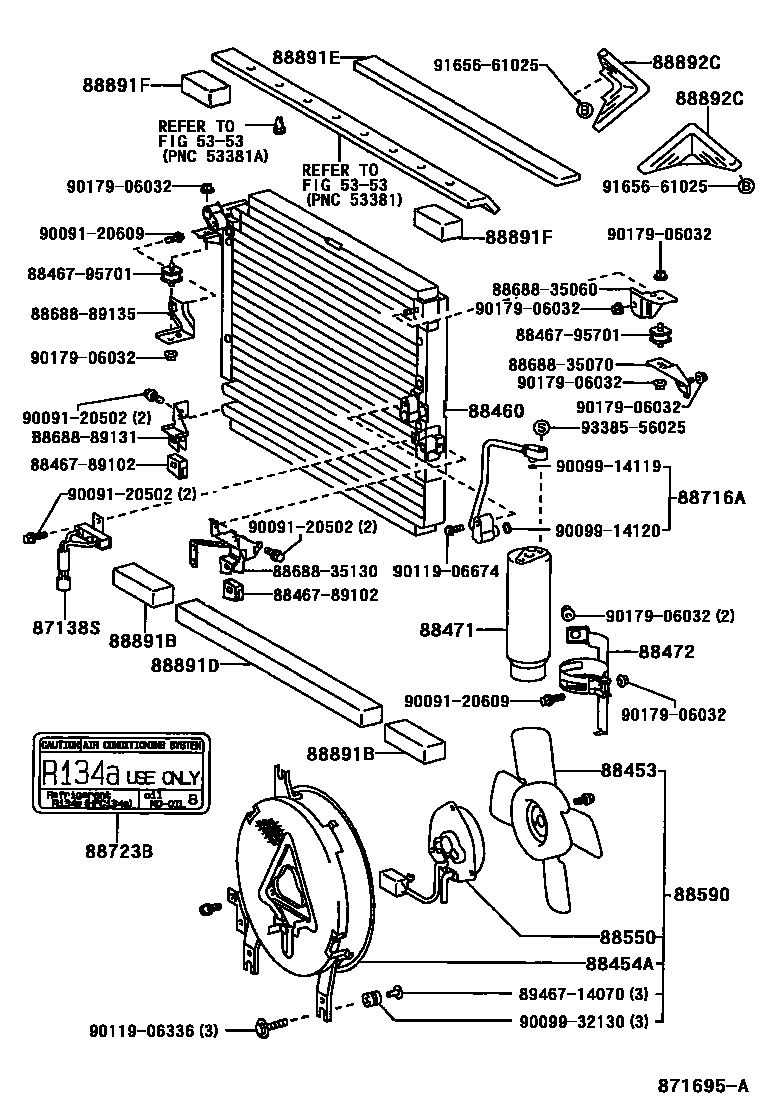

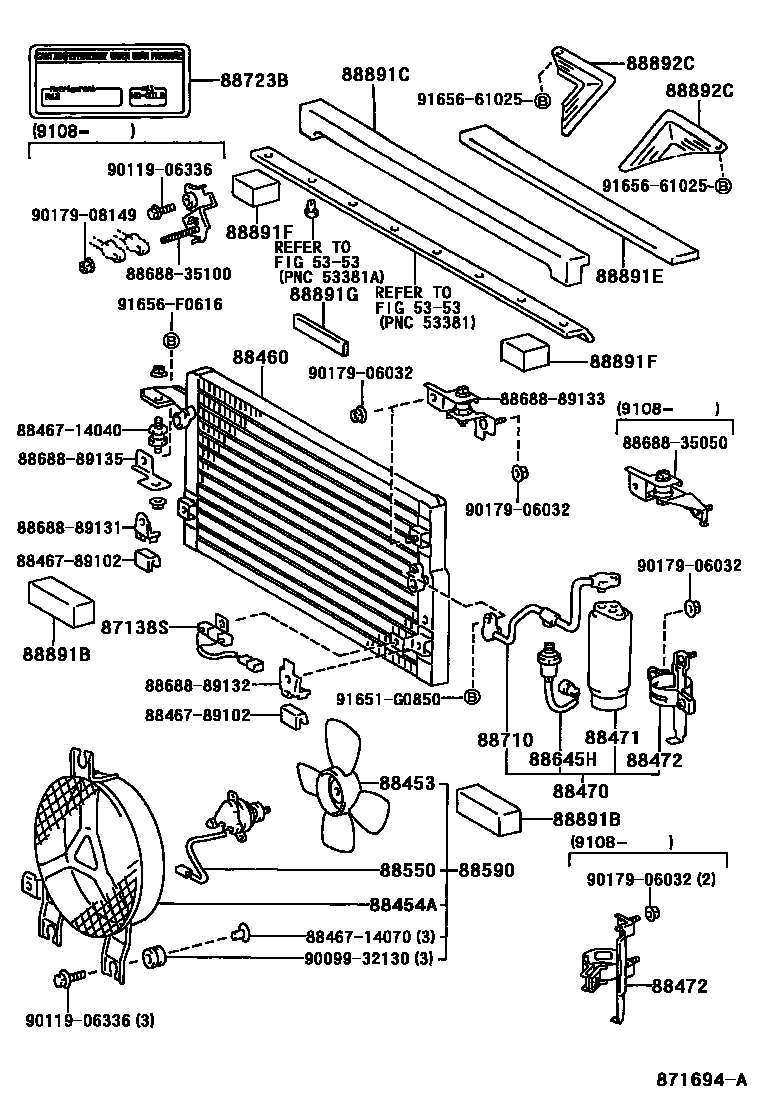

Toyota HILUX EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 11 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87138S | Blower resistor | 88635-35010 |
| 88375A | Repair valve cover (for cooler tube) | 88375-30280 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 |
| 88453 | Cooling fan (for condenser) | 88453-12030 · 88453-28010 |
| 88454A | fan cover | 88454-35030 |
| 88460 | Air conditioning condenser assembly | 88460-35060 · 88460-35080 · 88460-35110 · 88460-35130 · 88460-35150 · 88460-89115 · 88460-89117 |
| 88460B | No. 1 air conditioner condenser bracket | 88688-89120 |
| 88460C | No. 2 air conditioner condenser bracket | 88688-89121 |
| 88470 | Cooler reservoir and dryer assembly | 88470-89103 |
| 88471 | Air conditioning fluid storage tank | 88471-16040 · 88471-20050 · 88471-34010 · 88471-50010 |
| 88472 | No. 1 liquid storage tank bracket | 88472-35010 · 88472-89110 |
| 88479 | Air conditioning Freon gas (cooler refrigerant drum) | 90986-02007 · 90986-02008 |
| 88550 | Blower motor assembly (for condenser) | 88550-89101 |
| 88590 | Blower assembly with hood | 88590-89101 · 88590-89102 |
| 88645H | No. 1 pressure switch | 88645-12030 · 88645-20010 |
| 88710 | Air conditioning pipe assembly | 88710-35010 · 88710-35031 · 88710-35120 · 88710-35130 · 88710-89121 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-35040 · 88711-35070 · 88711-35090 · 88711-35200 · 88711-35220 · 88711-35240 · 88711-35260 · 88711-35300 · 88711-35310 · 88711-89145 · 88720-35040 · 88720-35070 · 88720-35080 · 88720-35200 · 88720-35220 · 88720-89136 · 88720-89139 · 88720-89140 · 88720-89141 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-35090 · 88712-35100 · 88712-35140 · 88712-35150 · 88712-35270 · 88712-35280 · 88712-35320 · 88712-89140 · 88720-35130 · 88720-35260 · 88720-35270 · 88720-35280 · 88720-35310 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-35100 · 88716-35110 · 88716-35230 · 88716-89163 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-35061 · 88716-35170 · 88716-35190 · 88716-35200 · 88716-35240 · 88716-89162 · 88716-89172 |
| 88716E | Cooler refrigerant liquid pipe E | 88710-35051 · 88716-35021 · 88716-35041 · 88716-35120 · 88716-35130 · 88716-35160 · 88716-35210 · 88716-35260 · 88716-89160 · 88716-89181 |
| 88717A | Cooler refrigerant suction pipe A | 88717-35050 · 88717-35070 |
| 88717B | Cooler refrigerant suction pipe B | 88717-35040 |
| 88720A | Air conditioning hoses and accessories | 88720-35140 · 88720-35170 · 88720-35310 · 88720-89131 · 88720-89134 · 88720-89137 |
| 88723B | Cooler maintenance warning label | 88723-17030 · 88723-20040 · 88723-33020 |
| 88891B | Seal B (for cooler) | 88578-89103 · 88578-89111 |
| 88891C | Seal C (for cooler) | 88578-89118 |
| 88891D | Seal D (for cooler) | 88578-89119 |
| 88891E | Seal E (for cooler) | 88578-89112 · 88578-89120 |
| 88891F | Seal F (for cooler) | 88578-89122 · 88578-89123 · 88578-89128 |
| 88891G | Seal G (for cooler) | 88578-89107 |
| 88892C | Condenser plate No. 1 | 88892-89114 · 88892-89115 · 88892-89116 · 88892-89117 |
