Toyota HILUX 暖风和空调系统 - 真空管 — Figure 8717

Toyota HILUX EPC diagram 8717, 暖风和空调系统 - 真空管, with 3 images and 9 PNC and OE references.

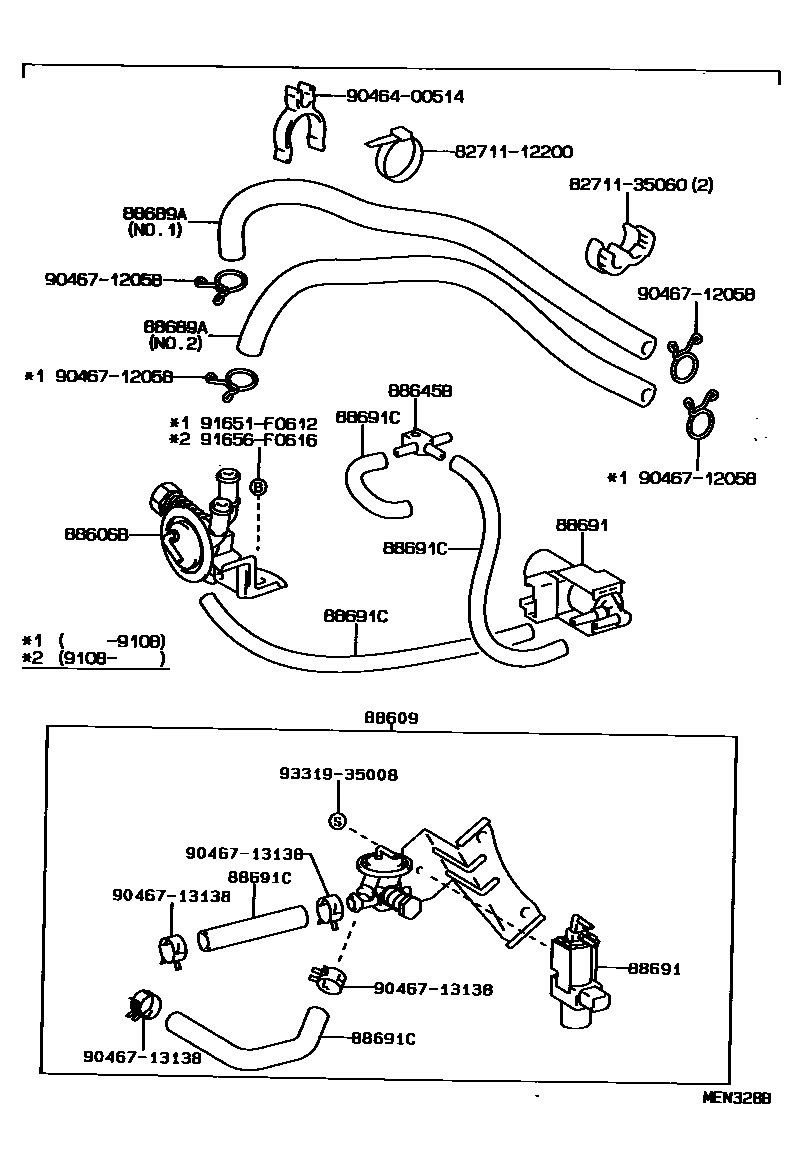

Toyota HILUX 暖风和空调系统 - 真空管 EPC diagram — MEN328B
暖风和空调系统 - 真空管 — MEN328B (198908 – 199511)

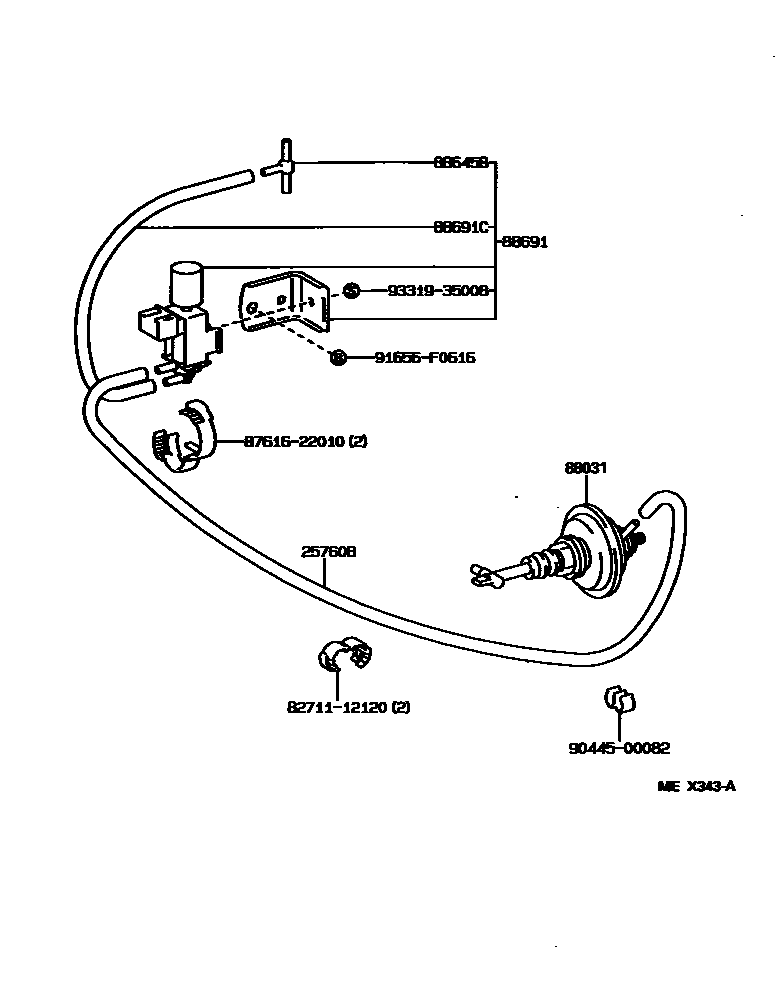

Toyota HILUX 暖风和空调系统 - 真空管 EPC diagram — MEX343A
暖风和空调系统 - 真空管 — MEX343A (199308 – 199511)

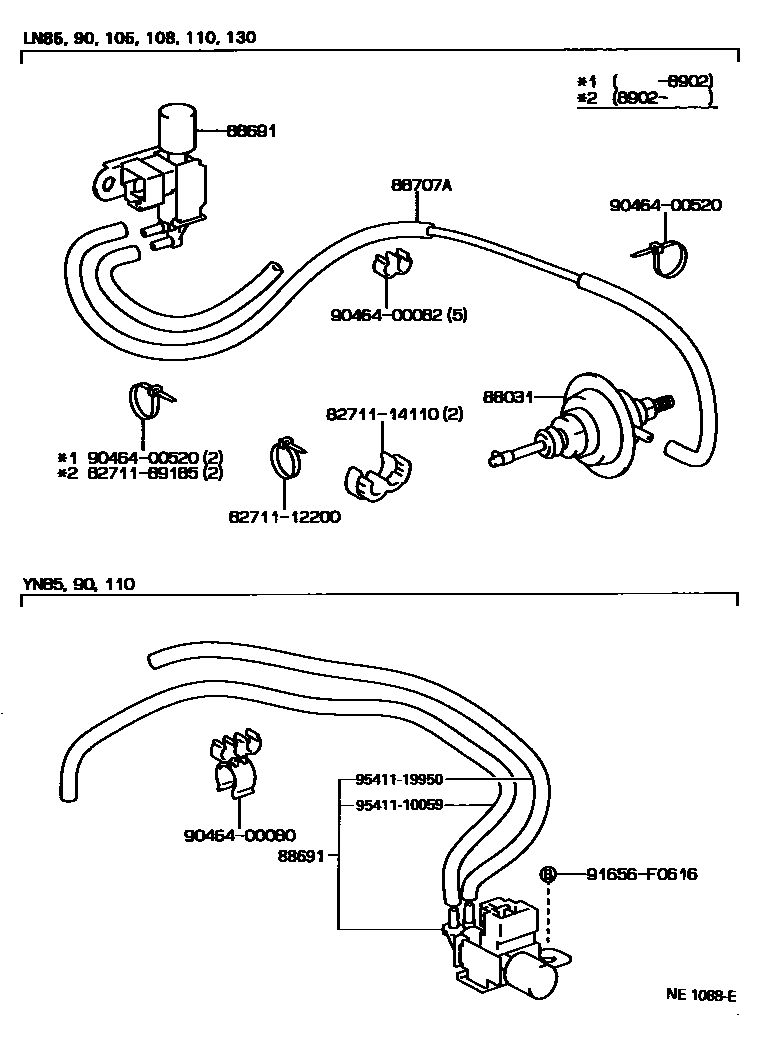

Toyota HILUX 暖风和空调系统 - 真空管 EPC diagram — NE1088E
暖风和空调系统 - 真空管 — NE1088E (198808 – 999999)

PNC and OE references

PNCPart nameOE numbers
25760BVacuum transfer hose assembly25760-67010
88031Idle speed lift actuator assembly88031-25020 · 88031-35100
88606BCooler diaphragm sub-assembly88606-89102
88609Idle speed lifting device sub-assembly88609-89107
88645BConnector No. 1 (for idle speed lifting device)90413-04001
88689ACooler Vacuum Hose No. 188689-89102 · 88689-89104 · 88689-89105
88691Solenoid valve (for idle speed lifting device)88690-89128 · 88690-89129 · 88690-89135 · 88690-89138 · 88691-89107
88691CVacuum hose No. 1 (for idle lift)95411-10025
88707AAir conditioning vacuum hose sub-assembly88807-89101
