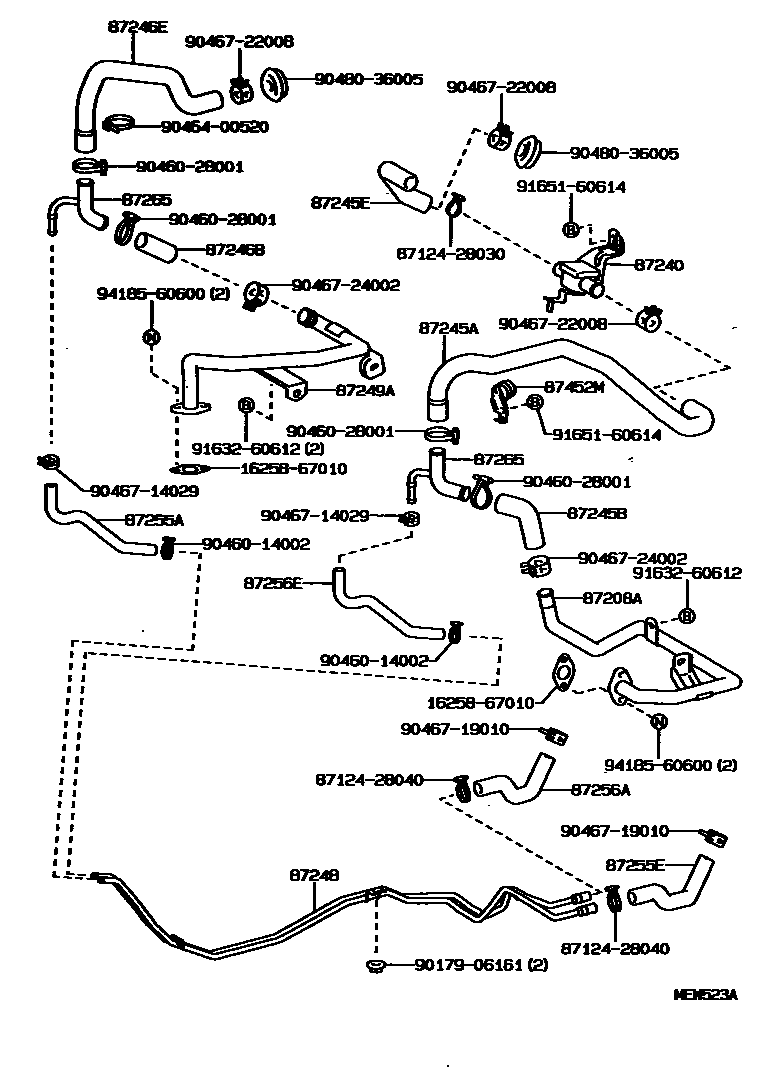

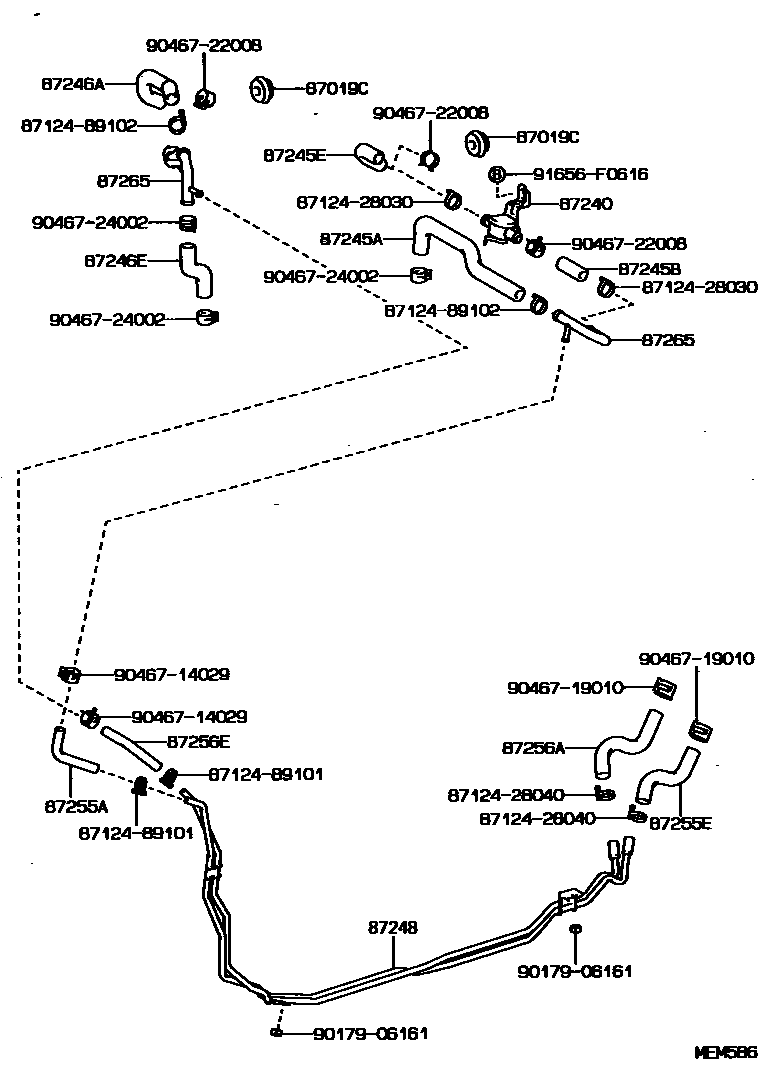

Toyota HILUX 暖风和空调系统 - 水管 — Figure 8716

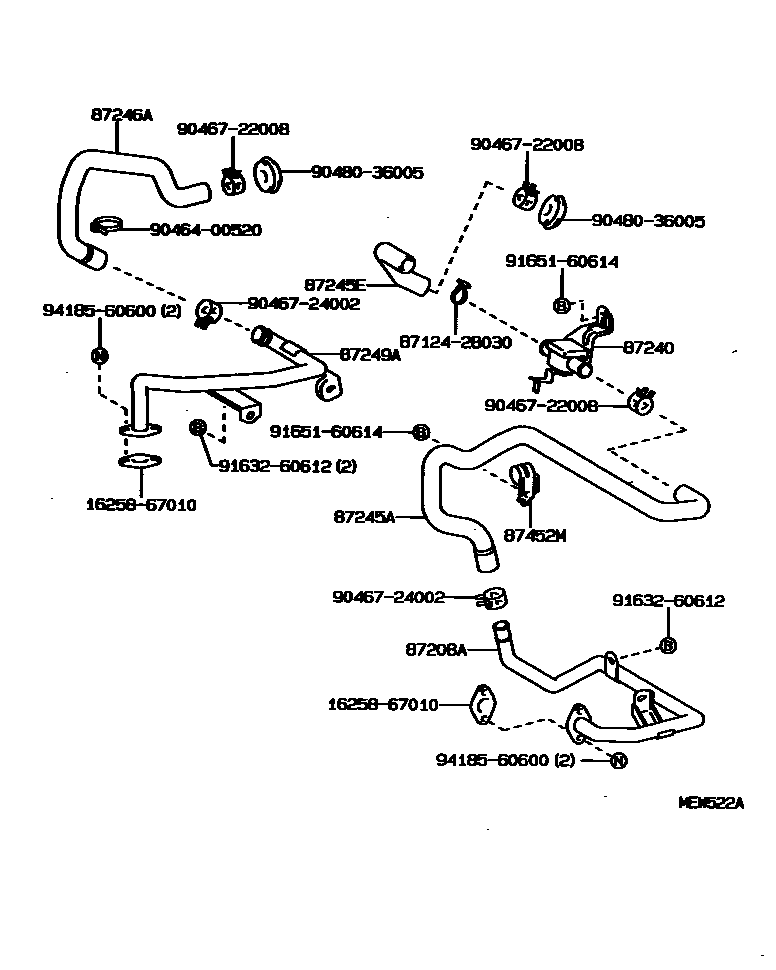

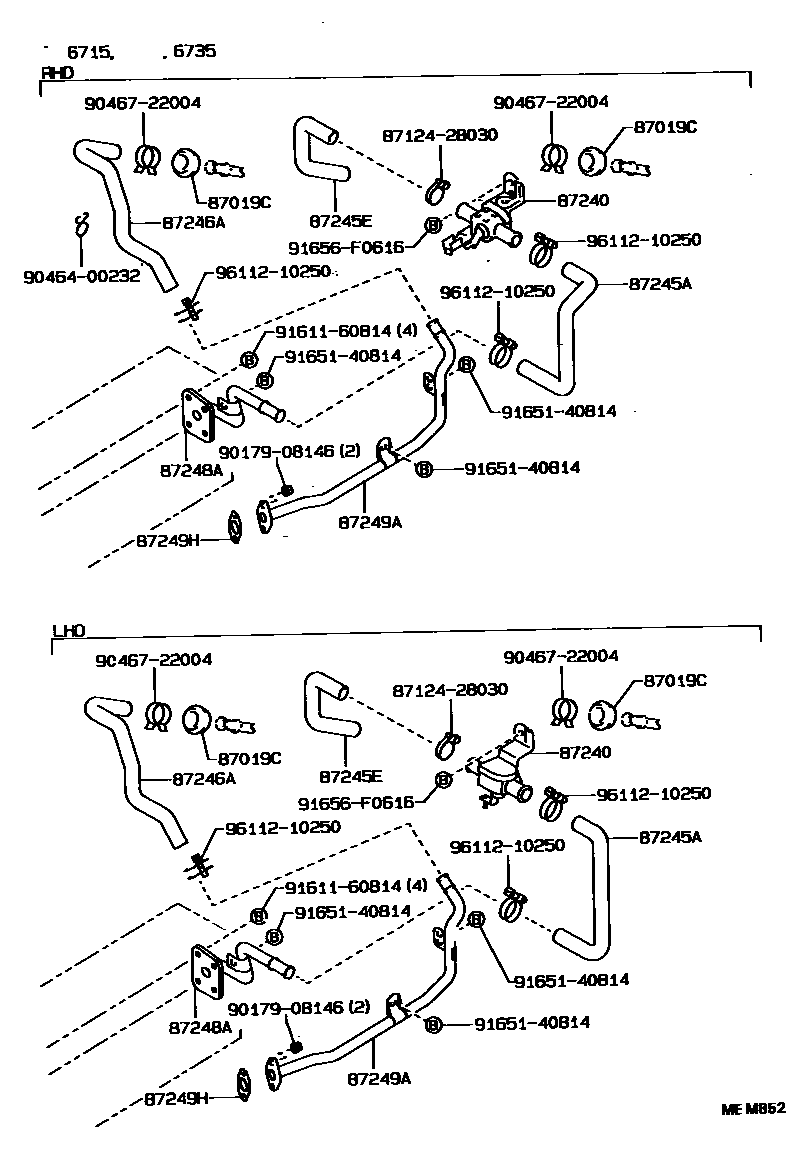

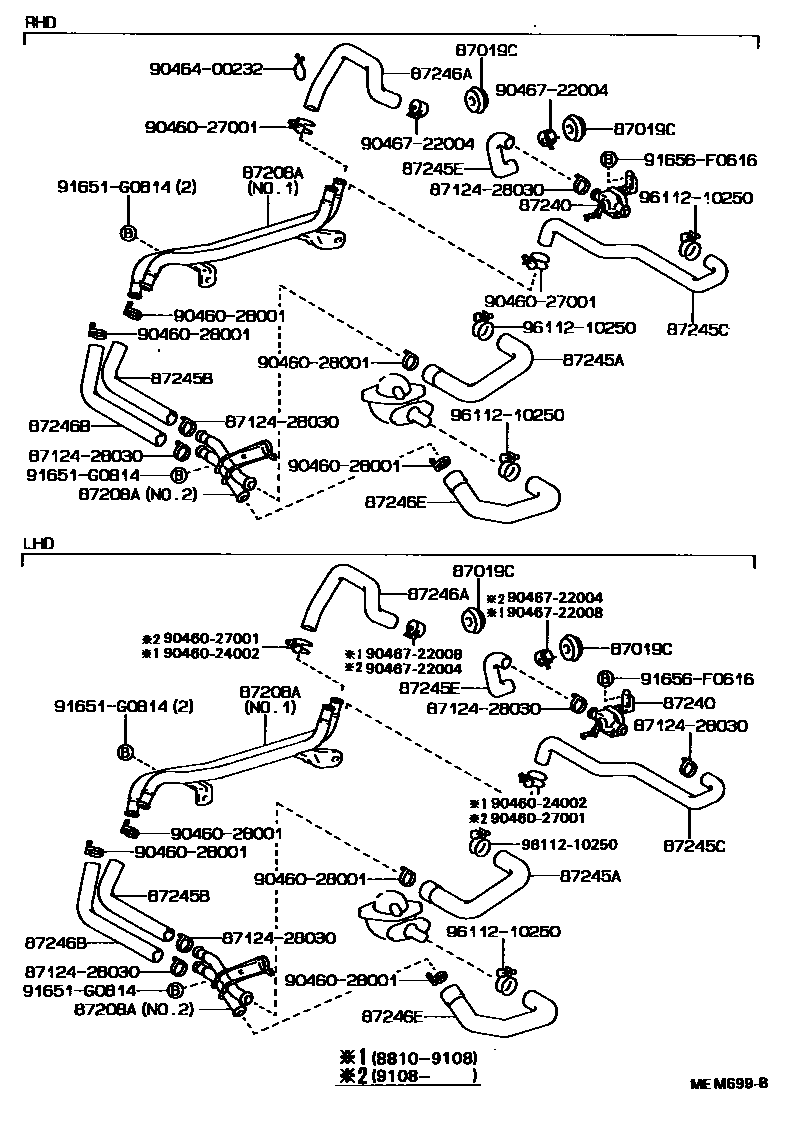

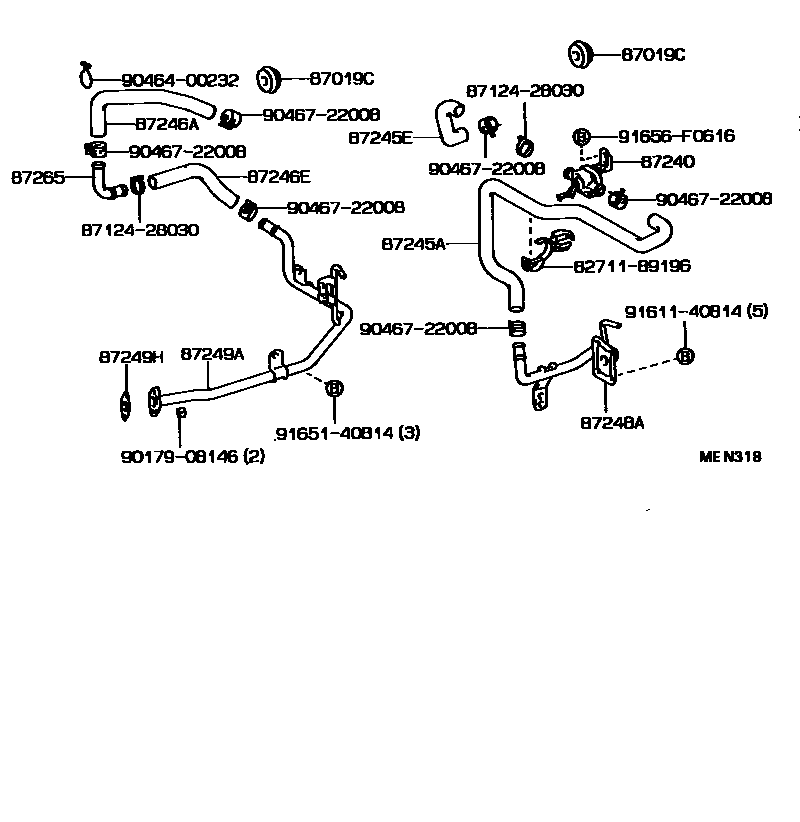

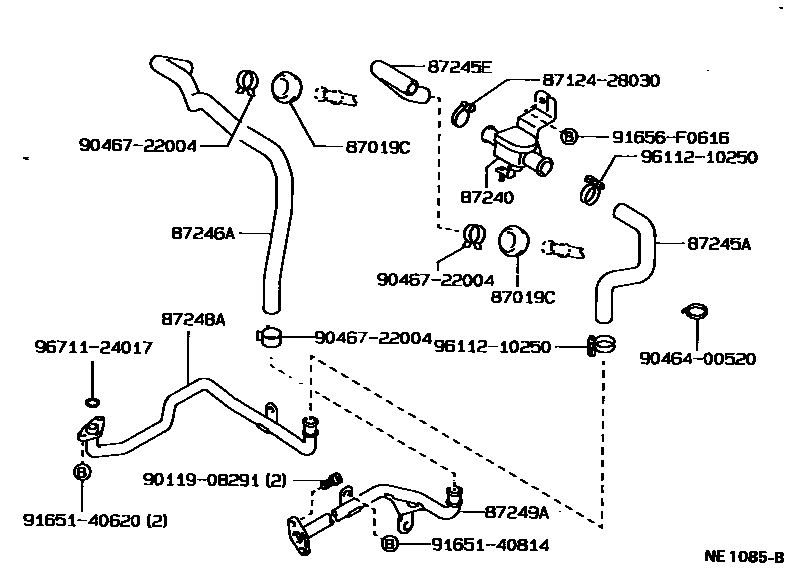

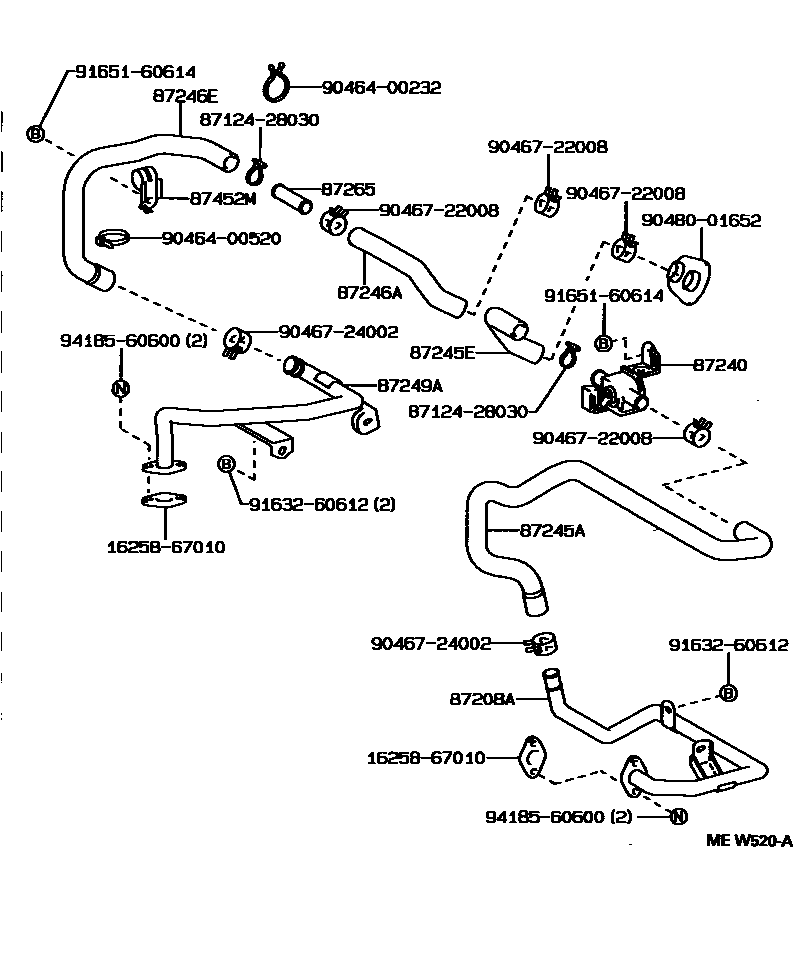

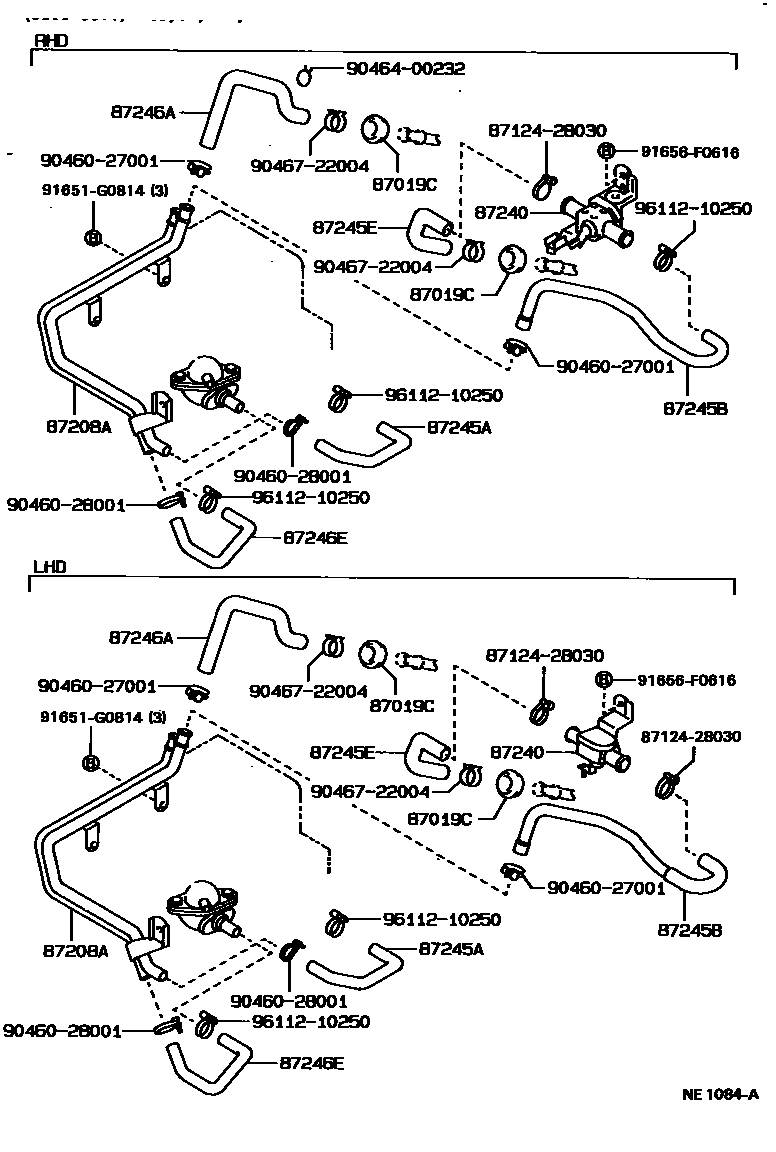

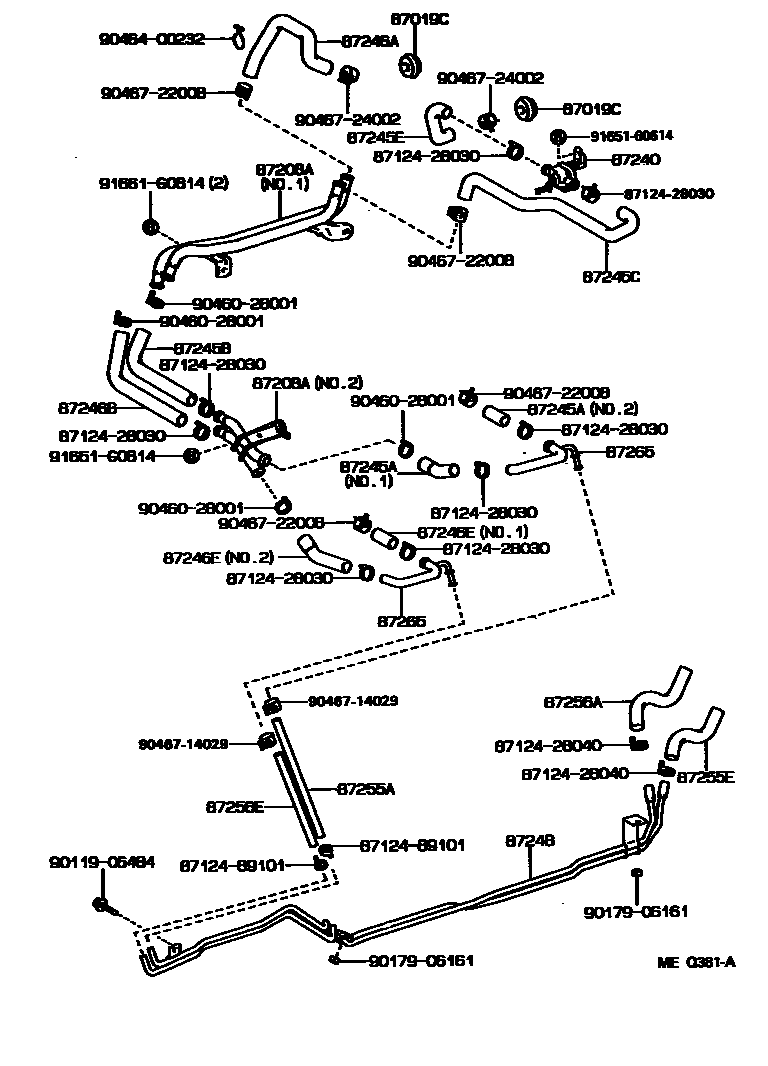

Toyota HILUX EPC diagram 8716, 暖风和空调系统 - 水管, with 10 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87019C | heater hose seal | 90480-36005 |
| 87208A | Heater water pipe sub-assembly A | 87208-35050 · 87208-35210 · 87208-89136 · 87208-89143 · 87208-89144 · 87208-89147 · 87208-89148 |
| 87240 | Heater water valve assembly | 87240-35020 · 87240-89124 · 87240-89125 · 87240-89126 |
| 87245A | Heater water inlet hose A | 87245-35040 · 87245-35060 · 87245-35160 · 87245-35230 · 87245-35250 · 87245-35320 · 87245-89218 · 87245-89226 · 87245-89228 · 87245-89238 · 87245-89259 · 87245-89269 · 87245-89270 · 87245-89279 · 87245-89289 |
| 87245B | Heater water inlet hose B | 87245-35110 · 87245-35340 · 87245-89240 · 87245-89258 · 87245-89281 |
| 87245C | Heater water inlet hose C | 87245-89240 · 87245-89243 · 87245-89285 |
| 87245E | Heater water inlet hose E | 87245-89231 · 87245-89232 · 87245-89233 |
| 87246A | Heater outlet hose A | 87245-35100 · 87245-35170 · 87245-35240 · 87245-35260 · 87245-89217 · 87245-89219 · 87245-89227 · 87245-89241 · 87245-89242 · 87245-89260 · 87245-89286 |
| 87246B | Heater outlet hose B | 87245-35350 · 87245-89282 |
| 87246E | Heater outlet hose E | 87245-35090 · 87245-35270 · 87245-35330 · 87245-89239 · 87245-89270 · 87245-89271 · 87245-89273 · 87245-89280 |
| 87248 | Water pipe sub-assembly | 87248-35010 · 87248-89130 · 87248-89133 |
| 87248A | Heater water inlet pipe A | 87208-14280 · 87208-35140 · 87208-35170 · 87208-89134 |
| 87249A | Heater outlet pipe A | 87208-35130 · 87208-35150 · 87208-35220 · 87208-89121 · 87208-89135 |
| 87249H | Outlet pipe gasket | 17175-72010 · 17175-72011 |
| 87255A | Rear heater water inlet hose A (from engine) | 87245-35080 · 87245-35220 · 87245-89248 · 87245-89283 |
| 87255E | Rear heater water inlet hose E (to heating device) | 87245-35190 · 87245-89246 |
| 87256A | Rear heater water outlet hose A (self-heating device) | 87245-35200 · 87245-89247 |
| 87256E | Rear heater water outlet hose E (to engine) | 87245-35120 · 87245-89249 · 87245-89284 |
| 87265 | Heater water hose connector | 87265-35030 · 87265-35040 · 87265-35050 · 87265-35160 · 87265-35170 · 87265-35180 · 87265-35190 · 87265-35200 · 87265-35210 · 87265-89108 · 87265-89109 · 87265-89114 · 87265-89115 · 87265-89117 |
| 87452M | Rear heater tube No. 4 bracket | 87452-35010 · 87452-35020 |
