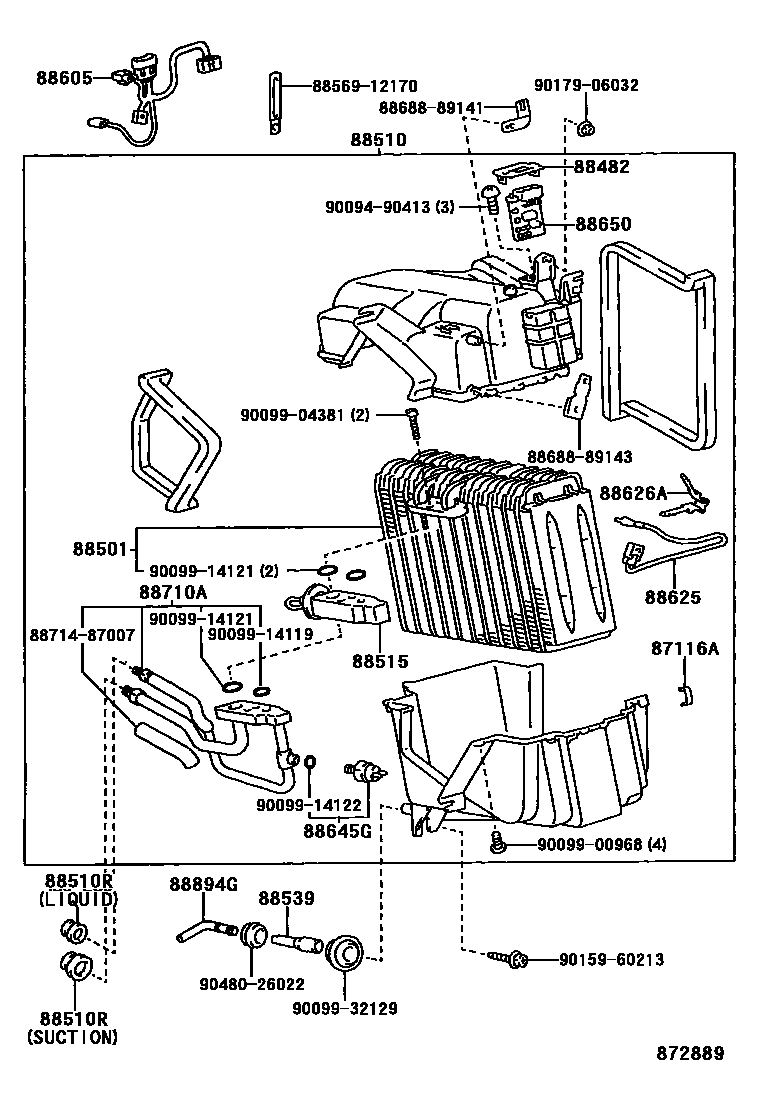

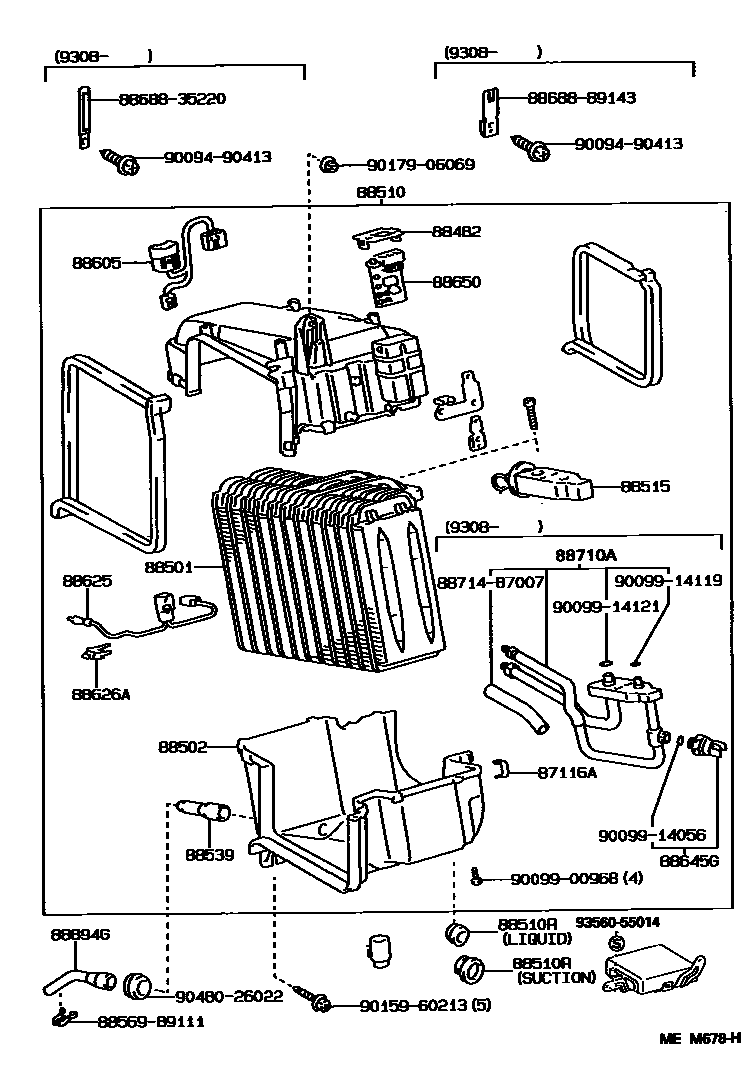

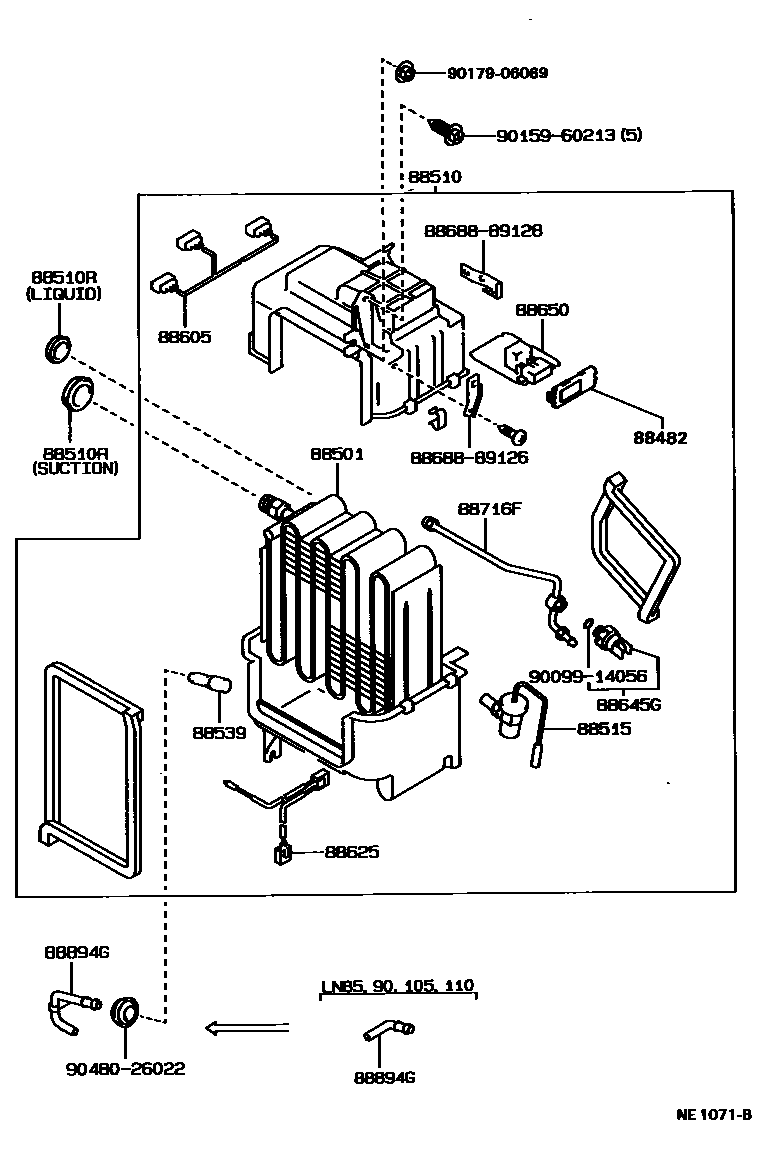

Toyota HILUX 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota HILUX EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87116A | Fixing spring (for cooler unit housing) | 87116-14010 |
| 88482 | cooler cover | 88482-60010 · 88482-60020 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-34010 · 88501-35010 · 88501-35011 · 88501-35020 · 88501-89111 · 88501-89113 |
| 88502 | Cooling device shell sub-assembly | 88521-89106 |
| 88510 | Cooler device assembly | 88510-35110 · 88510-35150 · 88510-35160 · 88510-35170 · 88510-35230 · 88510-35240 · 88510-35270 · 88510-35280 · 88510-35300 · 88510-35390 · 88510-35410 · 88510-89146 · 88510-89148 · 88510-89161 · 88510-89167 · 88510-89174 · 88510-89175 · 88510-89180 |
| 88510R | Seals (for cooler units) | 90480-26003 · 90480-26027 · 90480-36003 · 90480-36019 |
| 88515 | Cooler expansion valve | 88515-14061 · 88515-14062 · 88515-16040 · 88515-20100 · 88515-34010 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-89113 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-35050 · 88605-35060 · 88605-35080 · 88605-35120 · 88605-35130 · 88605-35140 · 88605-35180 · 88605-35190 · 88605-89151 · 88605-89156 · 88605-89159 · 88605-89170 · 88605-89172 |
| 88625 | Cooler No. 1 Thermistor | 88625-34010 · 88625-35010 · 88625-35020 · 88625-89102 · 88625-89103 |
| 88626A | Thermistor mount | 88626-33010 |
| 88630 | Cooler relay assembly | 88630-95702 |
| 88645G | pressure switch | 88645-10020 · 88645-16020 · 88645-20050 · 88645-34010 |
| 88650 | Cooler stabilized amplifier assembly | 88650-35030 · 88650-89108 · 88650-89109 · 88650-89110 · 88650-89113 |
| 88650E | No. 1 air conditioning amplifier assembly | 88650-89115 |
| 88710A | Air conditioning pipe assembly | 88710-35100 · 88710-35110 · 88710-89122 |
| 88716F | Cooler refrigerant liquid pipe F | 88716-34010 · 88716-89156 |
| 88894G | Drain hose connector | 88894-35020 · 88894-35030 · 88894-89108 · 88894-89109 · 88894-89112 |
