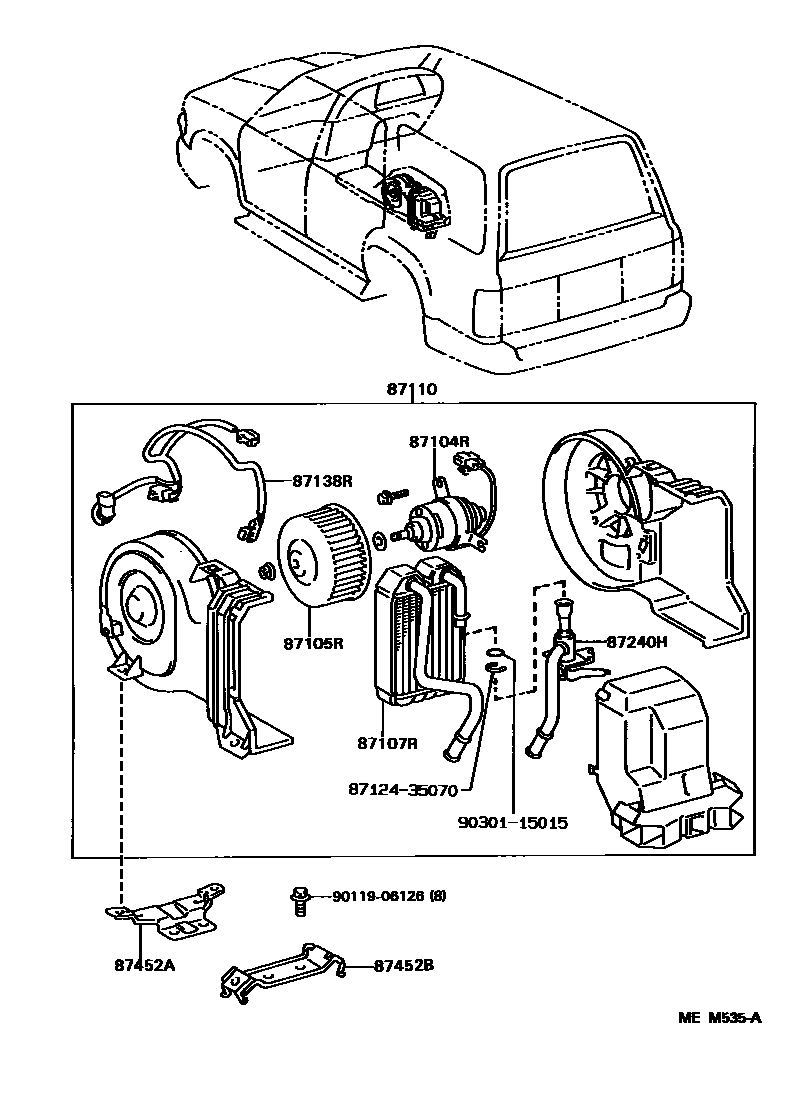

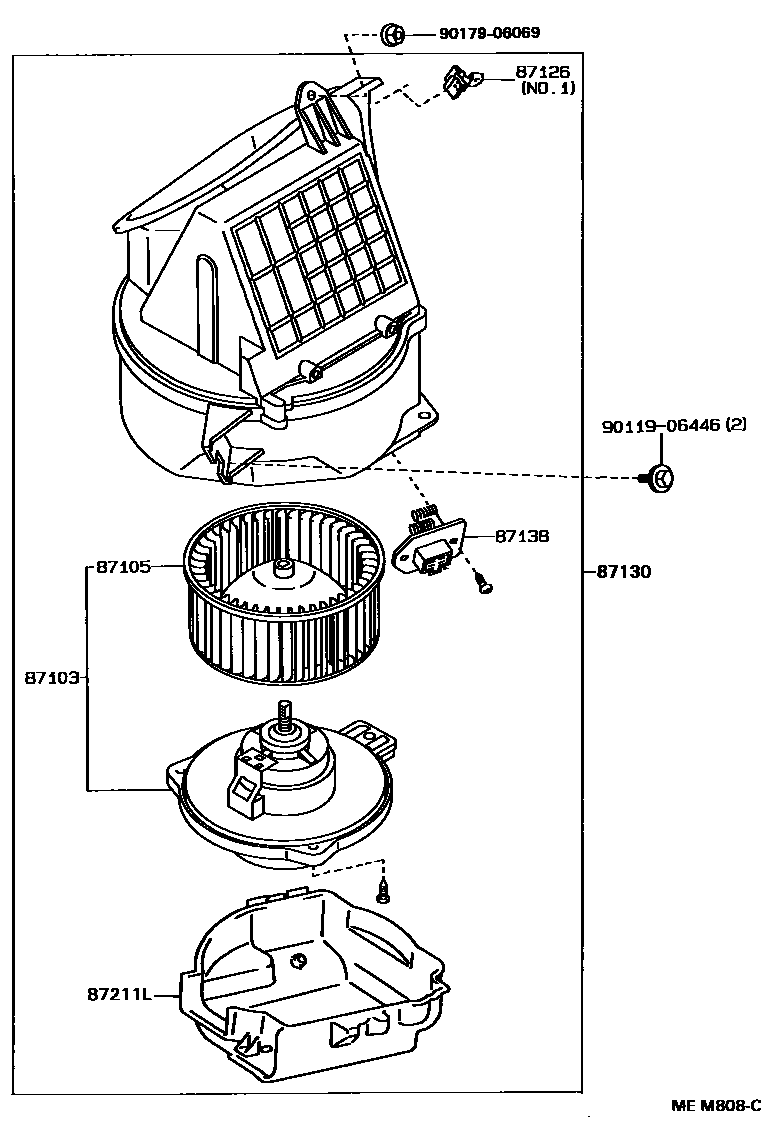

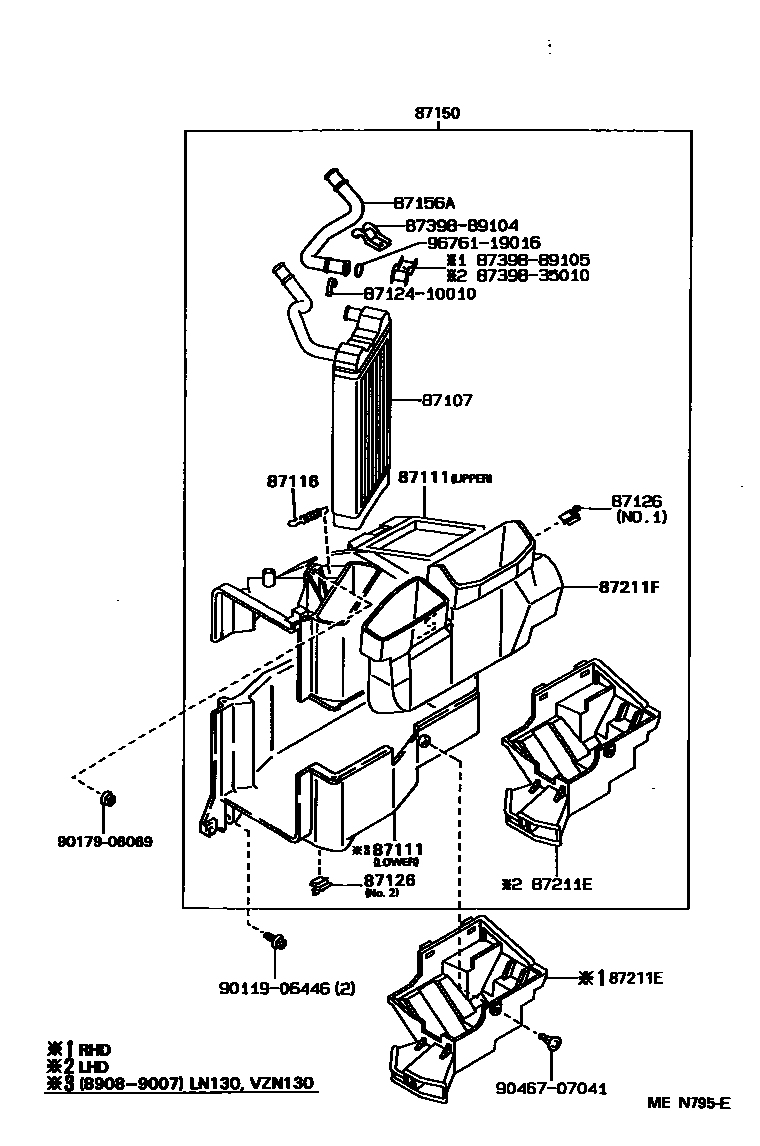

Toyota HILUX 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712
Toyota HILUX EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 3 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87103 | Heater blower motor sub-assembly with fan | 87103-04021 · 87103-17010 · 87103-17020 · 87103-42010 · 87103-42020 · 87103-89101 · 87103-89102 · 87103-89105 |
| 87104R | Rear heater blower motor sub-assembly | 87104-89116 |
| 87105 | Heater blower fan sub-assembly | 87105-32010 · 87105-32020 · 87134-30050 |
| 87105R | Rear heater blower fan sub-assembly | 87105-95J00 |
| 87107 | Heater radiator device sub-assembly | 87107-04010 · 87107-04020 · 87107-35020 · 87107-35030 · 87107-89116 · 87107-89118 · 87107-89119 · 87107-89121 |
| 87107R | Rear heater device sub-assembly | 87107-89122 |
| 87110 | heater assembly | 87110-89139 |
| 87111 | heater shell | 87111-04010 · 87111-04020 · 87111-35010 · 87111-35020 · 87111-35030 · 87111-35040 · 87111-35050 · 87111-35110 · 87111-35120 · 87111-35130 · 87111-89101 |
| 87116 | Heater shell fastening spring | 87116-89101 · 87116-89102 |
| 87126 | heater control clip | 87126-01010 · 87126-04010 · 87126-12050 · 87126-89101 |
| 87130 | Front heater blower assembly | 87130-04021 · 87130-35010 · 87130-35020 · 87130-89114 · 87130-89115 · 87130-89117 |
| 87138 | Heater Blower Resistor | 87138-04011 · 87138-35010 · 87138-35020 · 87138-35030 · 87138-89105 · 87138-89106 |
| 87138R | Rear heater blower resistor | 88635-89108 |
| 87150 | Heater radiator assembly | 87150-04010 · 87150-04020 · 87150-35080 · 87150-35090 · 87150-89114 · 87150-89116 · 87150-89117 · 87150-89119 · 87150-89120 · 87150-89122 · 87150-89123 |
| 87156A | Heater water hose connector | 87156-34010 · 87156-35020 |
| 87211E | air duct | 87211-04020 · 87211-89115 · 87211-89116 · 87211-89117 |
| 87211F | air duct | 87211-04010 · 87211-35040 · 87211-35050 · 87211-35060 · 87211-35070 |
| 87211L | air duct | 87211-89119 |
| 87240H | Water valve device assembly | 87240-89127 |
| 87452A | front heater bracket | 87452-89101 |
| 87452B | Rear heater bracket | 87452-89102 |
