Toyota HILUX 后视镜 — Figure 8701

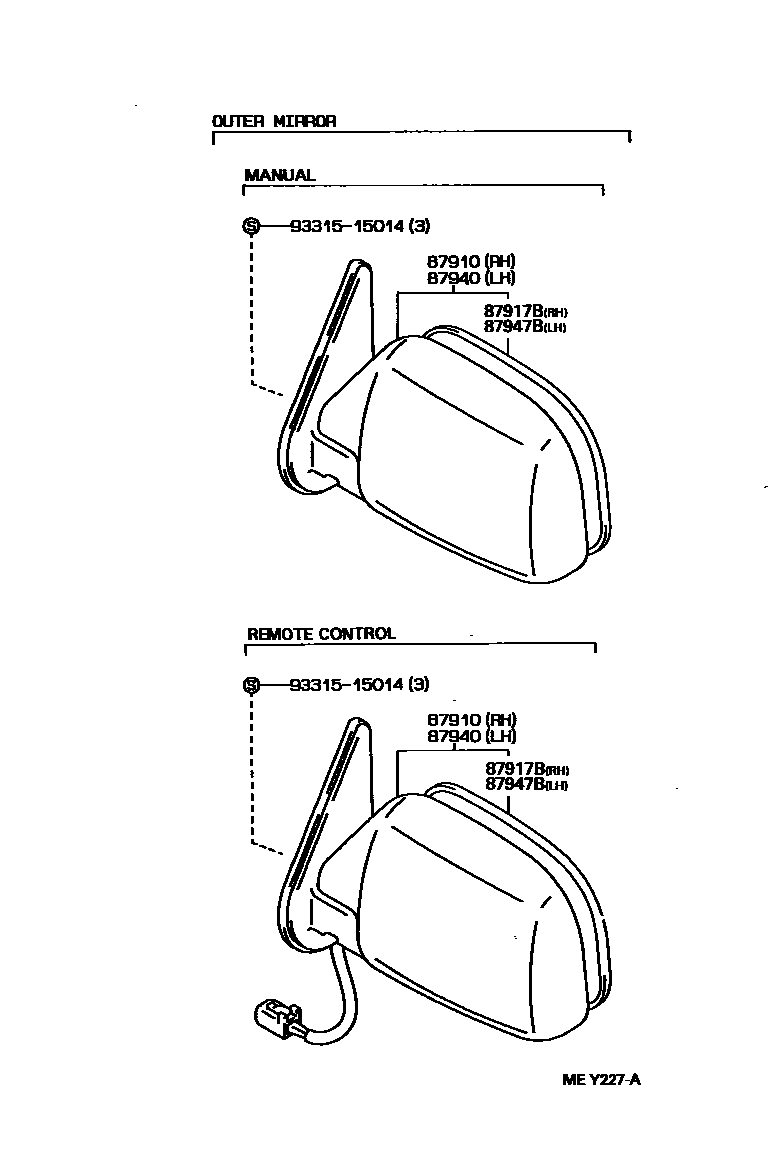

Toyota HILUX EPC diagram 8701, 后视镜, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810B | Interior rearview mirror light bulb | 99132-13050 |
| 87834 | Interior rearview mirror stay fixing cover | 87834-89104 |
| 87910 | Right exterior rearview mirror assembly | 87910-35100 · 87910-35102 · 87910-35110 · 87910-35111 · 87910-35140 · 87910-35180 · 87910-35190 · 87910-89147 · 87910-89154 · 87910-89160 · 87910-89162 · 87910-89163 · 87910-89164 |
| 87917B | Right exterior rearview mirror | 87917-35140 · 87917-89154 · 87917-89162 · 87917-89163 |
| 87940 | Left exterior rearview mirror assembly | 87940-35080 · 87940-35082 · 87940-35090 · 87940-35091 · 87940-35130 · 87940-35170 · 87940-35180 · 87940-89145 · 87940-89150 · 87940-89156 · 87940-89158 · 87940-89159 · 87940-89160 |
| 87947B | Left exterior rearview mirror | 87947-35130 · 87947-89150 · 87947-89158 · 87947-89159 |
