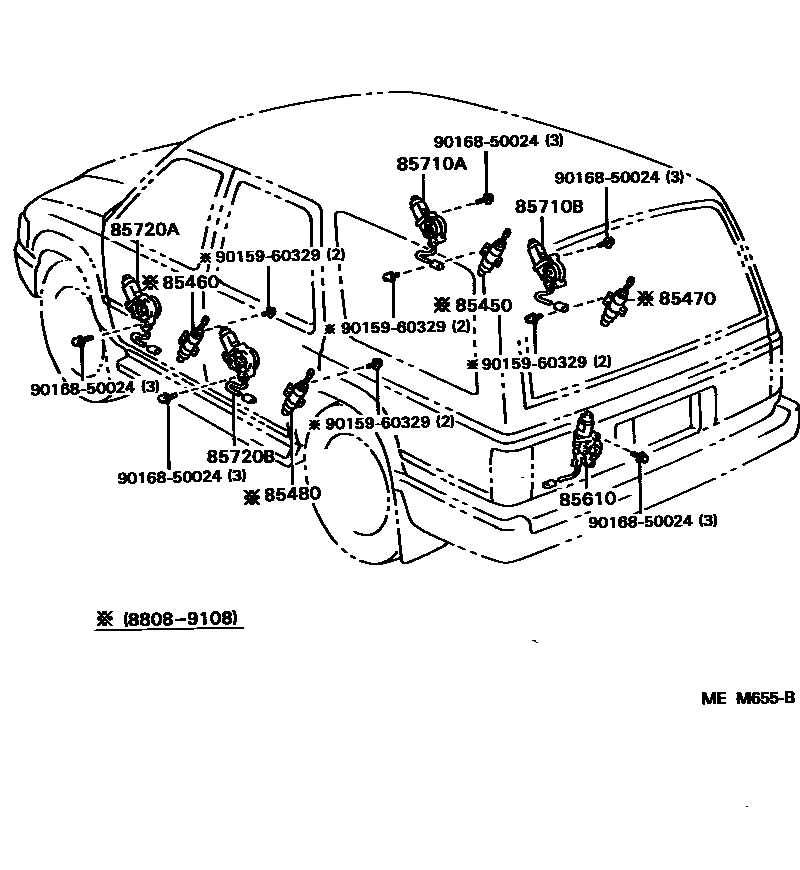

Toyota HILUX 车门电机和车门电磁阀 — Figure 8511
Toyota HILUX EPC diagram 8511, 车门电机和车门电磁阀, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85450 | Right front door control solenoid valve assembly | 85450-17010 |
| 85460 | Left front door control solenoid valve assembly | 85450-17020 |
| 85470 | Right rear door control solenoid valve assembly | 85450-30530 |
| 85480 | Left rear door control solenoid valve assembly | 85450-30540 |
| 85610 | Back door lifter motor assembly | 85710-35050 · 85710-89105 |
| 85710A | Right front electric window lift motor assembly | 85710-35060 · 85710-35070 · 85710-89104 |
| 85710B | Right rear electric window lift motor assembly | 85710-35020 · 85710-35031 · 85710-89106 |
| 85720A | Left front electric window lift motor assembly | 85720-35070 · 85720-89102 |
| 85720B | Left rear electric window lift motor assembly | 85720-35010 · 85720-35020 · 85720-35031 · 85720-89103 |
