Toyota HILUX 前大灯清洗器 — Figure 8505

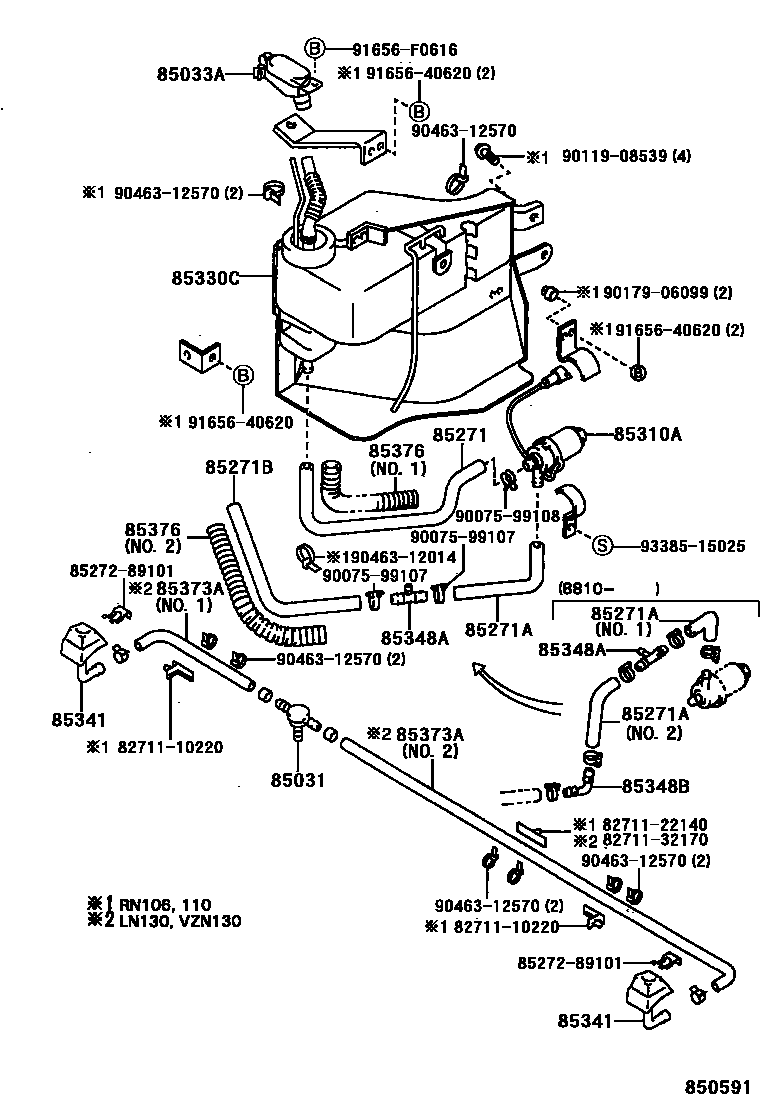

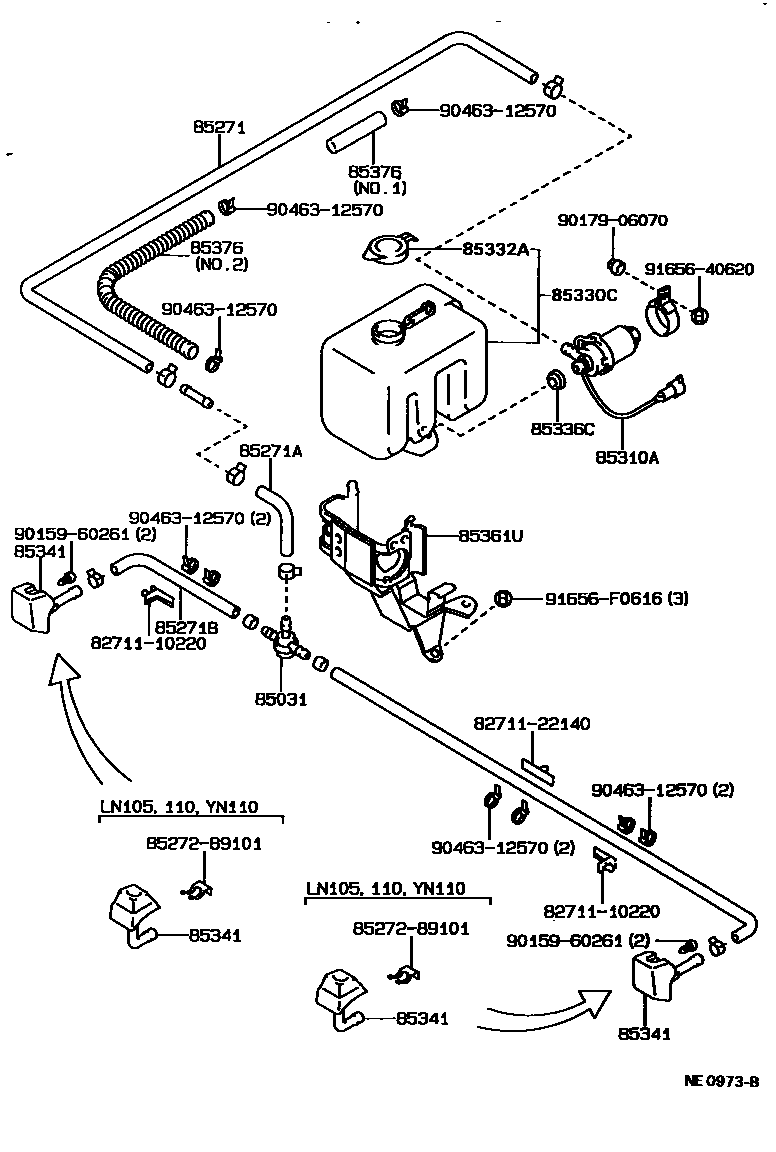

Toyota HILUX EPC diagram 8505, 前大灯清洗器, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031 | Headlight washer hose valve | 85031-12010 |
| 85033A | Cleaner cover sub-assembly | 85033-89101 |
| 85271 | No. 1 headlight washer hose | 85275-35020 · 85376-89140 |
| 85271A | No. 2 headlight washer hose | 85343-95700 · 85375-32011 · 85375-89133 · 85377-89140 · 85378-89140 |
| 85271B | No. 3 headlight washer hose | 85375-12510 · 85375-89140 |
| 85310A | Headlight washer motor and pump assembly | 85310-22100 · 85310-89111 |
| 85330C | Headlight washer cleaning fluid tank assembly | 85330-22120 · 85330-89112 · 85351-35060 · 85355-35021 · 85355-35030 |
| 85332A | Headlight washer washer fluid tank cap | 85332-16010 · 85332-89112 |
| 85336C | Headlight washer motor seal | 85336-10010 |
| 85341 | Headlight washer nozzle | 85035-89116 · 85035-89117 · 85035-89118 · 85044-35010 · 85044-35020 |
| 85348A | Headlight washer hose connector No. 1 | 85352-20010 · 85379-89131 |
| 85348B | No. 2 headlight washer hose connector | 85379-90K04 |
| 85361U | Headlight washer bracket | 85361-89105 |
| 85373A | Headlight washer hose (from connector to nozzle) | 85271-14130 · 85275-35060 · 85375-20171 · 85375-32011 |
| 85376 | No. 1 headlight washer hose protection device | 85375-14150 · 85375-24010 · 85376-12090 · 85376-89124 · 85377-20621 · 85377-22070 |
