Toyota HILUX 后清洗器 — Figure 8504

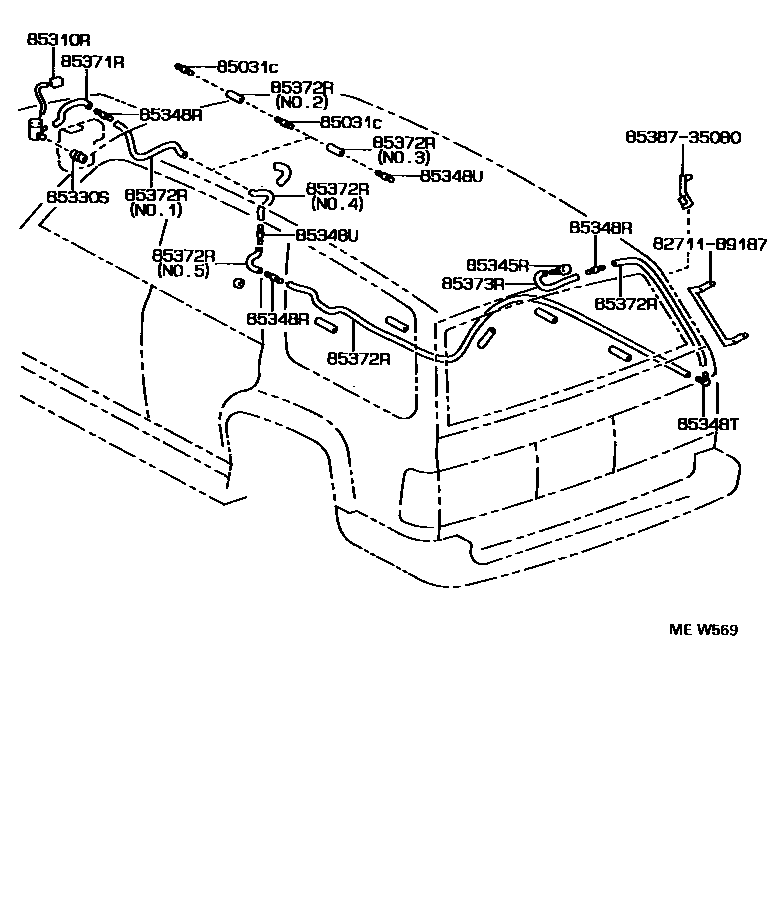

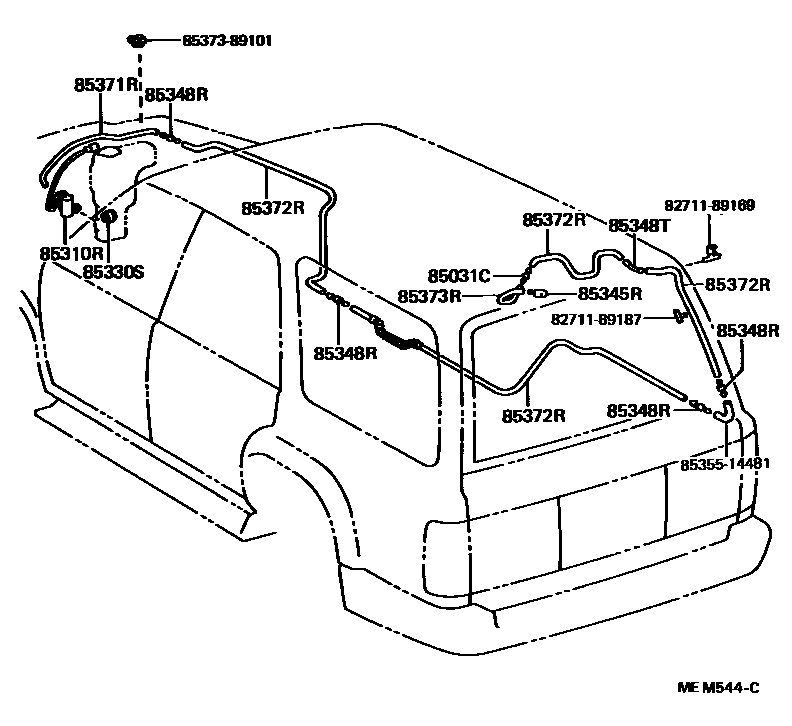

Toyota HILUX EPC diagram 8504, 后清洗器, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031C | Cleaner valve sub-assembly | 85031-12250 · 85031-30010 |
| 85310R | Rear washer motor assembly | 85310-89112 · 85310-89113 · 85310-89115 |
| 85330S | Rear washer fluid tank bushing | 90099-32089 |
| 85345R | Rear washer nozzle | 85341-89109 |
| 85348R | No. 1 rear washer hose connector | 85349-89122 |
| 85348T | No. 2 rear washer hose connector | 85355-20200 · 85355-32020 |
| 85348U | No. 3 rear washer hose connector | 85334-22470 |
| 85372R | Rear washer hose (from fitting to fitting or nozzle) | 90099-33201 · 90099-33241 · 90099-33651 · 90099-33690 · 90099-33814 · 90099-33821 · 90099-33822 · 90099-59008 |
| 85373R | Rear washer hose (from connector to nozzle) | 90099-33081 · 90099-33241 · 90099-33434 |
