Toyota HILUX 电子燃油喷射系统 — Figure 8404

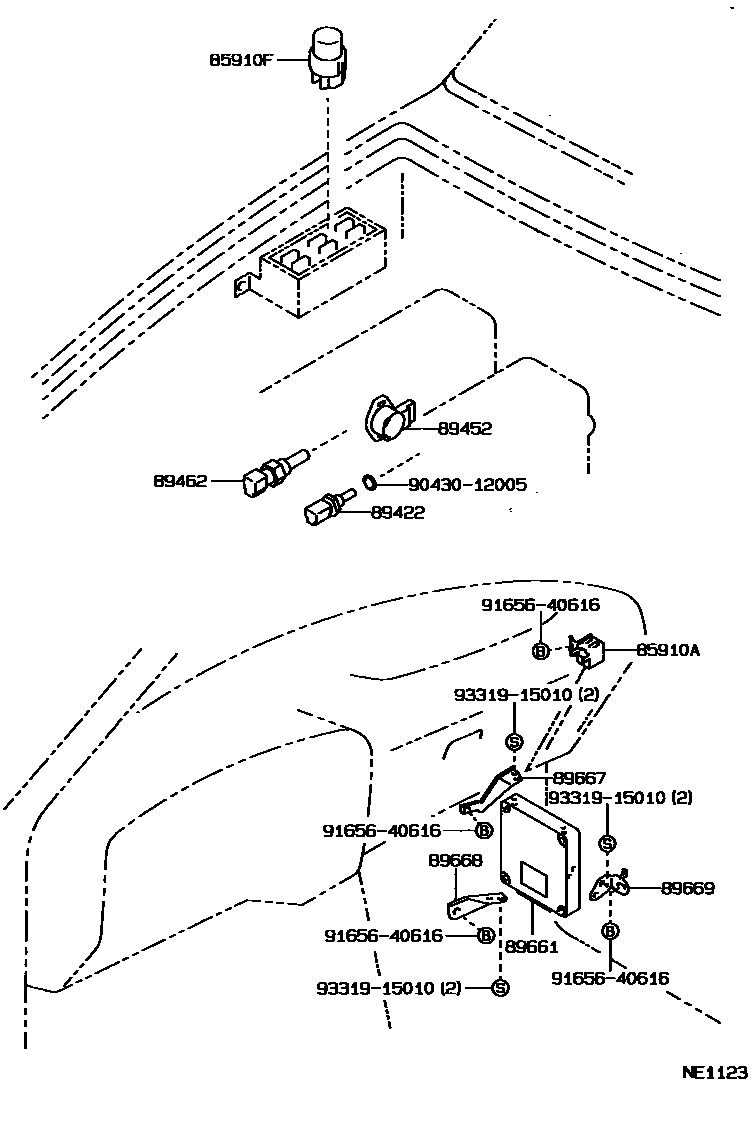

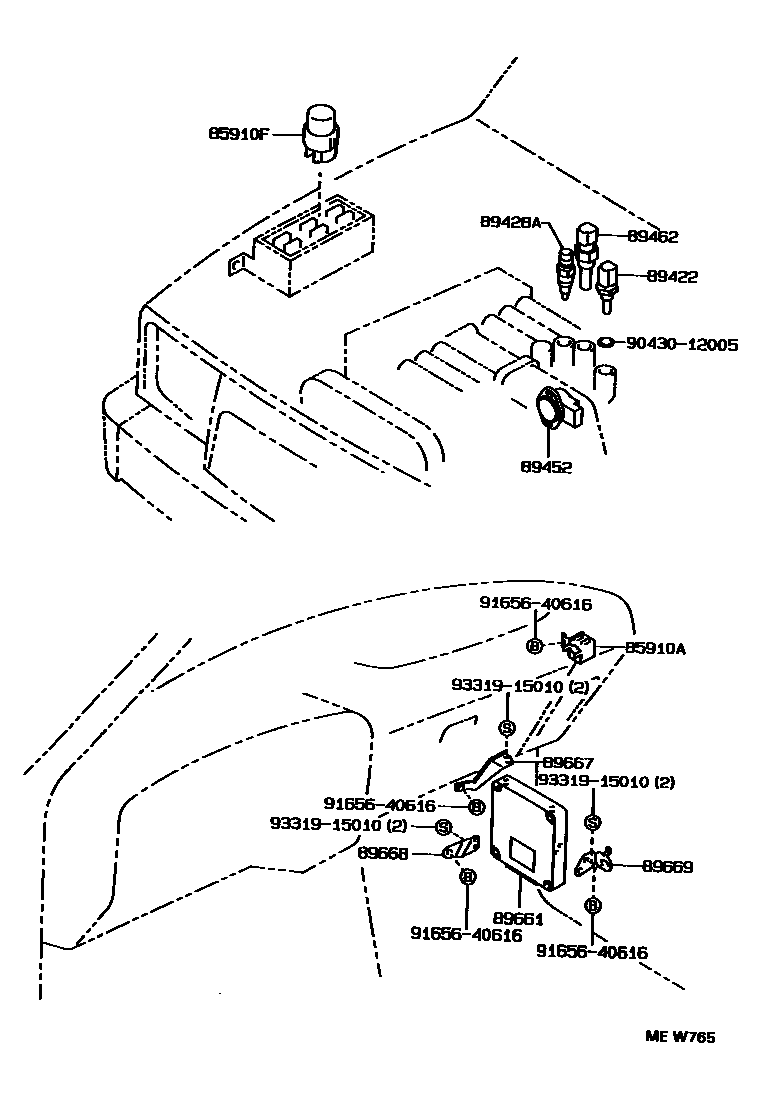

Toyota HILUX EPC diagram 8404, 电子燃油喷射系统, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85910A | Circuit breaking relay assembly (for EFI) | 85910-35010 |
| 85910F | ECU relay (for EFI) | 90987-02004 · 90987-02009 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-20010 · 89422-35010 |
| 89428A | Water temperature switch (for E.F.I.) | 89428-14070 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-12040 · 89452-14050 · 89452-22090 · 89452-28030 |
| 89462 | Start injector timing switch | 89462-20040 |
| 89661 | Engine control ECU | 89661-35150 · 89661-35470 · 89661-35471 · 89661-35510 · 89661-35580 · 89661-35630 · 89661-35750 · 89661-35780 · 89661-35830 · 89661-3D040 · 89661-3D120 |
| 89667 | Engine control ECU bracket | 89667-35030 · 89667-35040 |
| 89668 | No. 2 engine control ECU bracket | 89668-35030 · 89668-35040 · 89668-35060 |
| 89669 | No. 3 engine control ECU bracket | 89669-35030 · 89669-35040 |
