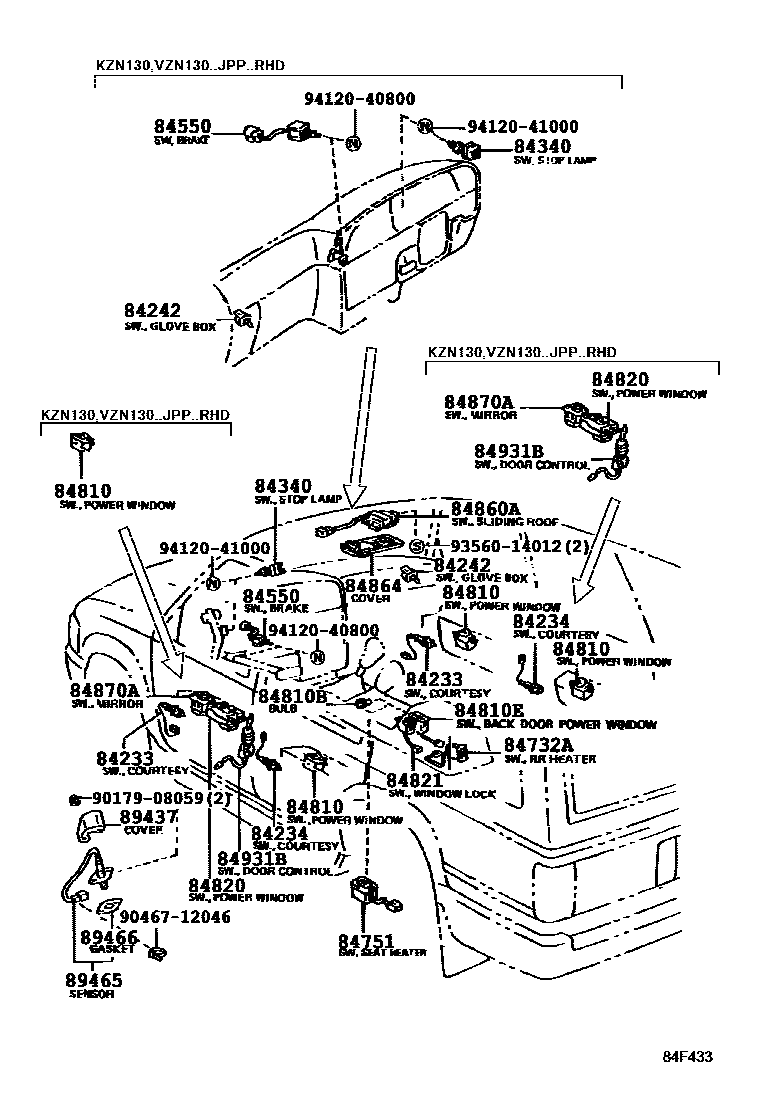

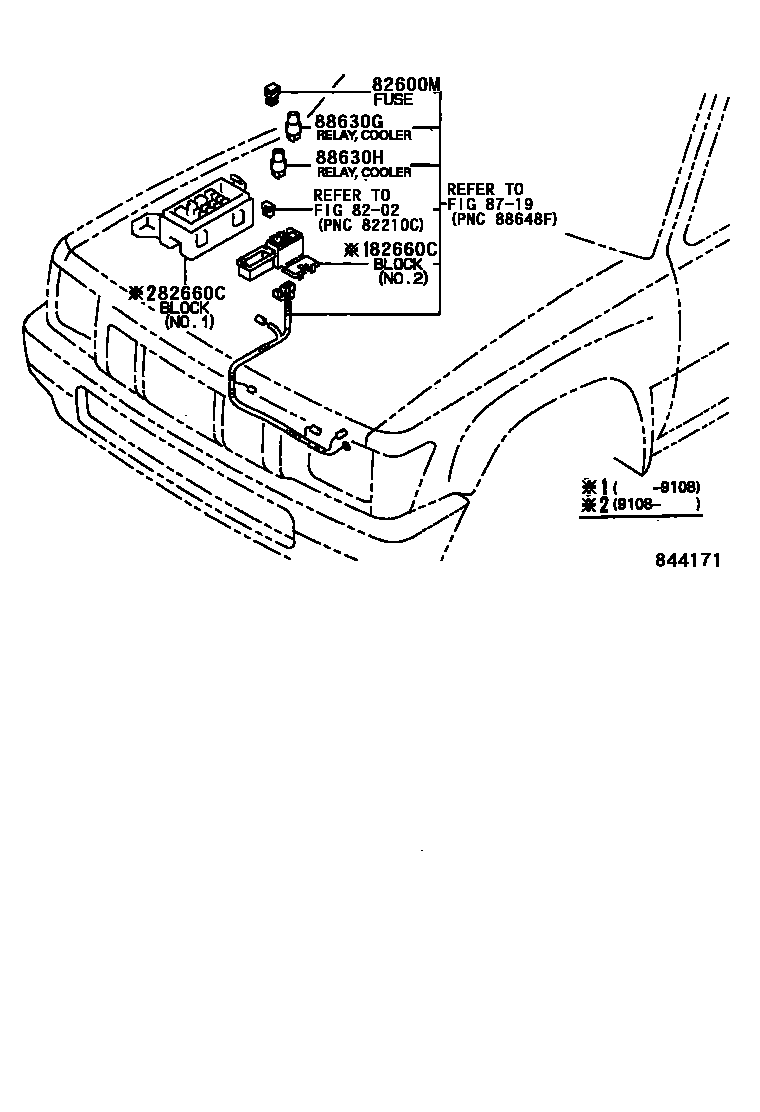

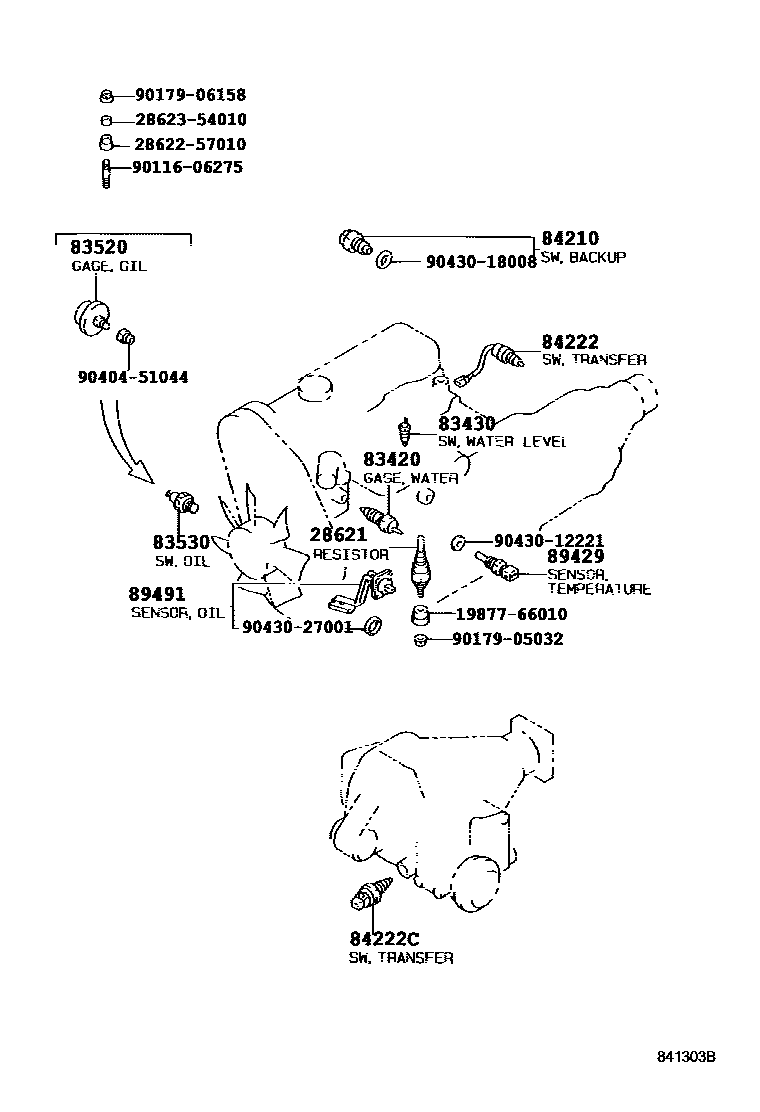

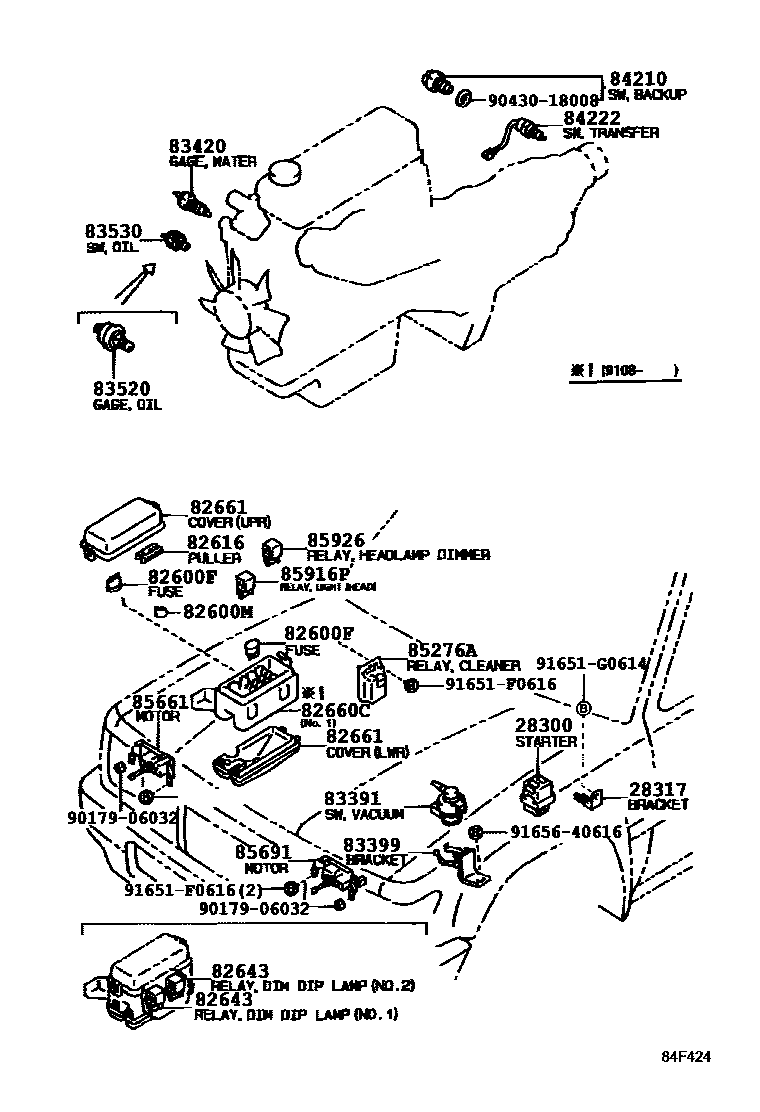

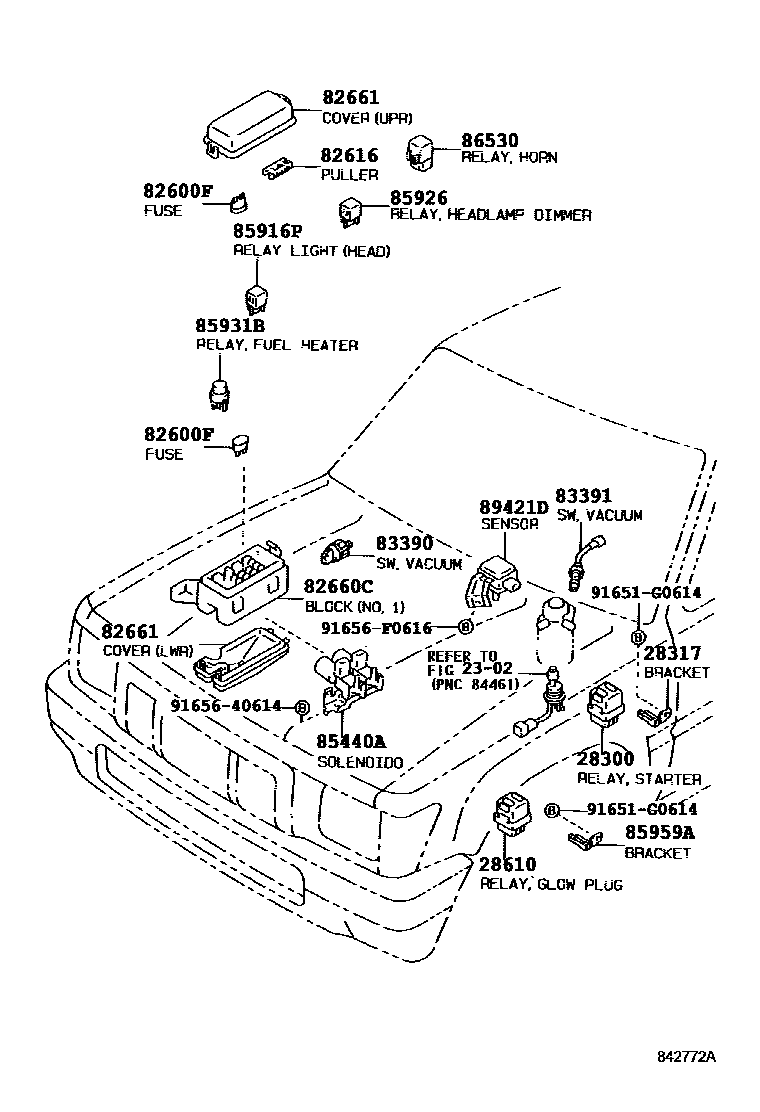

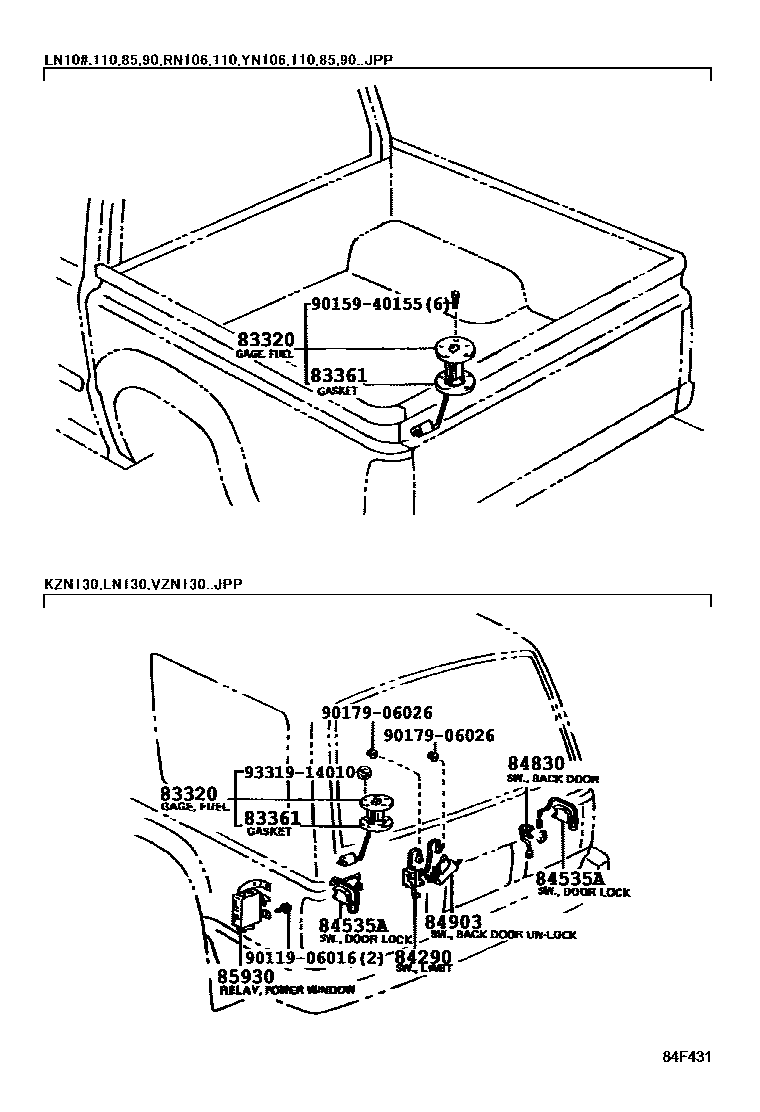

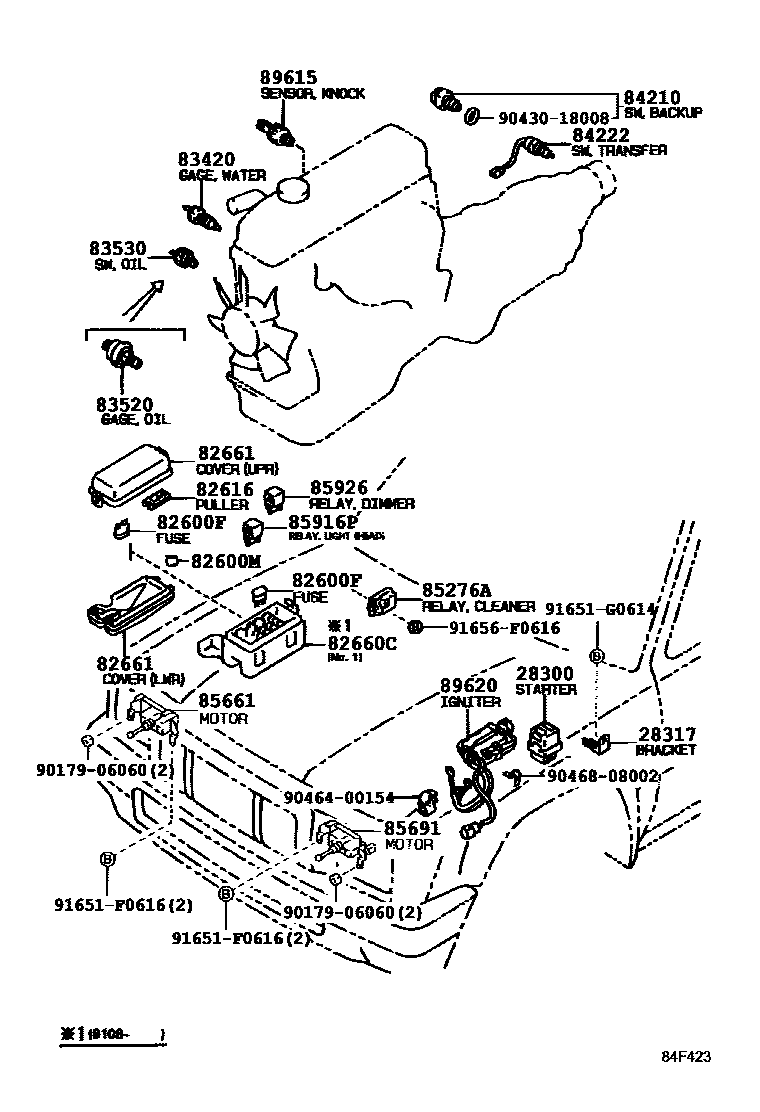

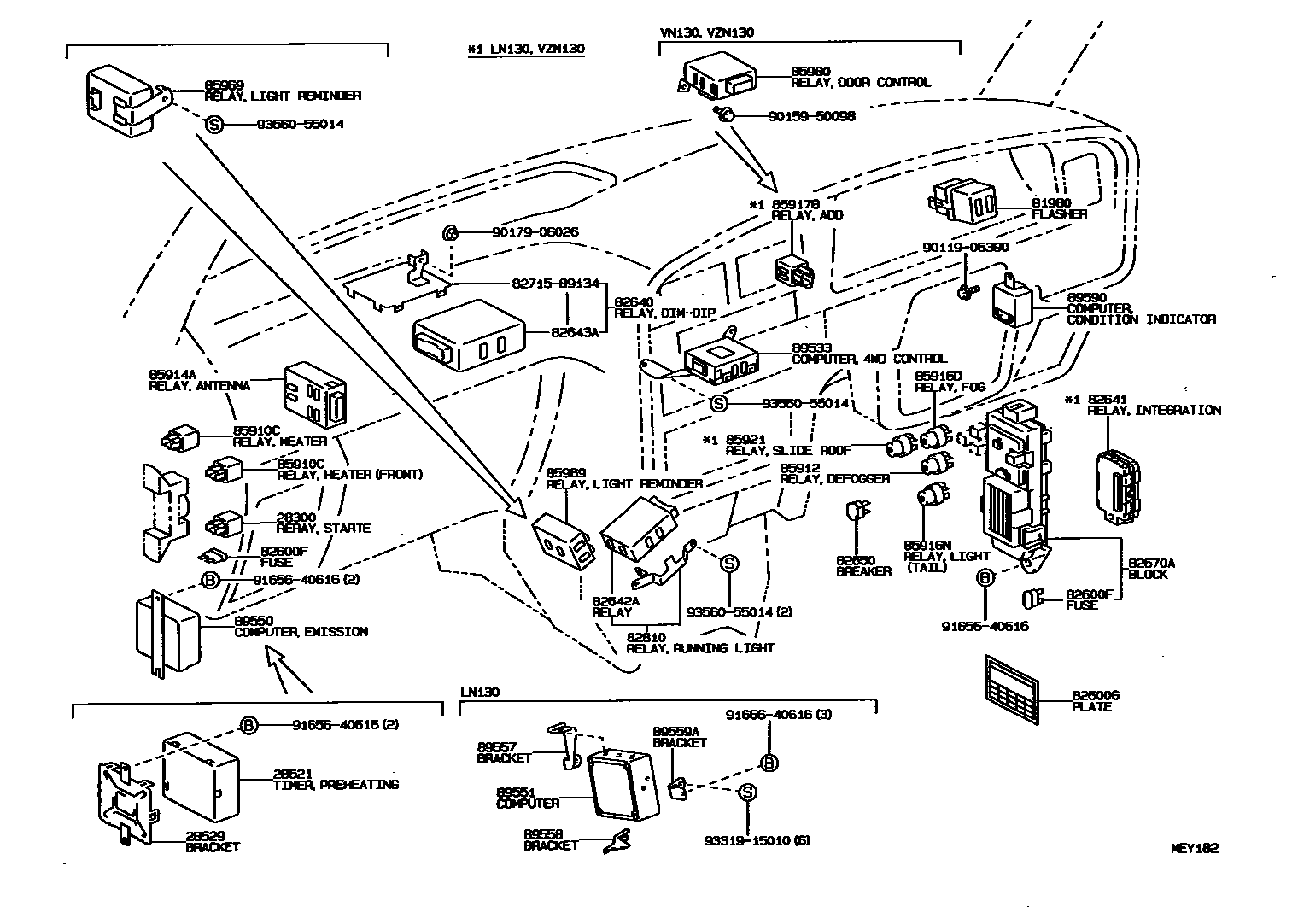

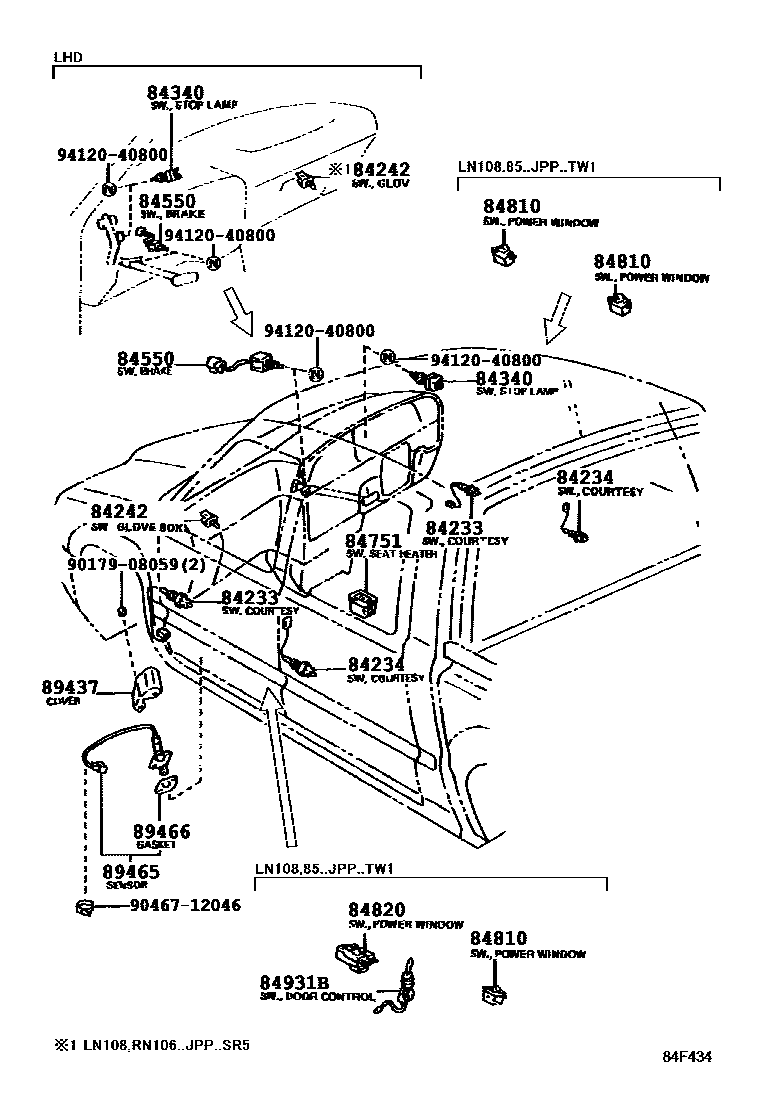

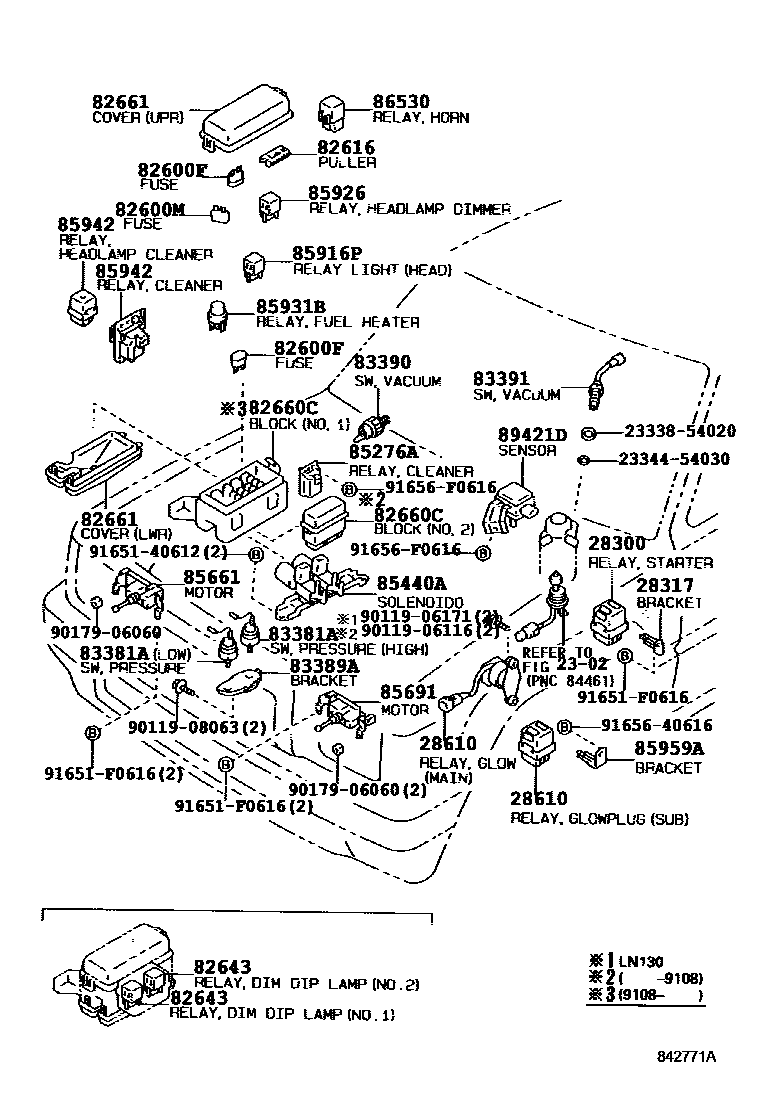

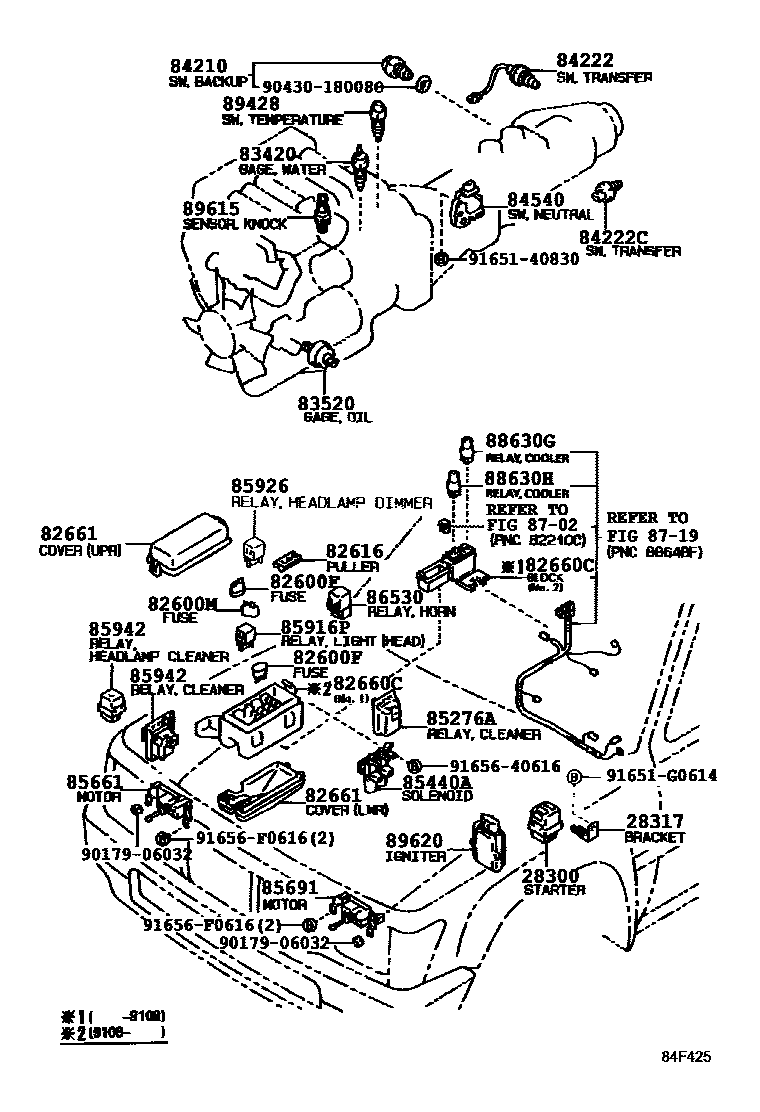

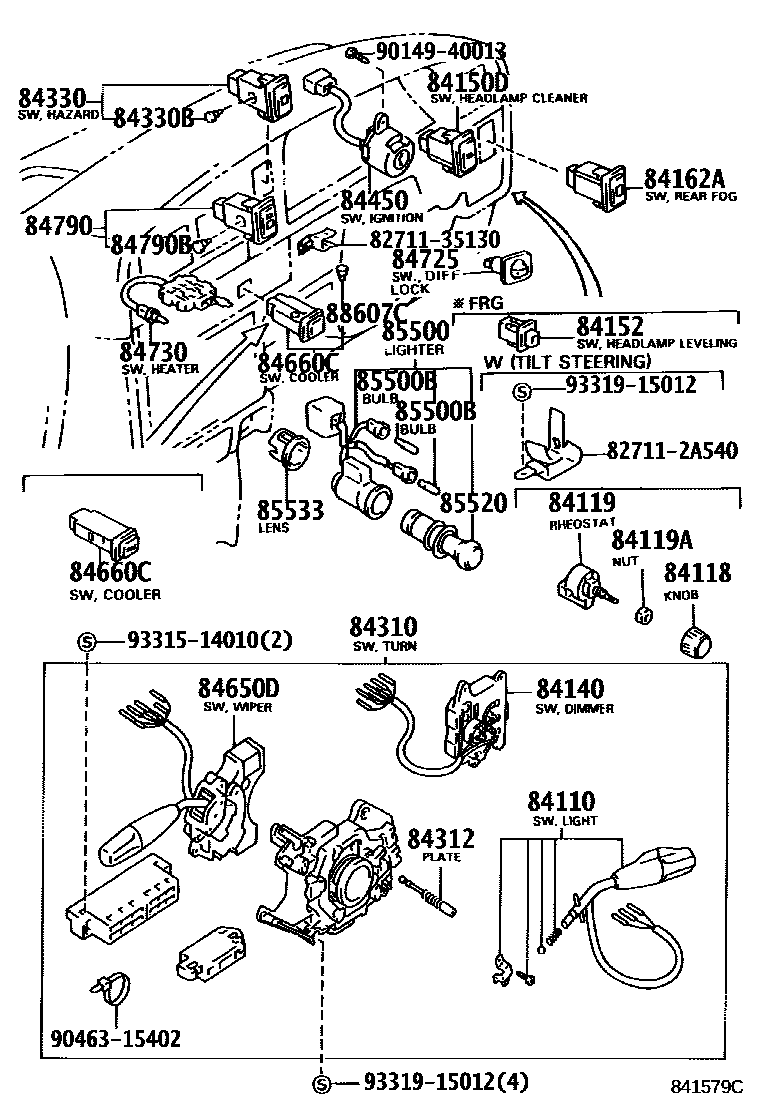

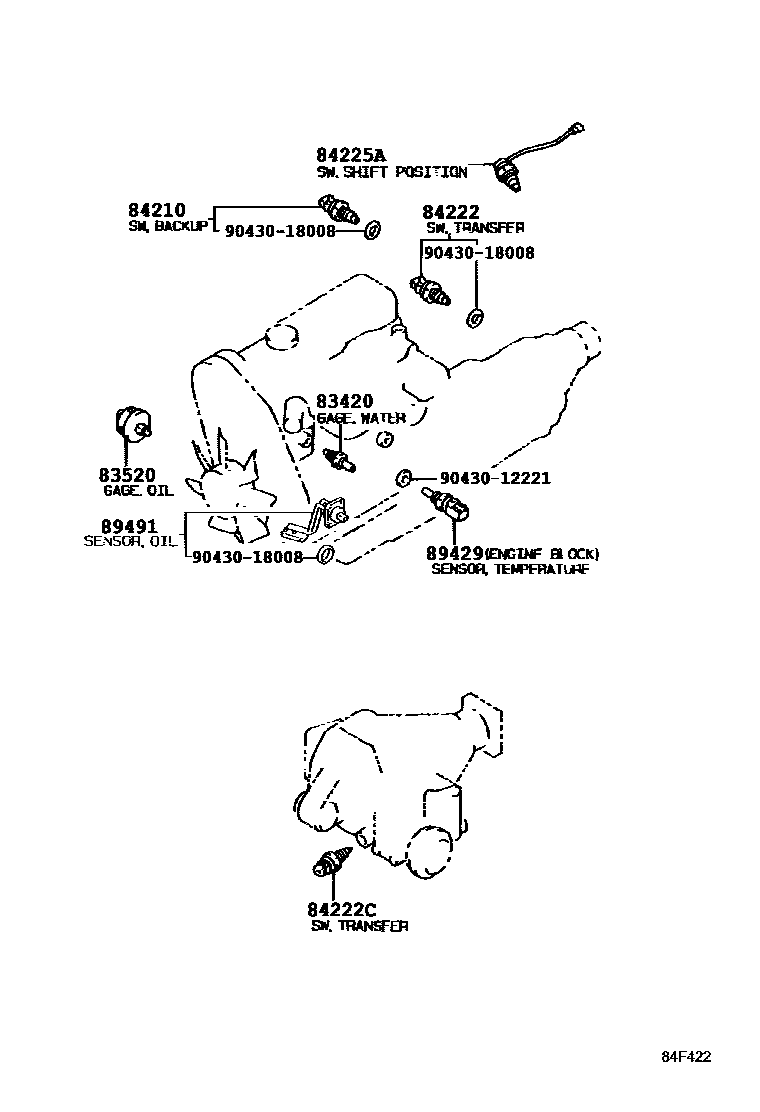

Toyota HILUX 开关和继电器和ECU — Figure 8401
Toyota HILUX EPC diagram 8401, 开关和继电器和ECU, with 13 images and 118 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-10020 · 28300-54070 · 28300-54110 · 28341-11010 · 28341-11040 · 90987-02009 |
| 28317 | Starter relay bracket | 85959-35020 |
| 28521 | Preheat timer | 28521-54360 · 28521-54430 · 28521-54460 · 28521-67010 |
| 28529 | Preheat timer bracket No. 1 | 28529-54160 · 28529-54170 |
| 28610 | Glow plug relay assembly | 28610-54280 · 28610-54300 · 28610-54310 · 28610-54370 · 28610-64110 · 28610-67010 |
| 28621 | glow plug resistor | 28621-54080 |
| 81980 | Turn signal flasher relay assembly | 81980-12070 |
| 82600F | Spare fuse | 90982-09002 · 90982-09003 · 90982-09004 · 90982-09005 |
| 82600G | Warning nameplate (for fuses) | 82683-35010 · 82683-35020 · 82683-35021 · 82683-35030 · 82683-89102 · 82683-89103 · 82683-89104 · 82683-89108 · 82683-89111 · 82683-89114 · 82683-89115 |
| 82600M | medium current fuse | 90982-10001 · 90982-10002 |
| 82616 | fuse puller | 82616-89102 |
| 82640 | Low beam relay assembly | 82640-89102 |
| 82641 | Integrated relay No. 1 | 82641-89103 · 82641-89106 |
| 82642A | driving light relay | 82642-12030 · 82642-13010 |
| 82643 | low beam relay | 90987-02006 · 90987-04002 |
| 82643A | low beam relay | 82643-12020 |
| 82650 | No. 1 circuit breaker assembly | 82650-20011 · 82650-20020 |
| 82660C | Relay assembly | 82660-35030 · 82660-35100 · 82660-89131 · 82660-89136 |
| 82661 | No. 1 relay box cover | 82662-35010 · 82662-35020 · 82662-35030 · 82662-35040 · 82662-35050 · 82662-35060 · 82662-35070 · 82662-35080 · 82662-35110 · 82662-35170 · 82662-35180 · 82662-35190 · 82662-35200 · 82662-35230 · 82662-35310 · 82662-35380 · 82662-35381 · 82662-35390 · 82662-35391 · 82662-89101 · 82662-89102 · 82662-89103 · 82662-89104 · 82662-89105 · 82662-89106 · 82662-89107 · 82662-89108 · 82662-89111 · 82663-35010 · 82663-89101 |
| 82670A | No. 1 junction box assembly | 82670-35030 · 82670-89109 · 82670-89110 · 82670-89111 |
| 82810 | Driving light relay assembly | 82810-89101 |
| 83320 | Fuel gauge sensor assembly | 83320-80118 · 83320-80119 · 83320-80120 · 83320-80124 · 83320-80132 · 83320-80133 · 83320-80134 · 83320-80135 · 83320-80175 · 83320-80177 · 83320-80206 |
| 83361 | fuel gauge sensor gasket | 83361-20030 |
| 83381A | pressure switch | 83381-16050 · 83381-60060 |
| 83389A | Pressure switch bracket | 83389-35020 |
| 83390 | Vacuum warning switch assembly | 83390-30020 · 83390-30100 |
| 83391 | Vacuum switch | 83391-20050 · 83391-32020 · 83391-35040 |
| 83399 | Vacuum switch bracket | 83399-35020 |
| 83420 | Water temperature sensor assembly | 83420-16020 · 83420-16040 · 83420-20020 |
| 83430 | Water level sensor switch assembly | 83430-96440 |
| 83520 | Oil pressure gauge sensor assembly | 83520-14023 · 83520-34010 · 83520-35020 · 83520-35030 · 83520-55011 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-14030 · 83530-14070 · 83530-30060 |
| 84110 | No. 1 light control switch assembly | 84112-09030 · 84112-39615 · 84112-39625 |
| 84118 | Light control rheostat button | 84118-89102 |
| 84119 | Light control rheostat | 84119-89107 |
| 84119A | Rheostat control retaining bolt or nut | 90170-09002 |
| 84140 | Headlight dimmer switch assembly | 84140-04010 · 84140-35090 · 84140-35100 |
| 84150D | Headlight washer switch assembly | 84150-35010 · 84150-89101 |
| 84152 | Headlight beam height adjustment switch | 84152-89101 |
| 84162A | Rear fog light switch | 84162-89104 · 84162-89105 |
| 84210 | Reversing light switch assembly | 84210-12040 |
| 84222 | No. 1 transfer case indicator switch | 84222-12010 · 84222-35050 · 84222-35060 |
| 84222C | No. 3 transfer case indicator light switch | 84222-35070 |
| 84225A | Shift lever position switch | 84225-35010 |
| 84233 | Door control light switch assembly (for front door) | 84230-12120 |
| 84234 | Door control light switch assembly (for rear door) | 84230-12120 |
| 84242 | Glove box light switch | 84242-20030 |
| 84290 | Limit switch assembly | 84290-35010 · 84290-89102 |
| 84310 | Turn signal switch assembly | 84310-04020 · 84310-35270 · 84310-35310 · 84310-35320 · 84310-35390 · 84310-35410 · 84310-35420 · 84310-35440 · 84310-35460 · 84310-35470 · 84310-35500 |
| 84312 | Speaker contact piece | 84312-03010 · 84312-12040 |
| 84330 | Hazard warning signal switch assembly | 84332-04010 · 84332-89110 |
| 84330B | Hazard warning signal switch light bulb | 84999-10320 |
| 84340 | brake light switch assembly | 84340-30030 · 84340-32050 |
| 84450 | Ignition or starter switch assembly | 84450-35090 · 84450-35110 · 84450-35130 |
| 84535A | door lock switch | 84535-35010 · 84535-89103 · 84535-89104 |
| 84540 | Neutral start switch assembly | 84540-30270 · 84540-35040 · 84540-50010 |
| 84550 | Parking brake switch assembly | 84550-35010 |
| 84650D | ENS. COMM, ESS-GL PARE-BRISE AV RELAIS, COMM ESS-GL | 84652-04020 · 84652-35170 · 84652-35210 · 84652-35220 · 84652-35290 · 84652-35310 · 84652-35320 · 84652-35340 · 84652-35360 · 84652-35370 · 84652-35400 |
| 84660C | Cooler switch | 84660-35010 · 84660-89105 |
| 84725 | Center differential lock switch | 84725-60030 |
| 84730 | Heater blower switch assembly | 84732-35030 · 84732-89113 · 84732-89114 · 84732-89115 |
| 84732A | Rear heater blower switch | 84732-89116 |
| 84751 | Seat heater switch | 84751-35010 · 84751-35020 · 84751-89101 · 84751-89102 |
| 84790 | Rear window defogger switch assembly | 84790-89101 |
| 84790B | Bulb (for rear window defogger switch) | 84999-10320 |
| 84810 | Electric window lift switch assembly | 84810-32070 |
| 84810B | Bulb (for power window lift switch) | 84999-10170 |
| 84810E | Rear door electric window lift switch assembly | 84810-35010 · 84810-89104 |
| 84820 | Electric window lift main switch assembly | 84820-22320 · 84820-35010 · 84820-35020 |
| 84821 | Power window lock switch | 84821-89102 |
| 84830 | Back door control switch assembly | 84830-35020 · 84830-89103 |
| 84860A | Sliding sunroof switch assembly | 84860-35010 · 84860-89101 |
| 84870A | Exterior rearview mirror switch assembly | 84870-89101 |
| 84903 | Door unlock switch sub-assembly | 84903-35010 · 84903-89102 |
| 84931B | door control switch | 84931-35010 · 84931-35050 · 84931-35060 · 84931-89101 |
| 85276A | Cleaner control relay | 85276-89101 · 85276-89102 |
| 85440A | Four-wheel drive control solenoid valve assembly | 85440-35010 · 85440-35030 |
| 85500 | Cigarette lighter assembly | 85500-35040 · 85500-89106 · 85500-89107 |
| 85500B | Cigarette lighter bulb | 90981-11014 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-89101 |
| 85533 | Cigarette lighter indicator lamp shade | 85533-10010 |
| 85661 | Right headlight beam height adjustment motor | 85661-89102 · 85661-89103 |
| 85691 | Left headlight beam height adjustment motor | 85691-89102 · 85691-89103 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04002 |
| 85912 | defogger relay | 90987-02004 · 90987-02009 |
| 85914A | Electric antenna control relay | 85914-30010 |
| 85916D | fog light relay | 90987-02004 · 90987-02009 |
| 85916N | Tail light relay | 90987-01003 |
| 85916P | headlight relay | 90987-02006 |
| 85917B | Automatic disengage differential relay | 28380-44030 |
| 85921 | Sliding sunroof control relay | 90987-02004 · 90987-02009 |
| 85926 | Headlight dimmer relay | 85926-30020 |
| 85930 | Electric window relay assembly | 85930-89102 · 85930-89103 · 85930-89104 · 85930-89105 |
| 85931B | Fuel heater relay | 90987-02004 · 90987-02009 |
| 85942 | Headlight washer control relay | 85942-35010 · 85942-35020 |
| 85959A | Relay mounting parts | 85959-35020 |
| 85969 | car light reminder relay | 85969-17010 · 85969-89102 · 85969-89103 |
| 85980 | Door control relay assembly | 85980-35010 · 85980-35040 · 85980-89105 |
| 86530 | Speaker relay assembly | 86530-20070 |
| 88607C | Indicator light sub-assembly | 88607-16010 |
| 88630G | Cooler relay assembly | 90987-02004 · 90987-02009 |
| 88630H | Cooler relay assembly | 90987-03001 · 90987-03003 |
| 89421D | turbo pressure sensor | 89420-35060 · 89421-60030 |
| 89428 | No. 2 temperature detection switch | 89428-89101 |
| 89429 | oil temperature sensor | 89422-20010 |
| 89437 | sensor cover | 89437-35020 · 89437-35030 |
| 89465 | oxygen sensor | 89465-39265 · 89465-39355 · 89465-39485 |
| 89466 | Oxygen sensor pad | 89466-20020 · 89466-30010 |
| 89491 | Engine oil level sensor | 89491-26110 · 89491-35010 · 89491-35020 · 89491-35030 |
| 89533 | Four-wheel drive control ECU | 89533-35040 |
| 89550 | Emission control ECU assembly | 89550-35360 · 89550-35450 |
| 89551 | Emission control ECU | 89551-35040 |
| 89557 | No. 1 Emission Control ECU Bracket | 89667-35030 |
| 89558 | No. 2 Emission Control ECU Bracket | 89668-35030 |
| 89559A | Emission control ECU bracket | 89669-35030 |
| 89590 | Status indicator light ECU assembly | 89590-35010 |
| 89615 | knock control sensor | 89615-20010 · 89615-22030 · 89615-22040 · 89615-35040 · 89615-50010 |
| 89620 | Ignition assembly | 89620-35210 · 89620-35280 · 89620-35310 · 89621-12050 · 89621-30010 |
