Toyota HILUX 工具箱和牌照支架 — Figure 7554

Toyota HILUX EPC diagram 7554, 工具箱和牌照支架, with 2 images and 4 PNC and OE references.

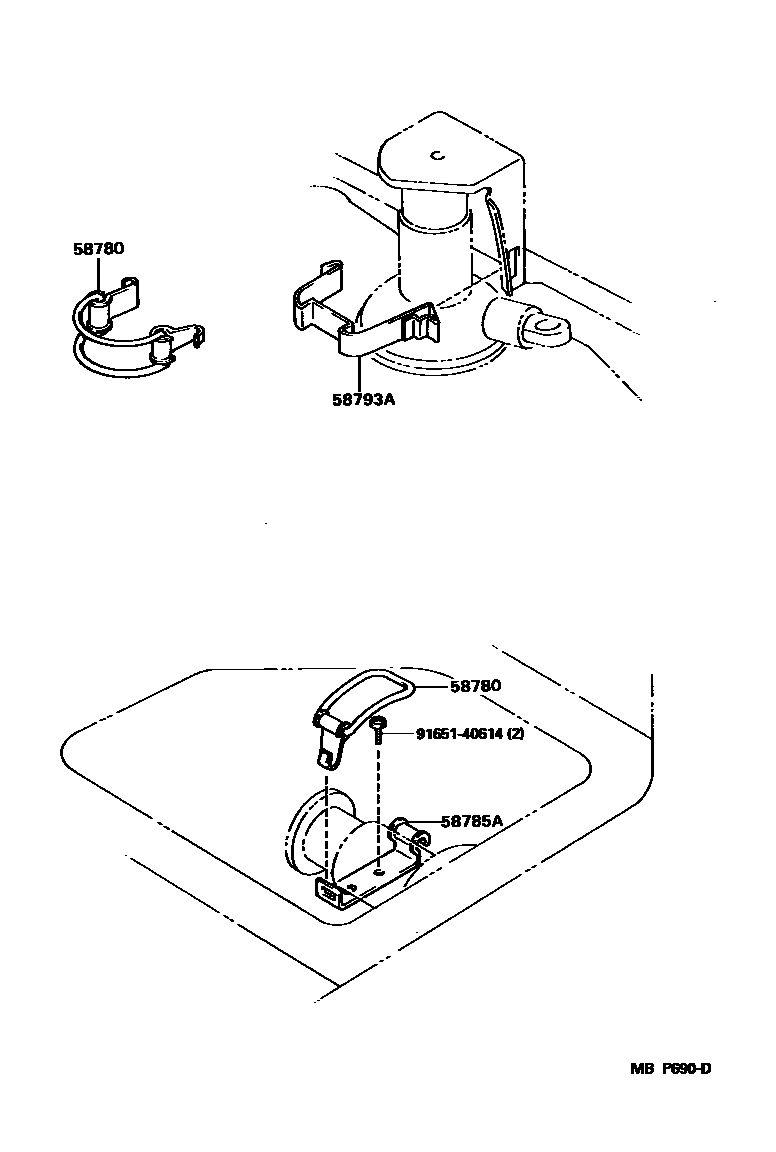

Toyota HILUX 工具箱和牌照支架 EPC diagram — MBP690D
工具箱和牌照支架 — MBP690D (198808 – 999999)
Toyota HILUX 工具箱和牌照支架 EPC diagram — MBT382A
工具箱和牌照支架 — MBT382A (198908 – 199511)

PNC and OE references

PNCPart nameOE numbers
58780Tool box strap assembly58780-35010 · 58780-89102 · 58780-89103
58785ATool bag strap holder58785-89103 · 58785-89105
58793AJack Bracket Bracket58792-89105
75129rear license plate cushion75129-89102
