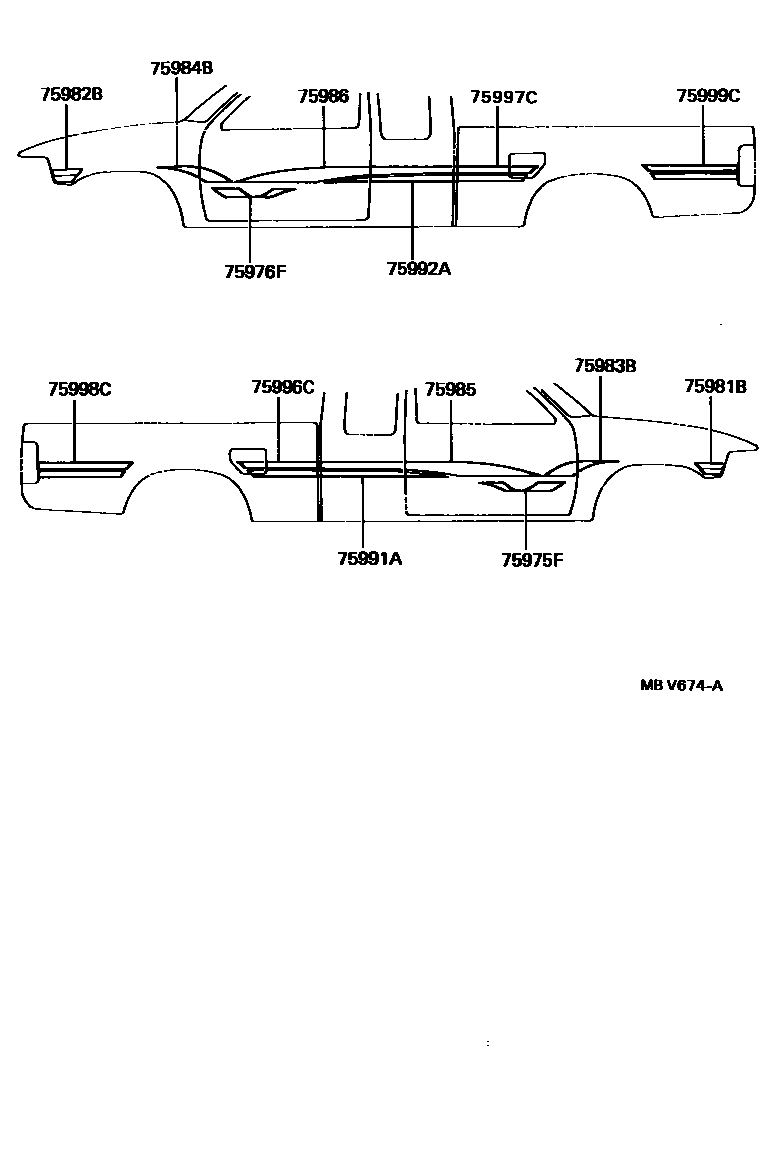

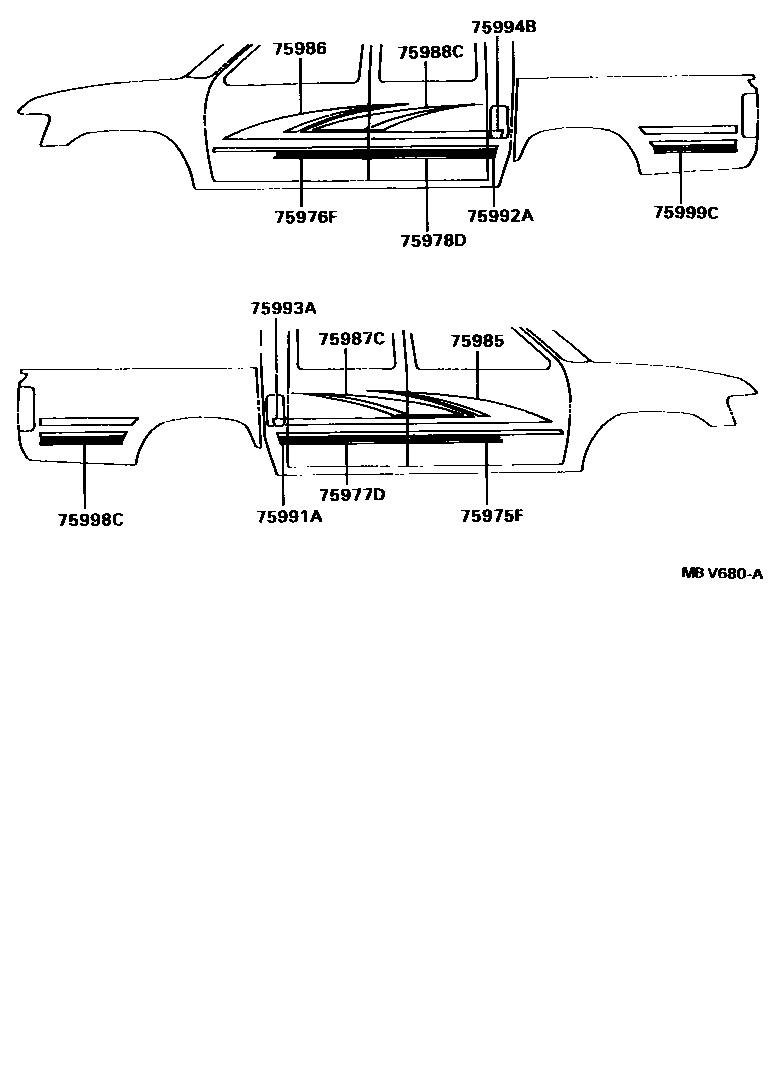

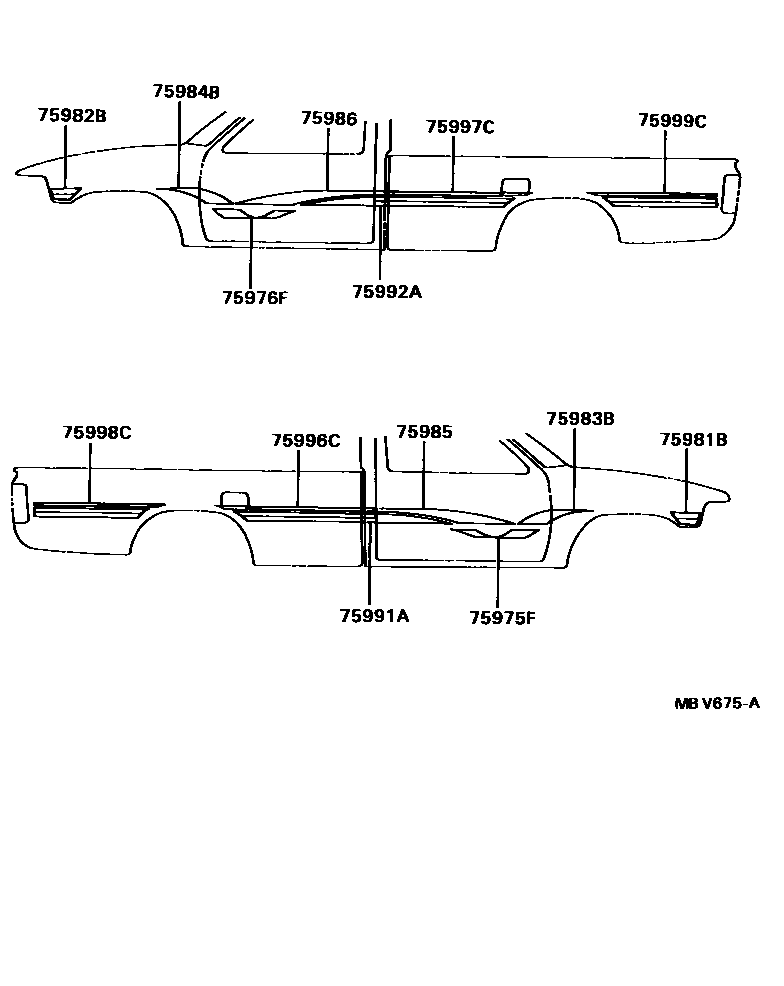

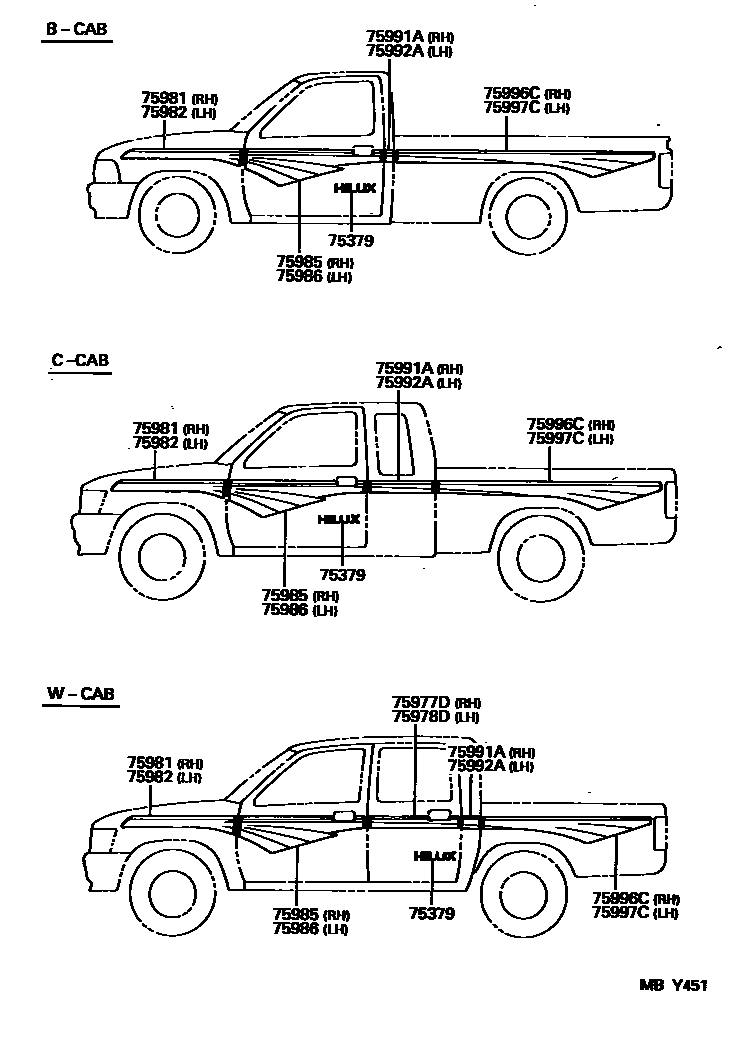

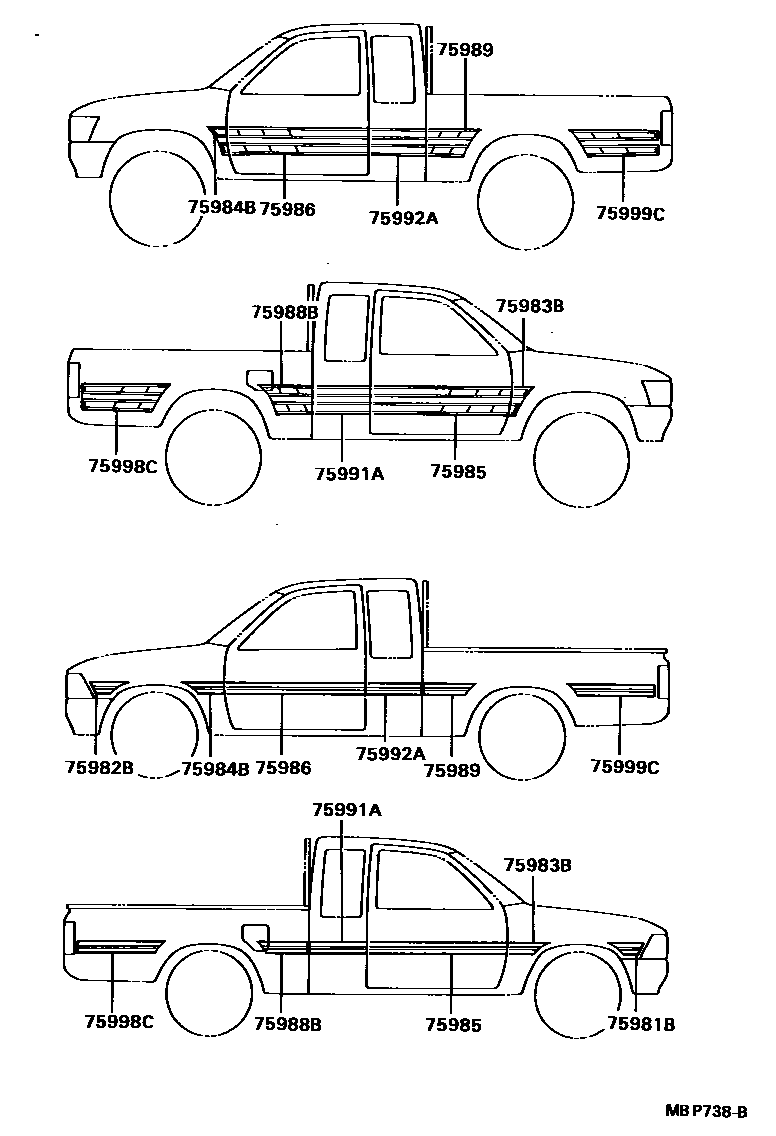

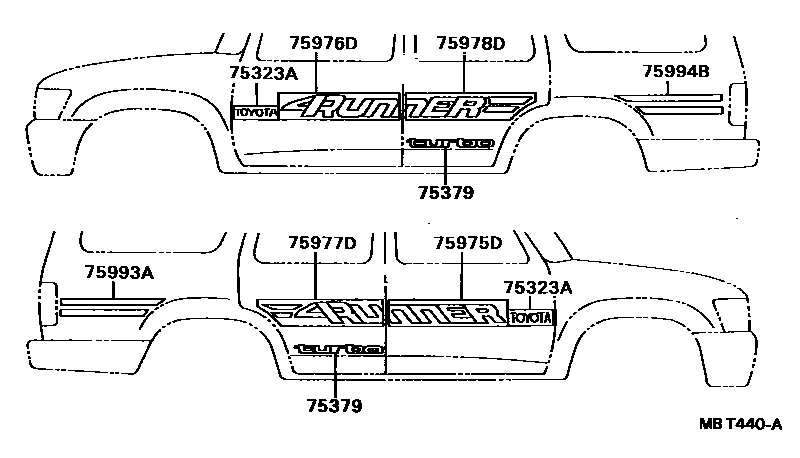

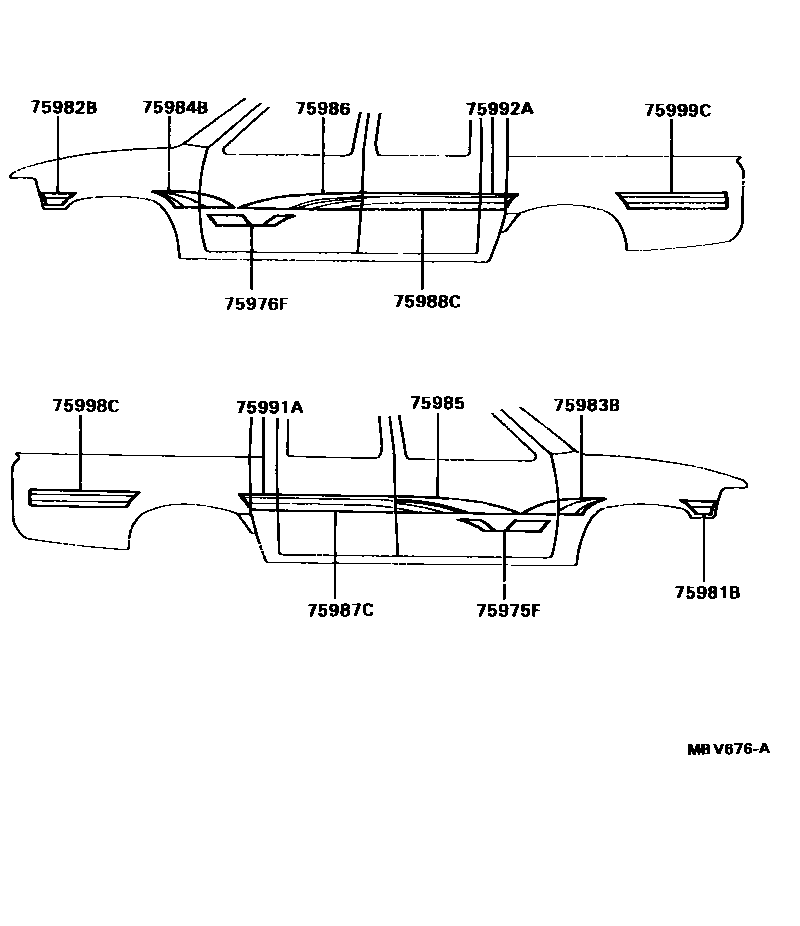

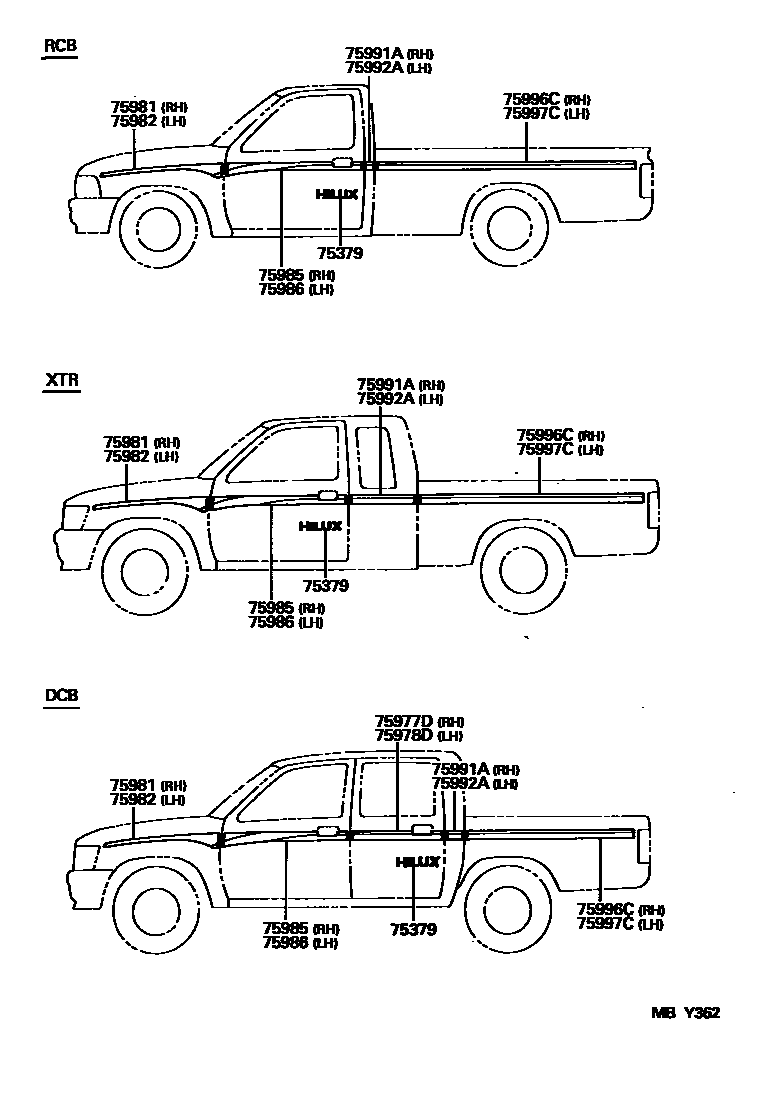

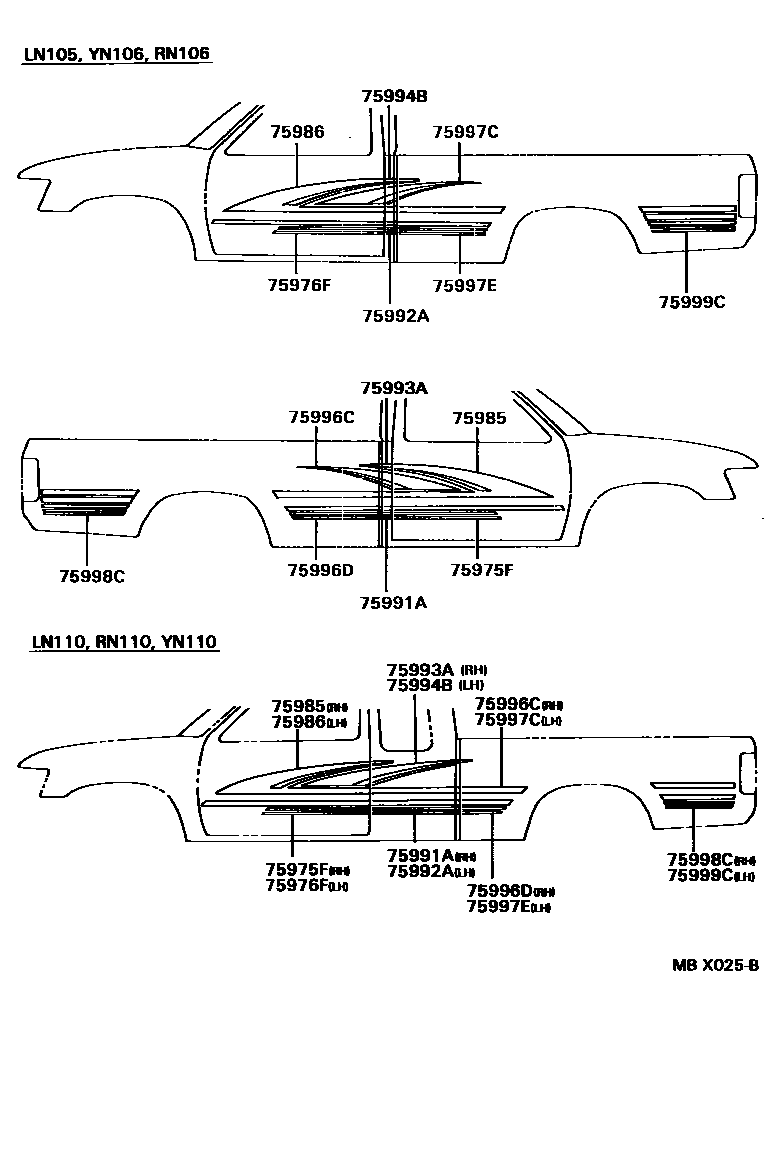

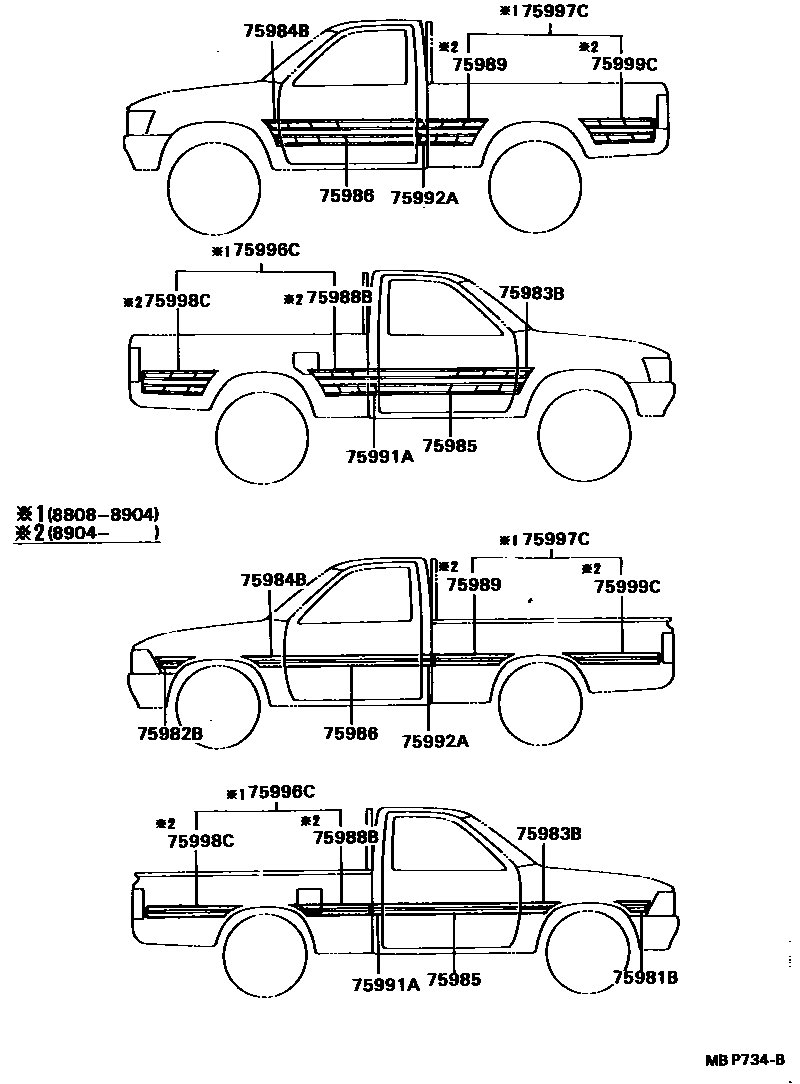

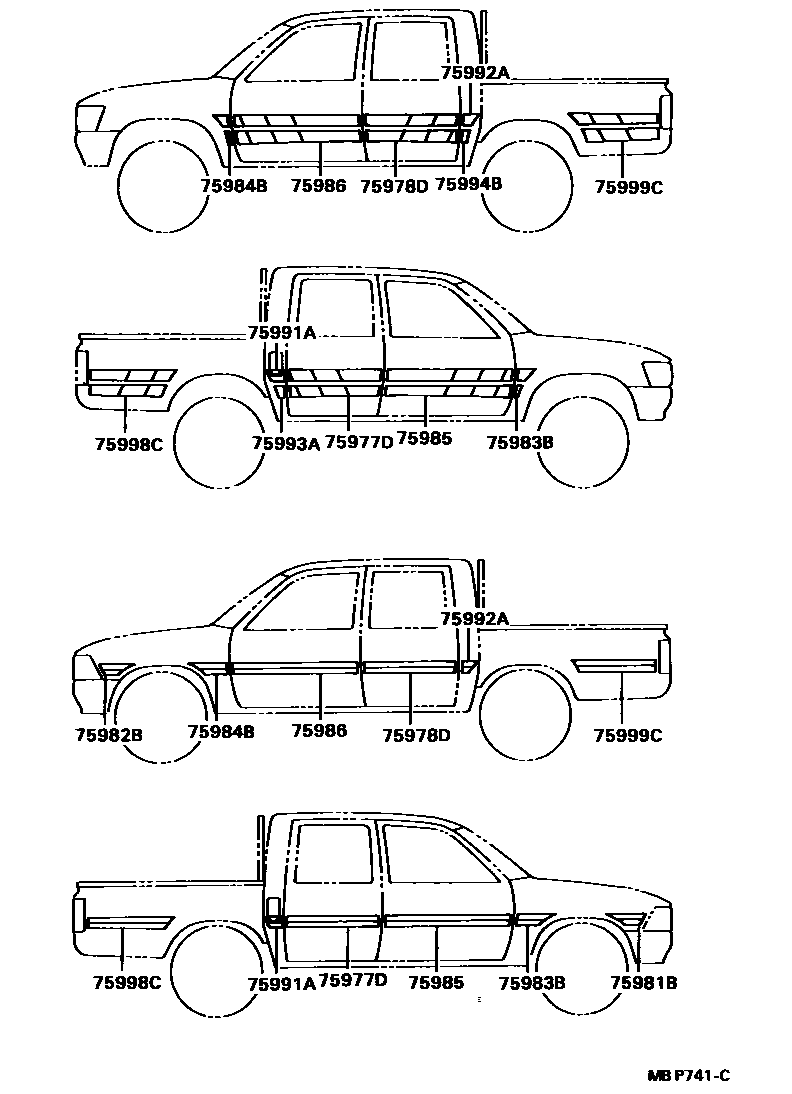

Toyota HILUX 车身镶条 — Figure 7553
Toyota HILUX EPC diagram 7553, 车身镶条, with 14 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75323A | front door markings | 75323-89101 |
| 75379 | Side panel markings | 75357-35010 · 75379-35020 · 75379-35070 · 75379-35080 · 75379-89102 |
| 75975D | Right front door outer front trim | 75985-35090 · 75985-35340 |
| 75975F | Right front door outer lower trim strip | 75975-35080 |
| 75976D | Left front door outer front trim | 75986-35090 · 75986-35330 |
| 75976F | Left front door outer lower trim strip | 75976-35080 |
| 75977D | Right rear door trim | 75977-35030 · 75977-35080 · 75977-89102 · 75977-89104 · 75987-35140 · 75987-35150 |
| 75978D | Left rear door trim | 75978-35030 · 75978-35080 · 75978-89102 · 75978-89104 · 75988-35140 · 75988-35150 |
| 75981 | No. 1 right front fender panel | 75981-35030 · 75981-35130 · 75981-35150 |
| 75981B | Right fender panel | 75981-35050 · 75981-89117 |
| 75982 | No. 1 left front fender panel | 75982-35030 · 75982-35130 · 75982-35150 |
| 75982B | Left fender panel | 75982-35050 · 75982-89116 |
| 75983B | Right front fender rear trim | 75983-35010 · 75983-89103 · 75983-89105 |
| 75984B | Left front fender rear trim | 75984-35010 · 75984-89103 · 75984-89105 |
| 75985 | Right front door trim | 75975-35160 · 75975-35170 · 75975-35180 · 75975-35190 · 75985-35200 · 75985-35210 · 75985-89179 · 75985-89180 · 75985-89181 · 75985-89186 |
| 75986 | Left front door trim | 75976-35160 · 75976-35170 · 75976-35180 · 75976-35190 · 75986-35200 · 75986-35210 · 75986-89177 · 75986-89178 · 75986-89179 · 75986-89184 |
| 75987C | Right rear door outer trim | 75987-35030 |
| 75988B | Right rear floor panel front trim strip | 75988-89131 · 75988-89132 · 75988-89134 · 75988-89135 |
| 75988C | Left rear door outer trim | 75988-35030 |
| 75989 | Left rear floor panel front trim strip | 75989-89130 · 75989-89131 · 75989-89133 · 75989-89134 |
| 75991A | Right side surround strip | 75991-35080 · 75991-35090 · 75991-35100 · 75991-35240 · 75991-35250 · 75991-35260 · 75991-35270 · 75991-35280 · 75991-35290 · 75991-89104 · 75991-89105 · 75991-89106 · 75991-89108 · 75991-89110 · 75991-89111 |
| 75992A | Left side surround strip | 75992-35080 · 75992-35090 · 75992-35100 · 75992-35240 · 75992-35250 · 75992-35260 · 75992-35270 · 75992-35280 · 75992-35290 · 75992-89104 · 75992-89105 · 75992-89106 · 75992-89108 · 75992-89110 · 75992-89111 |
| 75993A | Right rear side panel trim | 75993-35020 · 75993-35080 · 75993-89105 |
| 75994B | Left rear side panel | 75994-35020 · 75994-35080 · 75994-89107 |
| 75996C | Right rear body trim | 75996-35140 · 75996-35210 · 75996-35220 · 75996-35230 · 75996-35600 · 75996-35610 · 75996-35620 · 75996-35630 |
| 75997C | Left rear body trim | 75997-35140 · 75997-35210 · 75997-35220 · 75997-35230 · 75997-35600 · 75997-35610 · 75997-35620 · 75997-35630 |
| 75998C | Right rear floor panel rear trim strip | 75998-35030 · 75998-35050 · 75998-35070 · 75998-89125 · 75998-89126 · 75998-89127 · 75998-89129 · 75998-89130 |
| 75999C | Left rear floor panel rear trim strip | 75999-35030 · 75999-35050 · 75999-35070 · 75999-89125 · 75999-89126 · 75999-89127 · 75999-89129 · 75999-89130 |
