Toyota HILUX 徽标和铭牌 — Figure 7551

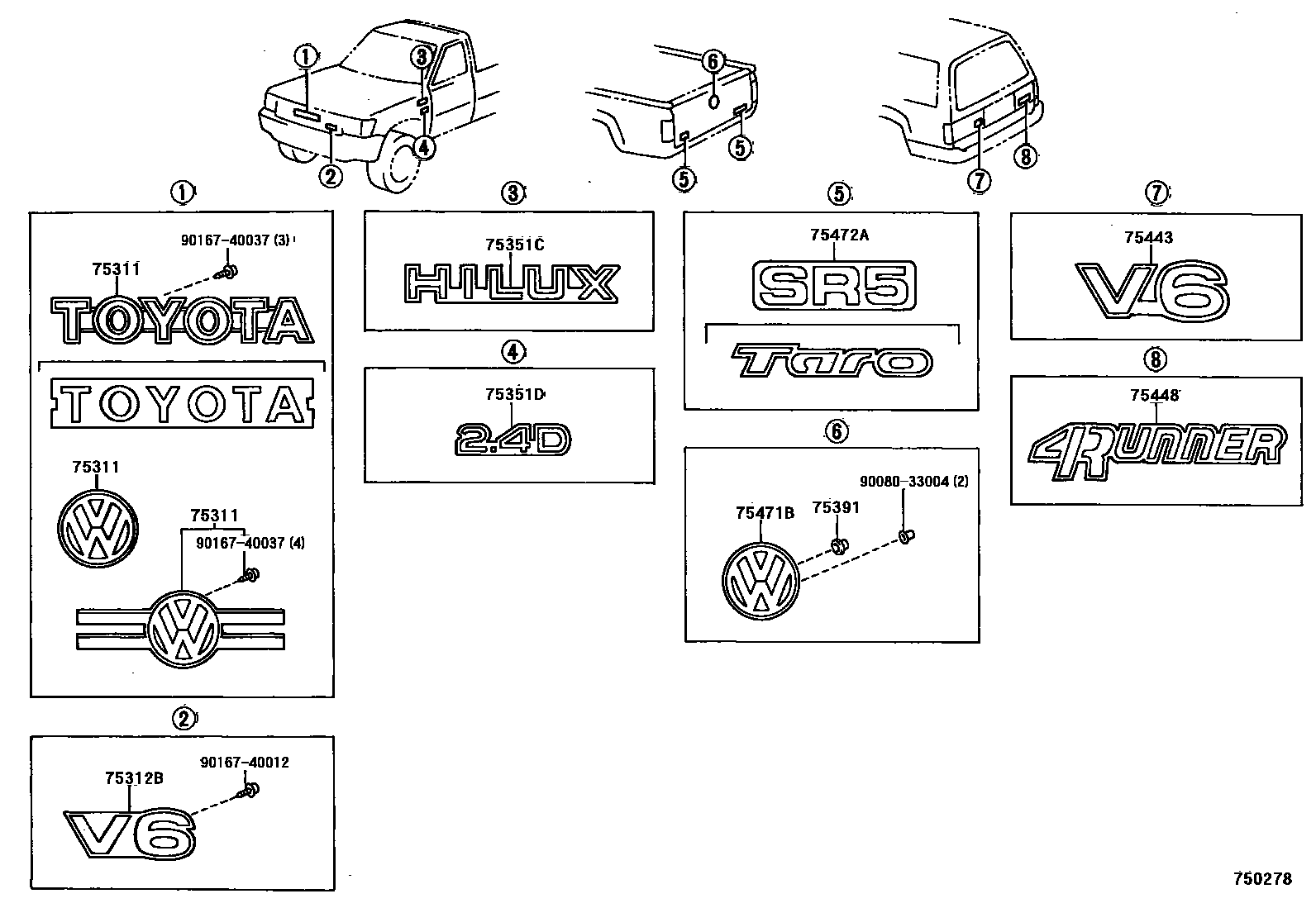

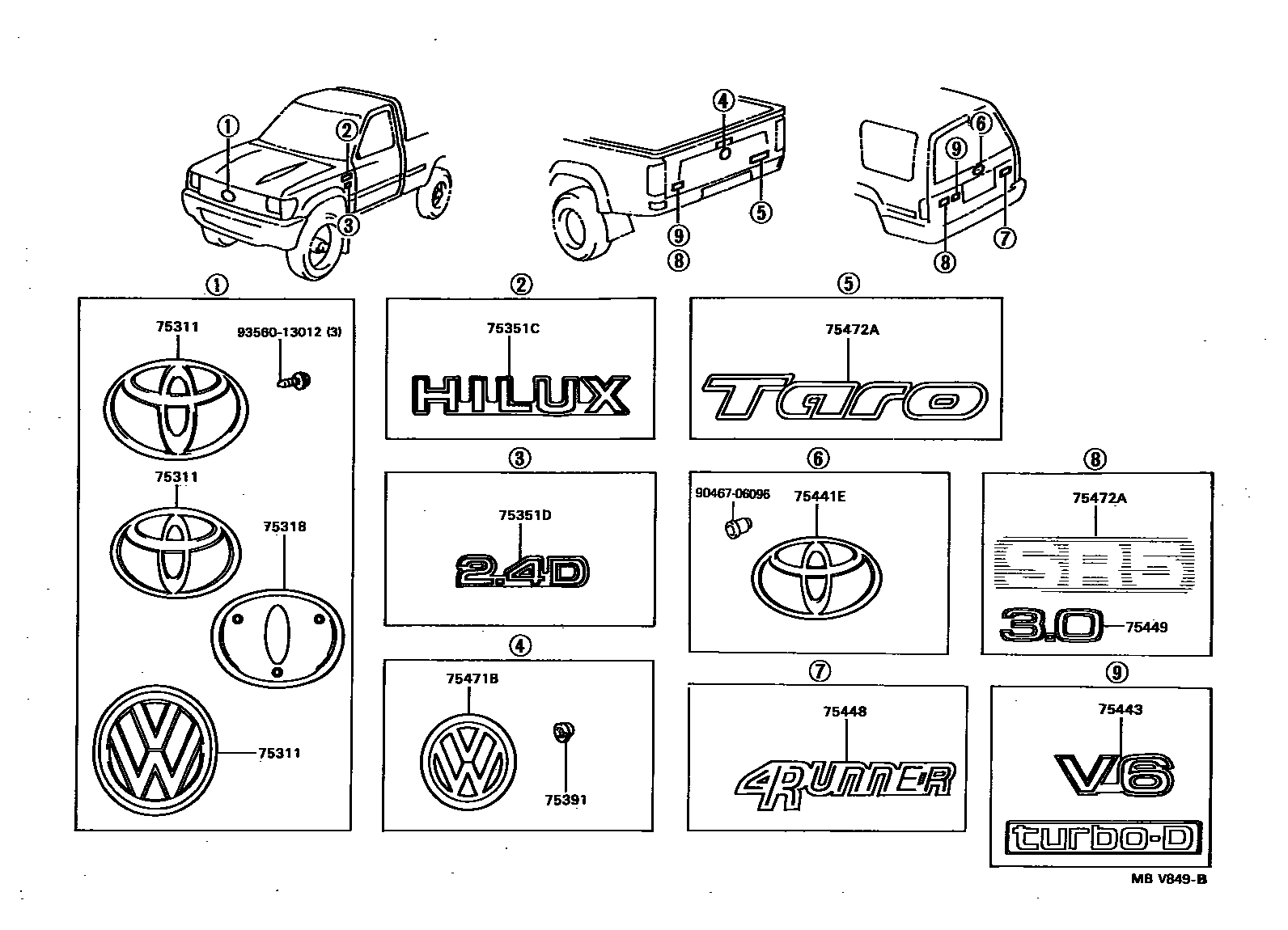

Toyota HILUX EPC diagram 7551, 徽标和铭牌, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75311-04010 · 75311-35040 · 75311-35050 · 75311-35070 · 75311-35080 · 75311-35090 · 75311-35100 · 75311-35110 · 75311-35160 · 75311-35170 · 75311-35180 · 75311-89117 · 75311-89118 · 75311-89119 · 75311-89123 · 75311-89124 · 75311-89125 |
| 75312B | Radiator grille number 2 plate | 75312-35030 · 75312-89106 |
| 75318 | Radiator grille plate fixings | 75318-35010 · 75318-35020 · 75318-35030 |
| 75351C | fender markings | 75351-89125 |
| 75351D | No. 2 fender mark | 75351-89126 |
| 75391 | Nameplate fixings | 75391-04010 |
| 75441E | Back door No. 1 nameplate | 75441-35010 |
| 75443 | No. 3 nameplate on back door | 75443-89101 · 75444-22150 |
| 75448 | No. 8 nameplate on back door | 75448-89101 |
| 75449 | No. 9 nameplate on back door | 75444-33110 |
| 75471B | No. 1 nameplate on rear body | 75471-04010 |
| 75472A | No. 2 nameplate on rear body | 75472-35010 · 75472-35011 · 75472-89128 |
