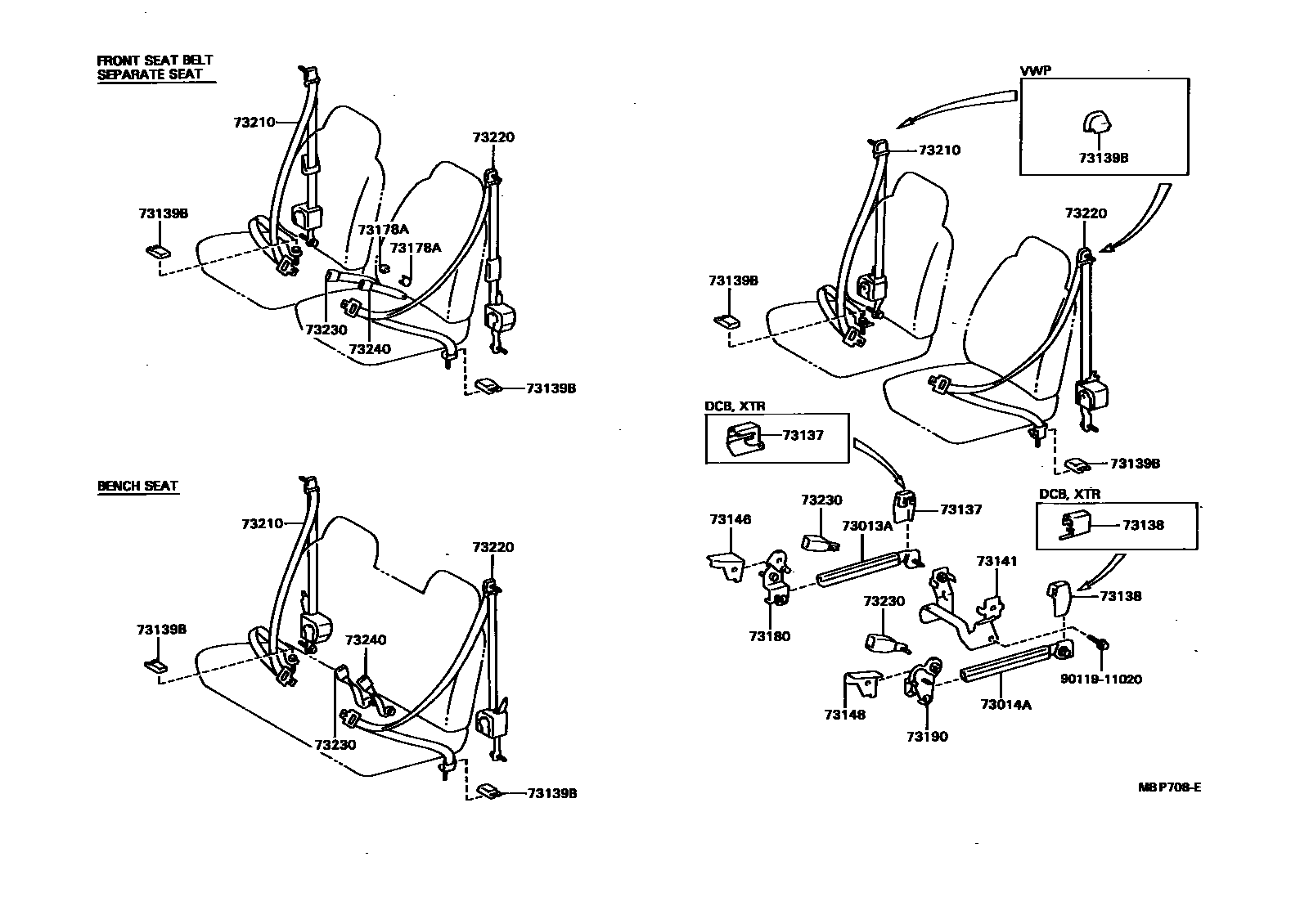

Toyota HILUX seat belt — Figure 7152
Toyota HILUX EPC diagram 7152, seat belt, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 73013A | Front right seat seat belt inner anchor plate sub-assembly | 73013-35010 · 73013-89101 |
| 73014A | Front left seat belt inner anchor plate sub-assembly | 73014-35010 · 73014-89101 |
| 73141 | Front seat belt anchor base | 73141-89101 · 73141-89102 · 73141-89103 |
| 73146 | Front right seat belt inner anchor bracket cover | 73146-89101 |
| 73148 | Front left seat belt inner anchor bracket cover | 73148-89101 |
| 73180 | Right seat belt inner anchor bracket assembly | 73011-32020 |
| 73190 | Left side seat belt inner anchor bracket assembly | 73012-32020 |
| 73223 | seat belt retractor cover | 73223-35010 · 73223-89101 |
