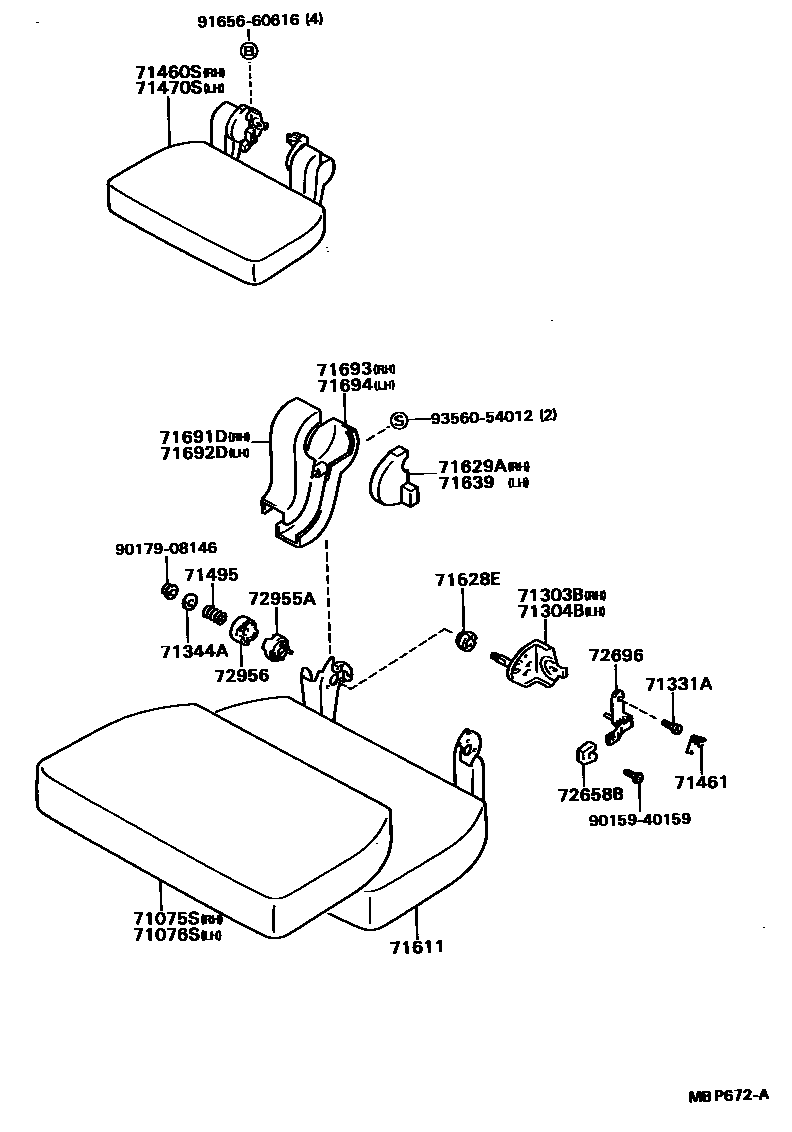

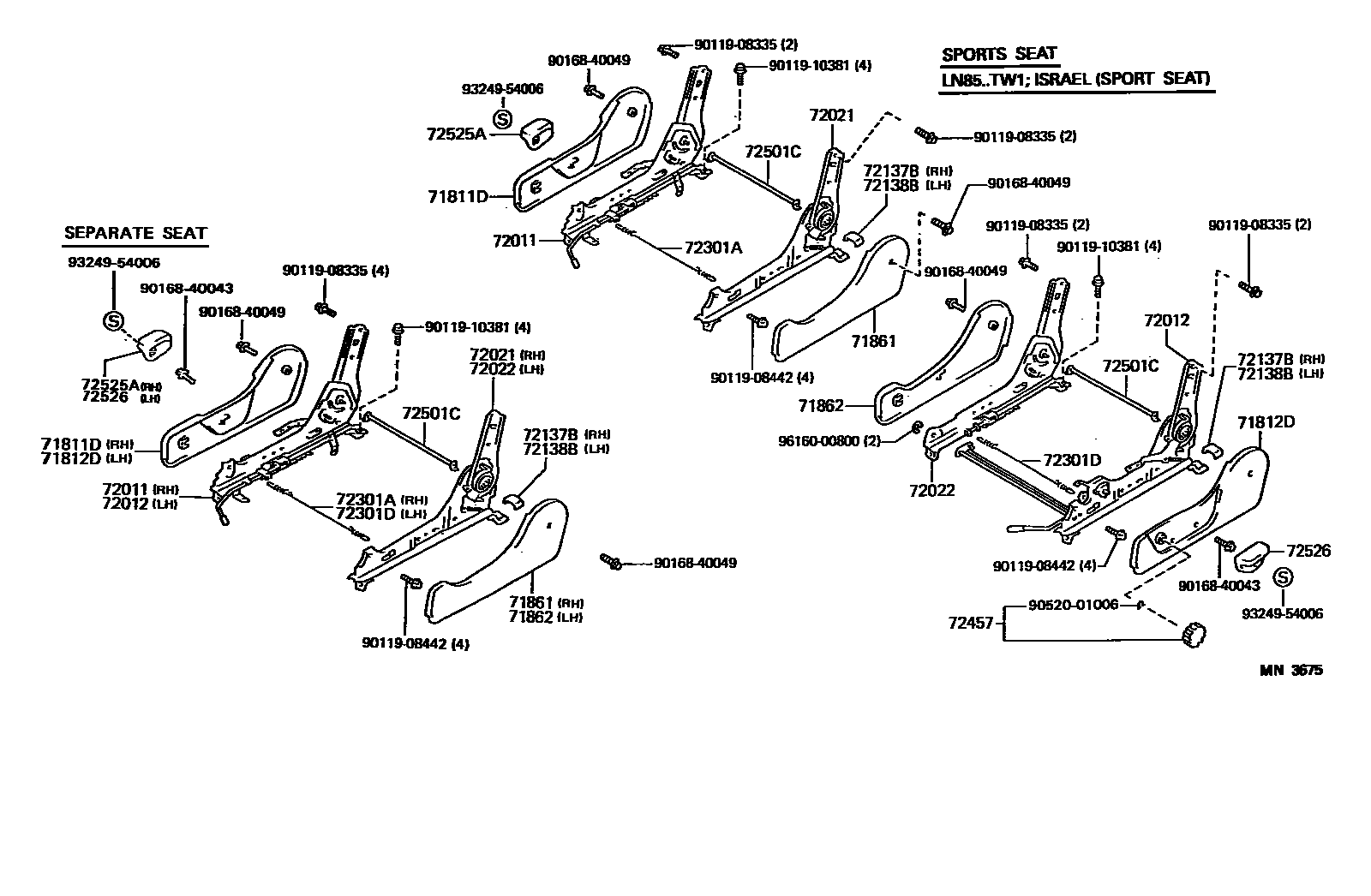

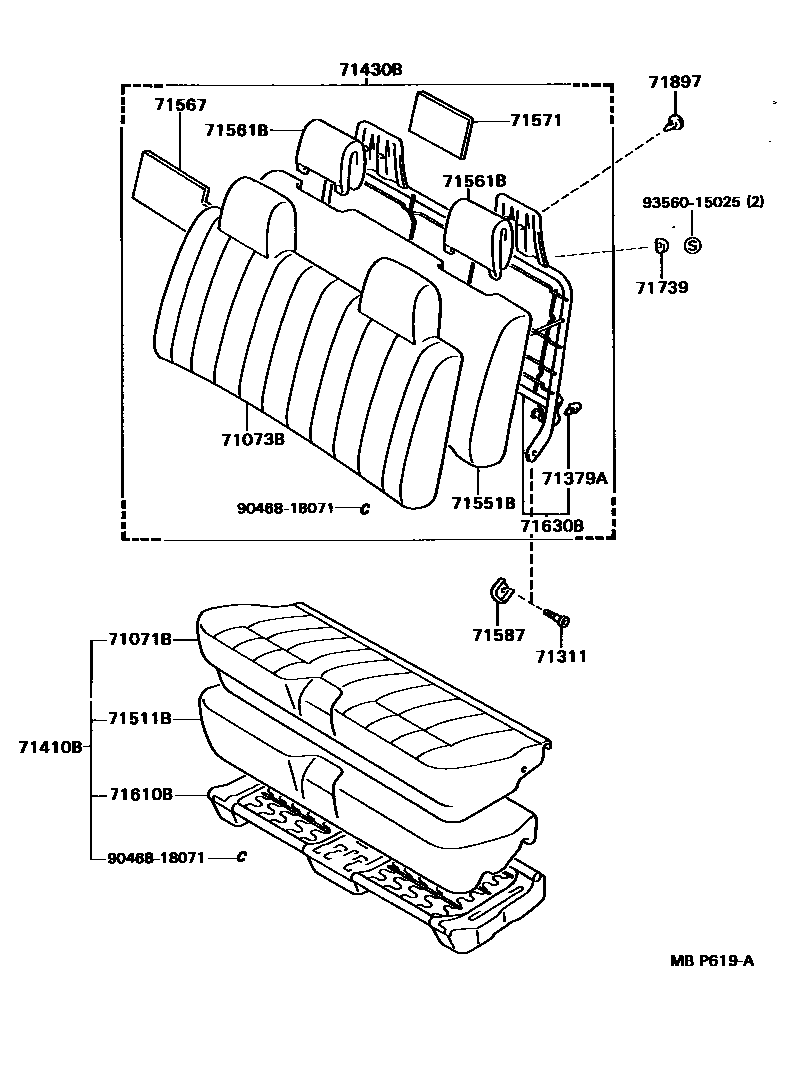

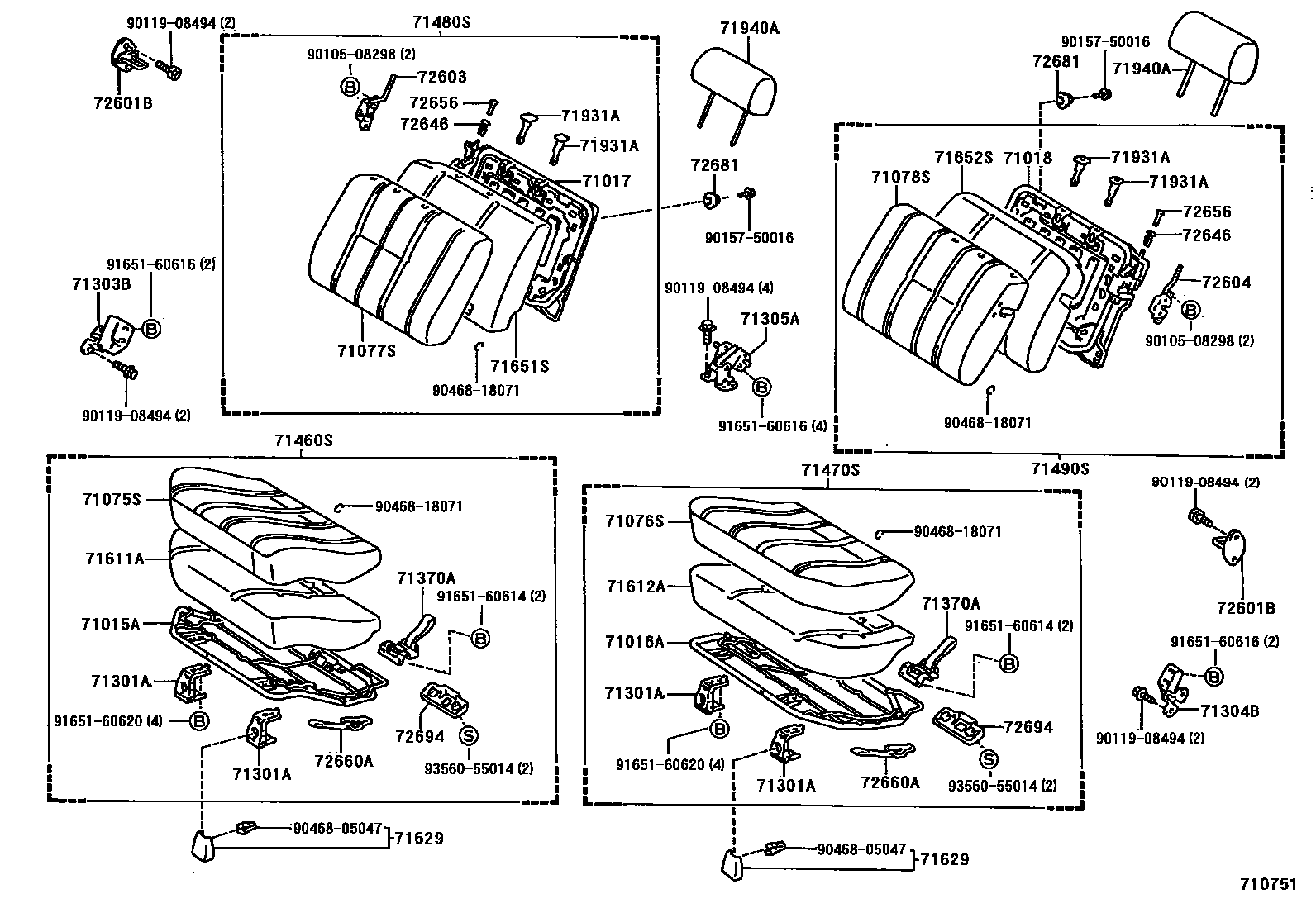

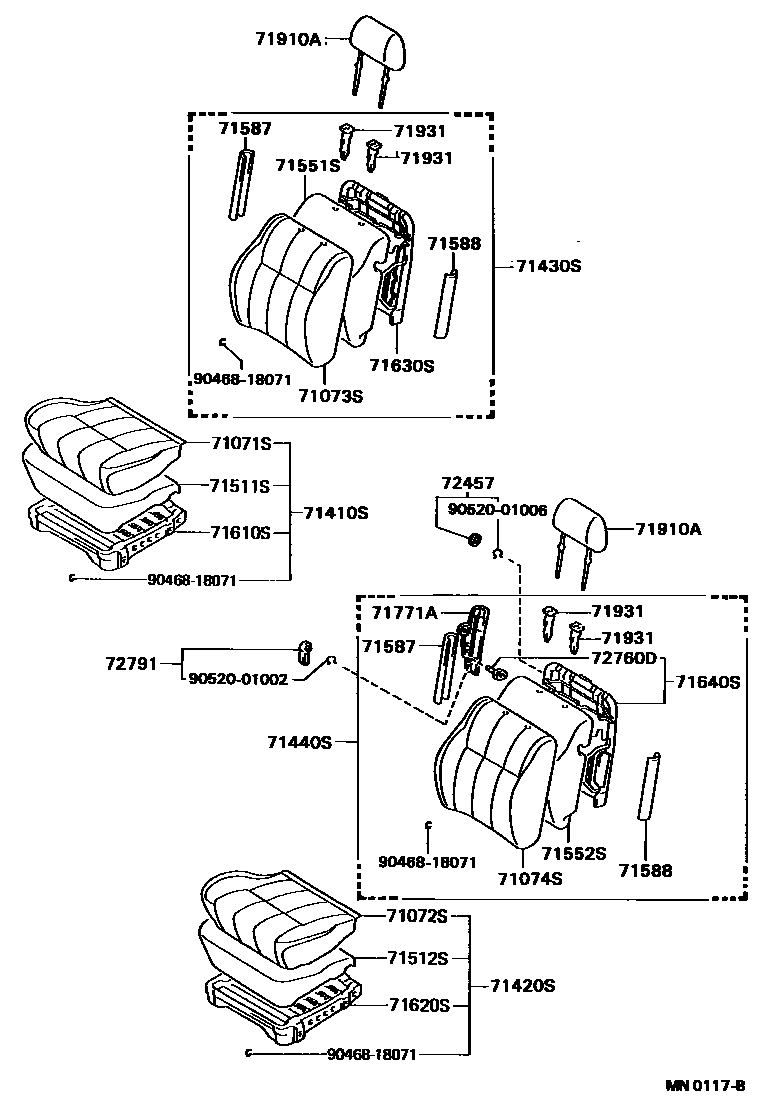

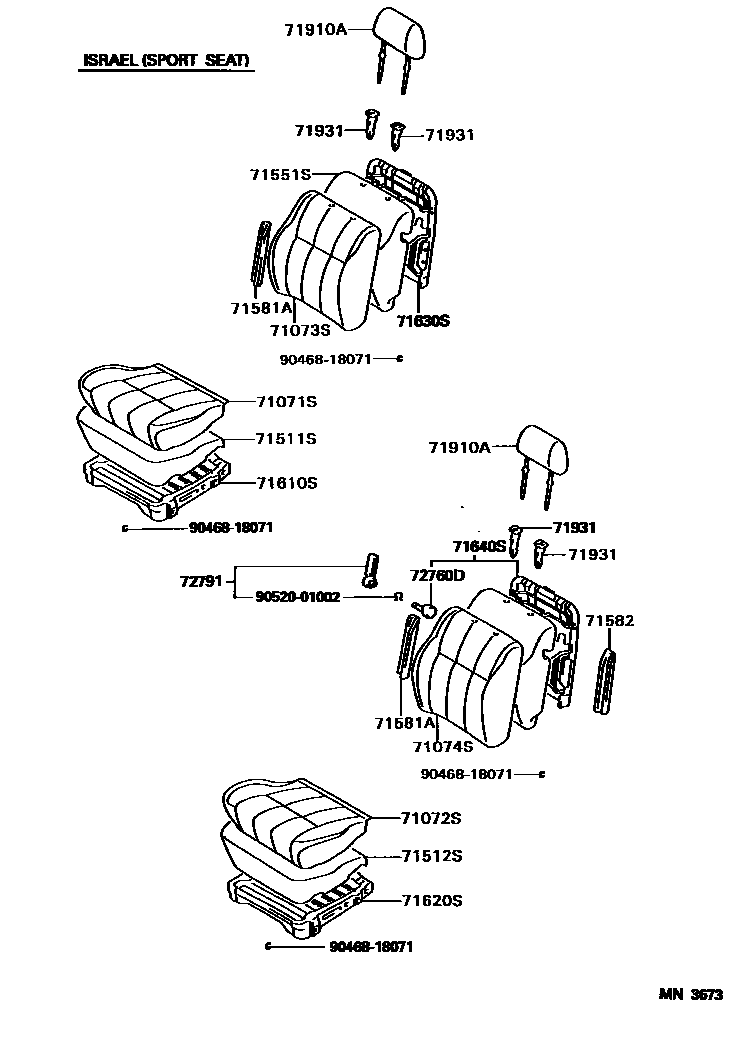

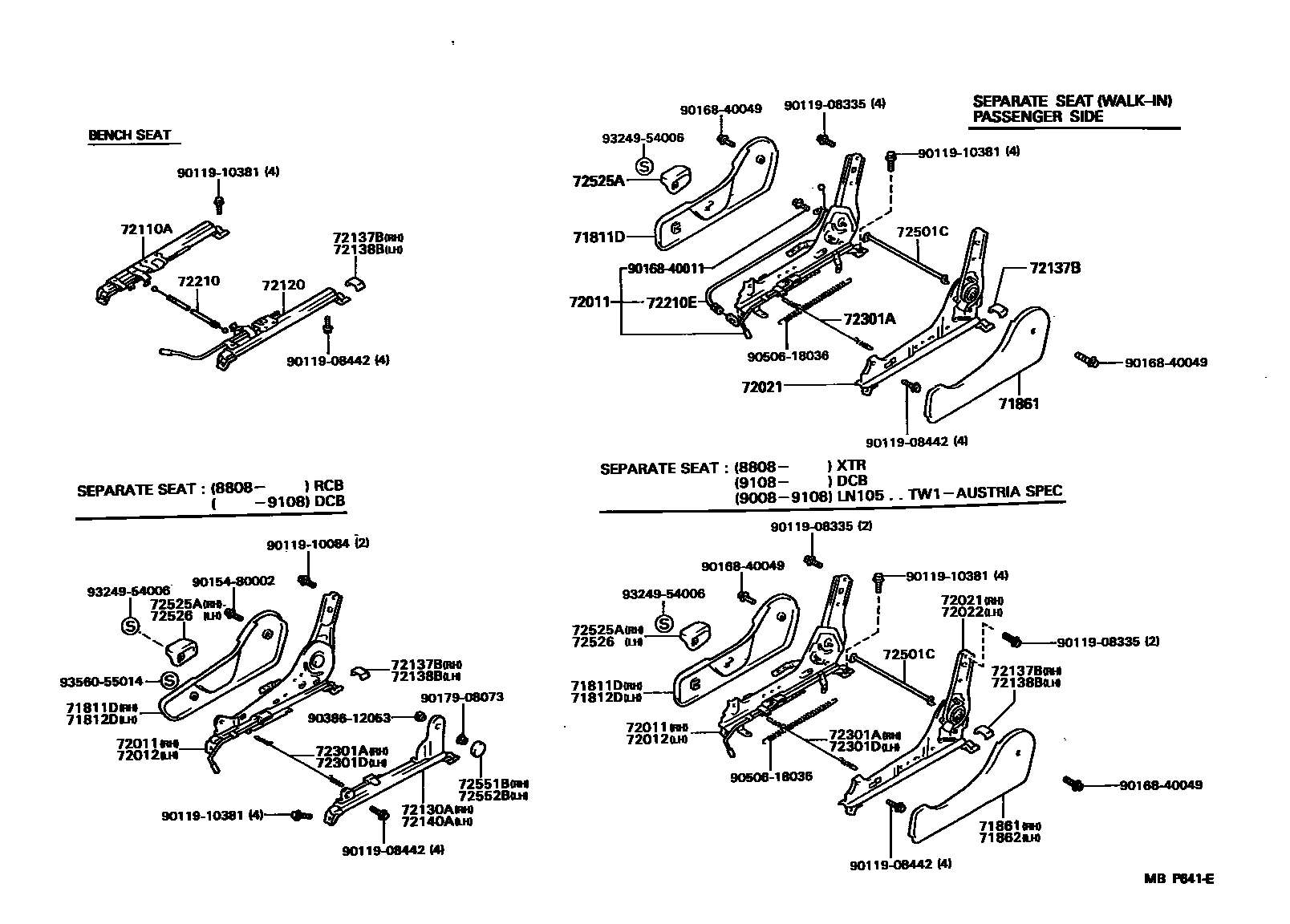

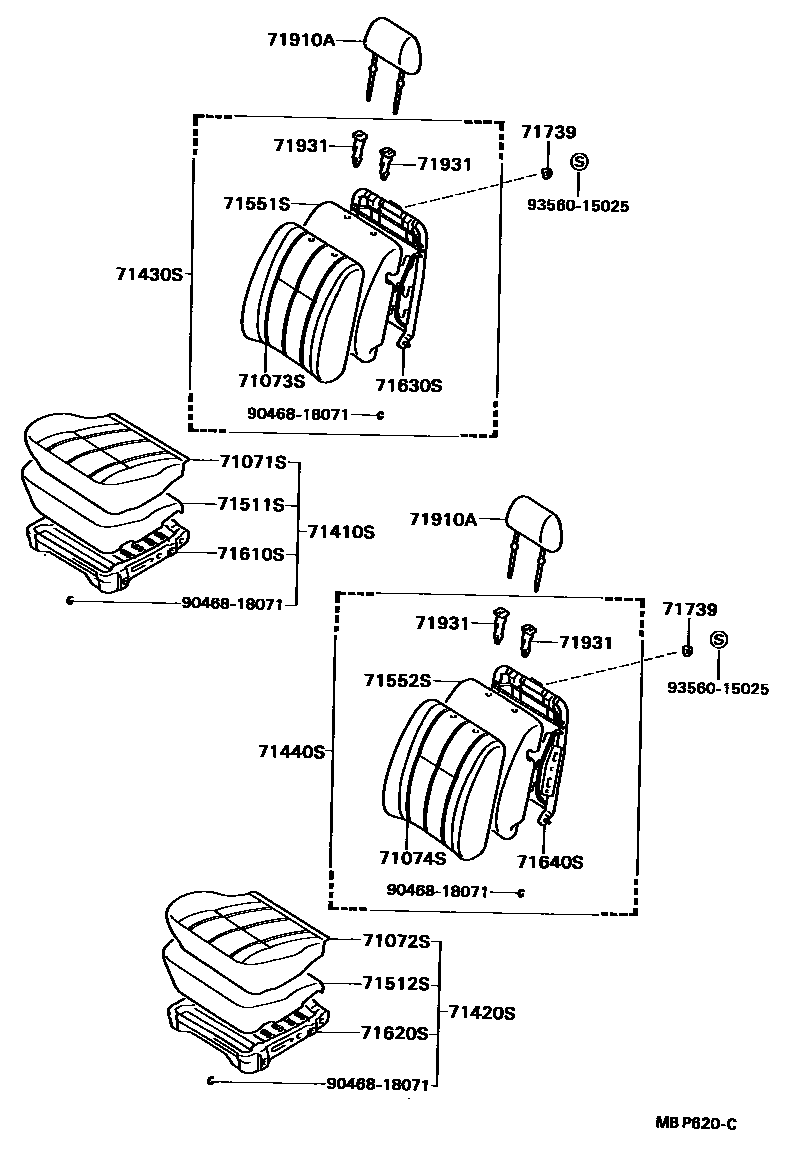

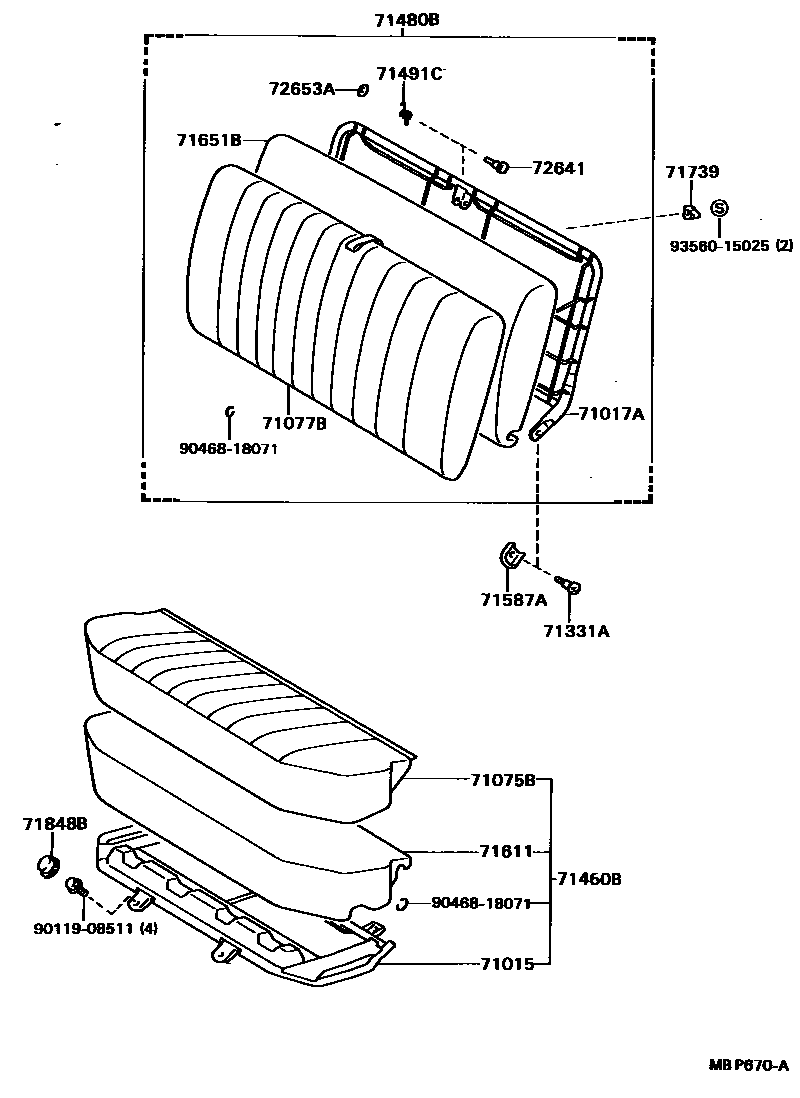

Toyota HILUX 座椅和座椅滑轨 — Figure 7151
Toyota HILUX EPC diagram 7151, 座椅和座椅滑轨, with 9 images and 71 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015 | Rear seat cushion frame sub-assembly | 71015-89107 |
| 71015A | Rear right seat cushion frame sub-assembly | 71015-35010 · 71015-89109 |
| 71016A | Rear left seat cushion frame sub-assembly | 71016-35010 · 71016-89104 |
| 71017 | Right rear seat back frame sub-assembly | 71017-35020 · 71017-89107 |
| 71017A | Rear seat back frame sub-assembly | 71017-89105 |
| 71018 | Rear left seat back frame sub-assembly | 71018-35020 · 71018-89104 |
| 71301A | Rear seat cushion hinge sub-assembly | 71301-89103 · 71301-89104 |
| 71303B | No. 2 seat hinge sub-assembly on the right side of the rear row | 71303-89101 · 71303-89102 |
| 71304B | Rear left No. 2 seat hinge sub-assembly | 71303-89101 · 71304-89101 · 71304-89102 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-89103 |
| 71311 | Front seat hinge pin | 71311-89105 |
| 71331A | Rear seat hinge pin | 71331-89101 · 71331-89107 |
| 71344A | Rear seat cushion hinge plate | 71344-89102 |
| 71379A | Front seat vertical handle stop | 71379-89101 |
| 71461 | Rear seat cushion spring | 71461-89101 · 71461-89102 |
| 71491C | Rear seat fixed spring | 71491-89101 |
| 71495 | Rear seat cushion spring | 71495-89101 |
| 71511B | Front seat cushion upholstery (for bench seats) | 71511-89141 · 71511-89142 · 71511-89149 · 71511-89150 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-89136 · 71511-89137 · 71511-89146 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-89136 · 71511-89137 · 71511-89146 |
| 71551B | Front seat back cushions (for bench seats) | 71551-35010 · 71551-35030 · 71551-89128 · 71551-89144 |
| 71551S | Front right seat back cushion (for split seats) | 71551-89131 · 71551-89132 · 71551-89134 · 71551-89137 · 71551-89140 · 71551-89141 · 71551-89143 |
| 71552S | Front left seat back cushion (for split seats) | 71551-89131 · 71551-89132 · 71551-89134 · 71551-89137 · 71551-89140 · 71551-89141 · 71551-89143 |
| 71561B | Padded front seat backrest | 71561-35010 · 71561-35030 · 71561-35040 · 71561-35050 · 71561-89114 · 71561-89115 · 71561-89116 |
| 71567 | Front seat back safety cushion | 71567-35010 · 71567-89102 |
| 71571 | Front A seat back silencer | 71571-89102 |
| 71581A | Front A seat back corner cushions | 71581-89109 |
| 71582 | Front B seat back corner cushions | 71581-89109 |
| 71587 | Front seat back edge protective cover | 71587-89103 · 71587-89105 |
| 71587A | Rear seat back edge protective cover | 71587-89104 |
| 71588 | Front seat back edge protective cover No. 2 | 71588-89101 |
| 71610B | Front seat cushion spring assembly (for bench seats) | 71610-89145 · 71610-89146 · 71610-89154 · 71610-89155 · 71610-89158 · 71610-89159 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-35020 · 71610-35050 · 71610-89144 · 71610-89150 · 71610-89161 |
| 71611 | Rear seat cushion cushion | 71503-89102 · 71504-89101 · 71611-35010 · 71611-89109 |
| 71611A | Rear right seat cushion | 71611-89112 |
| 71612A | Rear left seat cushion | 71612-89103 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71610-89144 · 71610-89153 · 71620-89113 · 71620-89114 · 71620-89115 · 71620-89119 |
| 71628E | Rear seat cushion spacer | 71628-89102 |
| 71630B | Front seat back spring assembly (for bench seat) | 71630-35020 · 71630-35030 · 71630-35040 · 71630-89146 · 71630-89150 · 71630-89155 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-35050 · 71630-35060 · 71630-35070 · 71630-35080 · 71630-89154 · 71630-89158 · 71630-89159 · 71630-89161 · 71630-89162 · 71630-89163 · 71630-89165 · 71630-89166 |
| 71640S | Front left seat back spring assembly (for split seats) | 71630-35050 · 71630-35080 · 71630-89154 · 71630-89159 · 71640-35010 · 71640-35020 · 71640-89119 · 71640-89122 · 71640-89124 · 71640-89126 · 71640-89128 · 71640-89129 · 71640-89130 |
| 71651B | Rear seat back cushions (for bench seats) | 71651-35010 · 71651-89107 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-89110 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-89105 |
| 71739 | seat support cushion | 71739-35010 · 71739-89111 · 71739-89112 · 71739-89114 · 71739-89115 |
| 71771A | Front seat back panel | 71771-89103 |
| 71848B | Right seat adjuster cover | 71848-89101 |
| 72011 | Front right seat outer adjuster sub-assembly | 72010-89108 · 72010-89109 · 72011-35010 · 72011-35030 · 72011-35040 · 72011-35060 · 72011-89112 · 72011-89113 · 72011-89114 |
| 72012 | Front left seat outer adjuster sub-assembly | 72012-35030 · 72012-35040 · 72012-35050 · 72012-89111 · 72012-89113 · 72012-89114 · 72020-89108 · 72020-89109 |
| 72021 | Front right seat inner adjuster sub-assembly | 72021-35030 · 72021-35040 · 72021-35050 · 72021-35060 · 72021-89112 · 72021-89113 · 72021-89114 · 72021-89115 · 72021-89116 · 72021-89117 |
| 72022 | Front left seat inner adjuster sub-assembly | 72022-35020 · 72022-35030 · 72022-35040 · 72022-35050 · 72022-35060 · 72022-35070 · 72022-89111 · 72022-89113 · 72022-89114 · 72022-89116 · 72022-89117 · 72022-89118 |
| 72110A | Front right seat outer slide rail assembly | 72110-35020 · 72110-89144 · 72110-89147 |
| 72120 | Front left seat outer slide rail assembly | 72120-35030 · 72120-89143 · 72120-89147 |
| 72130A | Front right seat inner slide rail assembly | 72130-35020 · 72130-89106 · 72130-89107 |
| 72140A | Front left seat inner slide rail assembly | 72140-35030 · 72140-89107 · 72140-89111 |
| 72210 | Seat slide rail control cable assembly | 72210-89108 |
| 72210E | Seat slide control cable assembly (for walk-in compartments) | 72210-35030 |
| 72301A | Right seat slide rail balance harness sub-assembly | 72301-35020 · 72301-89112 · 72301-89113 |
| 72301D | Left seat slide rail balance harness sub-assembly | 72301-89112 · 72301-89113 |
| 72501C | Seat back recline adjuster connecting pipe sub-assembly | 72501-89103 |
| 72551B | Right seat backrest tilt hinge cover | 72551-12070 |
| 72552B | Left seat backrest tilt hinge cover | 72551-12070 |
| 72601B | Rear seat back lock sub-assembly | 72601-89102 |
| 72603 | Rear right seat back lock sub-assembly | 72630-35010 · 72630-89102 |
| 72604 | Rear left seat back lock sub-assembly | 72640-35010 · 72640-89103 |
| 72641 | Rear seat back lock pin | 72641-89101 |
| 72653A | Rear seat back lock lever buckle | 72653-89101 |
| 72696 | Rear seat lock latch | 72696-89101 · 72696-89102 |
| 72760D | Left lumbar support adjuster assembly | 72750-89103 |
| 72955A | Rear seat No. 1 rotation lock piece | 72955-89101 |
| 72956 | Rear seat 2 rotation lock piece | 72956-89101 |
