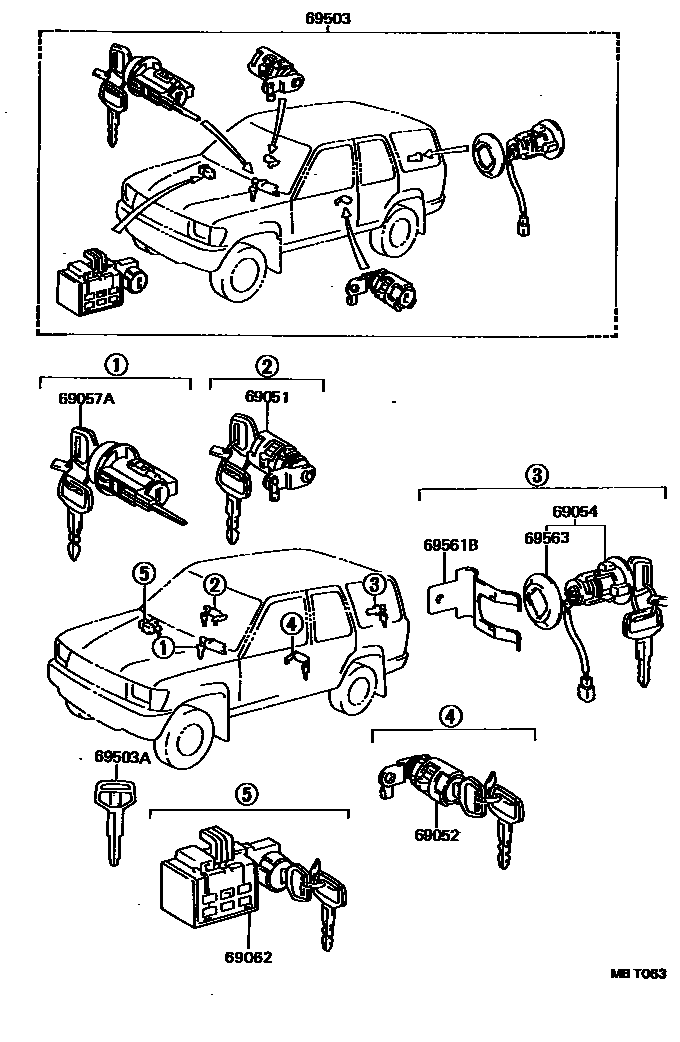

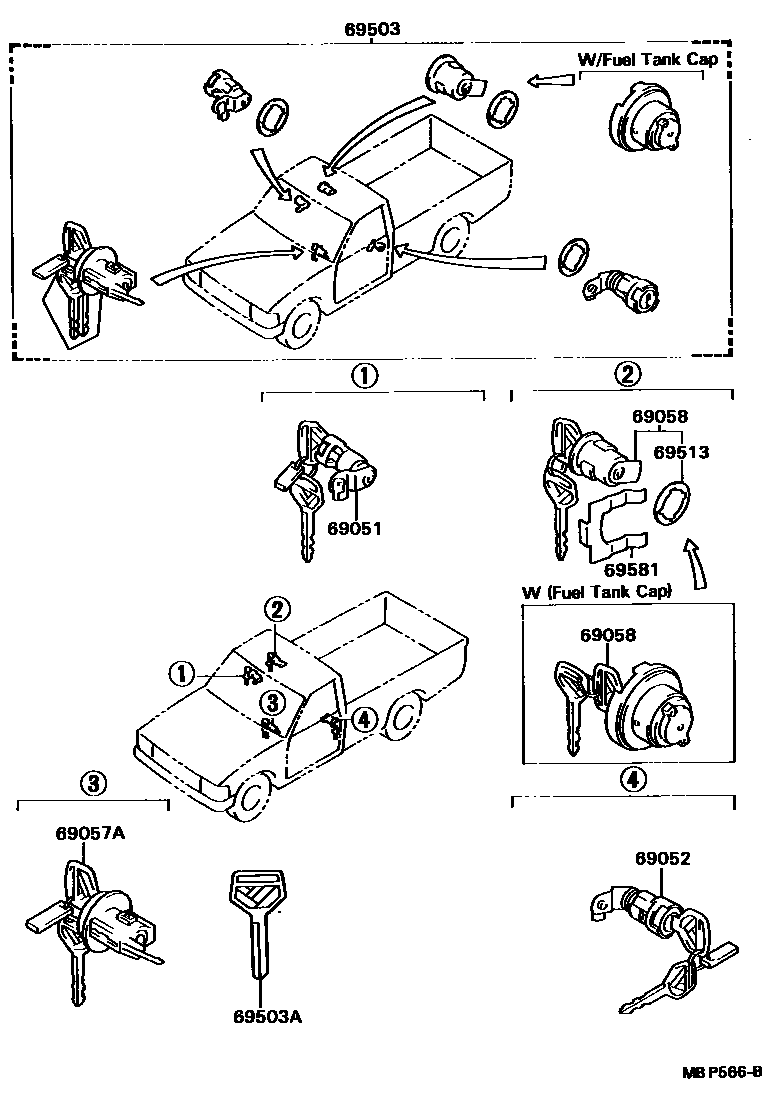

Toyota HILUX 锁芯组件 — Figure 6765
Toyota HILUX EPC diagram 6765, 锁芯组件, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-35040 · 69051-35050 · 69051-35060 |
| 69052 | Left door lock cylinder and key assembly | 69052-35040 · 69052-35050 · 69052-35060 |
| 69054 | Rear door lock cylinder and key assembly | 69055-35030 · 69055-89105 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-35010 · 69057-35040 · 69057-35050 · 69057-35060 · 69057-89118 · 69057-89119 |
| 69058 | Fuel filler cap lock cylinder and key assembly | 69058-35010 · 69058-35040 · 69058-35050 · 69058-35060 · 69058-35090 · 69058-35100 · 69058-35110 · 69058-35120 · 69058-35130 · 69058-89117 · 69058-89119 |
| 69062 | Glove box lock cylinder and key assembly | 69056-35020 |
| 69503 | Door lock cylinder components | 69005-35030 · 69005-35070 · 69005-35090 · 69005-35130 · 69005-35150 · 69005-35250 · 69005-35260 · 69005-35270 · 69005-35280 · 69005-35290 · 69005-35300 · 69005-35360 · 69005-89198 · 69005-89205 · 69005-89230 · 69005-89232 |
| 69503A | external tooth key | 90999-00130 · 90999-00132 · 90999-00139 · 90999-00149 · 90999-00150 · 90999-00156 |
| 69513 | Fuel filler cap lock cylinder gasket | 69513-32010 |
| 69561B | Rear door lock cylinder fixing parts | 69561-89101 |
| 69563 | Rear door lock cylinder gasket | 69563-32020 |
| 69581 | Fuel filler cap lock cylinder fixing piece | 69511-32010 |
