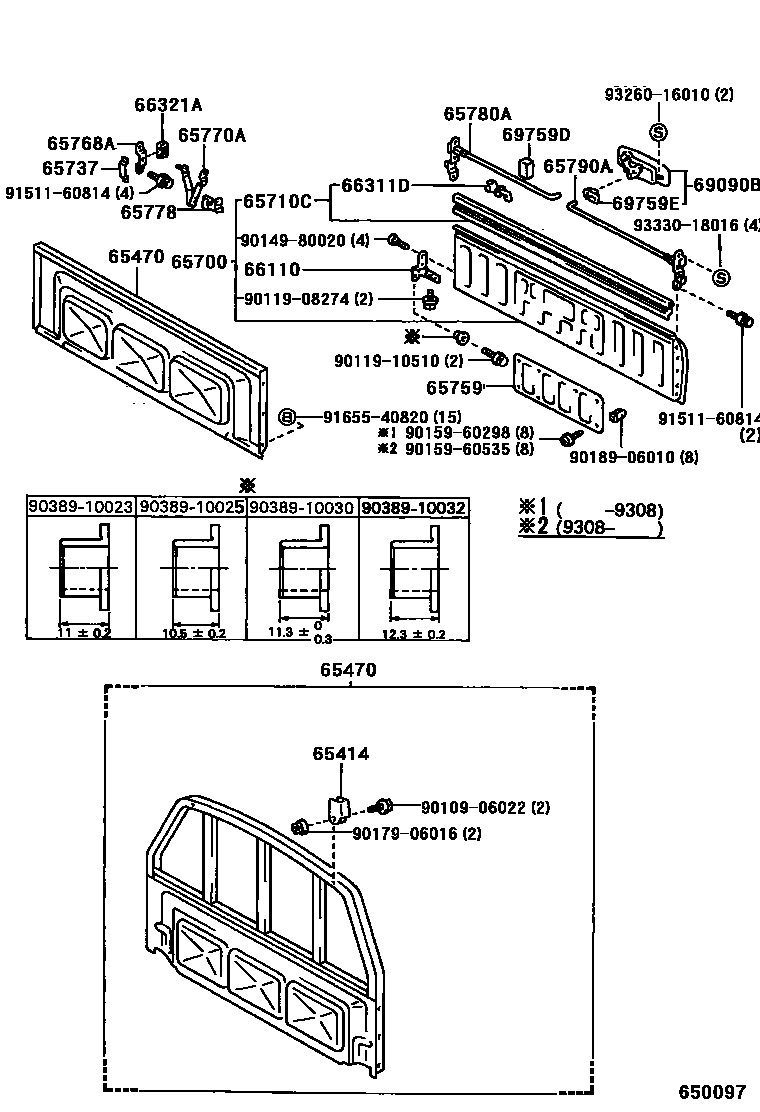

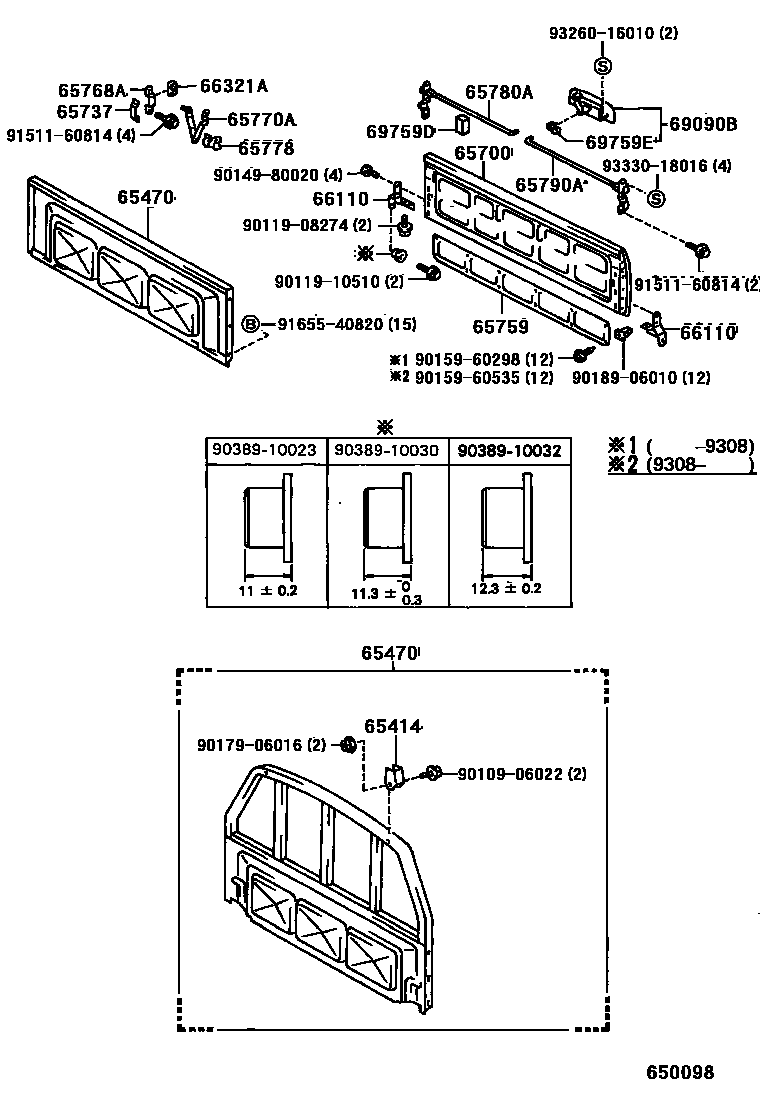

Toyota HILUX 后车身防护架和背门 — Figure 6553
Toyota HILUX EPC diagram 6553, 后车身防护架和背门, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65414 | guardrail frame stop | 65414-89102 |
| 65470 | Top plate assembly | 65405-89104 · 65470-35010 · 65470-89137 · 65470-89139 · 65470-89142 · 65470-89143 · 65471-35090 |
| 65700 | Rear body back door assembly | 65700-35010 · 65700-89146 · 65700-89147 · 65700-89151 · 65700-89154 |
| 65710C | Back door top slide rail assembly | 65710-89114 |
| 65737 | Back door stopper | 65737-35010 · 65737-35020 · 65737-89105 |
| 65759 | Rear door access hole cover | 65759-89102 · 65759-89105 |
| 65768A | Back door latch | 65768-35010 · 65768-89102 |
| 65770A | Back door support rod assembly | 65770-89103 |
| 65778 | Back door support rod stop | 65778-89104 · 65778-89105 |
| 65780A | Back door right lock assembly | 65780-35010 · 65780-89105 |
| 65790A | Back door left lock assembly | 65790-35010 · 65790-35020 · 65790-89106 · 65790-89107 |
| 66110 | Back door hinge assembly | 66110-89107 · 66110-89108 · 66120-89101 · 66120-89102 |
| 66311D | rope hook | 66311-89109 |
| 66321A | Railing rubber buffer block | 66321-35010 · 66321-35020 · 66321-89109 |
| 69090B | Rear door handle assembly | 69090-89101 · 69090-89102 |
| 69759D | Rear door lock link silencer | 69759-89108 |
| 69759E | Rear door lock link buckle | 69759-20100 · 69759-20110 |
