Toyota HILUX 天窗板和背板 — Figure 6153

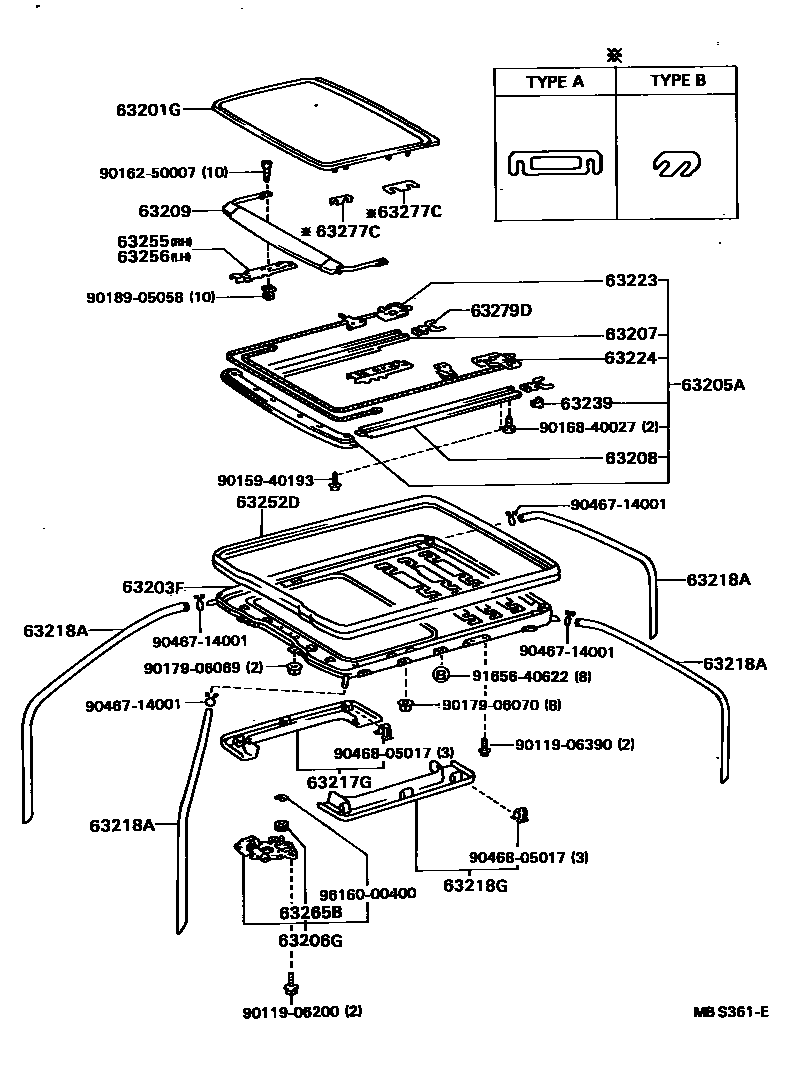

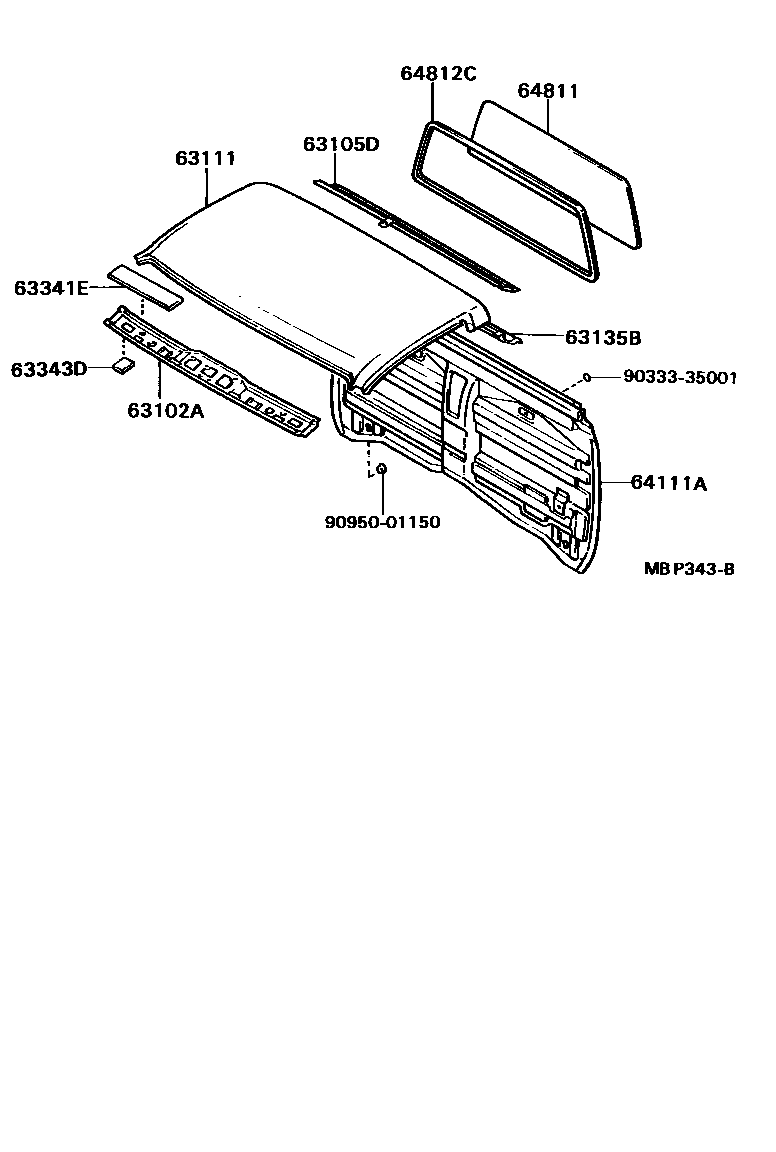

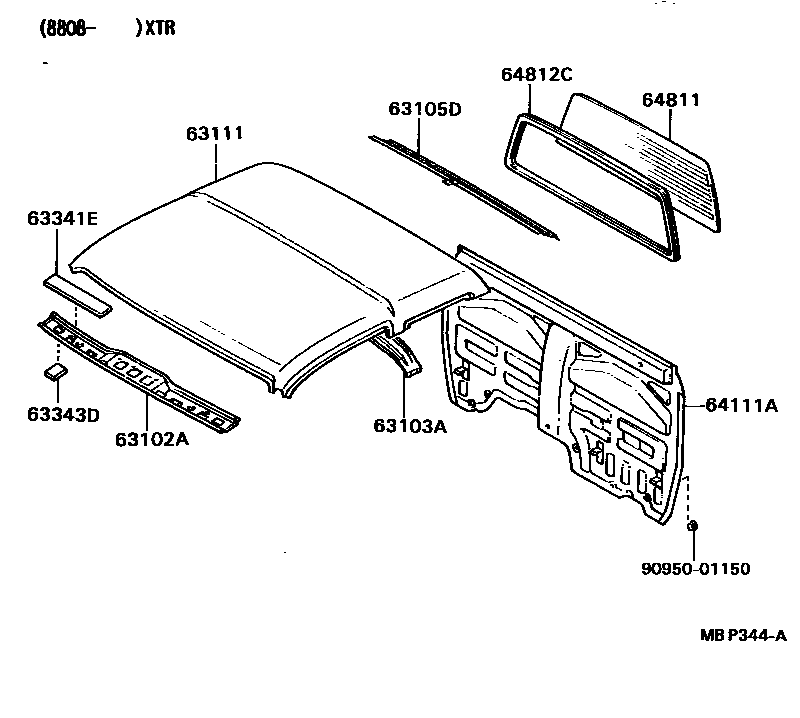

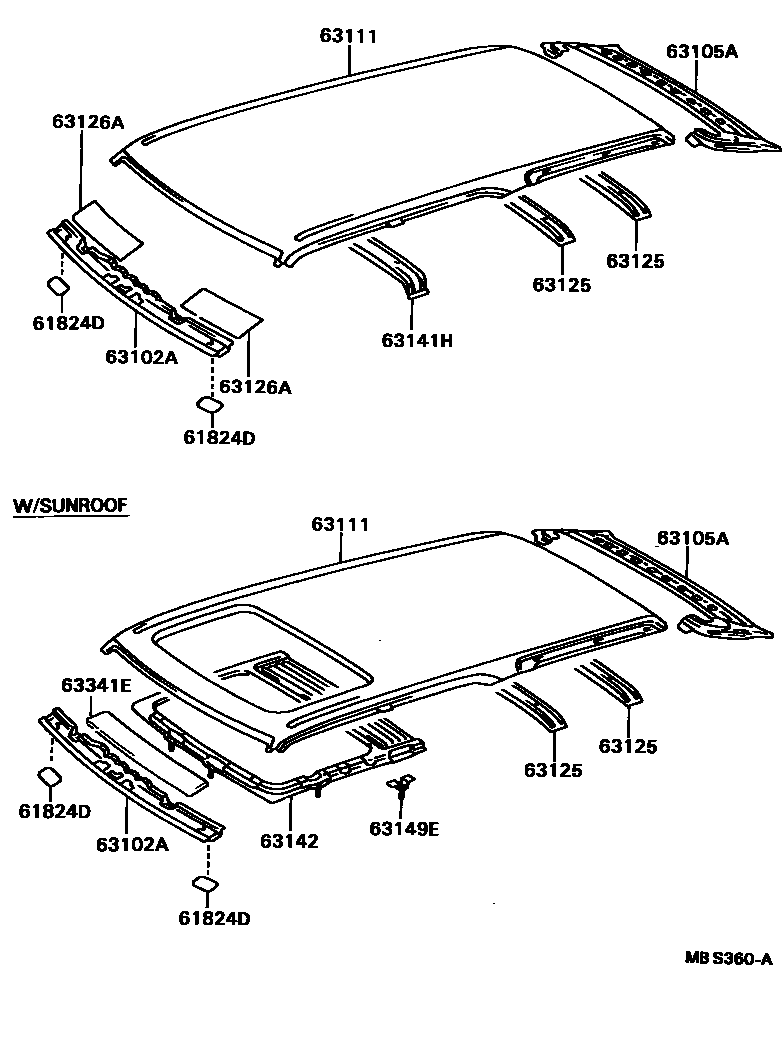

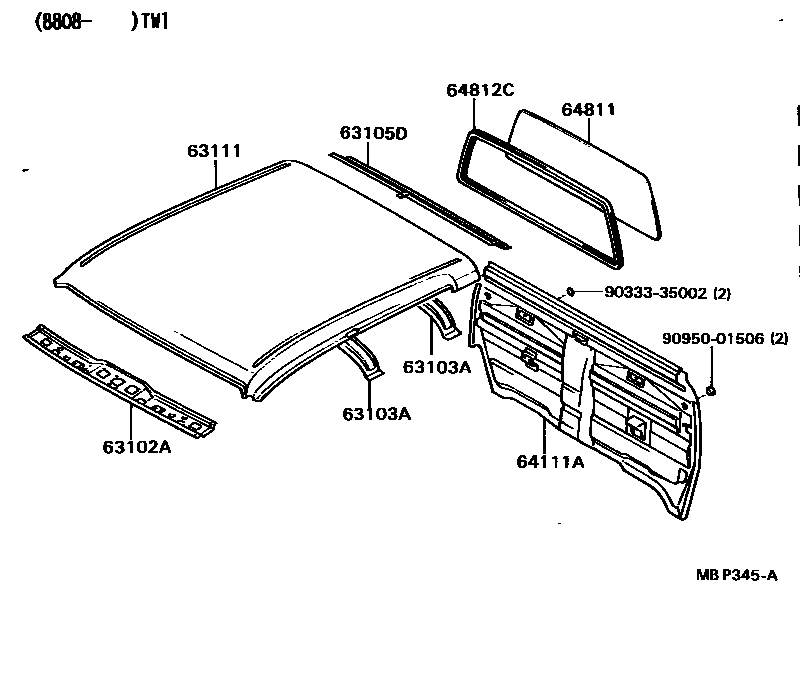

Toyota HILUX EPC diagram 6153, 天窗板和背板, with 5 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61824D | Noise Control Panel No. 1 | 61824-89106 · 61825-20100 |
| 63102A | Windshield roof sub-assembly | 63102-89107 · 63102-89108 · 63102-89109 |
| 63103A | Roof panel reinforcement sub-assembly | 63103-89106 · 63103-89107 |
| 63105A | Back door opening frame sub-assembly | 63105-35010 · 63105-35011 · 63105-89111 |
| 63105D | Rear window upper frame sub-assembly | 63105-35020 · 63105-35050 · 63105-89106 · 63105-89109 · 63105-89110 |
| 63111 | roof panel | 63111-89118 · 63111-89120 · 63111-89122 · 63111-89123 · 63111-89124 · 63111-89125 · 63111-89126 |
| 63125 | No. 2 roof panel reinforcement | 63125-89101 |
| 63126A | Windshield roof shock absorber | 63126-16010 |
| 63135B | Upper panel inside the back window | 63135-35020 · 63135-89102 |
| 63141H | Center roof panel reinforcement | 63141-89106 |
| 63142 | No. 2 roof panel reinforcement | 63142-89102 |
| 63149E | No. 2 roof panel reinforcement bracket | 63149-89103 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-89107 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-89109 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-35010 · 63205-35011 · 63205-89101 |
| 63206G | Sliding sunroof driving gear sub-assembly | 63260-35020 · 63260-89106 |
| 63207 | Right sliding sunroof guide rail sub-assembly | 63207-35010 · 63207-35011 · 63207-89101 |
| 63208 | Left sliding sunroof guide rail sub-assembly | 63208-35010 · 63208-35011 · 63208-89102 |
| 63209 | Roof deflector sub-assembly | 63209-89103 |
| 63217G | Right sliding sunroof trim | 63217-89102 |
| 63218A | Hoses (for sliding or removable sunroof drainage) | 63249-16070 · 63249-35040 · 63249-89104 · 63249-89105 |
| 63218G | Sliding sunroof trim, left | 63218-89103 |
| 63223 | Right sliding sunroof transmission cable | 63223-35010 · 63223-35020 · 63223-89101 |
| 63224 | Left sliding sunroof transmission cable | 63224-35010 · 63224-35020 · 63224-89101 |
| 63239 | Sliding roof panel stop | 63239-24010 |
| 63252D | Sliding skylight frame sealing strip | 63252-89105 |
| 63255 | Right sliding sunroof guide cover | 63255-35010 · 63255-89101 |
| 63256 | Left sliding sunroof guide cover | 63255-35010 · 63255-89101 |
| 63265B | Sliding sunroof driving gear | 63265-89101 |
| 63277C | Sliding skylight panel gasket | 63277-24010 · 63277-30020 · 63277-32010 · 63277-32020 |
| 63279D | Sliding sunroof guide rail stop | 63279-32010 · 63279-35010 |
| 63341E | Roof right side muffler | 63341-89125 |
| 63343D | No. 3 roof muffler pad | 63343-89106 |
| 64111A | backplane | 64101-89135 · 64101-89145 · 64101-89146 · 64101-89147 · 64101-89149 |
| 64811 | back window glass | 64811-04030 · 64811-35020 · 64811-89119 · 64811-89120 · 64811-89138 · 64811-89139 · 64811-89140 · 64811-89141 · 64811-89157 |
| 64812C | Back window glass seal strip | 64812-35020 · 64812-89108 · 64812-89111 |
