Toyota HILUX 侧窗 — Figure 6152

Toyota HILUX EPC diagram 6152, 侧窗, with 2 images and 8 PNC and OE references.

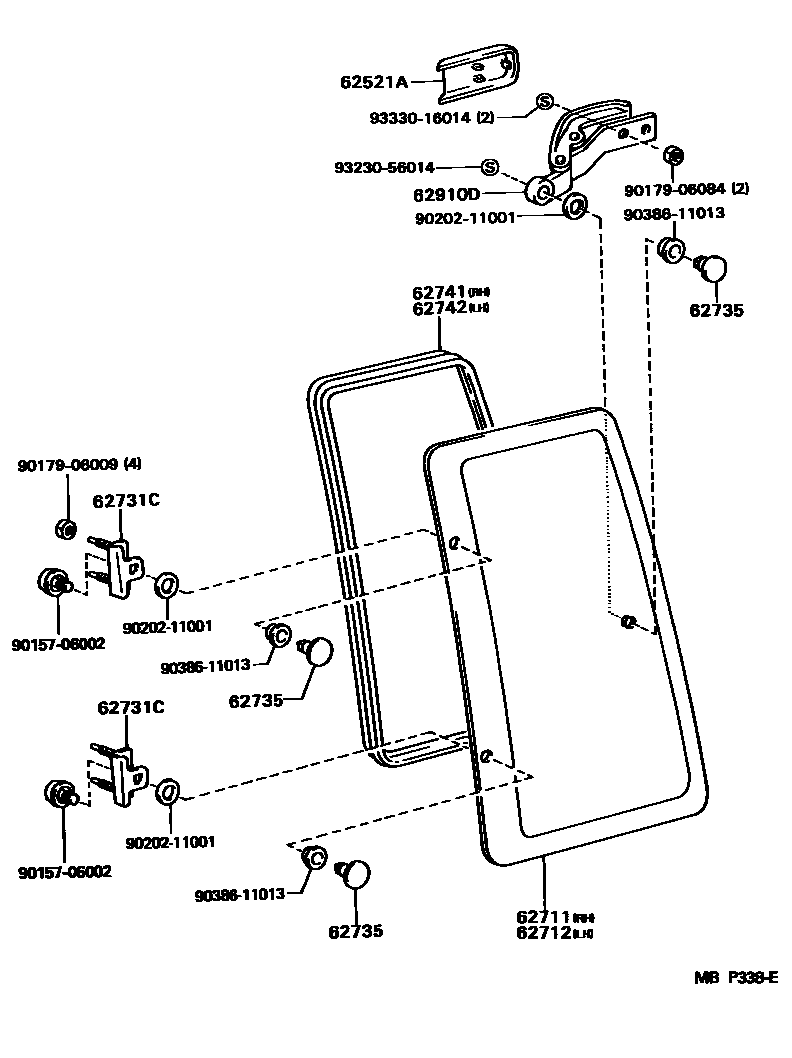

Toyota HILUX 侧窗 EPC diagram — MBP338E
侧窗 — MBP338E (198808 – 999999)
Toyota HILUX 侧窗 EPC diagram — MBS393B
侧窗 — MBS393B (198908 – 199511)

PNC and OE references

PNCPart nameOE numbers
62711Right corner window glass62711-89113 · 62711-89116
62712Left corner window glass62712-89113 · 62712-89116
62730No. 3 side window panel assembly62730-89101 · 62730-89102
62731CRight corner window hinge62731-89101 · 62731-89102
62735Corner window hinge fixings62735-89102
62740No. 4 side window panel assembly62740-89101 · 62740-89102
62741Right corner window sealing strip62741-89102
62742Left corner window sealing strip62741-89102 · 62742-89103
