Toyota HILUX 地板隔热垫 — Figure 5853

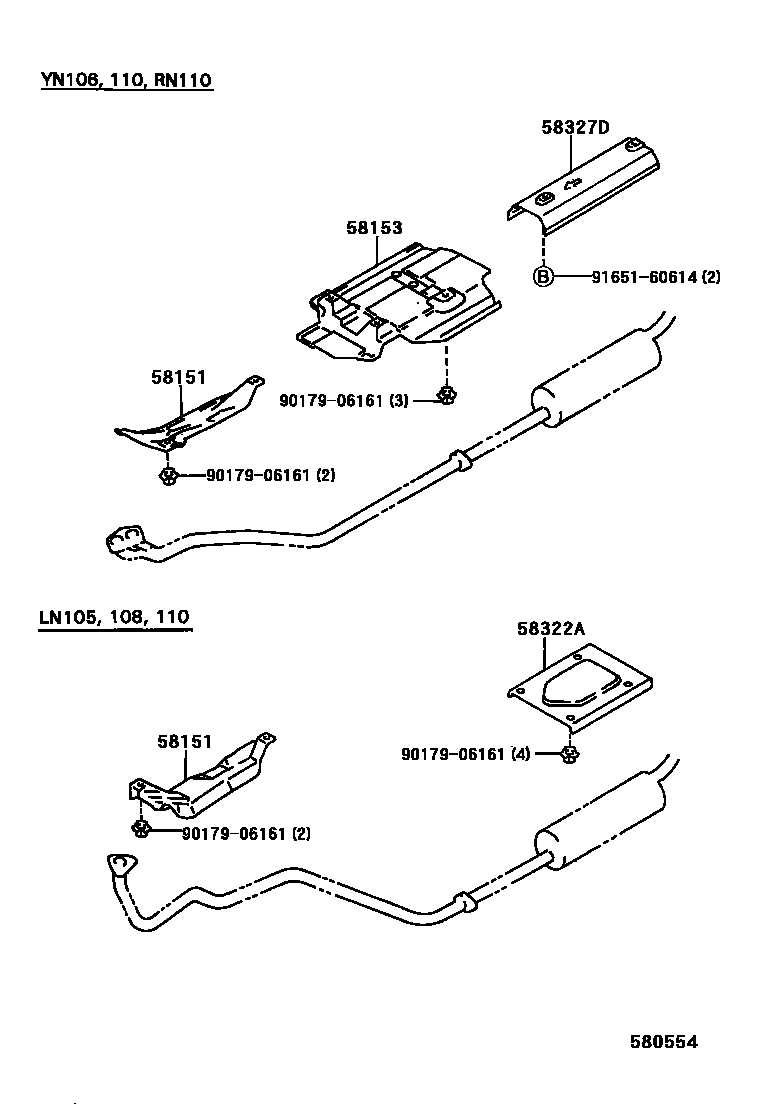

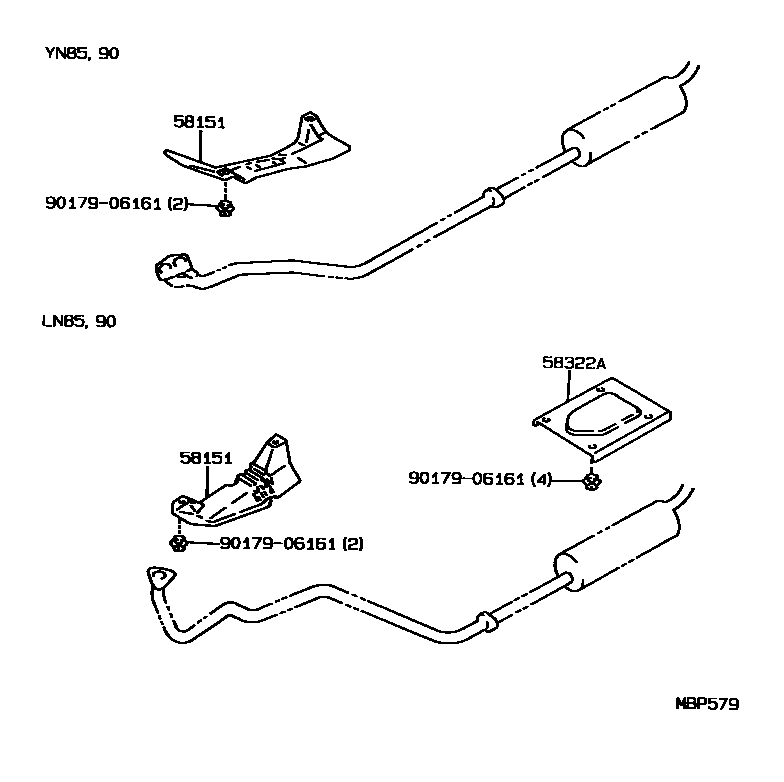

Toyota HILUX EPC diagram 5853, 地板隔热垫, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58041C | Front floor insulation pad sub-assembly No. 1 | 58041-89107 |
| 58151 | Front floor insulation mat No. 1 | 58041-89107 · 58151-35010 · 58151-89112 · 58151-89113 · 58151-89116 |
| 58153 | Front floor insulation mat No. 2 | 58153-89111 · 58153-89112 |
| 58322A | Rear floor insulation mat | 58322-89103 |
| 58327B | Main muffler heat insulation pad | 58327-89107 |
| 58327D | Heat insulation pad on main muffler | 58327-89106 |
