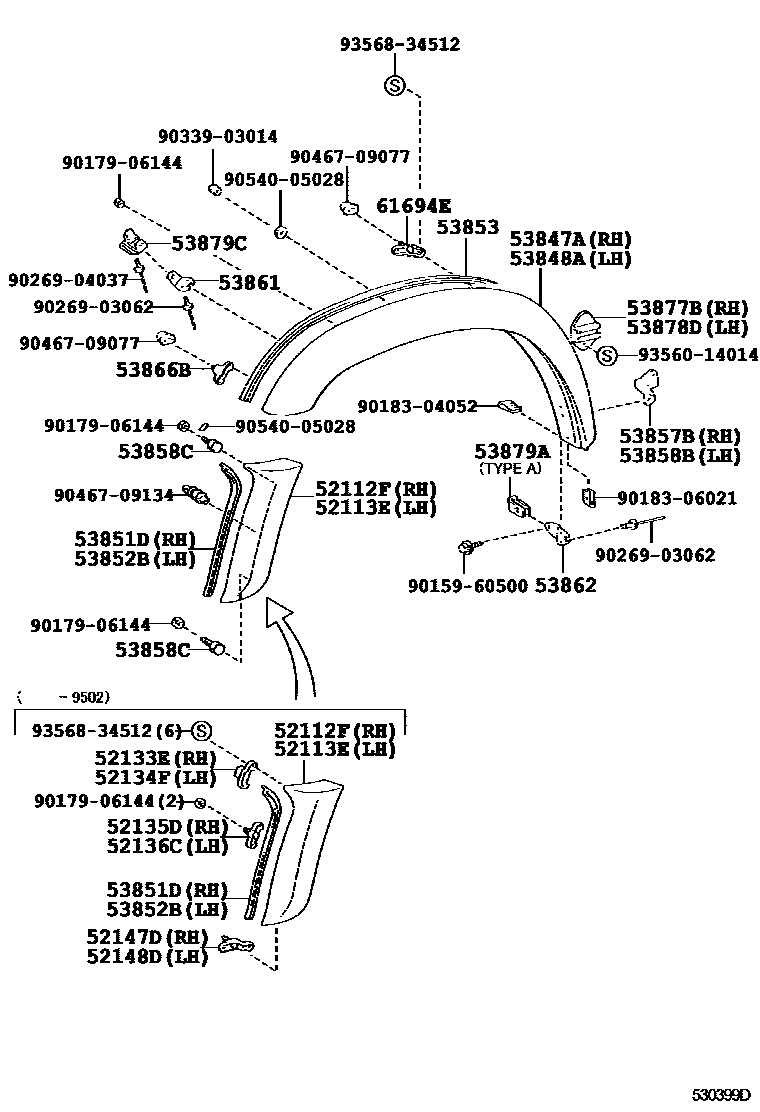

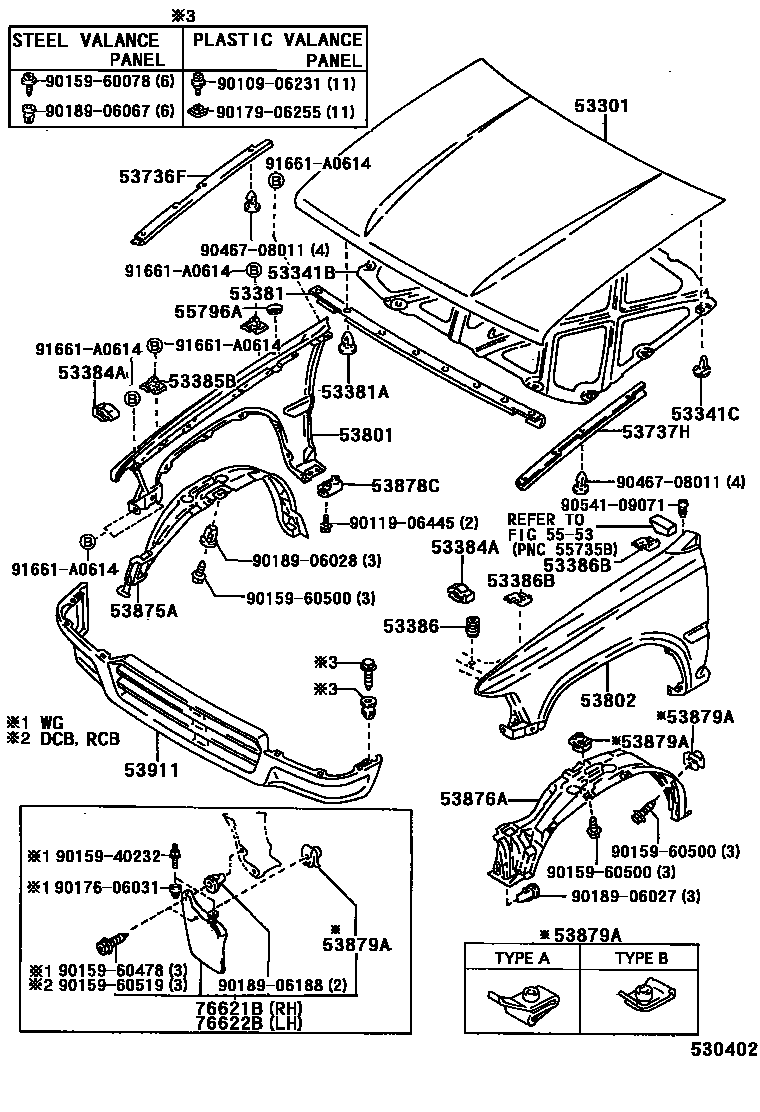

Toyota HILUX 发动机盖和前翼子板 — Figure 5353
Toyota HILUX EPC diagram 5353, 发动机盖和前翼子板, with 2 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52112F | Front bumper right extension | 52102-35900 · 52112-35900 |
| 52113E | Front bumper left extension | 52103-35900 · 52113-35900 |
| 52133E | Front bumper right side bracket | 52133-35010 |
| 52134F | Front bumper left bracket | 52134-35010 |
| 52135D | Front bumper No. 1 right side bracket | 52135-35010 |
| 52136C | Front bumper No. 1 left side bracket | 52136-35010 |
| 52147D | Front bumper No. 2 right side bracket | 52147-35080 |
| 52148D | Front bumper No. 2 left side bracket | 52148-35030 |
| 53301 | Engine cover sub-assembly | 53301-89124 |
| 53341B | engine cover gasket | 53341-89106 · 53341-89107 |
| 53381 | Engine cover to radiator bracket seal | 53381-89104 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 |
| 53384A | fender to engine cover buffer block | 53384-89102 · 53384-89103 |
| 53385B | Right side bracket (fender to engine cover bumper) | 53386-20020 |
| 53386 | Engine cover rear buffer block | 53382-89102 |
| 53386B | Left side bracket (fender to engine cover bumper) | 53385-20020 |
| 53736F | Right front fender fender seal | 53736-89117 |
| 53737H | Left front fender fender seal | 53737-89108 |
| 53801 | Right front fender sub-assembly | 53811-35130 · 53811-35140 · 53811-35180 · 53811-35190 · 53811-89204 · 53811-89207 · 53811-89209 · 53811-89211 |
| 53802 | Left front fender sub-assembly | 53812-35140 · 53812-35150 · 53812-35160 · 53812-35240 · 53812-89194 · 53812-89198 · 53812-89200 · 53812-89201 |
| 53847A | Right front fender or wheel arch guard strip extension | 53847-35900 |
| 53848A | Left front fender or wheel arch guard strip extension | 53848-35900 |
| 53857B | Right front fender external panel fixing piece | 53857-35010 |
| 53858B | Left front fender external panel fixing piece | 53858-35010 |
| 53858C | Fender outer plate bolts | 53858-60020 |
| 53861 | No. 1 front fender external panel bracket | 53861-35020 |
| 53862 | No. 2 front fender external panel bracket | 53862-35020 |
| 53866B | No. 4 front fender external panel bracket | 53866-35010 |
| 53875A | Right front fender lining | 53875-89105 · 53875-89106 |
| 53876A | Left front fender lining | 53876-89105 · 53876-89106 |
| 53877B | Right front fender rear side panel lower bracket | 53877-35010 |
| 53878C | front fender spacer | 53878-89102 |
| 53878D | Left front fender rear side panel lower bracket | 53878-35010 |
| 53879A | Front fender lining fixing parts | 53879-14020 · 53879-22010 |
| 53879C | Front fender lining fixing parts | 53879-22010 |
| 53911 | front fender | 53901-35020 · 53901-35050 · 53911-35010 · 53911-35905 · 53911-89114 · 53911-89115 · 53911-89118 · 53911-89119 · 53911-89120 · 53911-89121 |
| 55796A | radio antenna hole cover | 55796-89102 |
| 61694E | No. 2 rear fender external panel bracket | 61694-35020 |
| 76621B | Right front body fender | 76603-39015 · 76603-39025 · 76621-39155 · 76621-39425 |
| 76622B | Left front body fender | 76604-39015 · 76604-39025 · 76622-39155 · 76622-39425 |
