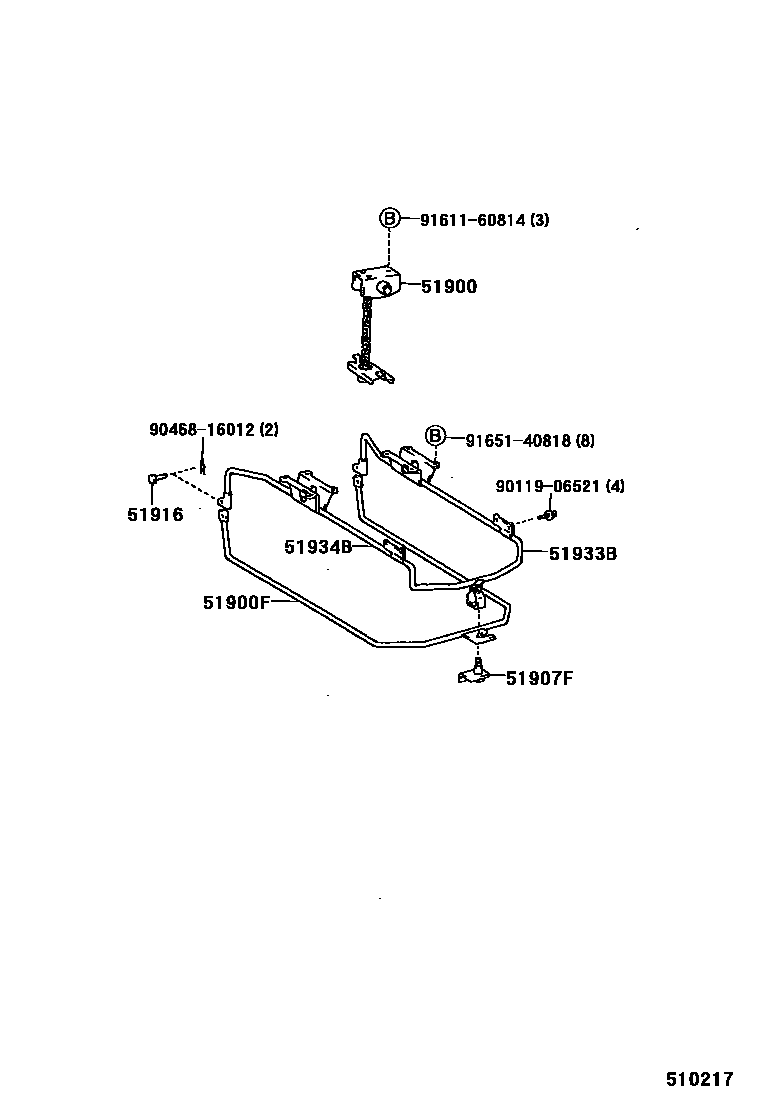

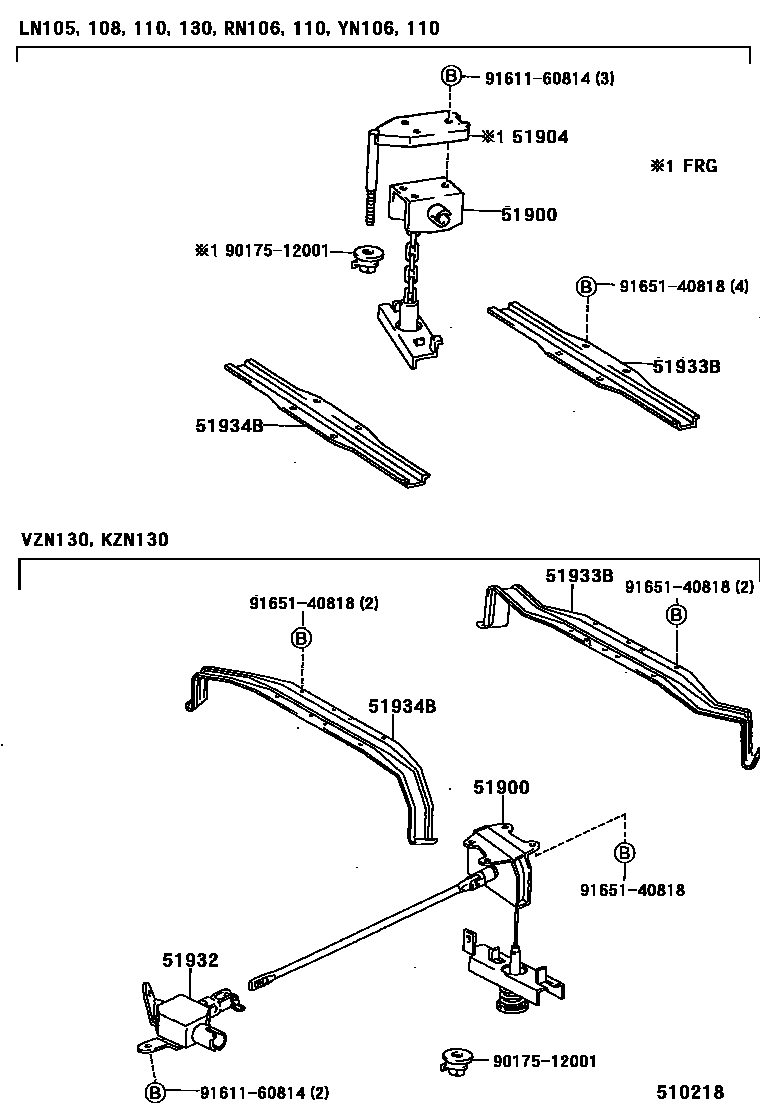

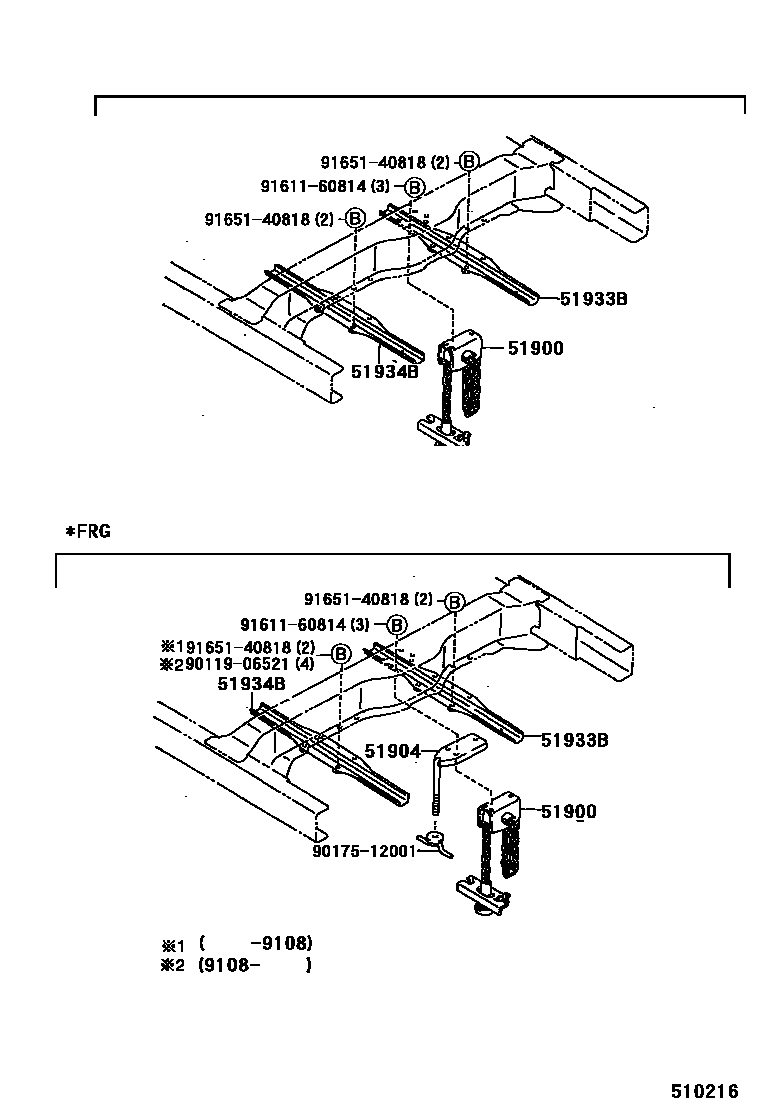

Toyota HILUX Spare tire rack — Figure 5153
Toyota HILUX EPC diagram 5153, Spare tire rack, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51900 | Spare tire rack assembly | 51900-35101 · 51900-35121 · 51900-35160 · 51900-35210 · 51900-35250 |
| 51900F | Spare tire rack assembly | 51900-35270 |
| 51904 | Spare tire rack bracket sub-assembly | 51904-35040 · 51904-35050 · 51904-35100 |
| 51907F | Spare tire rack block sub-assembly | 51907-35020 |
| 51916 | Spare tire rack pin | 51916-35020 · 51916-35030 |
| 51932 | No. 2 spare tire rack | 51932-35040 |
| 51933B | Spare tire rack right block | 51933-34010 · 51933-35040 · 51933-35050 · 51933-35110 · 51933-35140 |
| 51934B | Spare tire rack left block | 51933-34010 · 51933-35040 · 51933-35050 · 51933-35110 · 51934-35070 |
