Toyota HILUX 车架 — Figure 5151

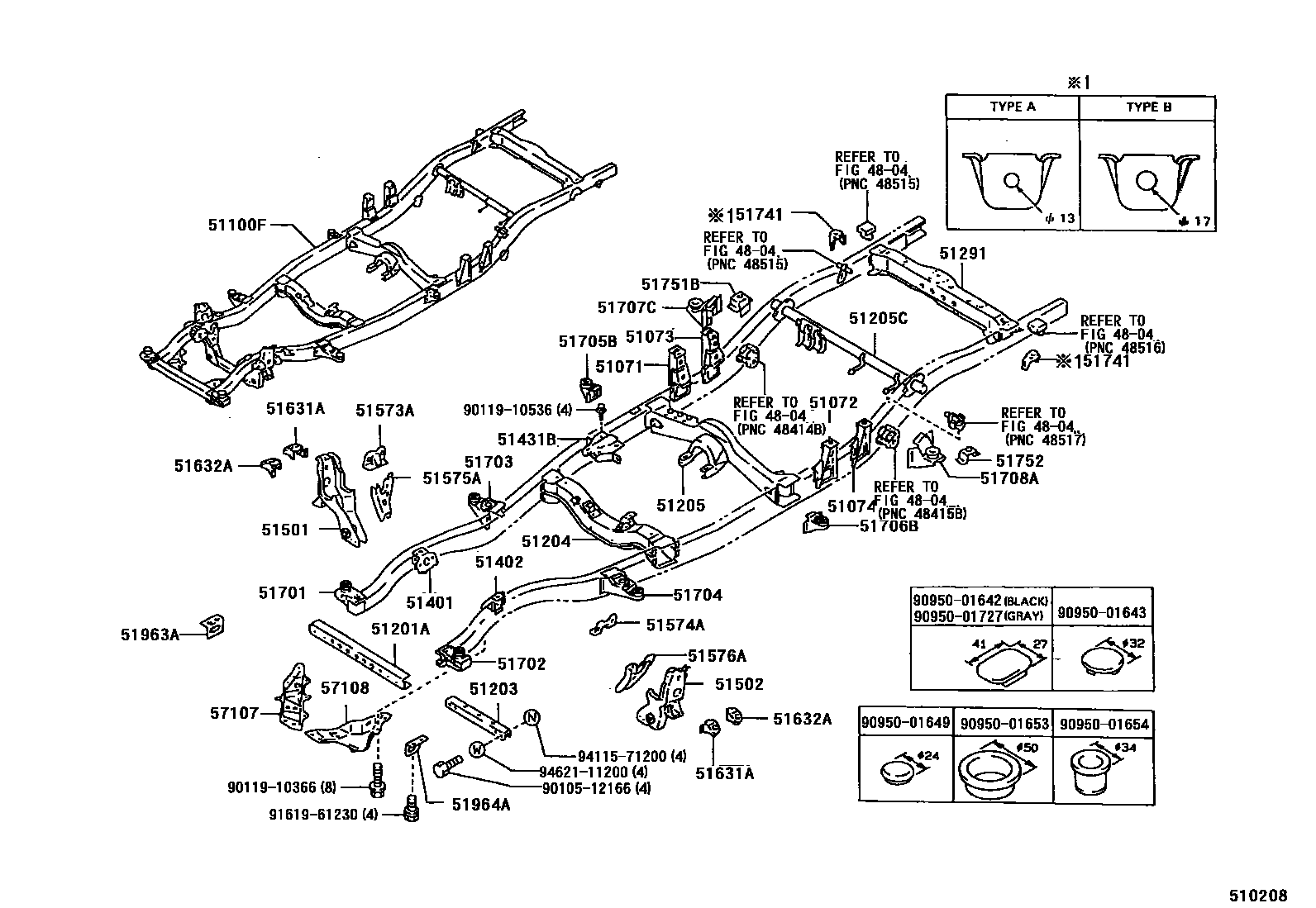

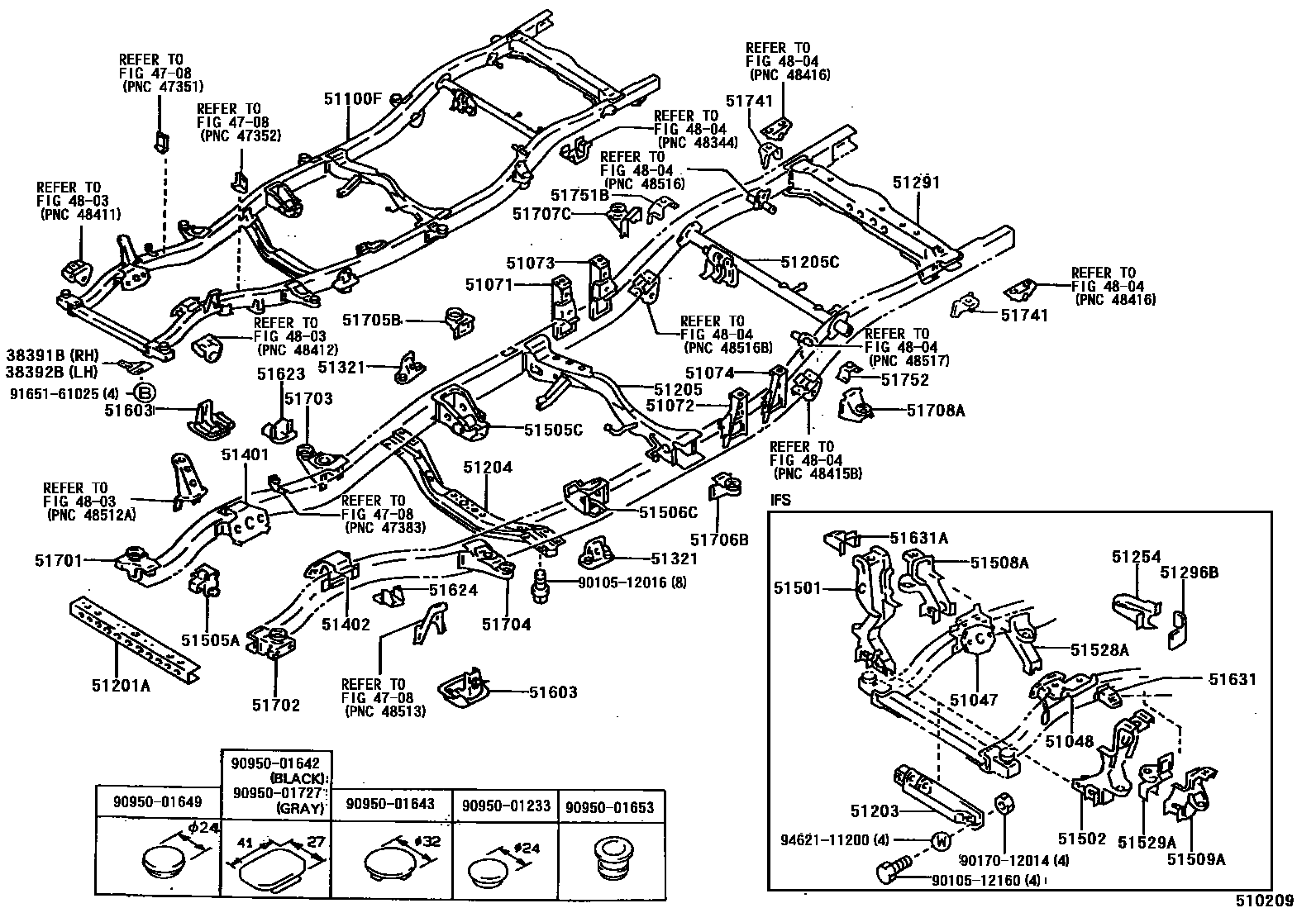

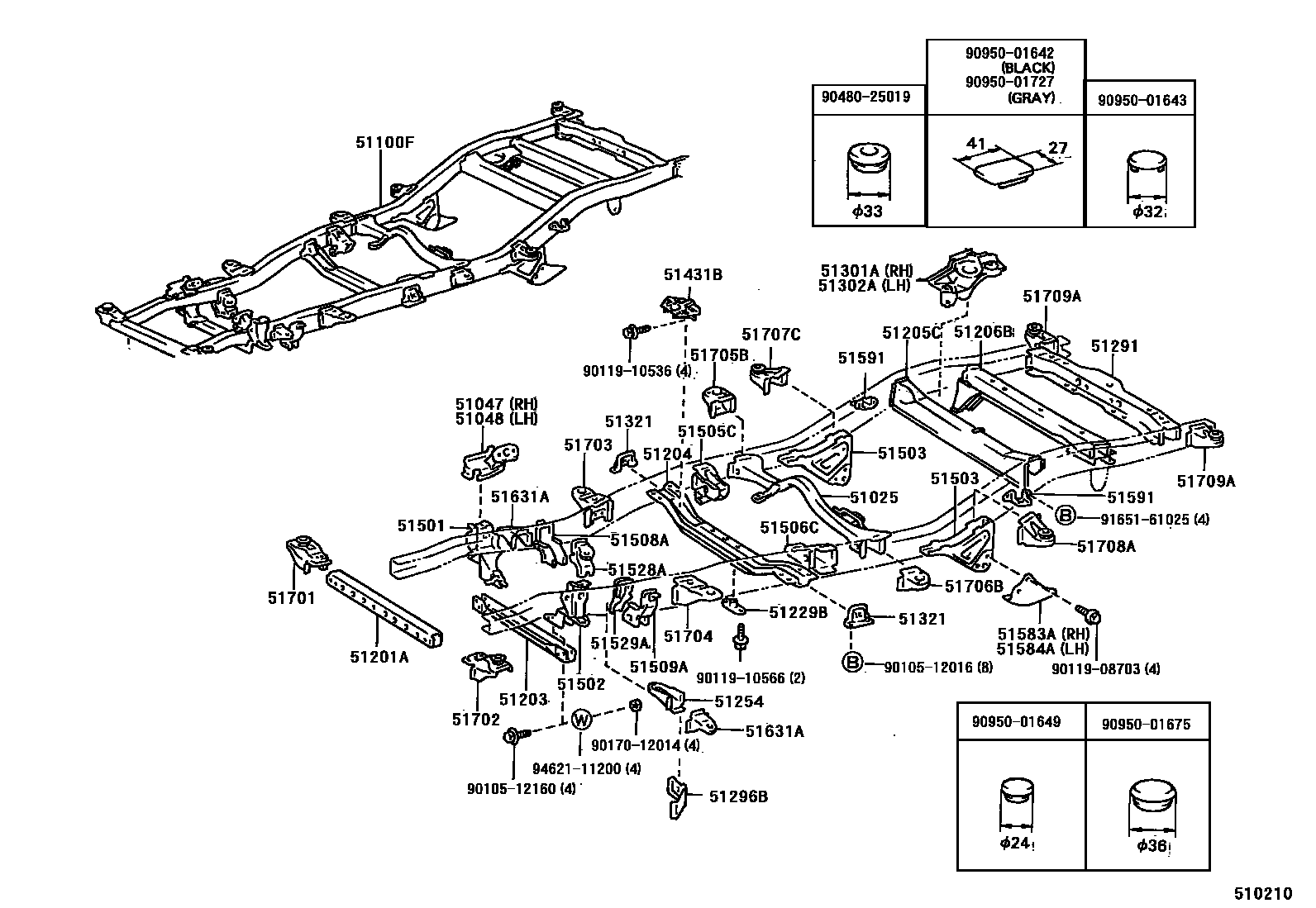

Toyota HILUX EPC diagram 5151, 车架, with 3 images and 65 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 38391B | No. 1 beam right corner plate | 38391-35031 |
| 38392B | No. 1 beam left corner plate | 38392-35011 |
| 51025 | Engine front mounting beam sub-assembly | 51204-35480 |
| 51047 | Engine right side mount and upper arm bracket sub-assembly | 51047-35030 · 51047-35040 · 51047-35070 · 51047-35080 |
| 51048 | Engine left mounting and upper arm bracket sub-assembly | 51048-35030 · 51048-35040 · 51048-35070 · 51048-35080 |
| 51071 | Right rear body No. 1 mounting bracket sub-assembly | 51071-35040 · 51071-35050 |
| 51072 | Left rear body No. 1 mounting bracket sub-assembly | 51071-35050 · 51072-35020 |
| 51073 | Right rear body No. 2 mounting bracket sub-assembly | 51073-35020 |
| 51074 | Left rear body No. 2 mounting bracket sub-assembly | 51074-35020 |
| 51100F | Frame sub-assembly | 51001-3D680 · 51001-3D730 · 51002-3D360 · 51002-3D361 · 51002-3D380 · 51002-3D381 · 51002-3D420 · 51002-3D421 · 51002-3D431 · 51002-3D440 · 51002-3D441 · 51002-3D460 · 51002-3D461 · 51002-3D640 · 51002-3D650 · 51002-3D660 · 51002-3D850 · 51002-3D860 · 51003-35300 · 51003-35330 · 51003-35350 · 51003-35420 · 51003-35430 · 51003-35431 · 51003-35440 · 51003-35540 · 51003-35560 · 51003-35620 · 51003-35640 · 51003-35720 · 51003-35770 · 51003-35790 · 51003-3D030 · 51003-3D110 · 51003-3D120 · 51003-3D230 · 51003-3D240 · 51003-3D250 · 51003-3D360 · 51003-3D470 · 51003-3D480 · 51003-3D490 · 51003-3D650 · 51003-3D770 |
| 51201A | Front frame cross member sub-assembly | 51201-35160 · 51201-35170 · 51201-35180 · 51201-35200 · 51201-35230 · 51201-35240 · 51201-35250 |
| 51203 | Frame No. 2 cross member sub-assembly | 51202-35220 · 51203-35270 |
| 51204 | Frame No. 3 beam sub-assembly | 51202-35190 · 51202-35200 · 51202-35240 · 51202-35270 · 51202-35310 · 51203-35240 · 51203-35250 |
| 51205 | Frame No. 4 beam sub-assembly | 51204-35360 · 51204-35370 · 51204-35380 · 51204-35400 · 51204-35430 · 51204-35450 · 51204-35510 |
| 51205C | Frame No. 5 beam sub-assembly | 51205-35131 · 51205-35140 · 51205-35170 · 51205-35210 · 51205-35220 |
| 51206B | Frame No. 6 crossbeam sub-assembly | 51206-35030 |
| 51229B | No. 2 frame cross member dynamic damper | 51229-35020 |
| 51254 | Differential left bracket | 51254-35010 |
| 51291 | Frame rear cross member | 51209-35112 · 51209-35120 · 51291-35100 |
| 51296B | Differential bracket left reinforcement | 51296-35010 |
| 51301A | Rear spring right rear bracket sub-assembly | 51301-35020 |
| 51302A | Rear spring left rear bracket sub-assembly | 51302-35030 |
| 51321 | Right corner plate of No. 2 beam | 51321-35050 · 51321-35090 |
| 51401 | Engine right front mounting bracket sub-assembly | 51401-35170 · 51401-35190 · 51401-35200 · 51401-35260 |
| 51402 | Engine left front mounting bracket sub-assembly | 51401-35190 · 51402-35170 · 51402-35190 · 51402-35260 |
| 51431B | Engine rear mounting bracket | 51431-35060 · 51431-35140 · 51431-35141 |
| 51501 | Right suspension arm bracket sub-assembly | 51501-35030 · 51501-35060 · 51501-35070 |
| 51502 | Left suspension arm bracket sub-assembly | 51502-35030 · 51502-35060 · 51502-35070 |
| 51503 | Lower control link bracket sub-assembly | 51503-35010 |
| 51505A | Upper control arm bracket sub-assembly | 51505-35042 · 51505-35050 |
| 51505C | Fixed arm right side bracket sub-assembly | 51505-35080 · 51505-35090 |
| 51506C | Fixed arm left bracket sub-assembly | 51506-35020 |
| 51508A | Right lower arm bracket sub-assembly | 51508-35900 · 51508-35901 |
| 51509A | Left lower arm bracket sub-assembly | 51509-35900 · 51509-35901 |
| 51528A | Right lower arm bracket reinforcement | 51528-35900 |
| 51529A | Left lower arm bracket reinforcement | 51529-35900 |
| 51573A | No. 1 right suspension arm bracket reinforcement | 51573-35010 |
| 51574A | No. 1 suspension arm bracket left reinforcement | 51573-35010 |
| 51575A | No. 2 suspension arm bracket right side reinforcement | 51575-35040 · 51575-35050 |
| 51576A | No. 2 suspension arm bracket left reinforcement | 51575-35040 · 51576-35020 |
| 51583A | Right lower control arm protector | 51583-35020 |
| 51584A | Left lower control arm protector | 51584-35010 |
| 51591 | Stabilizer bar bracket | 51591-35040 |
| 51603 | Front suspension elastic bracket sub-assembly | 51603-35020 · 51603-35040 |
| 51623 | Right front spring-loaded stop bracket | 51623-35020 |
| 51624 | Left front spring-loaded stop bracket | 51624-35020 |
| 51631 | Right front suspension rebound limiter | 51631-35040 |
| 51631A | Front suspension No. 1 rebound limiter | 51631-35040 · 51631-35050 |
| 51632A | Front suspension No. 2 rebound limiter | 51632-35040 |
| 51701 | Cab suspension No. 1 right side bracket sub-assembly | 51701-35110 · 51701-35120 · 51701-35130 |
| 51702 | Cab suspension No. 1 left side bracket sub-assembly | 51702-35090 · 51702-35100 · 51702-35110 |
| 51703 | Cab suspension No. 2 right side bracket sub-assembly | 51703-35060 · 51703-35080 · 51703-35090 |
| 51704 | Cab suspension No. 2 left side bracket sub-assembly | 51704-35080 · 51704-35100 · 51704-35110 |
| 51705B | Cab suspension No. 3 right side bracket sub-assembly | 51705-35090 · 51705-35100 |
| 51706B | Cab suspension No. 3 left bracket sub-assembly | 51705-35090 · 51706-35020 |
| 51707C | Cab suspension No. 4 right side bracket sub-assembly | 51707-35030 · 51707-35060 |
| 51708A | Cab suspension No. 4 left bracket sub-assembly | 51708-35030 · 51708-35060 |
| 51709A | Body rear end mounting bracket sub-assembly | 51709-35020 |
| 51741 | Rear body No. 1 mounting bracket | 51715-35020 · 51741-35050 |
| 51751B | Right body No. 1 bracket | 51751-35070 |
| 51752 | Left body No. 1 bracket | 51752-35040 |
| 51963A | Right front transport hook | 51963-35070 |
| 51964A | Left front transport hook | 51964-35050 |
| 57107 | Right support rod bracket sub-assembly | 57107-35050 |
| 57108 | Left support rod bracket sub-assembly | 57108-35050 |
