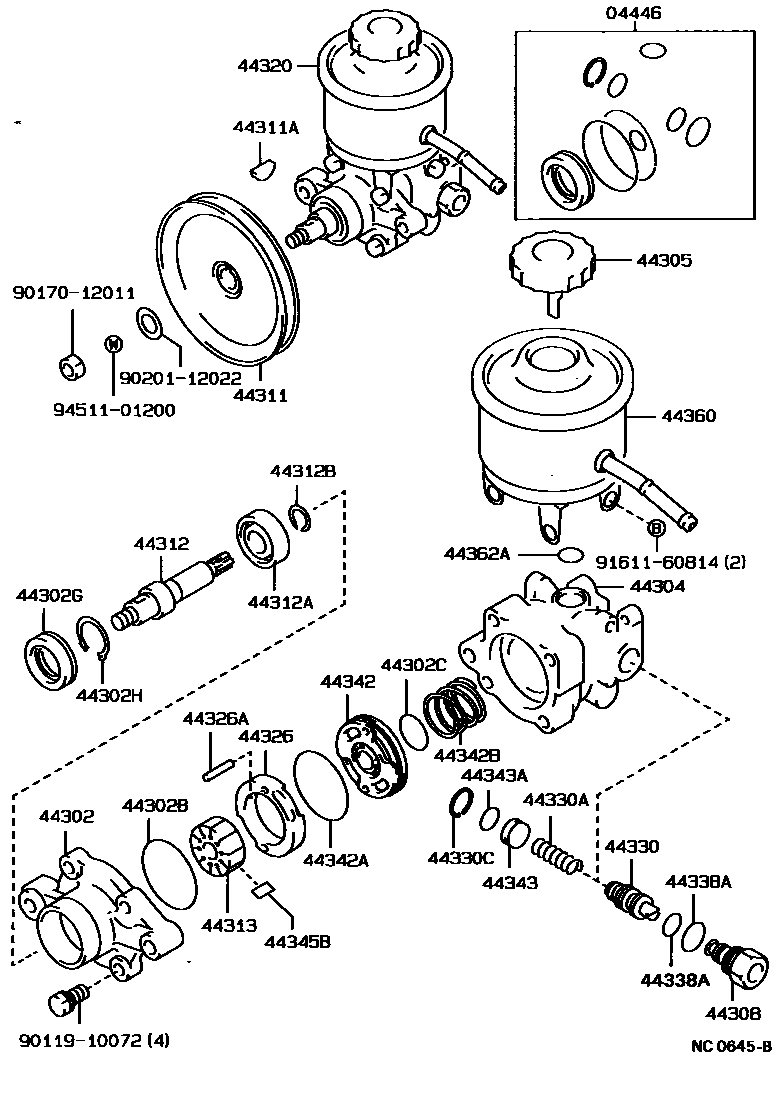

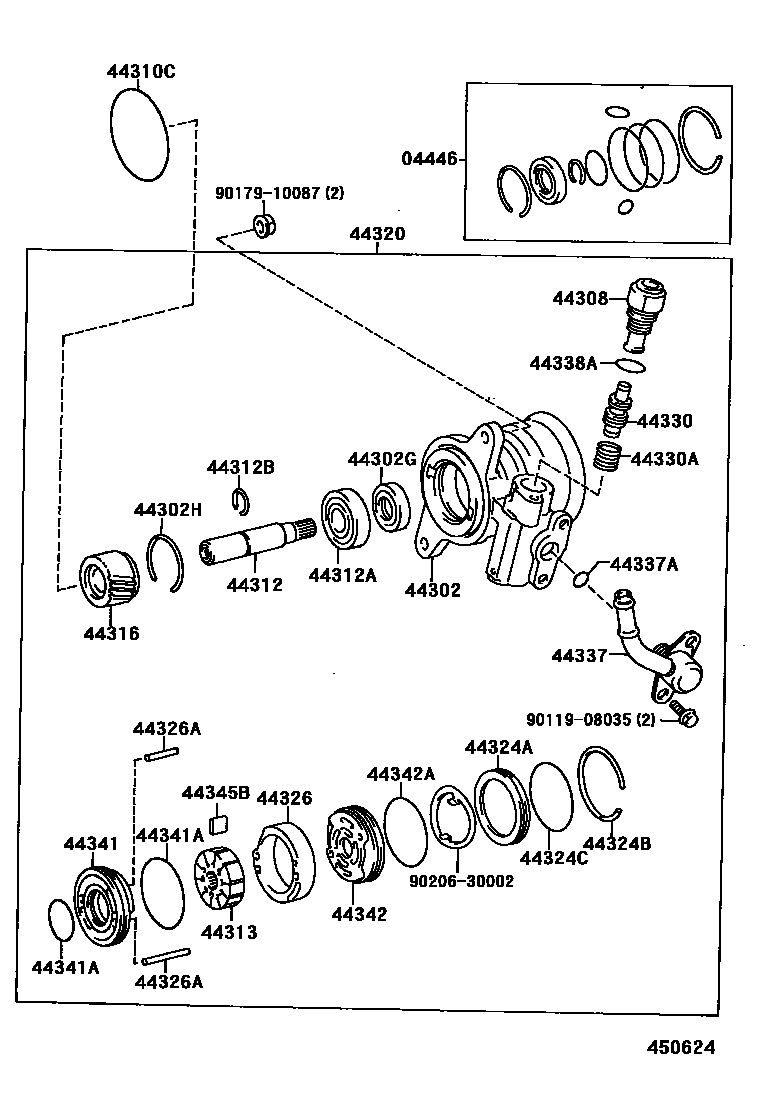

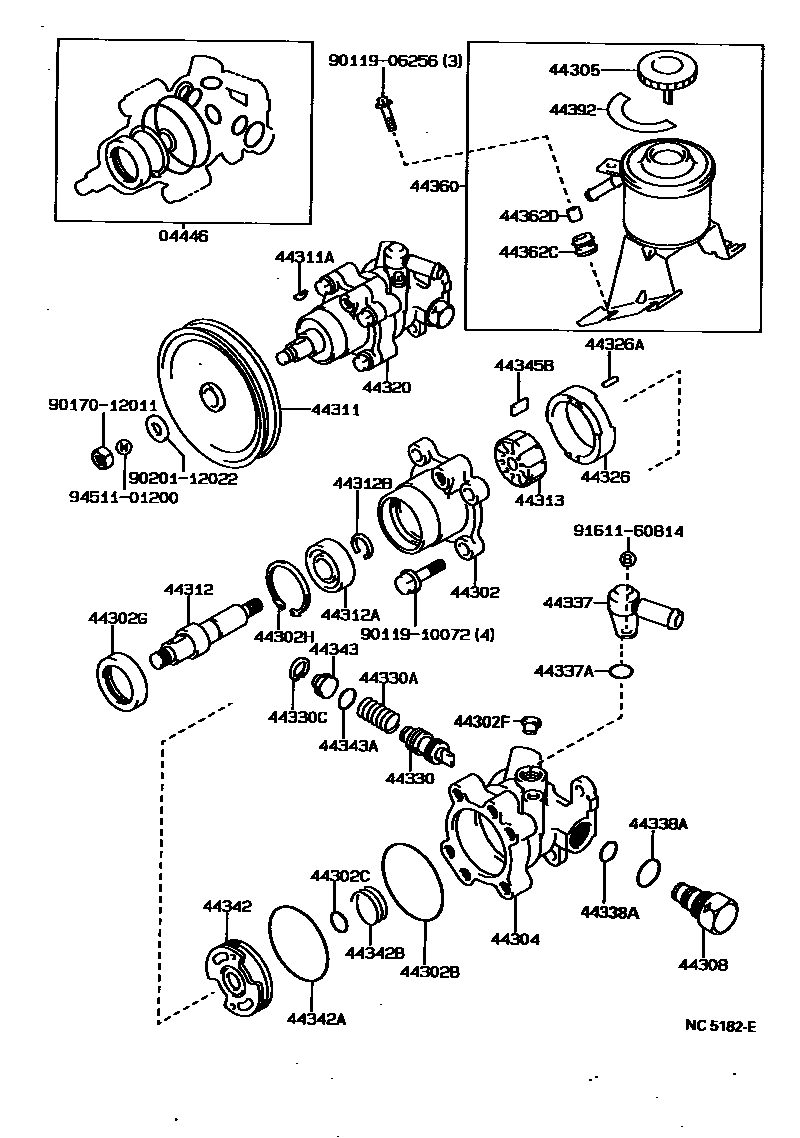

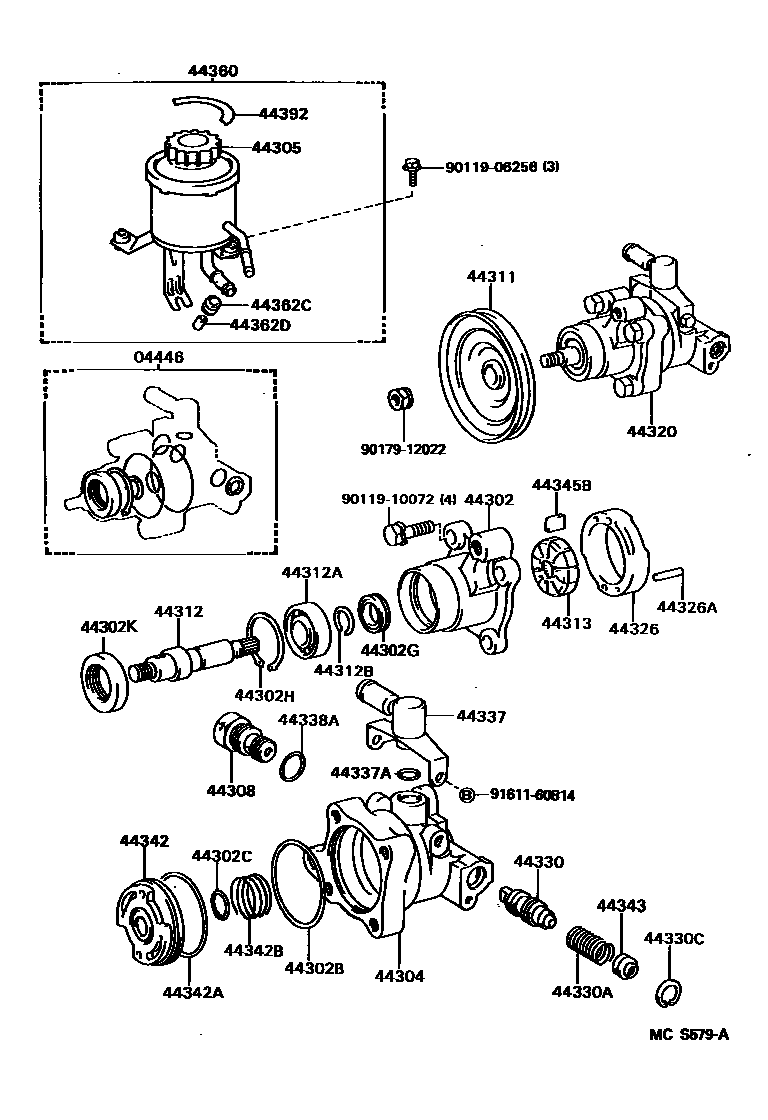

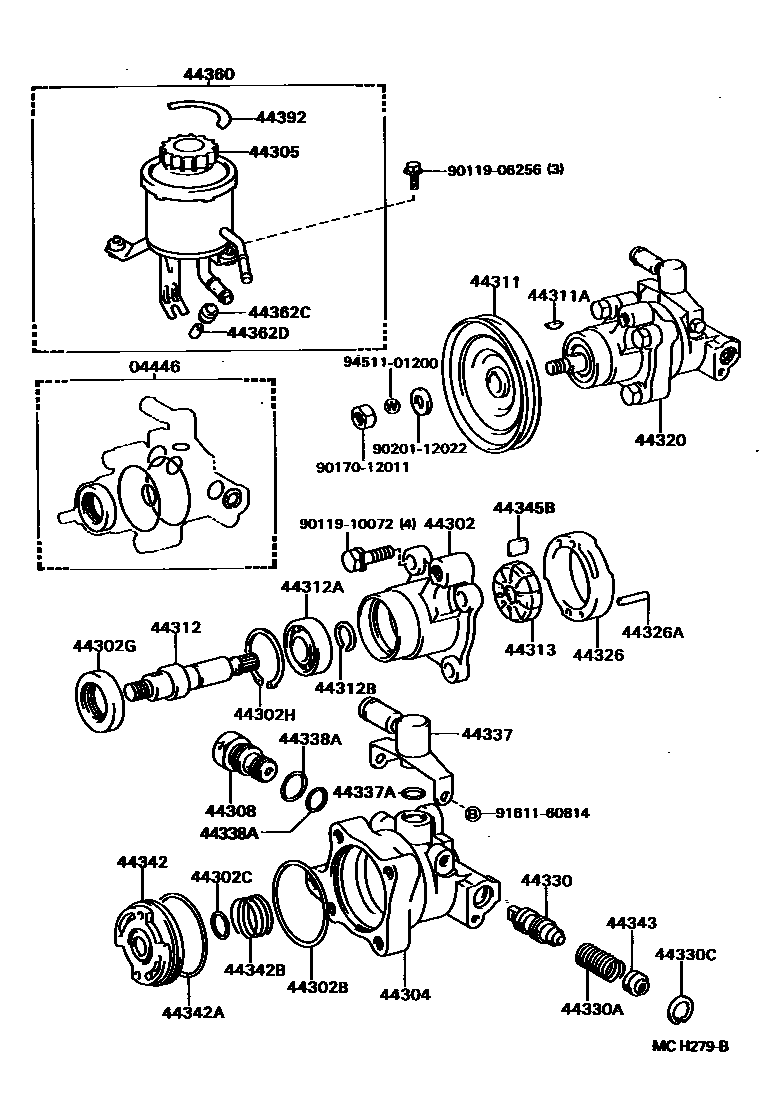

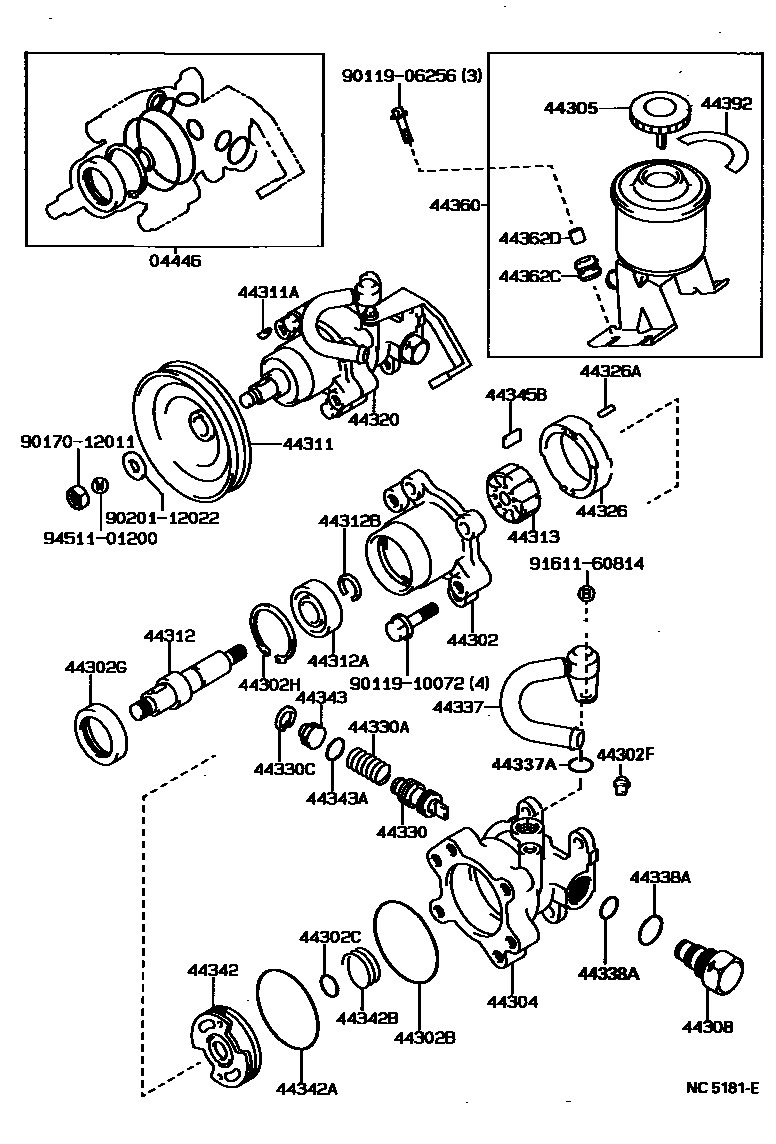

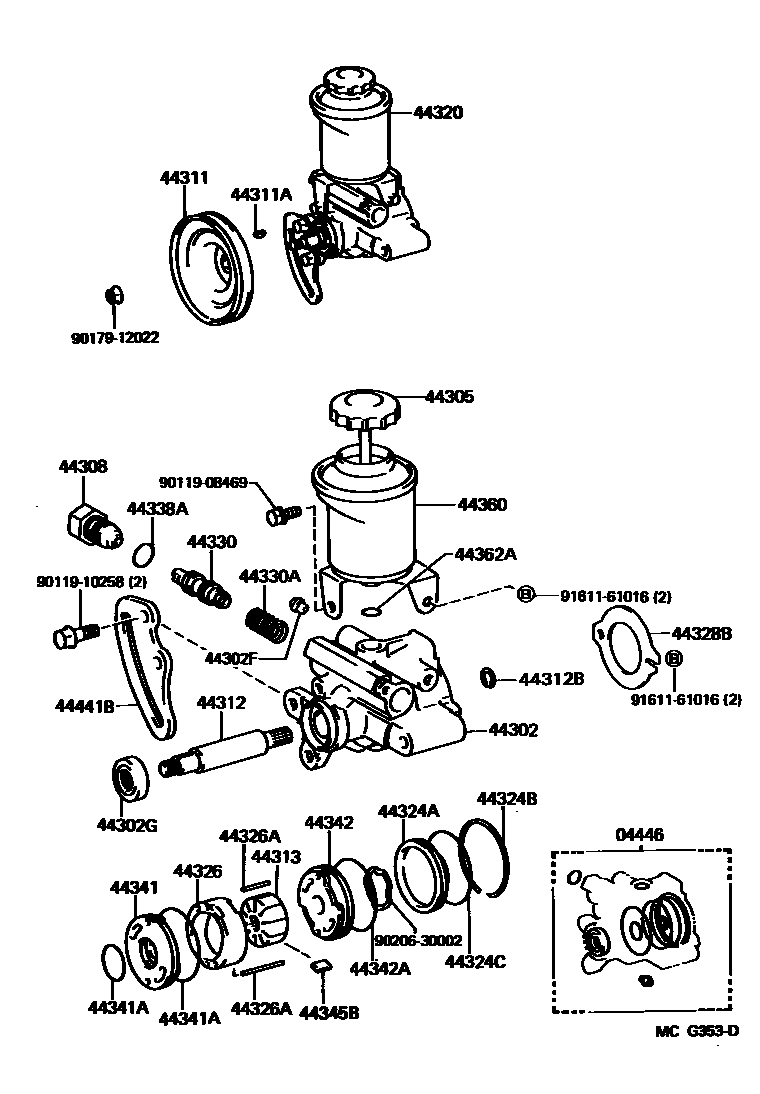

Toyota HILUX 叶片泵和储油罐(动力转向) — Figure 4502
Toyota HILUX EPC diagram 4502, 叶片泵和储油罐(动力转向), with 8 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04446 | Power steering pump gasket assembly | 04446-20030 · 04446-26030 · 04446-30030 · 04446-33021 · 04446-35050 · 04446-60020 · 04446-60021 · 04446-60090 · 04446-60091 |
| 44302 | Front vane pump housing sub-assembly | 44302-12010 · 44302-14010 · 44302-22020 · 44302-30110 · 44302-35010 · 44302-60030 · 44302-60060 |
| 44302B | No. 1 O-ring (for vane pump housing) | 90301-60001 |
| 44302C | No. 2 O-ring (for vane pump housing) | 96711-19016 |
| 44302F | Joint seat (for vane pump housing) | 90410-05035 |
| 44302G | No. 2 oil seal (for vane pump housing) | 90311-17004 · 90311-18007 · 90311-24001 · 90316-17004 |
| 44302H | No. 1 snap ring (for vane pump housing) | 90520-38016 · 90521-44002 · 90521-51003 |
| 44302K | No. 3 oil seal (for vane pump housing) | 90313-23001 |
| 44304 | Vane pump rear housing sub-assembly | 44304-28021 · 44304-30051 · 44304-35031 · 44304-35041 |
| 44305 | Vane pump oil storage tank cover sub-assembly | 44305-22040 · 44305-24030 · 44305-35010 |
| 44308 | Pressure hole connector sub-assembly | 44308-35040 · 44308-35060 · 44308-35070 |
| 44310C | O-ring (for vane pump) | 90301-60002 |
| 44311 | vane pump pulley | 44311-12010 · 44311-20010 · 44311-22070 · 44311-30150 · 44311-35020 · 44311-35030 |
| 44311A | Vane pump pulley key | 90280-05008 |
| 44312 | vane pump shaft | 44312-12010 · 44312-12030 · 44312-28010 · 44312-60020 |
| 44312A | Bearings (for vane pump shafts) | 90363-17004 · 90363-17011 · 90363-17016 |
| 44312B | No. 1 snap ring (for vane pump shaft) | 90520-10003 · 90520-15001 · 90520-15005 |
| 44313 | vane pump rotor | 44313-12010 · 44313-12020 · 44313-12030 · 44313-12040 · 44313-12050 · 44313-22040 · 44313-22050 · 44313-22060 · 44313-22070 · 44313-22080 · 44313-26060 · 44313-26070 · 44313-26080 · 44313-26090 · 44313-26100 · 44313-35010 |
| 44316 | vane pump gear | 44316-60030 |
| 44320 | Vane pump assembly | 44310-35470 · 44320-35240 · 44320-35241 · 44320-35250 · 44320-35251 · 44320-35260 · 44320-35261 · 44320-35290 · 44320-35300 · 44320-35301 · 44320-35310 · 44320-35320 · 44320-35340 · 44320-35410 · 44320-35411 · 44320-35420 · 44320-35430 · 44320-35440 · 44320-35441 |
| 44324A | Pump back shell | 44324-12031 · 44324-60040 |
| 44324B | Hole snap ring (for pump rear housing) | 90521-62002 |
| 44324C | O-ring (for pump rear housing) | 90301-52001 · 90301-53004 · 90301-53006 |
| 44326 | Cam ring (for vane pumps) | 44325-12010 · 44325-12020 · 44325-12030 · 44325-12040 · 44325-12050 · 44325-12270 · 44325-12280 · 44325-12290 · 44325-12300 · 44325-12310 · 44325-22070 · 44325-22080 · 44325-22090 · 44325-22100 · 44325-22110 · 44325-30100 · 44325-30110 · 44325-30120 · 44325-30130 · 44325-30140 · 44325-35010 · 44325-35020 · 44325-35030 · 44325-35040 · 44325-35050 |
| 44326A | Direct sales (for vane pump cam rings) | 90250-04047 · 90250-04049 · 90250-05008 |
| 44328B | Vane pump casing end | 44328-35010 |
| 44330 | Flow control valve assembly | 44330-12130 · 44330-12131 · 44330-12140 · 44330-12141 · 44330-12150 · 44330-12151 · 44330-12160 · 44330-12161 · 44330-12170 · 44330-12171 · 44330-12180 · 44330-12181 · 44330-14010 · 44330-14020 · 44330-14030 · 44330-14040 · 44330-14050 · 44330-14060 · 44330-20010 · 44330-20020 · 44330-20030 · 44330-20040 · 44330-20050 · 44330-20060 · 44330-20310 · 44330-20320 · 44330-20330 · 44330-20340 · 44330-20350 · 44330-20360 · 44330-35250 · 44330-35260 · 44330-35270 · 44330-35280 · 44330-35290 · 44330-35300 |
| 44330A | Compression spring (for flow control valve) | 90501-12103 |
| 44330C | Snap ring (for flow control valve) | 96151-01700 |
| 44337 | Power steering suction port connector | 44337-30010 · 44337-35040 · 44337-35050 · 90404-16016 |
| 44337A | O-ring (for power steering oil suction port) | 90301-11010 · 96711-19013 |
| 44338A | O-ring (for pressure port connector) | 90301-19003 · 90301-22001 · 96711-19014 |
| 44341 | Vane pump front cover | 44341-20010 · 44341-32010 · 44341-60010 |
| 44341A | O-ring (for vane pump front cover) | 90301-25001 · 90301-25008 · 90301-28005 · 90301-52001 · 90301-53004 |
| 44342 | Vane pump rear end cover | 44341-12010 · 44342-20010 · 44342-32010 · 44342-60020 |
| 44342A | O-ring (for vane pump rear end cover) | 90301-52001 · 90301-53002 · 90301-53004 |
| 44342B | Compression spring (for vane pump rear end cover) | 90501-23014 |
| 44343 | Flow control spring seat | 44343-12040 |
| 44343A | O-ring (for flow control spring seat) | 96711-19014 |
| 44345B | vane pump disc | 44345-12010 · 44345-12020 · 44345-12030 · 44345-12040 · 44345-12050 · 44345-26010 · 44345-26020 · 44345-26030 · 44345-26040 · 44345-26050 · 44345-35010 |
| 44360 | Vane pump oil storage tank assembly | 44306-30200 · 44306-35140 · 44306-35150 · 44306-35190 · 44306-35200 · 44360-35060 · 44360-35061 · 44360-35081 · 44360-35082 · 44360-35090 · 44360-35091 · 44360-35092 · 44360-35120 · 44360-35121 · 44360-35130 |
| 44362A | O-ring (for vane pump oil storage tank) | 90301-12003 · 96711-19013 |
| 44362C | Buffer pad (for vane pump oil storage tank) | 90480-16005 · 90540-09020 |
| 44362D | Spacer (for vane pump reservoir) | 90387-10040 · 90560-06014 |
| 44392 | Oil storage tank warning labels | 44392-35010 |
| 44441B | Pump front bracket | 44441-35030 |
