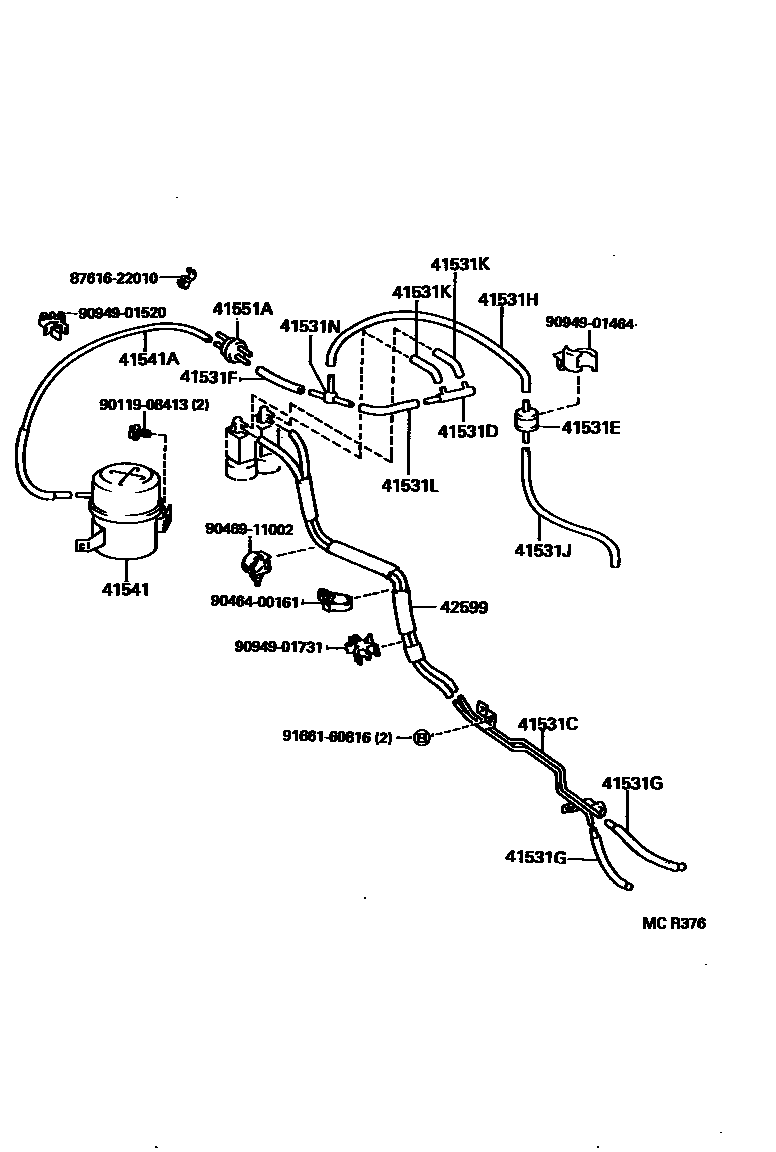

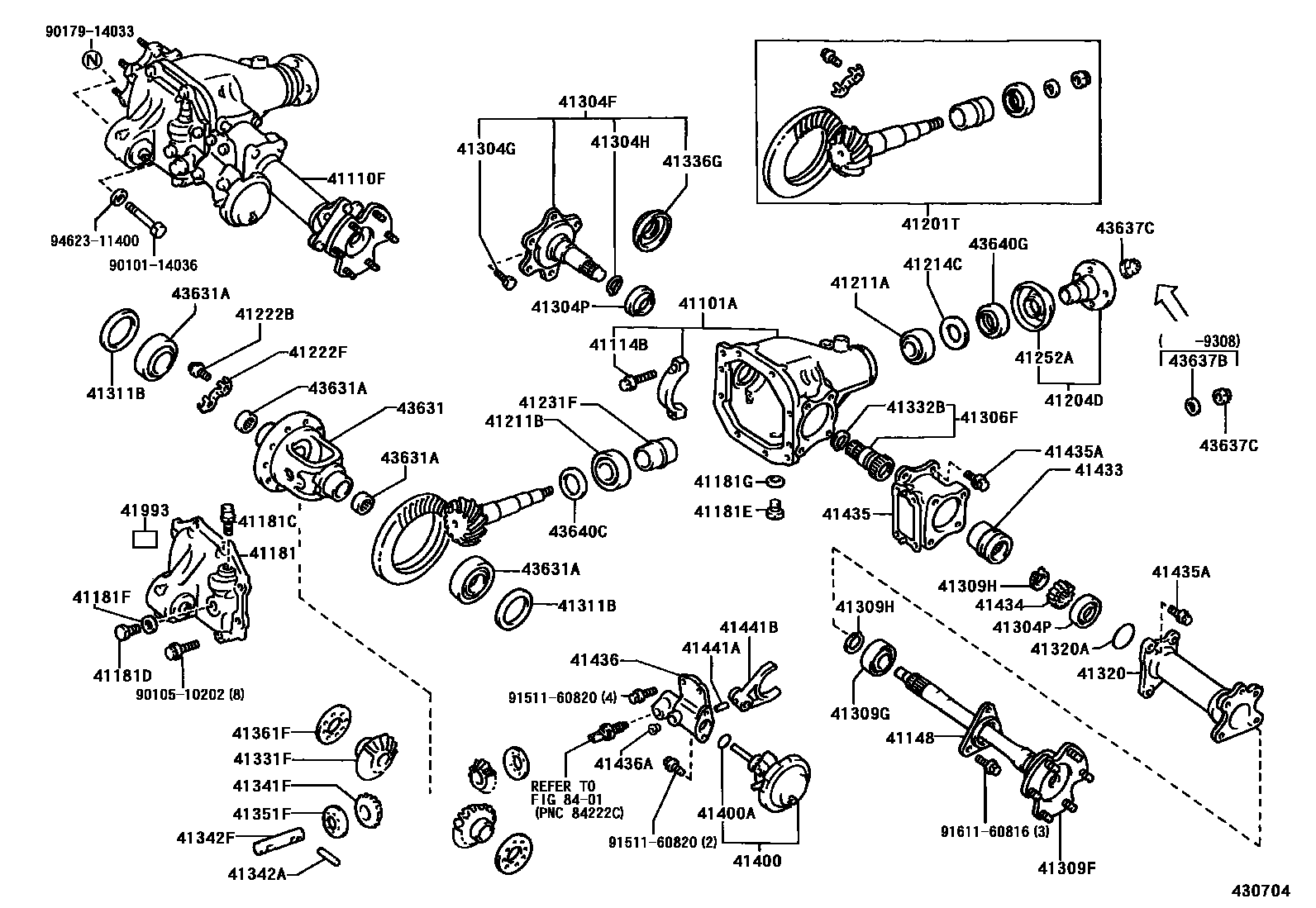

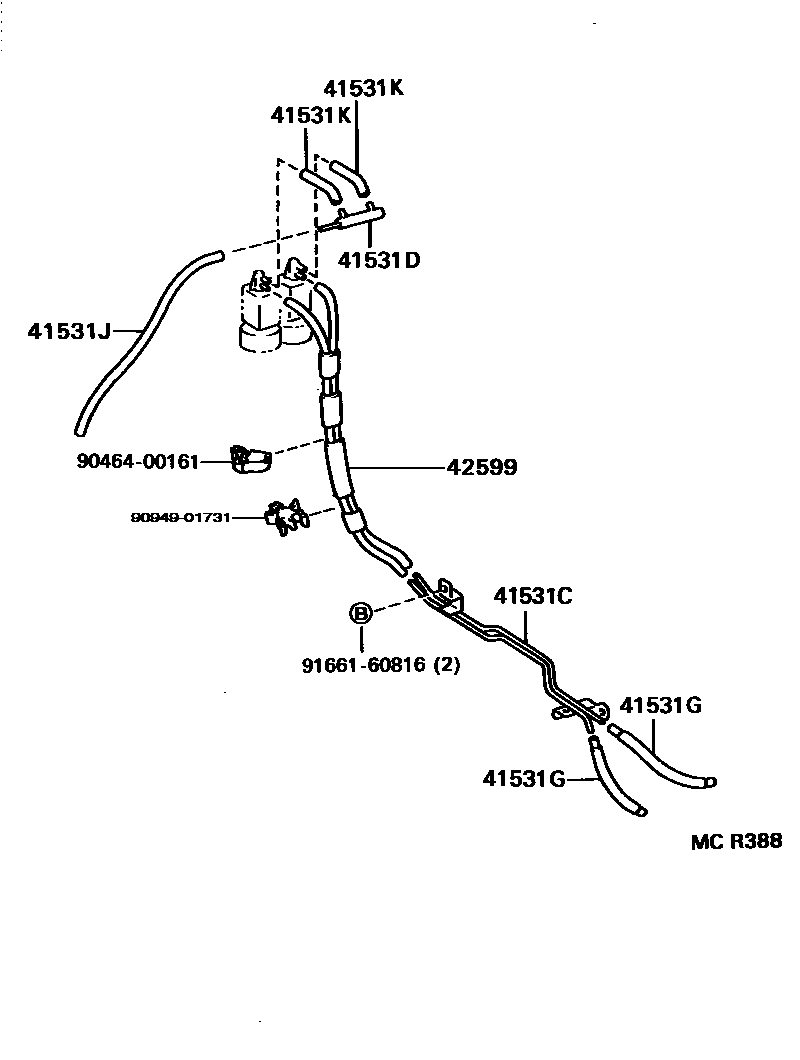

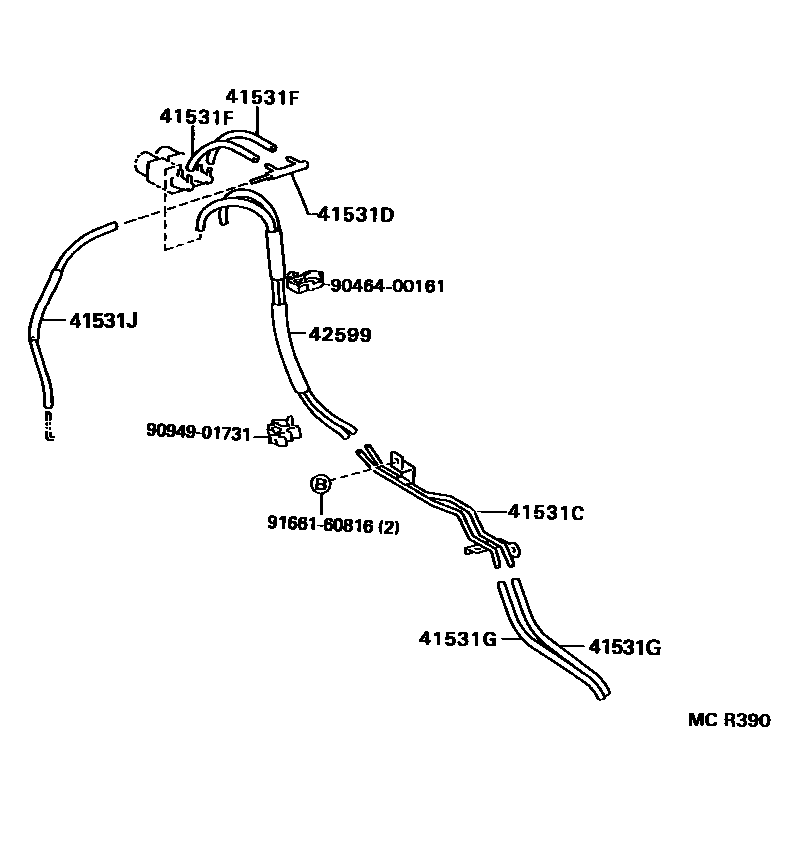

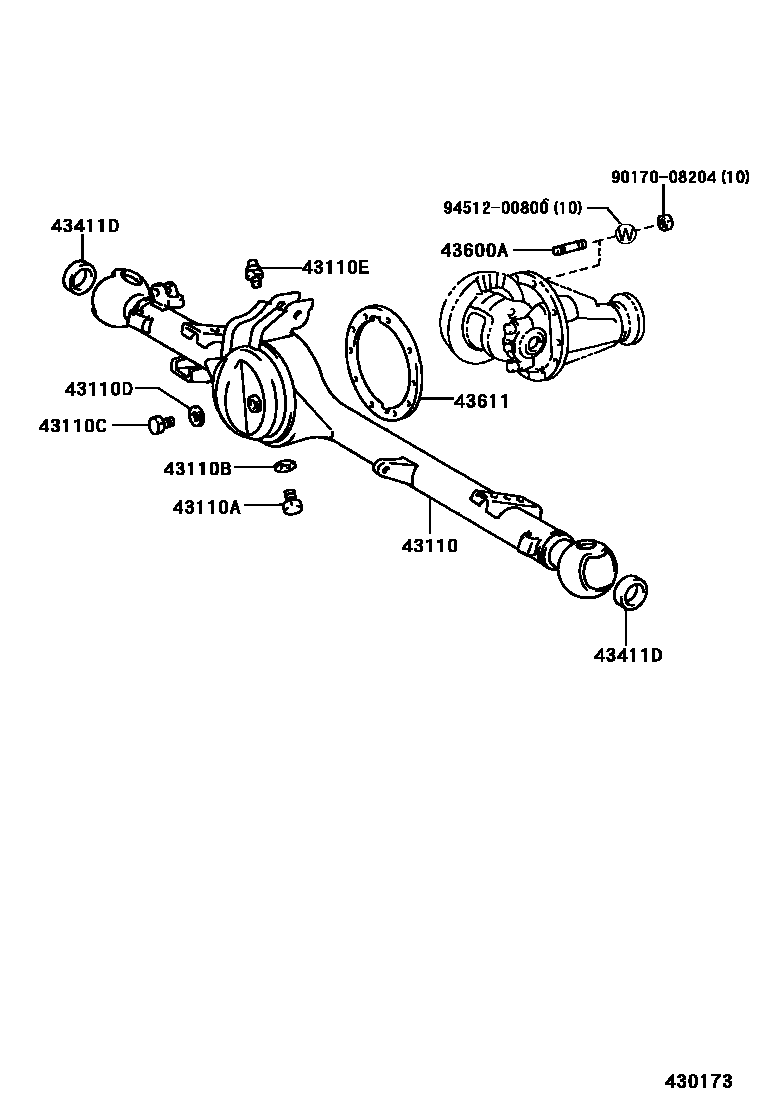

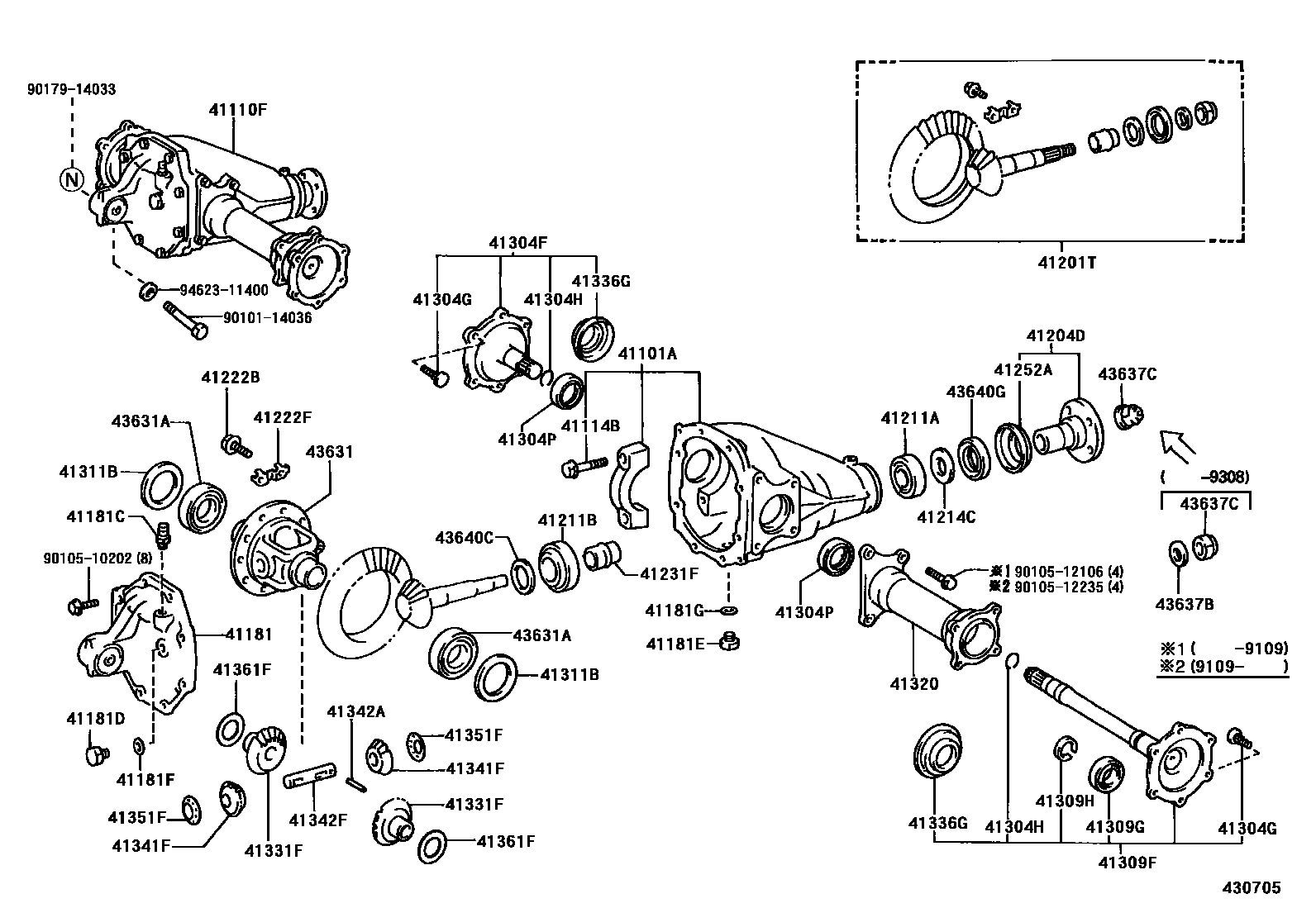

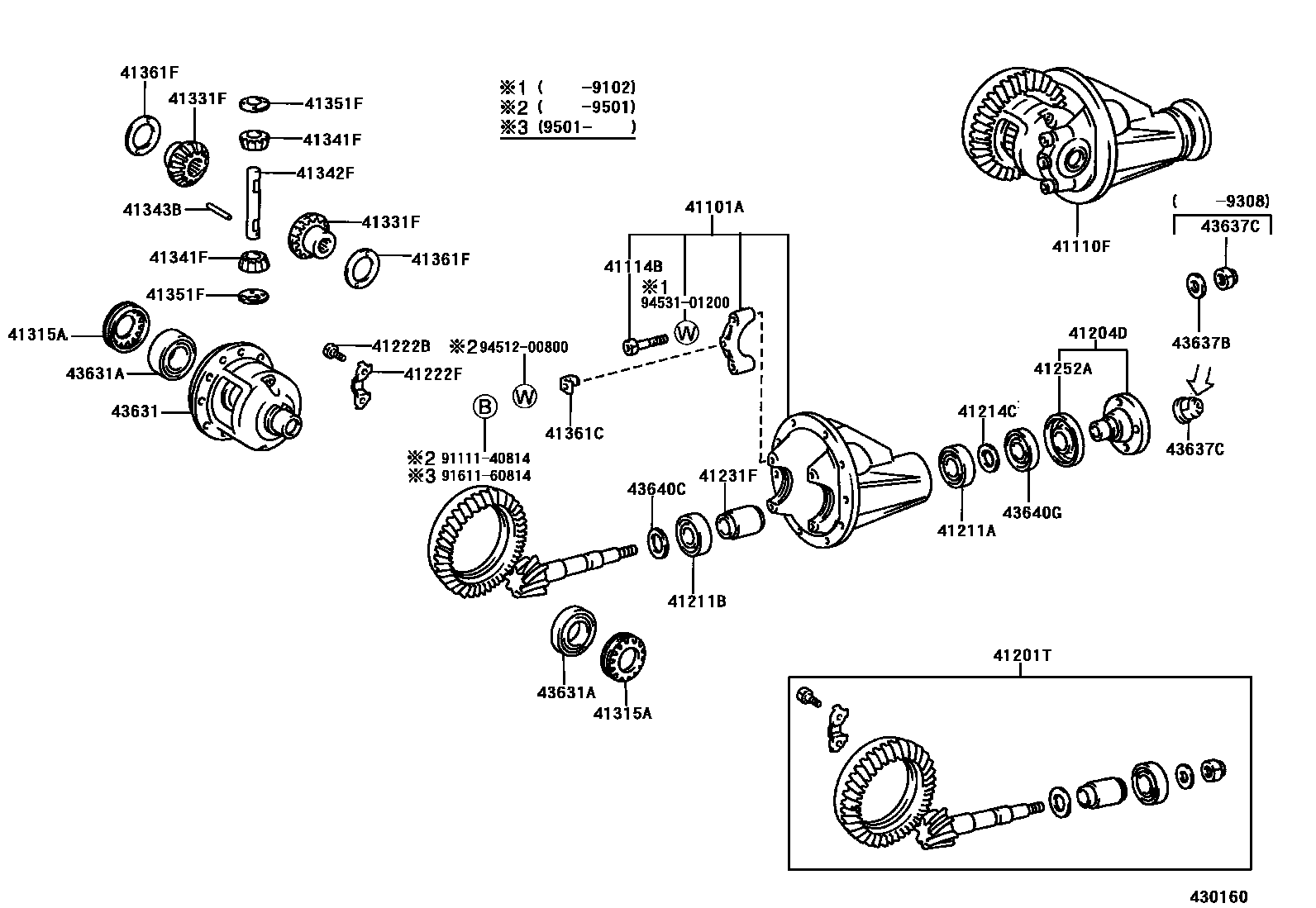

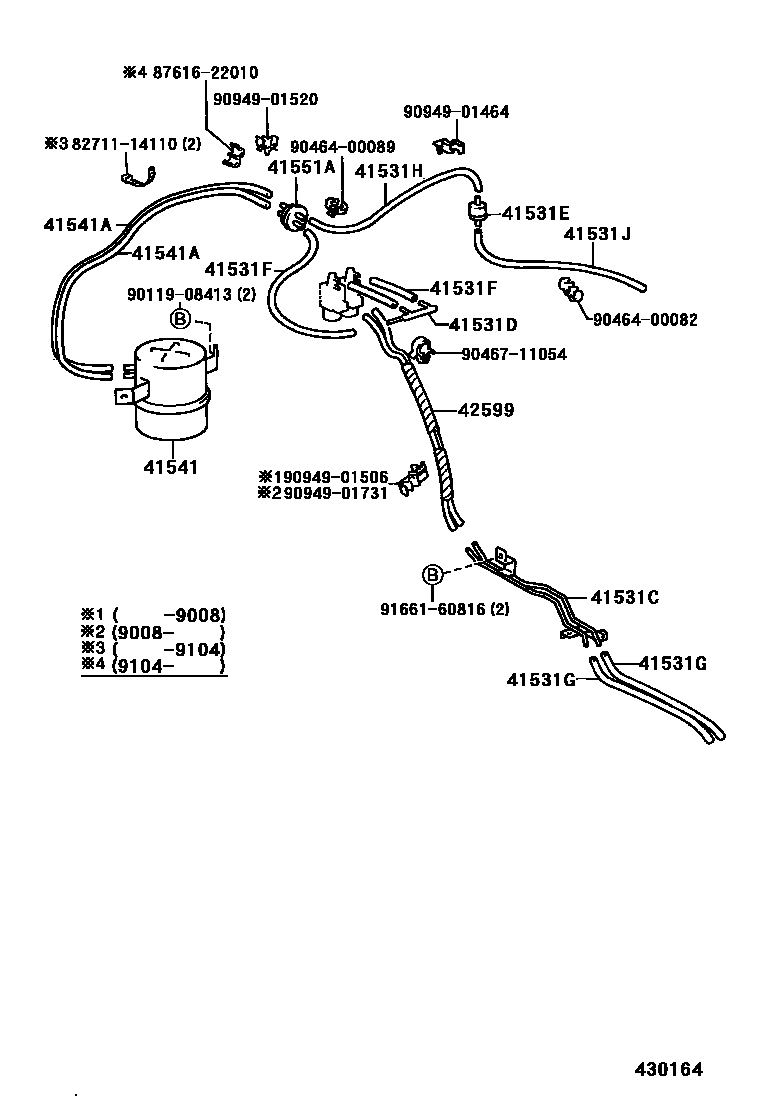

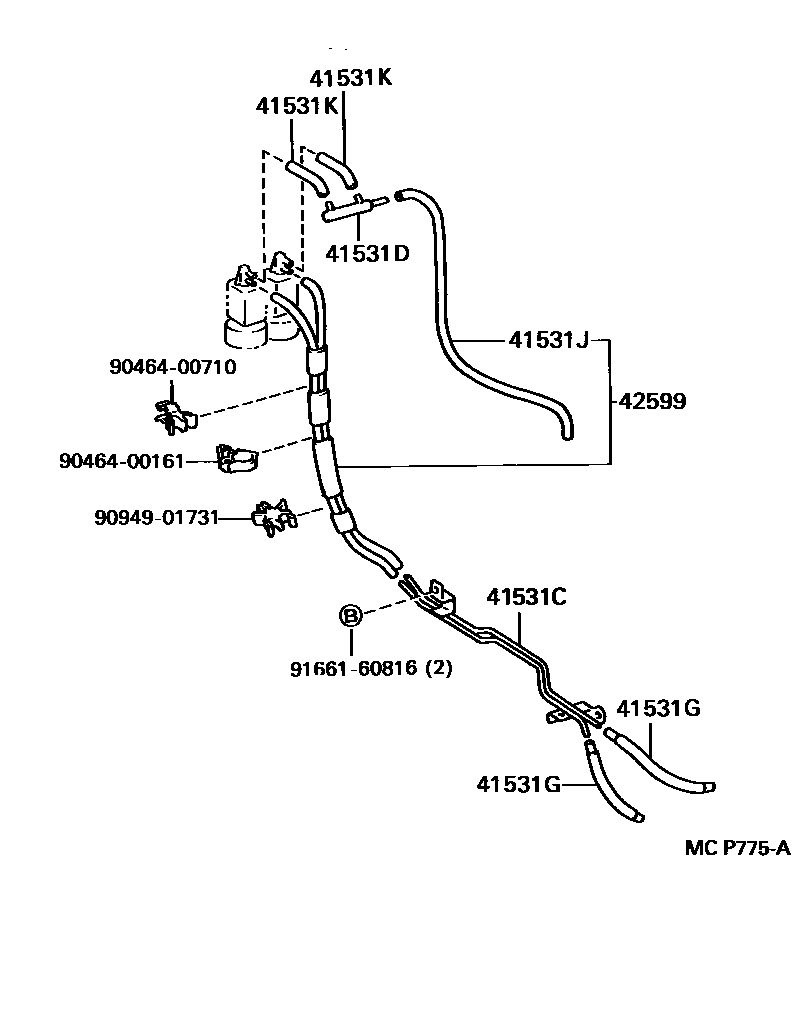

Toyota HILUX 前桥壳和差速器 — Figure 4301
Toyota HILUX EPC diagram 4301, 前桥壳和差速器, with 11 images and 79 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 41101A | Front differential housing sub-assembly | 41101-35030 · 41101-35031 · 41101-35060 |
| 41110F | Front differential case assembly | 41110-35211 · 41110-35212 · 41110-35221 · 41110-35222 · 41110-35350 · 41110-35360 · 41110-35370 · 41110-35440 · 41110-35450 · 41110-35460 · 41110-35470 |
| 41114B | Front differential bearing cap bolts | 90105-12053 |
| 41148 | Differential bearing retainer | 41148-35010 |
| 41181 | front differential case cover | 41108-35010 · 41108-35020 |
| 41181C | Breather plug (for front differential case cover) | 90930-03031 |
| 41181D | Plug (for front differential oil fill port) | 90341-18006 |
| 41181E | Screw plug (for front differential drain port) | 90341-18057 |
| 41181F | Gasket (for front differential oil plug) | 12157-10010 |
| 41181G | Gasket (for front differential drain plug) | 12157-10010 |
| 41201T | Front differential final drive gear assembly | 41201-29526 · 41201-29536 · 41201-39716 · 41201-39725 · 41201-39735 · 41201-39736 · 41201-39745 · 41201-80015 |
| 41204D | Front driving pinion front coupling flange sub-assembly | 41204-35040 · 41204-35050 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90366-30022 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90366-35023 · 90366-35044 |
| 41214C | Front differential drive pinion oil retaining ring | 41214-26010 · 41214-35020 |
| 41222B | Bolt (for front differential ring gear assembly) | 90101-11353 |
| 41222F | Front differential ring gear fixing bolt locking plate | 41222-35020 · 41222-35030 |
| 41231F | Front differential drive pinion bearing spacer | 41231-22010 · 41231-40011 |
| 41252A | Dust cover (for front differential) | 41252-30010 · 41252-35010 · 41252-35020 |
| 41304F | Right differential side gear shaft sub-assembly | 41304-35010 · 41304-35020 |
| 41304G | Serrated threaded bolt (for differential side gear shaft) | 90114-12011 |
| 41304H | Hole snap ring (for differential side gear shaft) | 90521-29002 |
| 41304P | Oil seal (for differential side gear shaft) | 90311-35018 · 90311-35032 |
| 41306F | Differential side gear countershaft sub-assembly | 41306-35020 · 41306-35021 |
| 41309F | Left differential side gear shaft sub-assembly | 41309-35010 · 41309-35020 · 41309-35021 |
| 41309G | Bearings (for differential side gear shaft) | 90369-36009 |
| 41309H | Shaft snap ring (for differential side gear shaft) | 90520-33008 · 96152-00280 · 96152-00300 |
| 41311B | Flat washer (for front differential case) | 90201-50003 · 90201-50004 · 90201-50005 · 90201-50006 · 90201-50007 · 90201-50008 · 90201-50009 · 90201-50010 · 90201-50011 · 90201-50012 · 90201-50013 · 90201-50014 · 90201-50015 · 90201-50016 · 90201-50017 · 90201-50018 · 90201-50019 · 90201-50020 · 90201-50021 · 90201-50022 · 90201-50023 · 90201-50024 · 90201-50025 · 90201-65007 · 90201-65008 · 90201-65009 · 90201-65010 · 90201-65011 · 90201-65012 · 90201-65013 · 90201-65014 · 90201-65015 · 90201-65016 · 90201-65017 · 90201-65018 · 90201-65019 · 90201-65020 · 90201-65021 · 90201-65022 · 90201-65023 · 90201-65024 · 90201-65025 · 90201-65026 · 90201-65027 · 90201-65028 · 90201-65029 |
| 41315A | Front differential bearing adjusting nut | 41315-35010 |
| 41320 | Front differential tube assembly | 41320-35010 · 41320-35011 · 41320-35020 |
| 41320A | O-ring (for front differential tube) | 90301-68003 |
| 41331F | Front differential side gear | 41331-14040 · 41331-35011 |
| 41332B | Hole snap ring (for differential side gear countershaft) | 90521-29002 |
| 41336G | Dust cover (for front differential side gear shaft) | 41336-22010 · 41336-28010 · 41336-35010 |
| 41341F | Front differential planetary gear | 41341-30020 · 41341-35020 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-22020 · 41342-39610 |
| 41343B | Front differential planetary gear pin | 90250-06085 |
| 41351F | Front differential planetary gear thrust washer | 41351-30052 · 41351-30060 |
| 41361C | Front differential bearing adjustment nut locking piece | 41316-30010 · 41316-35010 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-30040 · 41361-30050 · 41361-30060 · 41361-30070 · 41361-30080 · 41361-30090 · 41361-30100 · 41361-40021 · 41362-40021 · 41363-40021 |
| 41400 | Differential vacuum actuator assembly | 41400-35010 |
| 41400A | O-ring (for differential vacuum actuator) | 90301-29008 |
| 41433 | Differential clutch sleeve | 41433-35010 |
| 41434 | Differential clutch hub | 41434-35010 · 41434-35020 |
| 41435 | Differential clutch housing | 41435-35010 |
| 41435A | Bolt (for securing differential clutch housing) | 90109-12028 · 90109-12029 |
| 41436 | Front differential clutch housing cover | 41436-35010 |
| 41436A | Plug (for front differential clutch housing) | 90341-10065 |
| 41441A | Slotted spring pin (for differential shift fork) | 90254-05016 |
| 41441B | Differential shift fork | 41441-35010 |
| 41531C | Front differential vacuum tube | 41531-35010 |
| 41531D | Fitting No. 1 (for front differential vacuum hose) | 90413-04016 |
| 41531E | Check valve (for front differential vacuum hose) | 90917-10065 |
| 41531F | No. 1 front differential vacuum hose | 90447-08058 · 90999-92002 |
| 41531G | No. 2 front differential vacuum hose | 90447-08029 · 90447-08030 · 90447-08042 |
| 41531H | No. 3 front differential vacuum hose | 90447-08041 · 90999-92002 |
| 41531J | No. 4 front differential vacuum hose | 90447-08073 · 90447-08103 · 90999-92003 |
| 41531N | Fitting No. 2 (for front differential vacuum hose) | 90413-04005 |
| 41541 | Differential vacuum tank | 41541-35010 · 41541-35011 · 41541-35030 · 41541-35031 |
| 41541A | Hoses (for differential vacuum tank) | 90447-08022 · 90447-08045 |
| 41551A | Front differential vacuum tube seal | 41551-35010 |
| 41993 | Differential oil information label | 41993-35010 |
| 42599 | Separate differential vacuum hose | 42599-35010 · 42599-35041 · 42599-35050 · 42599-35070 |
| 43110 | Front axle housing assembly | 43110-35050 · 43110-35060 |
| 43110A | Drain plug sub-assembly | 90341-18057 |
| 43110B | drain liner | 12157-10010 |
| 43110C | Screw plug (for front axle housing) | 90341-18049 |
| 43110D | Gasket (for front axle housing screw plug) | 12157-10010 |
| 43110E | Breather plug (for front axle housing) | 90930-03031 |
| 43411D | T-type oil seal (for front drive shaft) | 90311-33085 |
| 43600A | Stud bolts (used to secure the front axle differential case) | 90116-08233 · 90116-08235 · 90116-08329 |
| 43611 | Front axle differential case gasket | 42181-60020 |
| 43631 | Front axle differential housing | 41311-22060 · 41311-35060 · 41311-40020 |
| 43631A | Front axle differential bearing | 90364-33009 · 90368-45066 · 90368-50006 |
| 43637B | Flat washer (for front axle drive pinion) | 90201-18485 · 90201-20005 |
| 43637C | Castle nut (for front axle drive pinion) | 90179-18001 · 90179-18020 · 90179-20001 · 90179-20018 |
| 43640C | Front axle driving pinion thrust spacer or washer | 90201-35396 · 90201-35397 · 90201-35398 · 90201-35399 · 90201-35400 · 90201-35401 · 90201-35402 · 90201-35403 · 90201-35404 · 90201-35434 · 90201-35435 · 90201-35436 · 90201-35437 · 90201-35438 · 90201-35439 · 90201-35440 · 90201-35441 · 90201-35497 · 90201-35498 · 90201-35499 · 90201-35500 · 90201-35501 · 90201-35502 · 90201-35503 · 90201-35504 · 90201-35505 · 90201-35506 · 90201-35507 · 90201-35508 · 90201-35509 · 90201-35510 · 90201-35511 · 90201-35512 · 90201-35513 · 90201-35514 · 90201-35515 · 90201-35516 · 90201-35517 · 90201-35518 |
| 43640G | T-type oil seal (for front axle differential housing) | 90311-38035 · 90311-38047 · 90311-38134 |
