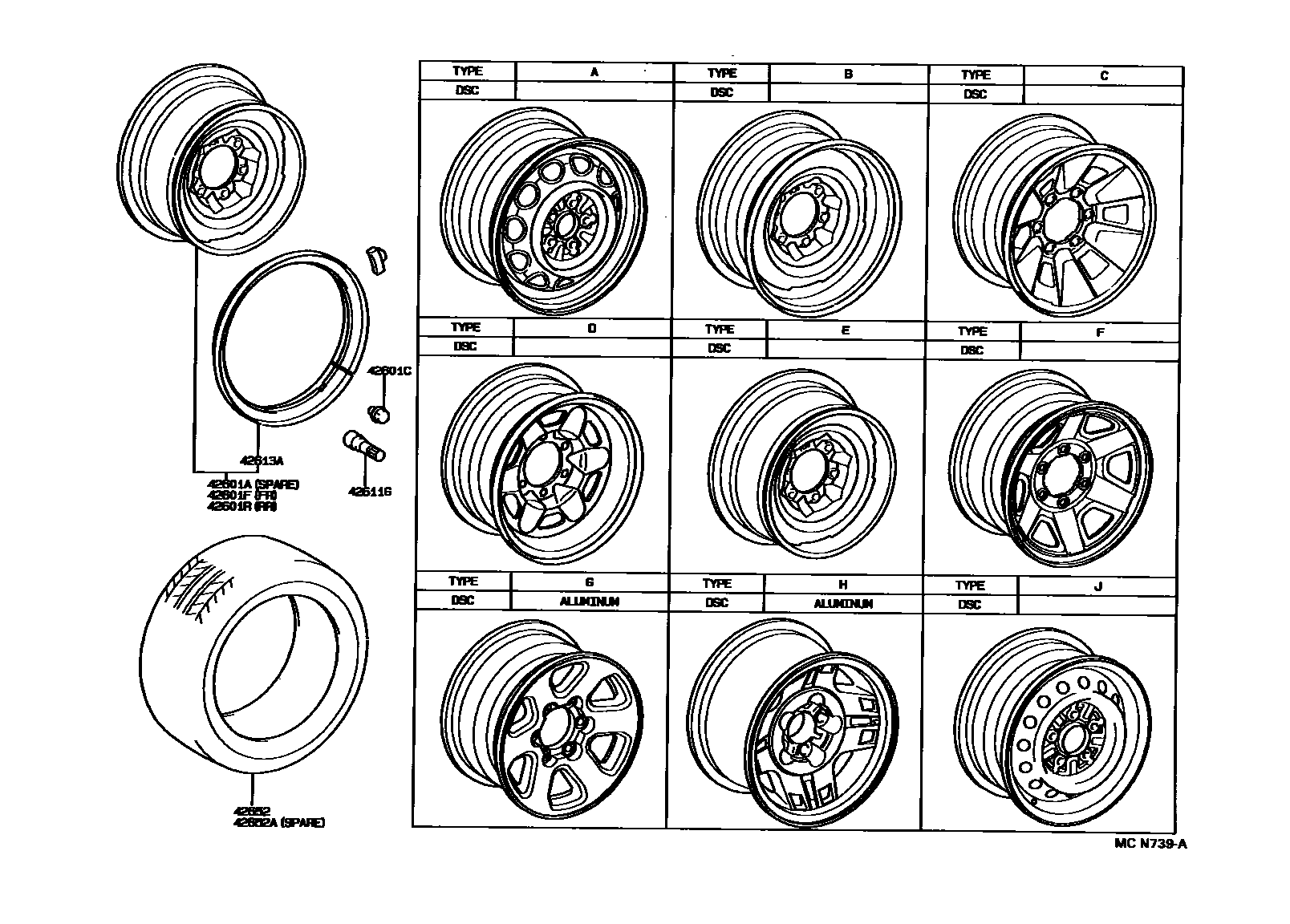

Toyota HILUX 车轮和车轮盖 — Figure 4103
Toyota HILUX EPC diagram 4103, 车轮和车轮盖, with 5 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601A | Spoke wheel (for spare tire) | 42601-26250 · 42601-35341 · 42610-60022 · 42611-34010 · 42611-35060 · 42611-35070 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01048 · 90942-01051 · 90942-01061 · 90942-01075 · 90942-01077 · 90942-01082 |
| 42601F | Spoke wheels (for front tires) | 42601-26250 · 42601-35341 · 42610-60022 · 42611-34010 · 42611-35060 · 42611-35070 |
| 42601R | Spoke wheels (for rear tires) | 42601-26250 · 42601-35341 · 42610-60022 · 42611-34010 · 42611-35060 · 42611-35070 |

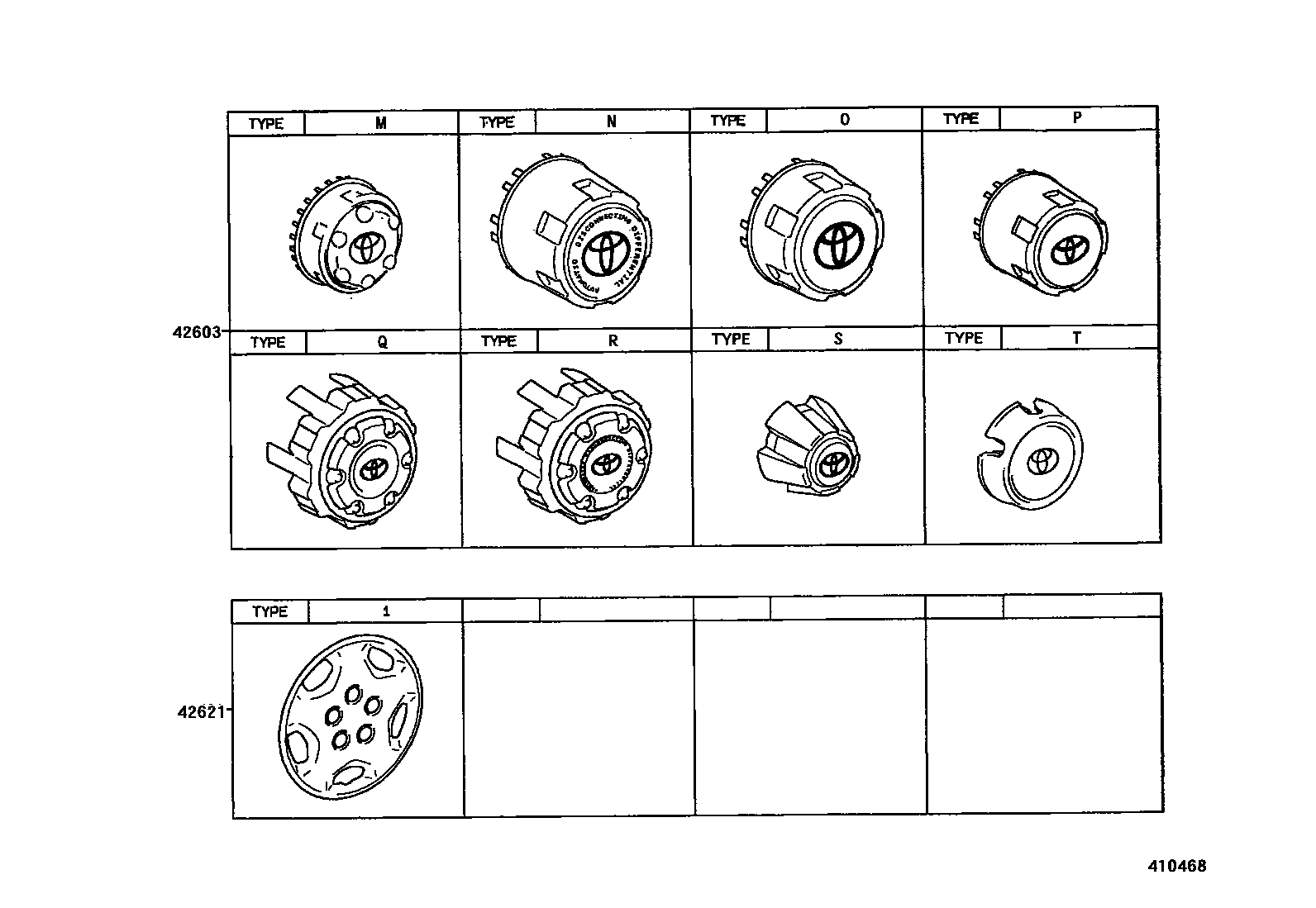

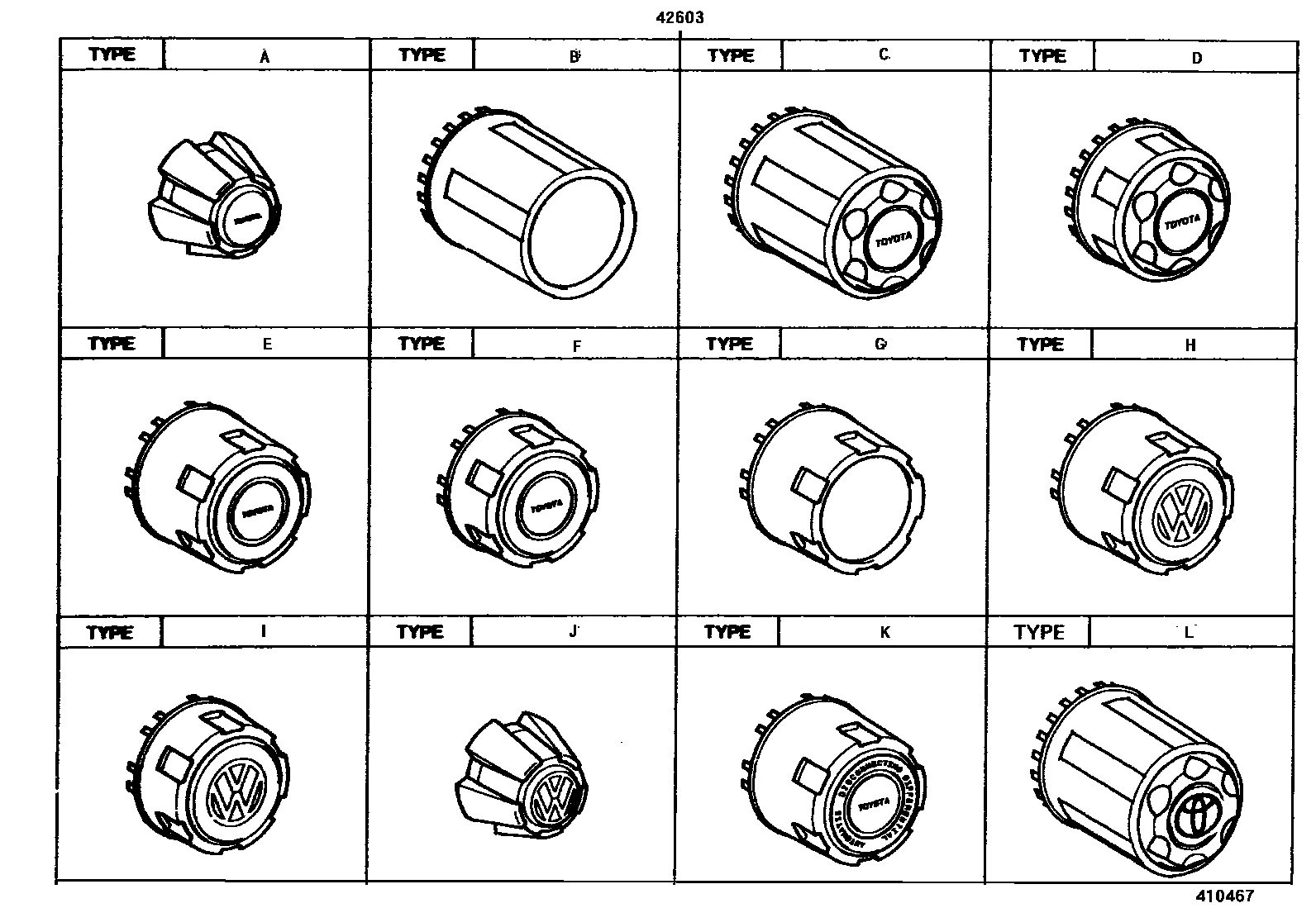

| 42603 | Wheel hub decorative parts sub-assembly | 42603-35061 · 42603-35062 · 42603-35080 · 42603-35110 · 42603-35120 · 42603-35300 · 42603-35310 · 42603-35320 · 42603-35350 · 42603-35360 · 42603-35390 · 42603-35450 · 42603-35460 · 42603-35470 · 42603-35480 · 42603-35500 · 42603-35510 · 42603-35520 · 42603-35540 · 42603-35560 · 42603-35570 · 42603-35580 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42613A | Spoke wheel retaining ring | 42613-36020 · 42613-60080 |
| 42621 | wheel cover | 42621-35220 |
| 42652 | tires | 42605-35210 · 42605-35230 · 42605-35260 · 42605-60631 · 42652-35380 · 42652-35390 · 42652-35400 · 42652-35530 · 42652-35531 · 42652-35630 · 42652-35670 · 42652-35690 · 42652-35730 · 42652-35780 |
| 42652A | Tire (for Spare Wheel) | 42605-35210 · 42605-35230 · 42605-35260 · 42605-60631 · 42652-35380 · 42652-35390 · 42652-35400 · 42652-35530 · 42652-35531 · 42652-35630 · 42652-35670 · 42652-35690 · 42652-35730 · 42652-35780 |
