Toyota HILUX 后桥半轴和后桥轮毂 — Figure 4102

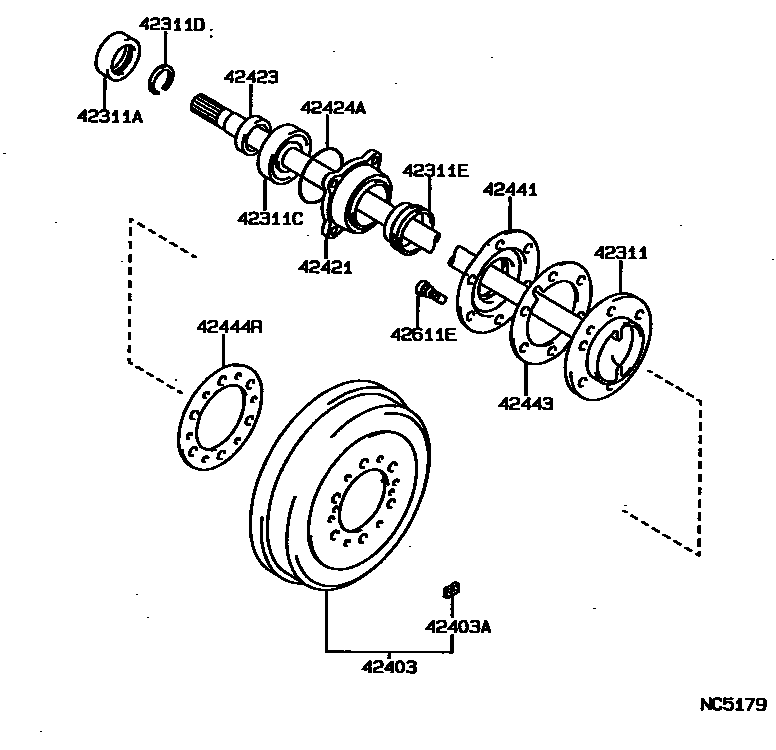

Toyota HILUX EPC diagram 4102, 后桥半轴和后桥轮毂, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42311 | Rear axle half shaft | 42311-35140 · 42311-35160 · 42311-35170 · 42311-35190 |
| 42311A | Oil seal (for rear axle half shaft) | 90310-50001 |
| 42311C | Bearings (for rear axle half shaft) | 90363-40020 |
| 42311D | Snap ring (for rear axle half shaft) | 90520-36045 |
| 42311E | External oil seal (for rear axle half shaft) | 90313-48001 |
| 42403 | Rear brake drum sub-assembly | 42431-26081 · 42431-35170 · 42431-35180 · 42431-35190 |
| 42403A | Balance weight (for rear brake drum) | 90937-01100 · 90937-01117 · 90937-01118 · 90937-01119 · 90937-01450 · 90937-01451 |
| 42421 | Rear axle bearing housing | 42421-35030 |
| 42423 | Rear axle bearing inner retainer | 42423-20010 |
| 42424A | O-ring (for bearing retainer assembly) | 90301-88077 |
| 42441 | brake drum oil baffle | 42441-26010 · 42441-35020 |
| 42443 | Brake drum oil deflector gasket | 42443-30010 · 42443-55020 |
| 42444R | Brake drum gasket (for rear axle) | 42444-35050 · 42444-35070 |
| 42611E | Hub bolts (for rear axle) | 90942-02049 · 90942-02052 |
