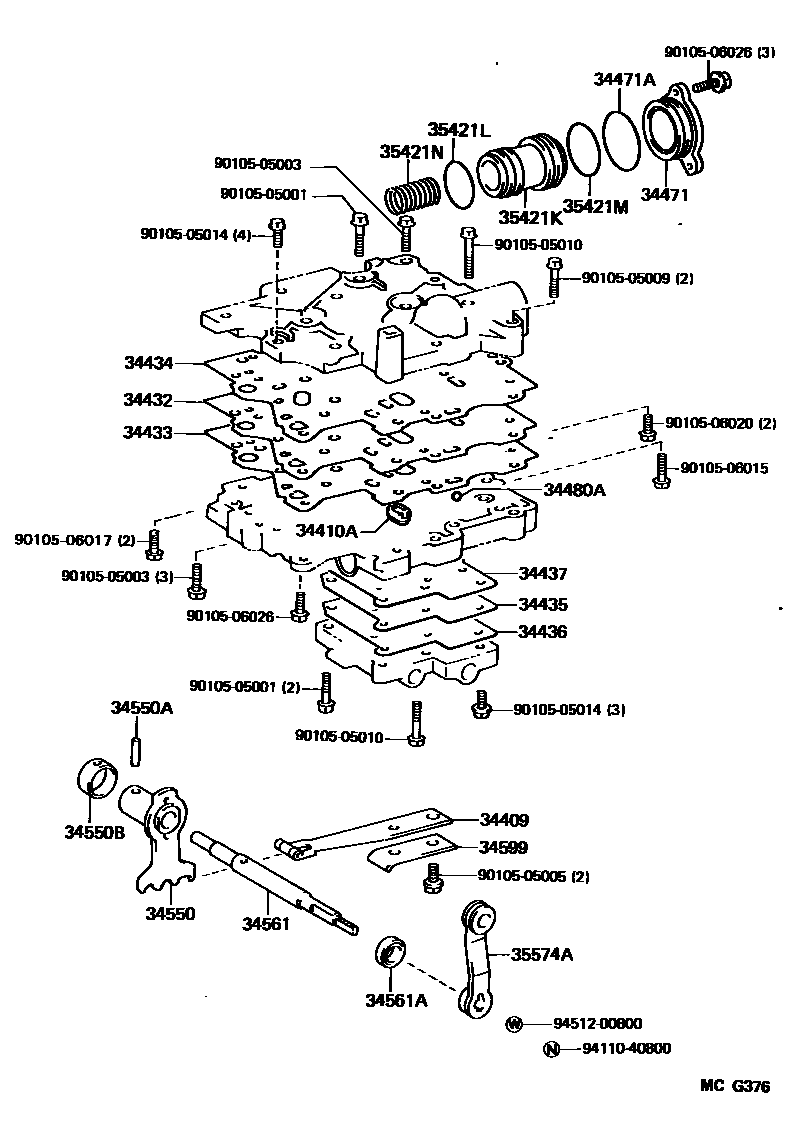

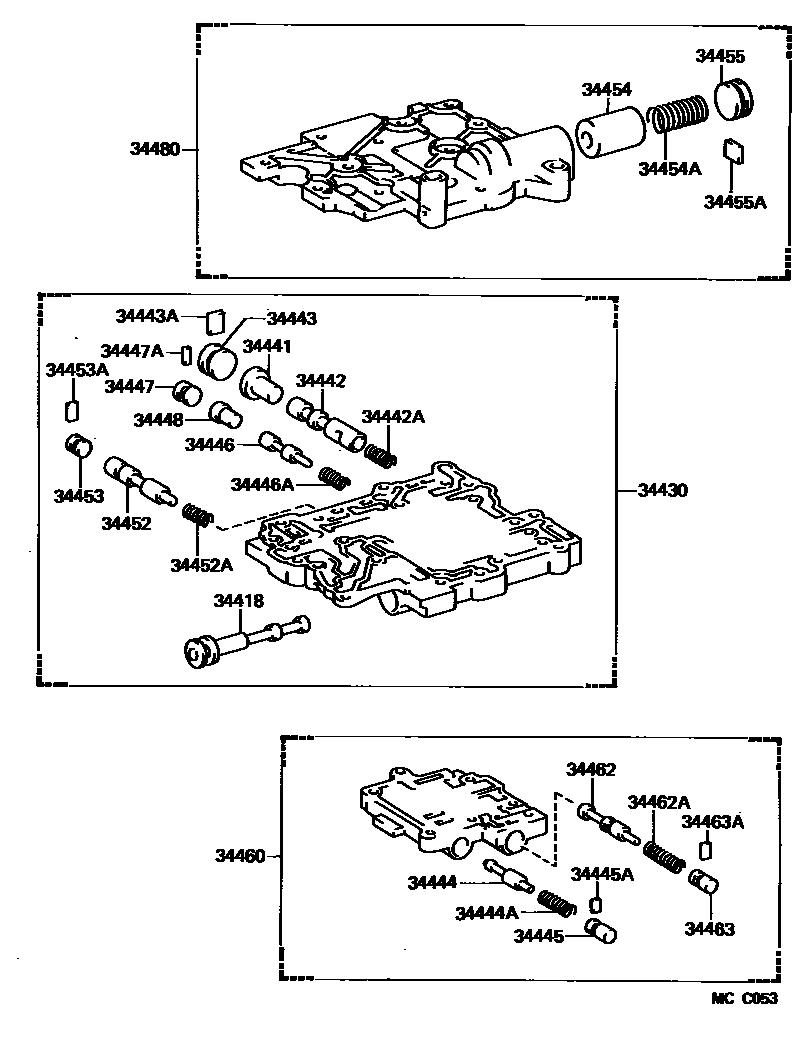

Toyota HILUX 分动器阀体和阀杆 — Figure 3615
Toyota HILUX EPC diagram 3615, 分动器阀体和阀杆, with 2 images and 52 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 34409 | Transfer case manual locking spring sub-assembly | 34409-35010 |
| 34410A | Oil filter (for transfer case valve body) | 35441-35010 |
| 34418 | Transfer case manual valve | 34418-35010 |
| 34430 | No. 1 transfer case lower valve body assembly | 34430-35020 |
| 34432 | Transfer case upper valve body plate | 34432-35010 |
| 34433 | No. 1 transfer case upper valve body gasket | 34433-35010 |
| 34434 | No. 2 transfer case upper valve body gasket | 34434-35010 |
| 34435 | Transfer case lower valve body plate | 34435-35020 |
| 34436 | No. 1 transfer case lower valve body gasket | 34436-35010 |
| 34437 | No. 2 transfer case lower valve body gasket | 34437-35010 |
| 34441 | Low gear-high gear shift control valve | 34441-35010 |
| 34442 | Low gear-high gear shift valve | 34442-35010 |
| 34442A | Compression spring (for low-speed shift valve) | 90501-09071 |
| 34443 | Low gear-high gear shift valve plunger | 34443-35010 |
| 34443A | Straight key (for low-high gear shift valve plunger) | 90282-03008 |
| 34444 | Low gear-high gear shift timing valve | 34444-35010 |
| 34444A | Compression spring (for low-speed gear-high gear shift timing valve) | 90501-07053 |
| 34445 | Low gear-high gear shift timing valve plunger | 34463-35010 |
| 34445A | Seat (for low-high gear shift timing valve plunger) | 35493-30040 |
| 34446 | Low gear-high gear signal valve | 34446-35010 |
| 34446A | Compression spring (for low-speed-high-speed signal valve) | 90501-08072 |
| 34447 | Low gear-high gear signal valve plunger | 90339-05014 |
| 34447A | Seat (for low gear-high gear signal timing valve plunger) | 35493-30040 |
| 34448 | Low gear-high gear signal control valve | 34448-35010 |
| 34452 | Transfer case direct gear clutch regulator valve | 34452-35010 |
| 34452A | Spring (for transfer case direct clutch regulator valve) | 90501-06041 |
| 34453 | Direct clutch regulator valve plunger | 34453-35010 |
| 34453A | Seat (for direct clutch regulator valve plunger) | 35438-22020 |
| 34454 | Transfer case direct gear clutch accumulator valve | 34454-35010 |
| 34454A | Spring (for transfer case clutch accumulator valve) | 90501-25016 |
| 34455 | Transfer case direct gear clutch pressure accumulator plug | 34455-35010 |
| 34455A | Key (for transfer case direct gear clutch pressure accumulator plug) | 90282-03008 |
| 34460 | No. 2 transfer case lower valve body assembly | 34460-35010 |
| 34462 | High speed-low speed throttle control valve | 34462-35010 |
| 34462A | Compression spring (for high-speed-low-speed throttle control valve) | 90501-10115 |
| 34463 | High speed-low speed throttle control valve plunger | 34463-35010 |
| 34463A | Seat (for high speed-low speed throttle control valve plunger) | 35493-30040 |
| 34471 | Low speed brake accumulator cover | 34471-35020 |
| 34471A | O-ring (for low speed brake accumulator cover) | 90301-31002 |
| 34480 | Transfer case upper valve body assembly | 34480-35010 |
| 34480A | Ball (for transfer case upper valve body) | 35495-22020 |
| 34550 | Transfer case manual valve stem assembly | 34550-35010 |
| 34550A | Slotted spring pin (for transfer case manual valve stem) | 90254-04011 |
| 34550B | Spacer (for transfer case manual valve stem) | 90560-20003 |
| 34561 | Transfer case manual valve stem shaft | 34561-35010 |
| 34561A | Oil seal (for transfer case manual valve stem shaft) | 90311-12002 |
| 34599 | Transfer case manual locking spring cover | 34599-35010 |
| 35421K | No. 1 accumulator piston | 35421-35010 |
| 35421L | Inner O-ring (for No. 1 accumulator piston) | 90301-23194 |
| 35421M | Outer O-ring (for No. 1 accumulator piston) | 90301-29187 |
| 35421N | Compression spring (for accumulator piston No. 1) | 90501-29011 |
| 35574A | transfer case control lever | 35574-35020 |
