Toyota HILUX 分动器直接档离合器、低速制动器和支架 — Figure 3613

Toyota HILUX EPC diagram 3613, 分动器直接档离合器、低速制动器和支架, with 1 images and 26 PNC and OE references.

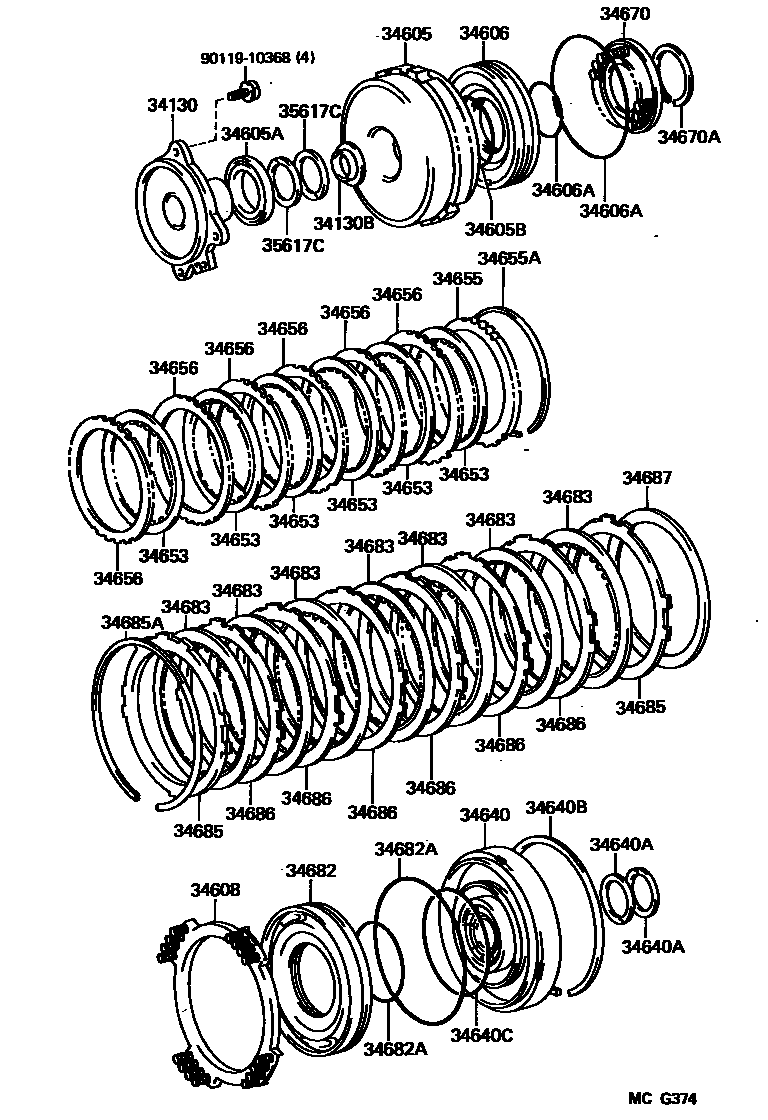

Toyota HILUX 分动器直接档离合器、低速制动器和支架 EPC diagram — MCG374
分动器直接档离合器、低速制动器和支架 — MCG374 (199005 – 199511)

PNC and OE references

PNCPart nameOE numbers
34130Transfer case front bracket assembly34130-35010
34130BThrust bearing race (for transfer case front bracket)35789-35020
34605Transfer case direct gear clutch drum sub-assembly34605-35010
34605AThrust bearing (for transfer case direct clutch drum)90374-51001
34605BO-ring (for transfer case direct clutch drum)90301-85002
34606Transfer case direct gear clutch piston sub-assembly34606-35010
34606AO-ring (for transfer case direct clutch piston)90301-60003 · 90301-99075
34608Brake return spring sub-assembly34608-35010
34640Transfer case intermediate bracket assembly34640-35010
34640ASealing ring (for transfer case center bracket)35617-22020
34640BSnap ring (for transfer case center bracket)90521-99038
34640CO-ring (for transfer case intermediate bracket)90301-99047
34653Transfer case direct gear clutch disc34653-35020
34655Transfer case direct gear clutch flange34655-35010 · 34655-35020 · 34655-35030 · 34655-35040
34655ASnap ring (for transfer case direct clutch flange)90521-99036
34656Transfer case direct gear clutch plate34656-35010 · 34656-35020
34670Transfer case direct gear clutch return spring assembly34670-35010
34670ASnap ring (for transfer case direct gear clutch return spring)90520-56001
34682Transfer case low speed brake piston34682-35010
34682AO-ring (for transfer case low speed brake piston)90301-84184 · 90301-99042
34683Transfer case low speed brake disc34683-35020
34685Transfer case low speed brake flange34685-35010 · 34685-35020 · 34685-35030 · 34685-35040 · 34685-35050
34685ASnap ring (for transfer case low speed brake flange)90521-99037
34686Transfer case low speed brake pad34686-35010
34687Transfer case low speed brake cushion34687-35010
35617CDirect clutch drum oil guard ring35617-22010
