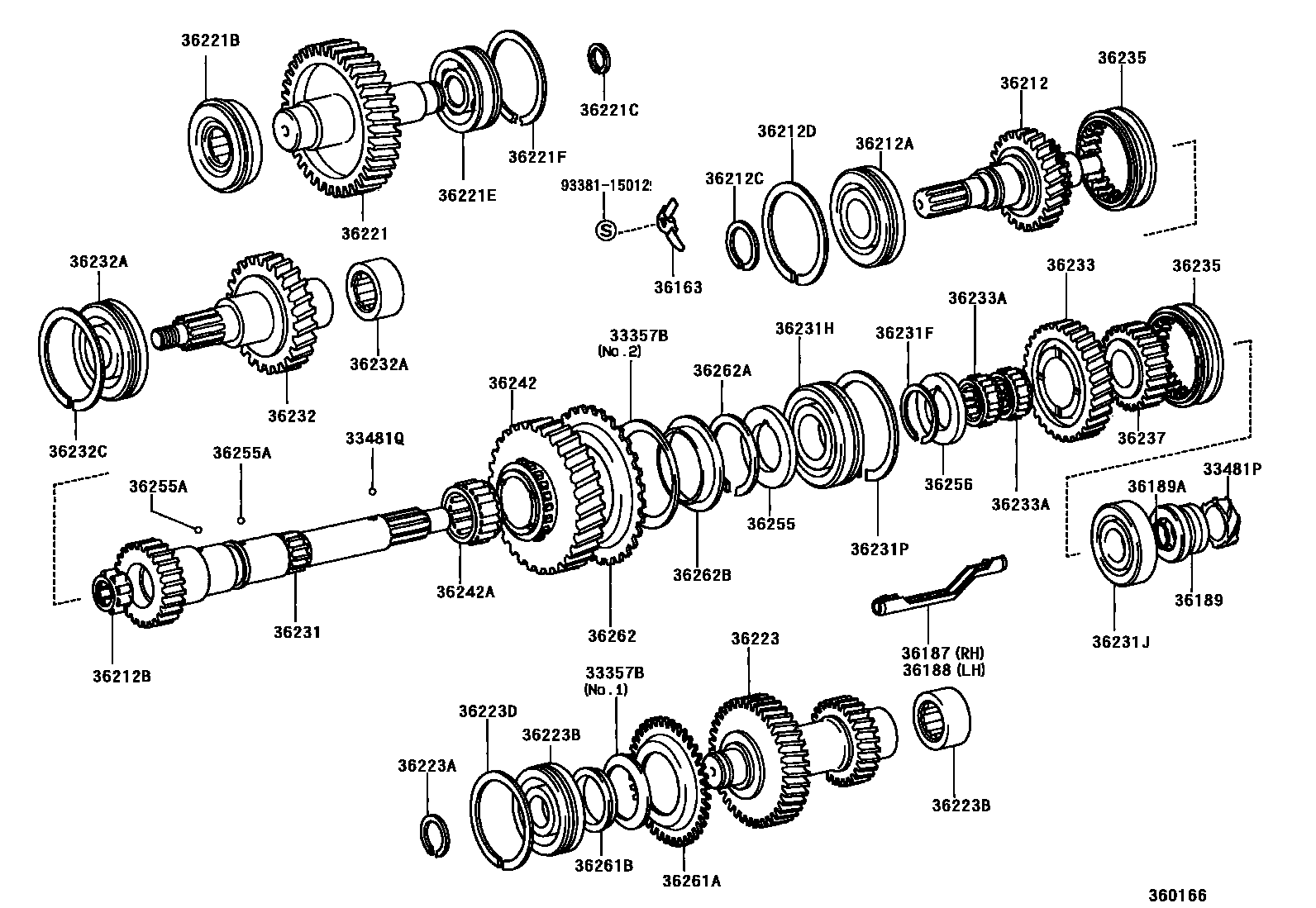

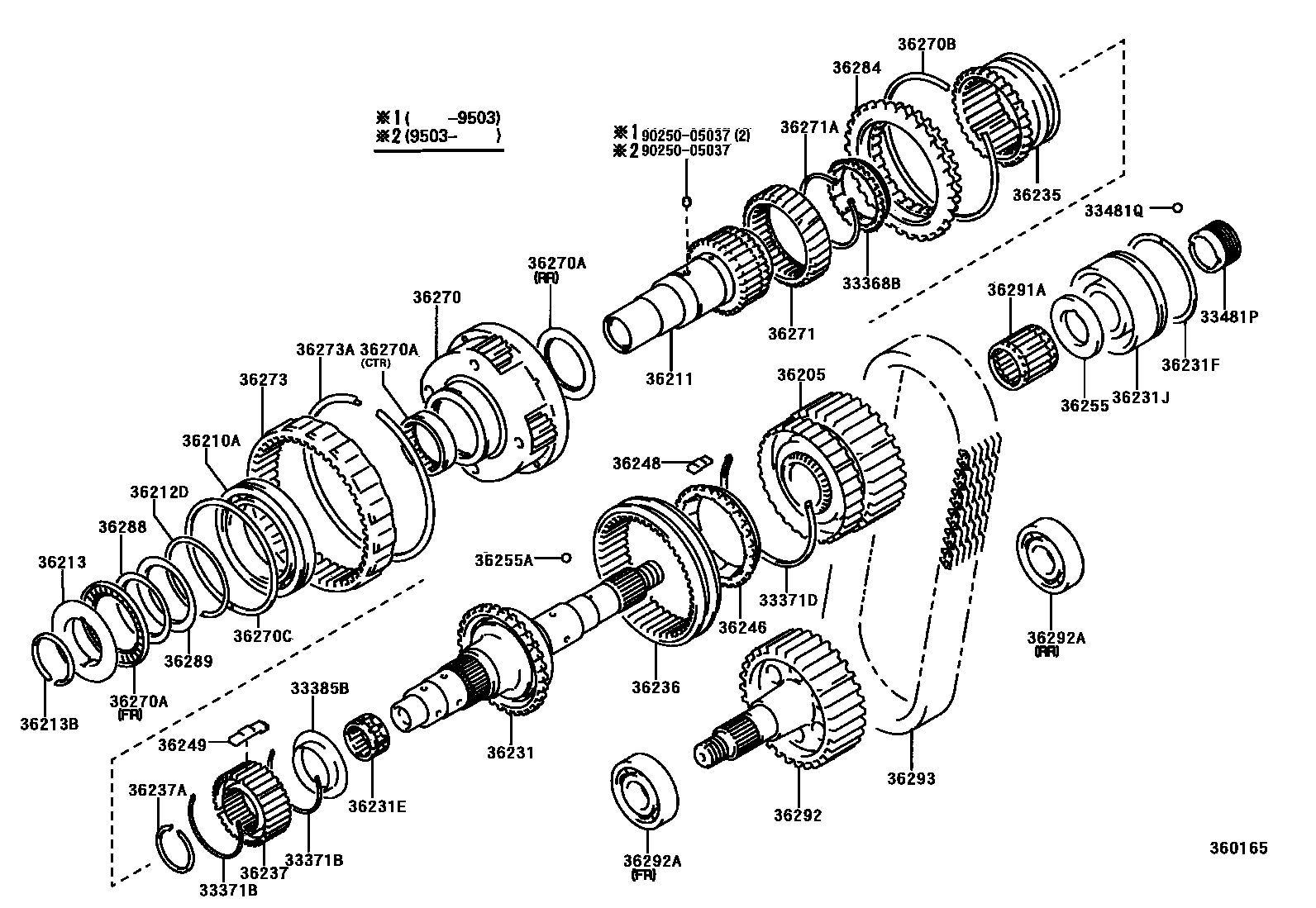

Toyota HILUX Transfer Gear — Figure 3610
Toyota HILUX EPC diagram 3610, Transfer Gear, with 2 images and 74 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33357B | Counter gear thrust spring | 33357-35010 · 33357-35021 |
| 33368B | Synchronizer locking ring (for transfer case front-wheel drive clutch) | 33367-14010 |
| 33371B | Synchromesh shift key spring (for transfer case) | 33371-14010 |
| 33371D | No. 1 synchromesh shift key spring (for transfer case) | 33371-36030 |
| 33385B | Shift key retaining ring (for transfer case front-wheel drive clutch) | 33385-35010 |
| 33481P | Speedometer drive gear (for transfer case) | 33481-22010 · 33481-35110 · 33481-35111 · 33481-35140 · 33481-35150 · 33481-35151 |
| 33481Q | Speedometer driving gear key or steel ball (for transfer case) | 90360-05012 · 90360-06004 |
| 36163 | Transfer case front bearing block | 36163-35010 |
| 36187 | Right transfer case oil supply pipe | 36187-35010 |
| 36188 | Left transfer case oil supply pipe | 36188-35010 |
| 36189 | Transfer case oil pump screw | 36189-35010 |
| 36189A | O-ring (for transfer case oil pump screw) | 96711-24028 |
| 36205 | Transfer case drive sprocket sub-assembly | 36205-35021 · 36205-35050 |
| 36210A | Bearing (for transfer case input shaft) | 90363-75001 |
| 36211 | Transfer case input shaft | 36201-35011 |
| 36212 | transfer case input gear | 36212-35012 |
| 36212A | Radial ball bearing (for transfer case input gear) | 90363-35009 |
| 36212B | Needle roller bearings (for transfer case input gear) | 90364-19006 · 90364-19043 |
| 36212C | Shaft snap ring (for transfer case input gear) | 90520-33168 · 90520-33170 · 90520-33172 |
| 36212D | Shaft snap ring (for transfer case input bearing) | 90520-72001 · 90520-72002 · 90520-72003 · 90520-72004 · 90520-72005 · 90520-76001 |
| 36213 | Transfer case input gear block | 36213-35011 |
| 36213B | Shaft snap ring (for transfer case input gear block) | 90520-44003 · 90520-44004 · 90520-44005 · 90520-44006 · 90520-44007 · 90520-44008 · 90520-44009 · 90520-44010 · 90520-44011 · 90520-44012 · 90520-44013 · 90520-44014 · 90520-44015 · 90520-44016 · 90520-44017 · 90520-44018 · 90520-44019 · 90520-44020 · 90520-44021 |
| 36221 | Transfer case idler gear | 36221-35010 |
| 36221B | Bearings (for transfer case idler gear) | 90365-38001 |
| 36221C | Shaft snap ring (for transfer case idler gear) | 90520-28242 · 90520-28243 |
| 36221E | Radial ball bearing (for transfer case idler) | 90363-30012 |
| 36221F | Shaft snap ring (for transfer case idler bearing) | 90520-68193 |
| 36223 | Transfer countershaft gear | 36223-35011 |
| 36223A | Shaft snap ring (for transfer case countershaft gear) | 90520-30215 · 90520-30217 |
| 36223B | Bearings (for transfer case countershaft gear) | 90363-32006 · 90369-45001 |
| 36223D | Shaft snap ring (for transfer case countershaft gear bearing) | 90520-71221 |
| 36231 | Transfer case rear output shaft | 36202-35010 · 36202-35011 · 36202-35012 · 36231-35011 |
| 36231E | Needle roller bearing (for transfer case front output shaft) | 90364-28004 |
| 36231F | Shaft snap ring (for transfer case output shaft) | 90520-36250 · 90520-36251 · 90520-36252 · 90520-36253 · 90520-36254 · 90520-36255 · 90520-71221 |
| 36231H | Radial ball bearing (for transfer case front output shaft) | 90363-40007 |
| 36231J | Radial ball bearing (for transfer case rear output shaft) | 90363-28004 · 90363-32006 |
| 36231P | Shaft snap ring (for transfer case output shaft front bearing) | 90520-86001 |
| 36232 | Transfer case front driving gear | 36232-35011 |
| 36232A | Bearing (for transfer case front driving gear) | 90363-30014 · 90369-45001 |
| 36232C | Shaft snap ring (for transfer case front drive gear bearing) | 90520-76001 |
| 36233 | Transfer case drive gear | 36233-35010 |
| 36233A | Needle roller bearings (for transfer case driving gear) | 90364-35001 |
| 36235 | Transfer case high and low speed clutch sleeves | 36235-35010 · 36235-35021 |
| 36236 | Front wheel drive clutch sleeve | 36236-35020 |
| 36237 | Transfer case clutch hub | 36237-35010 · 36237-35020 · 36237-35030 |
| 36237A | Shaft snap ring (for transfer case clutch hub) | 90520-39004 · 90520-39005 · 90520-39006 · 90520-39007 · 90520-39008 · 90520-39009 · 90520-39010 · 90520-39011 · 90520-39012 · 90520-39013 · 90520-39014 |
| 36242 | Transfer case low gear | 36242-35011 |
| 36242A | Needle roller bearings (for transfer case low gear) | 90364-45002 |
| 36246 | Transfer case front wheel drive clutch synchronizer lock ring | 36246-35010 |
| 36248 | No. 1 transfer case drive synchromesh shift key | 36248-35011 |
| 36249 | No. 2 transfer case drive synchromesh shift key | 36249-35010 · 36249-35020 |
| 36255 | No. 1 transfer case output shaft spacer | 36255-35010 · 36255-35020 |
| 36255A | Steel ball (for transfer case output shaft spacer) | 90360-05012 · 90360-06004 |
| 36256 | No. 2 transfer case output shaft spacer | 36256-35010 |
| 36261A | No. 1 transfer case counter gear | 36261-35011 |
| 36261B | Spacer (for No. 1 transfer case counter gear) | 90560-38002 |
| 36262 | No. 2 transfer case counter gear | 36262-35011 |
| 36262A | Snap ring (for No. 2 transfer case counter gear) | 90520-59003 |
| 36262B | Spacer (for No. 2 transfer case counter gear) | 90561-63002 |
| 36270 | Transfer case low speed planetary gear assembly | 36270-28030 · 36270-35011 · 36270-35020 |
| 36270A | Bearings (for transfer case low-speed planetary gear) | 90364-47001 · 90374-49001 · 90374-57002 |
| 36270B | Shaft snap ring (for transfer case low range planetary gear) | 90521-99056 |
| 36270C | Shaft snap ring (for transfer case low speed planetary gear bearing) | 90520-99001 |
| 36271 | Transfer case low speed planetary gear train sun gear | 36271-28010 |
| 36271A | Shaft snap ring (for transfer case low range planetary gear train sun gear) | 90520-68001 |
| 36273 | Transfer case low gear planetary ring gear | 36273-35020 · 36273-35030 |
| 36273A | Hole snap ring (for transfer case low-speed planetary ring gear) | 90521-99052 |
| 36284 | Transfer case low gear planetary gear spline | 36284-35010 |
| 36288 | No. 1 transfer case thrust bearing race | 36288-28010 |
| 36289 | No. 2 transfer case thrust bearing race | 36289-35020 |
| 36291A | Bearings (for transfer case drive sprocket) | 90364-37009 |
| 36292 | Transfer case driven sprocket | 36292-35010 · 36292-35020 |
| 36292A | Bearings (for transfer case driven sprocket) | 90363-28004 · 90363-32030 |
| 36293 | Transfer case front wheel drive chain | 36293-35021 · 36293-35030 |
