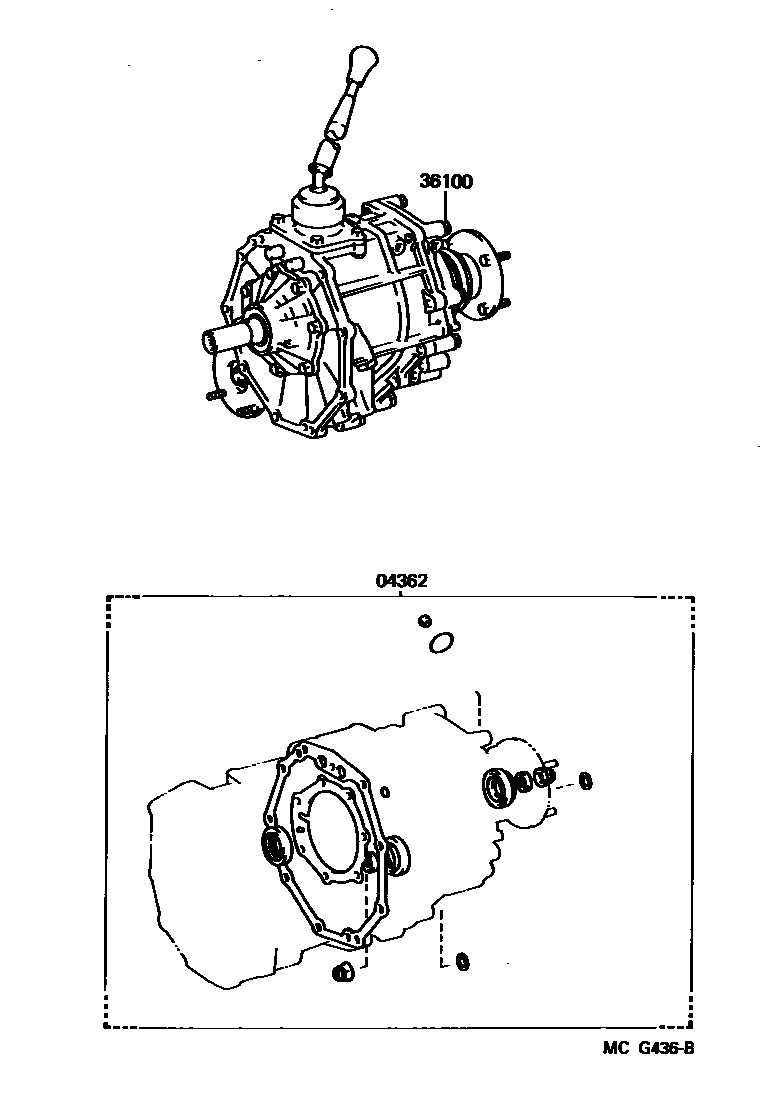

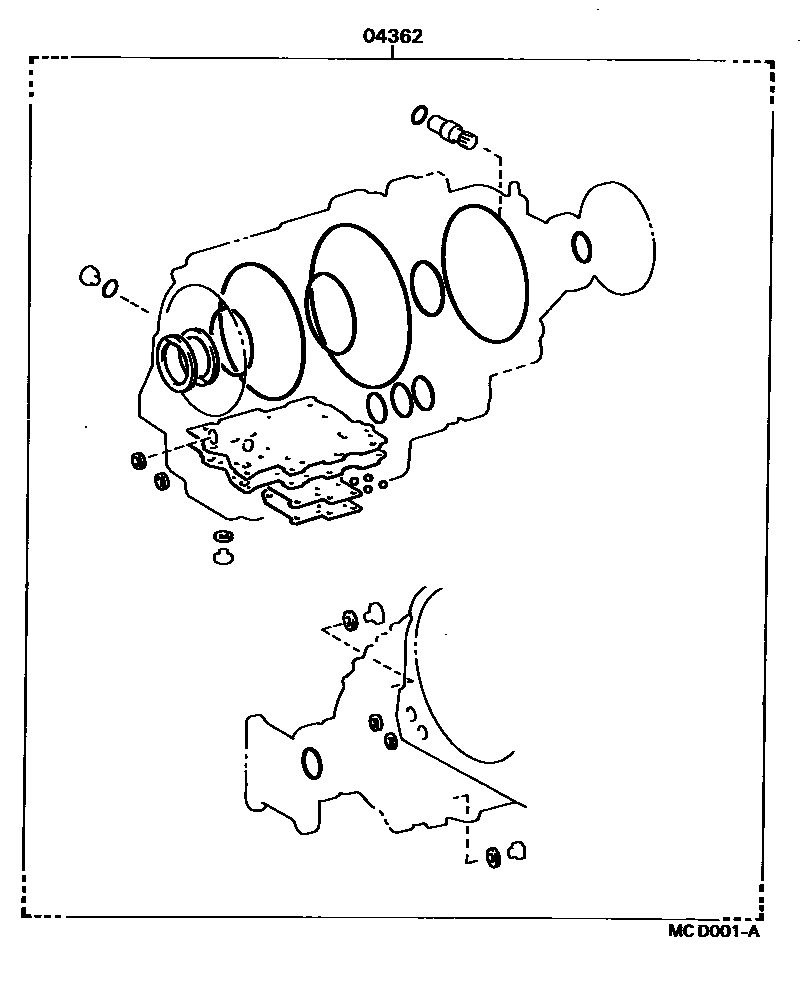

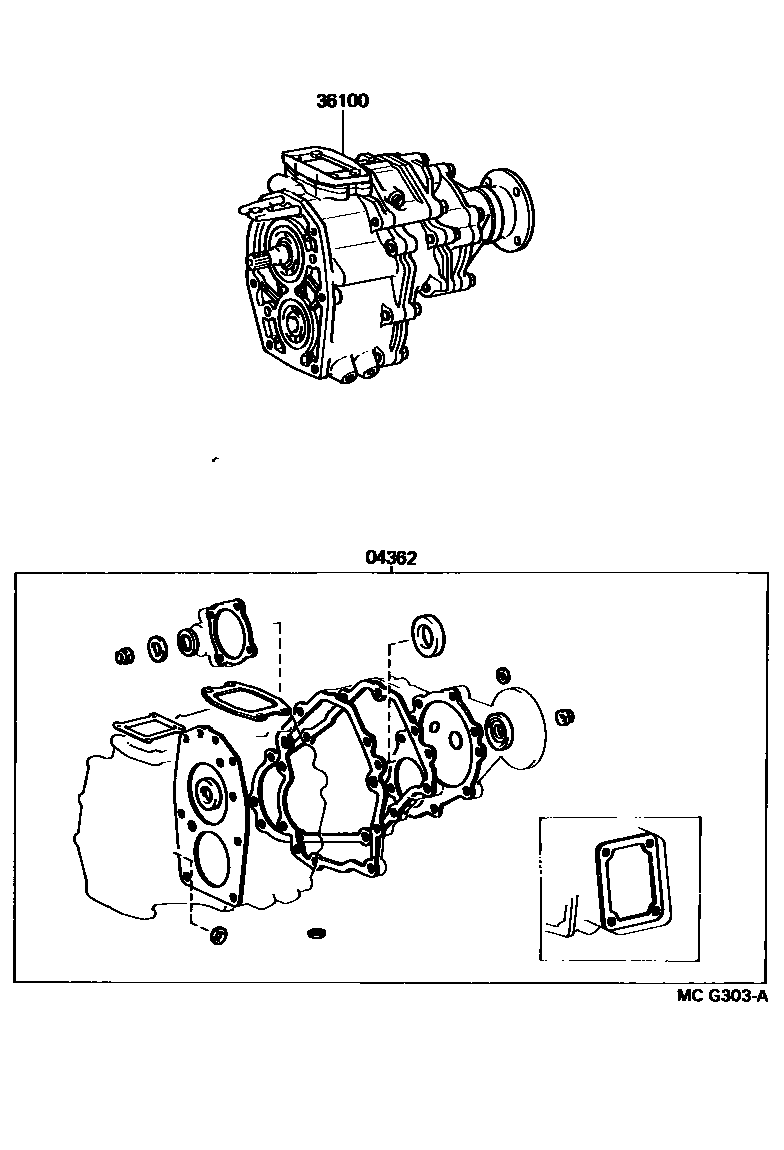

Toyota HILUX Transfer Assembly & Gasket Kit — Figure 3608
Toyota HILUX EPC diagram 3608, Transfer Assembly & Gasket Kit, with 3 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04362 | Transfer case overhaul gasket assembly | 04362-35020 · 04362-35030 · 04362-35040 · 04362-35041 · 04362-35050 |
| 36100 | Transfer case assembly | 36100-35290 · 36100-35330 · 36100-35331 · 36100-35350 · 36100-35351 · 36100-35361 · 36100-35370 · 36100-35371 · 36100-35380 · 36100-35480 · 36100-35490 · 36100-35550 · 36100-35560 · 36100-35600 · 36100-35800 |
