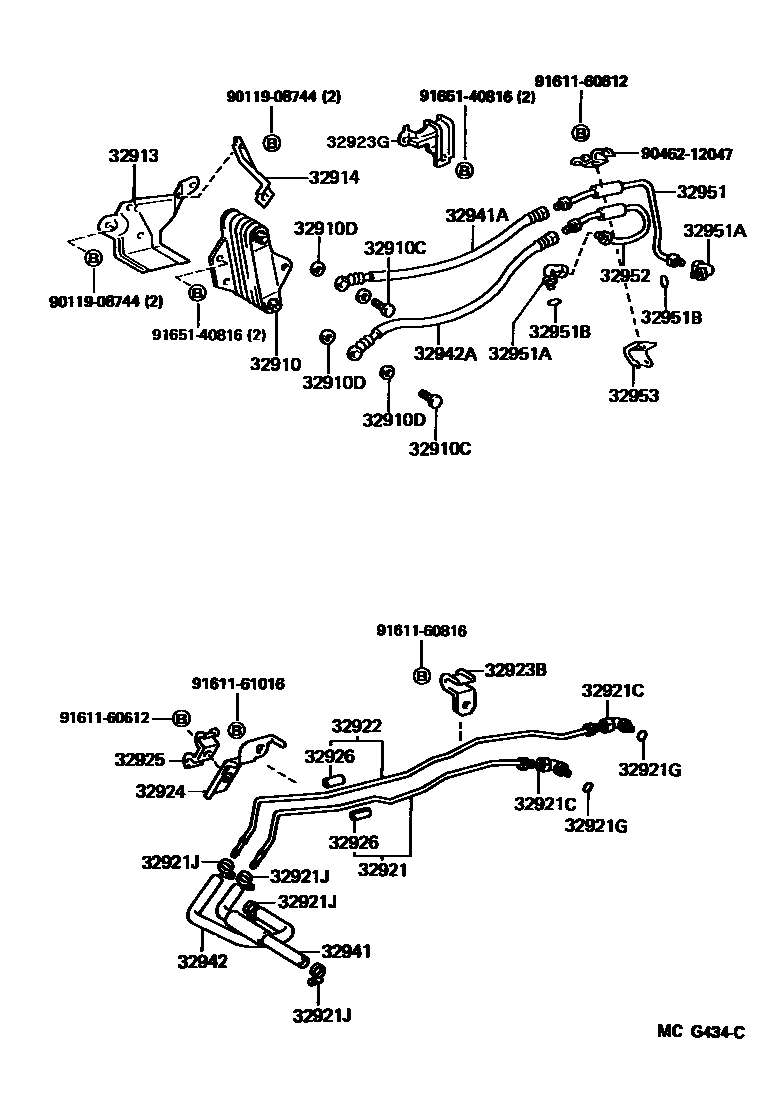

Toyota HILUX 变速器油冷却器和配管(ATM) — Figure 3514
Toyota HILUX EPC diagram 3514, 变速器油冷却器和配管(ATM), with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32910 | Oil cooler assembly | 32910-35010 |
| 32910C | Connector bolt (for oil cooler) | 90401-14003 |
| 32910D | Gasket (for oil cooler) | 90430-14235 |
| 32913 | Transmission oil cooler bracket | 32913-35010 |
| 32914 | Transmission oil cooler stay | 32914-35010 |
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32921-35171 · 32921-35230 |
| 32921C | Fitting (for transmission oil cooler tube) | 90407-16008 · 90407-16012 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-11006 |
| 32921J | Clamp (for transmission oil cooler hose) | 90467-16013 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32922-35150 · 32922-35260 |
| 32923B | No. 1 automatic transmission oil cooler pipe clamp | 32923-30110 |
| 32923G | No. 8 automatic transmission oil cooler pipe clamp | 32908-35010 |
| 32924 | No. 2 transmission oil cooler pipe clamp | 32924-35030 · 32924-35040 |
| 32925 | No. 3 transmission oil cooler pipe clamp | 90462-12044 · 90462-12079 |
| 32926 | Automatic transmission oil cooler pipe cushion | 32926-30020 |
| 32941 | No. 1 transmission oil cooler oil inlet hose | 32941-35041 · 32941-35240 |
| 32941A | No. 2 transmission oil cooler oil inlet hose | 32941-35030 |
| 32942 | No. 1 transmission oil cooler oil outlet hose | 32941-28190 · 32942-35011 |
| 32942A | No. 2 transmission oil cooler oil outlet hose | 32942-35030 |
| 32951 | Transfer case oil cooler oil inlet pipe | 32951-35010 |
| 32951A | Bend pipe (for transfer case oil cooler pipe) | 90407-16010 |
| 32951B | O-ring (for transfer case oil cooler pipe) | 90301-10189 |
| 32952 | Transfer case oil cooler oil outlet pipe | 32952-35010 |
| 32953 | Transfer case oil cooler clip | 32953-35010 |
