Toyota HILUX 节气阀连杆和阀杆(ATM) — Figure 3513

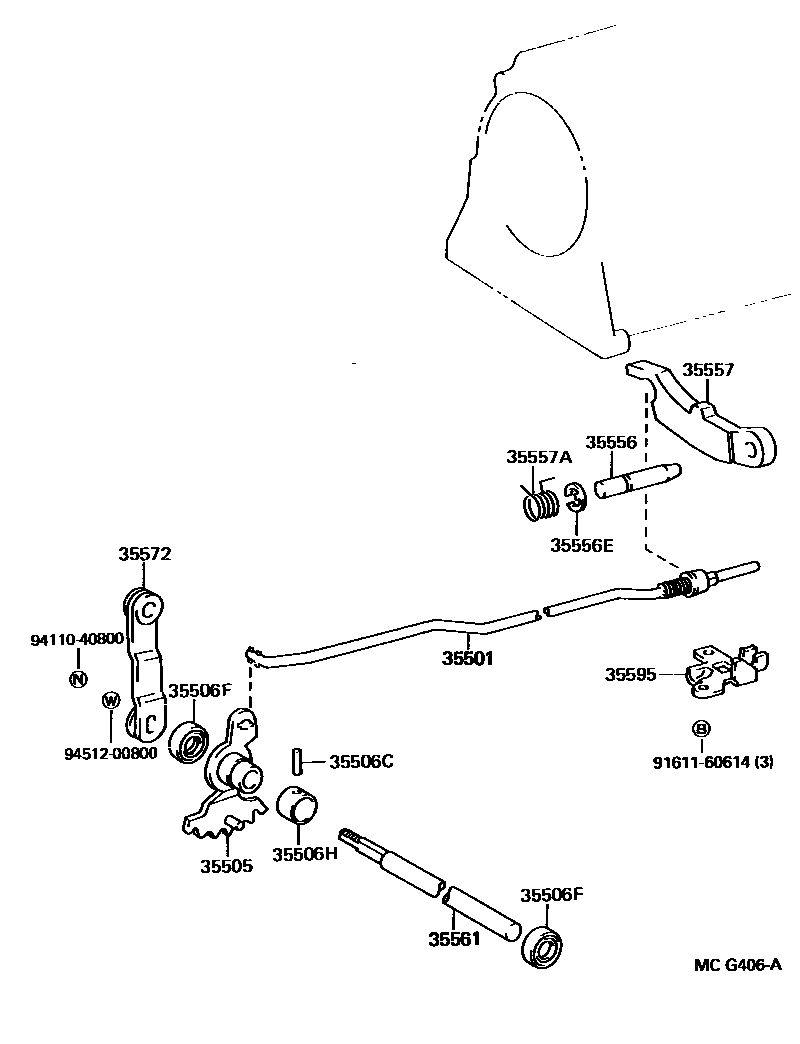

Toyota HILUX EPC diagram 3513, 节气阀连杆和阀杆(ATM), with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35501 | Parking lock lever sub-assembly | 35501-35010 |
| 35505 | Manual valve stem sub-assembly | 35505-30020 |
| 35506C | Slotted spring pin (for manual valve stem shaft) | 90254-04011 |
| 35506F | Oil seal (for manual valve stem shaft) | 90311-12002 |
| 35506H | Spacer (for manual valve stem shaft) | 90560-20006 |
| 35520 | Throttle valve cable assembly | 35520-35050 |
| 35520B | O-ring (for throttle valve cable) | 90301-09012 |
| 35523A | No. 1 throttle valve cable clamp | 35523-35070 · 35523-35150 |
| 35524 | No. 2 throttle valve cable clamp | 35523-35060 |
| 35556 | Parking lock pawl shaft | 35556-30020 |
| 35556E | E-ring (for parking lock pawl shaft) | 90523-08021 |
| 35557 | Parking pawl | 35557-35030 |
| 35557A | Torsion spring (for parking pawl) | 90508-21002 |
| 35561 | Manual valve stem shaft | 35561-30070 |
| 35572 | Transmission right control lever | 35572-35020 |
| 35595 | Parking lock pawl bracket | 35595-35010 |
