Toyota HILUX 中央支架和行星太阳齿轮(ATM) — Figure 3508

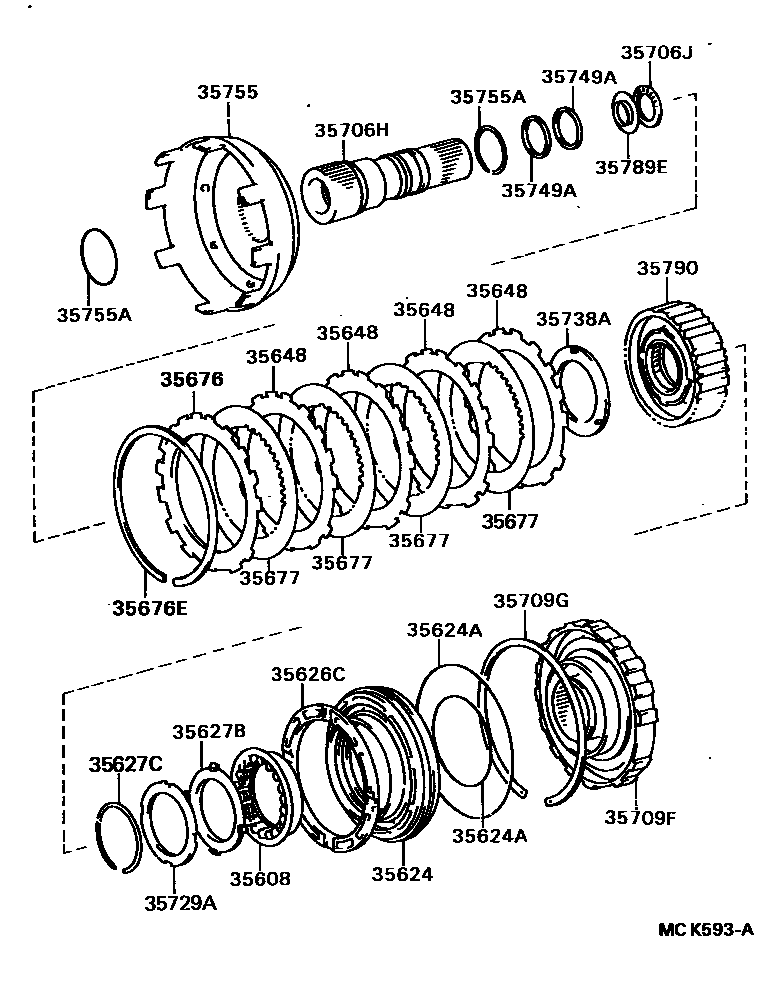

Toyota HILUX EPC diagram 3508, 中央支架和行星太阳齿轮(ATM), with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35608 | Second gear brake piston return spring sub-assembly | 35608-30010 |
| 35624 | Second gear brake piston | 35624-30010 |
| 35624A | O-ring (for second gear brake piston) | 90301-85001 · 90301-99038 |
| 35626C | Second gear brake piston sleeve | 35626-30030 |
| 35627B | Second gear brake piston return spring seat | 35627-30010 |
| 35627C | Shaft snap ring (for second gear brake piston return spring seat) | 90520-54001 |
| 35648 | Clutch disc (for second gear brake) | 35647-30020 · 35647-30030 |
| 35676 | Brake flange (for second gear brake) | 35676-30020 |
| 35676E | Hole snap ring (for second gear brake) | 90521-99032 |
| 35677 | Clutch disc (for second gear brake) | 35667-30020 |
| 35706H | Planetary gear train sun gear sub-assembly | 35706-30061 |
| 35706J | Thrust needle roller bearing (for planetary gear train sun gear) | 90374-30006 |
| 35709F | Second gear brake drum sub-assembly | 35709-30061 · 35709-50010 |
| 35709G | Hole snap ring (for second gear brake drum) | 90521-99044 |
| 35729A | No. 4 planetary gear carrier thrust washer | 35729-30010 |
| 35738A | No. 1 one-way clutch thrust washer | 35738-30040 |
| 35749A | Sun gear shaft oil ring | 35749-30010 |
| 35755 | sun gear input drum | 35755-50010 |
| 35755A | Shaft snap ring (for sun gear input drum) | 90520-46002 · 90520-49001 |
| 35789E | Thrust bearing race (for planetary gear train sun gear) | 35789-30150 |
| 35790 | One-way clutch assembly | 35790-30060 · 35790-50010 |
