Toyota HILUX Shift Lever & Retainer — Figure 3312

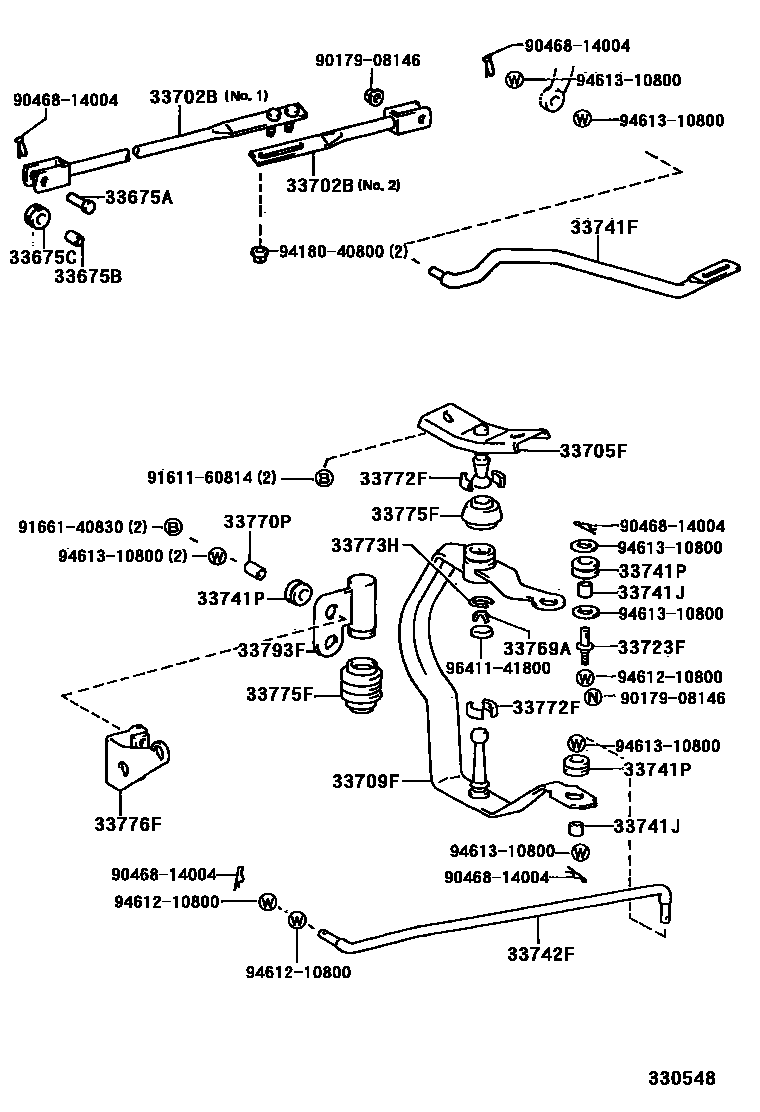

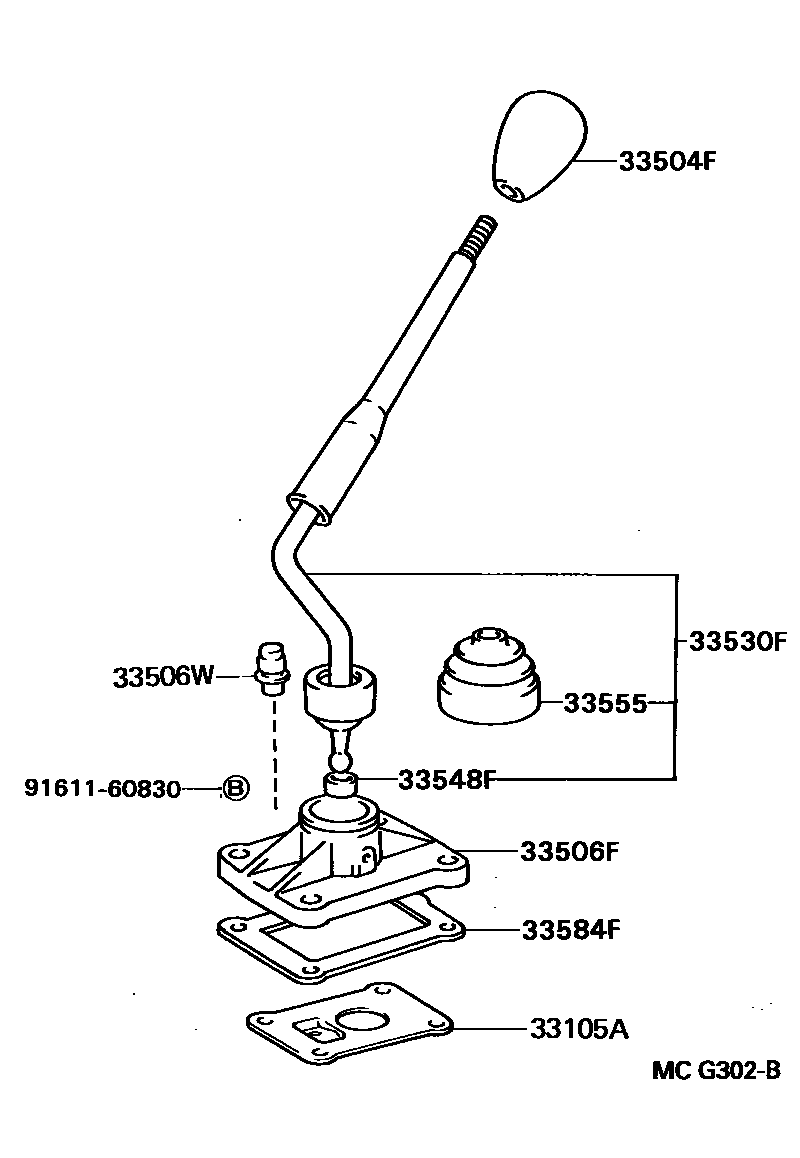

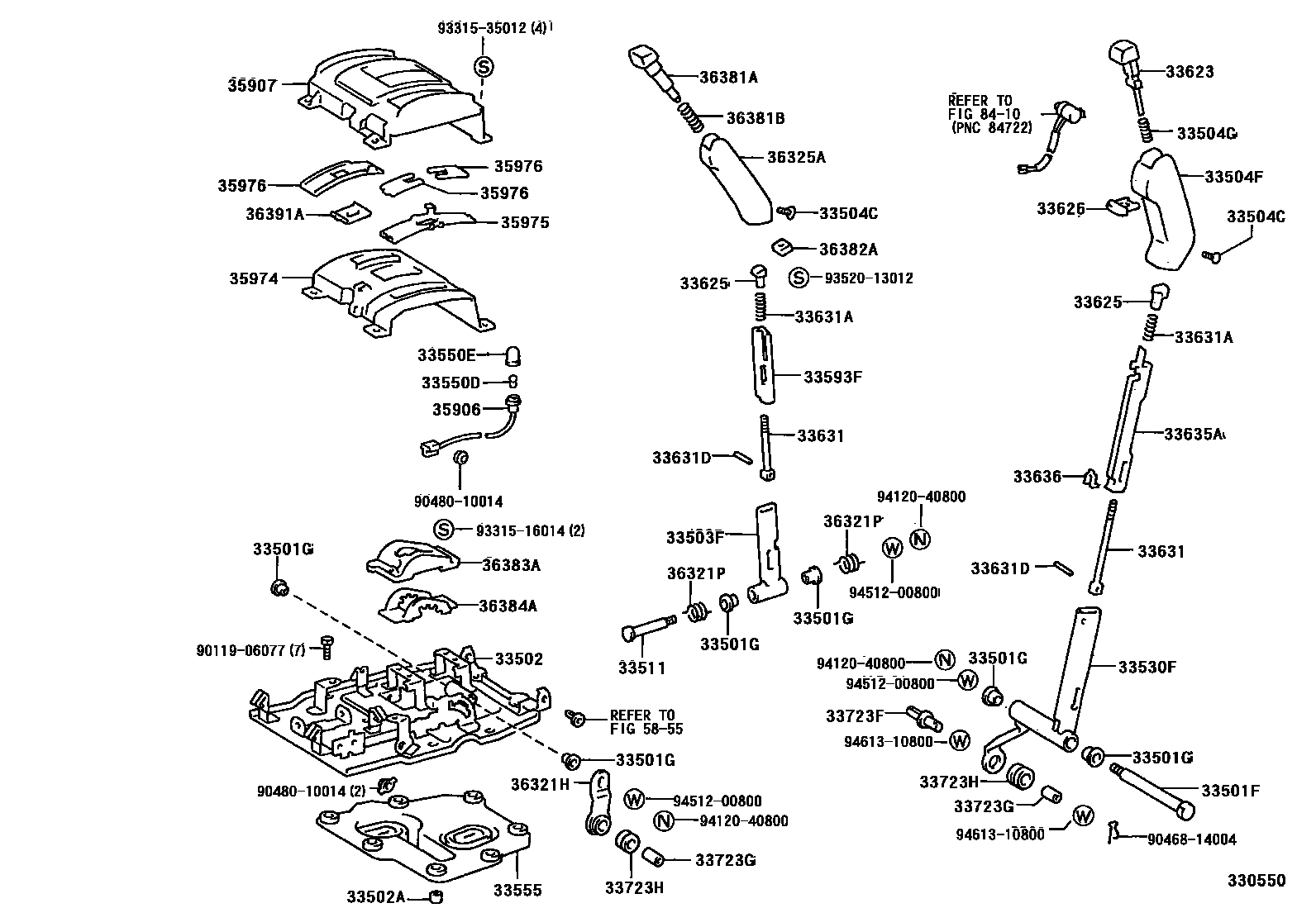

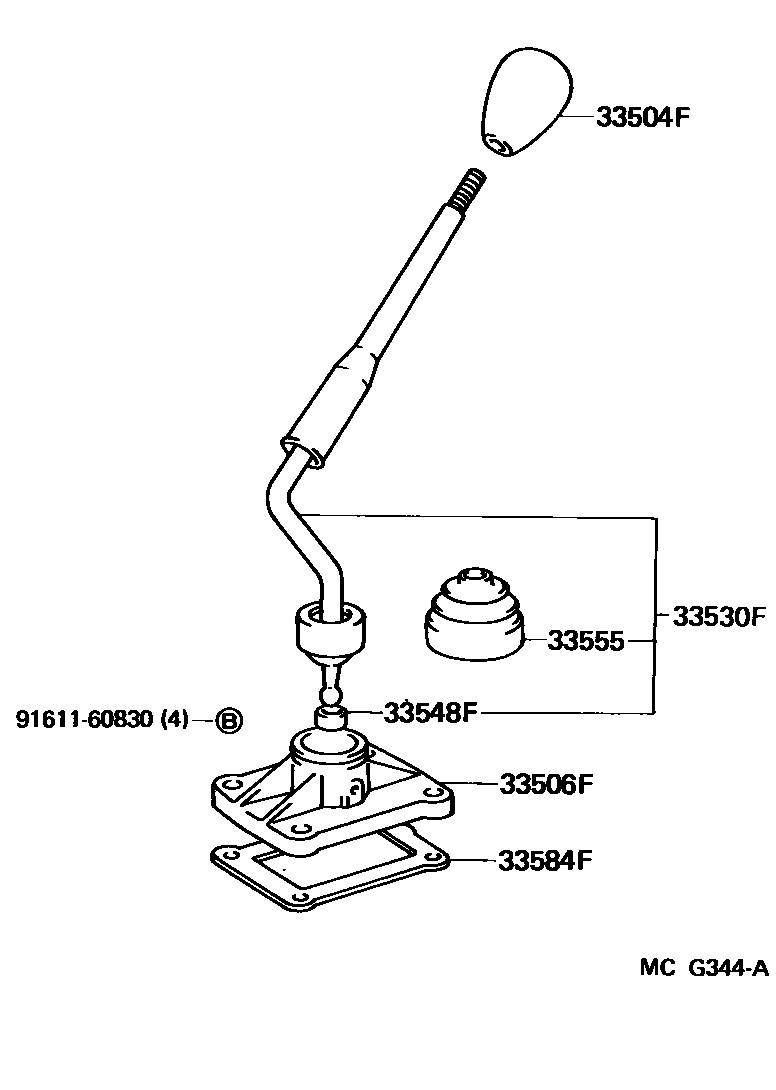

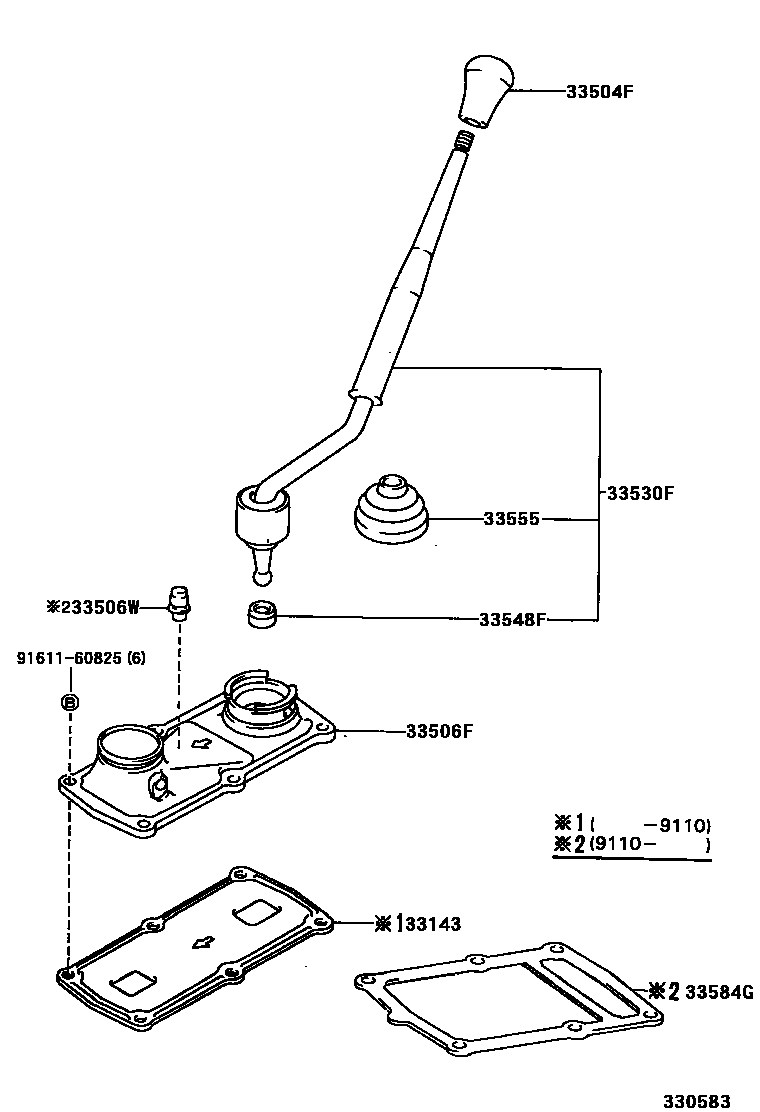

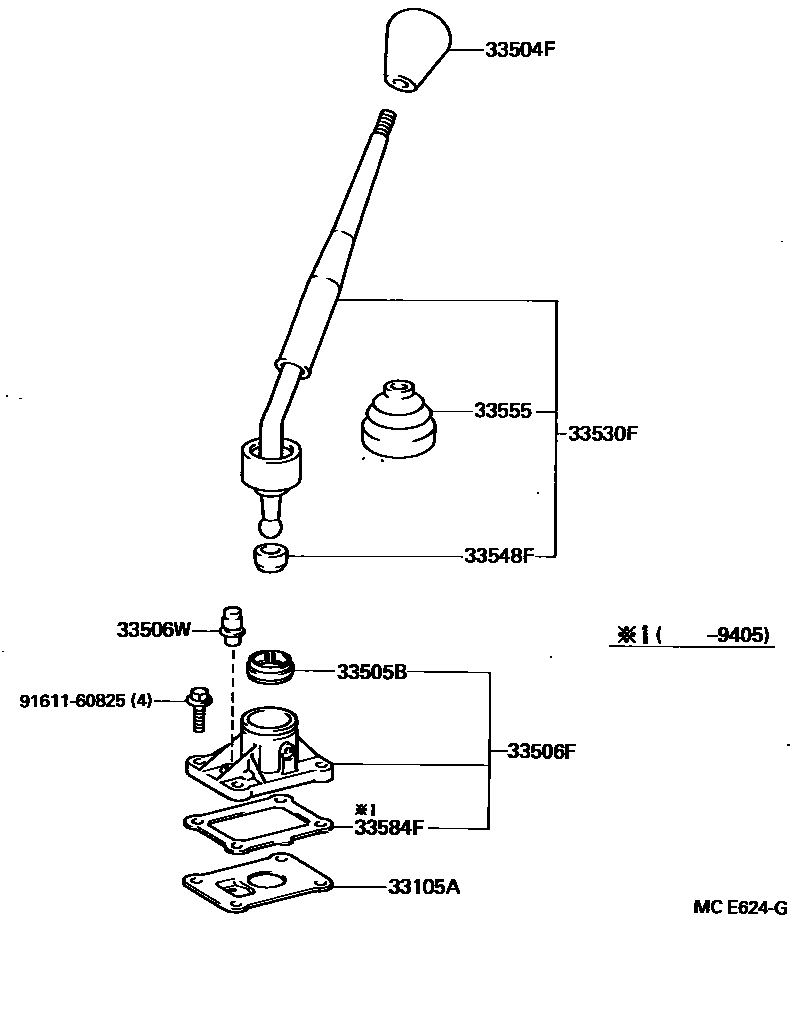

Toyota HILUX EPC diagram 3312, Shift Lever & Retainer, with 6 images and 59 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33105A | Extension housing oil baffle sub-assembly (MTM) | 33105-35040 · 33105-60010 · 33144-35030 |
| 33143 | Extended shell oil baffle | 33143-35040 |
| 33501F | Control shaft sub-assembly (for floor shift) | 33511-20240 |
| 33501G | Bushing (for floor mounted shift control shaft) | 90385-11003 |
| 33502 | Shift lever base plate sub-assembly | 33502-35230 |
| 33502A | Collar (for securing floor shift) | 90387-06065 |
| 33503F | Shift lever sub-assembly (for floor shift) | 33503-35060 |
| 33504C | Screw (for securing shift lever knob) | 90159-40109 |
| 33504G | Compression spring (for shift lever knob) | 90501-07009 |
| 33505B | Shift lever seat sub-assembly | 33505-35010 · 33505-35020 · 33505-35030 |
| 33506F | Shift control lever stopper sub-assembly (for floor shift) | 33506-35060 · 33506-35140 · 33506-60020 · 33506-60030 · 33570-35040 · 33570-35060 |
| 33506W | Breather plug (for shift lever stop) | 90930-03075 · 90930-03114 |
| 33511 | Control shaft (for floor shifting) | 33511-35120 |
| 33530F | Shift lever assembly (for floor shift) | 33055-35050 · 33530-35150 · 33530-35151 · 33530-35152 · 33530-35160 · 33530-35161 · 33530-35170 · 33530-35171 · 33530-35180 · 33530-35190 · 33530-35191 · 33530-35220 · 33530-35230 |
| 33548F | Shift lever bushing No. 1 (for floor shift) | 33548-31010 · 33548-35010 |
| 33550D | position indicator light bulb | 90981-11018 |
| 33550E | position indicator cover | 90339-04014 |
| 33555 | Gear shift lever dust cover | 33555-35040 · 33555-35070 · 33555-60030 |
| 33584F | Shift lever stop pad (for floor shift) | 33584-60010 |
| 33584G | Pad No. 2 (for floor shift) | 33584-35070 |
| 33593F | Spring retainer (for floor shift) | 33593-35010 |
| 33625 | Shift lever handle sleeve | 33625-35020 · 33625-35040 |
| 33631 | Locking lever | 33631-12080 · 33631-35030 |
| 33631A | Compression spring (for locking lever) | 90501-07074 |
| 33631D | Grooved pin (for locking lever) | 90256-04001 |
| 33635A | Cable guide No. 1 (for gear selector) | 33635-35040 |
| 33636 | Cable guide No. 2 (for gear selector) | 33636-35010 |
| 33675A | Pin with hole (for transmission control lever) | 33726-35010 · 90240-08054 |
| 33675B | Bushing (for transmission control lever) | 90389-08005 |
| 33675C | retaining ring (for transmission control lever) | 90480-17177 |
| 33702B | No. 1 shift rod sub-assembly (for floor shift) | 33702-35110 · 33704-35040 |
| 33705F | No. 1 transverse shaft bracket sub-assembly (for floor shift) | 33705-35020 |
| 33709F | No. 1 transverse shaft sub-assembly (for floor shift) | 33709-35110 |
| 33723F | Connecting rod swivel joint (for floor shifting) | 33723-22010 |
| 33723G | Bushing (for floor mounted shift control shaft) | 90389-08005 |
| 33723H | Retaining ring (for floor mounted shift control shaft) | 90480-17177 |
| 33741F | No. 1 shift lever (for floor shift) | 33741-35210 |
| 33741J | Bushing No. 2 (for shift rod or selector linkage) | 90389-08005 |
| 33741P | No. 2 retaining ring (for shift rod or gear selector linkage) | 90480-17177 |
| 33742F | No. 2 shift lever (for floor shift) | 33742-35090 |
| 33769A | Transverse axis end spring | 33769-35010 |
| 33770P | Collar (for horizontal shaft) | 90387-08058 |
| 33772F | No. 1 transverse shaft bracket bushing (for floor shift) | 33772-20010 |
| 33773H | Snap ring (for horizontal axis bracket) | 96151-01600 |
| 33775F | No. 1 transverse shaft dust cover (for floor shift) | 33775-27020 · 33775-35010 |
| 33776F | No. 1 transverse shaft bracket (for floor shift) | 33776-35150 |
| 33793F | No. 2 transverse shaft bracket (for floor shift) | 33793-35010 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-35060 |
| 35907 | Position indicator light housing sub-assembly (for floor shift) | 35907-35130 |
| 35974 | Position indicator light lower shell | 35974-35010 |
| 35975 | Slide cover (for position indicator light) | 35975-35050 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-35010 · 35976-35020 |
| 36321H | Transfer case shift lever | 36321-35040 |
| 36321P | Spring (for transfer case shift lever) | 90508-26068 · 90508-26069 |
| 36381B | Compression spring (for shift lever knob) | 90501-08068 |
| 36382A | Transfer case shift lever button block | 36382-35010 |
| 36383A | Transfer case stop block bracket | 36383-35030 |
| 36384A | Transfer case stop block | 36384-35010 |
| 36391A | transfer case sliding cover | 36391-35010 |
