Toyota HILUX 离合器壳和变速器壳(MTM) — Figure 3302

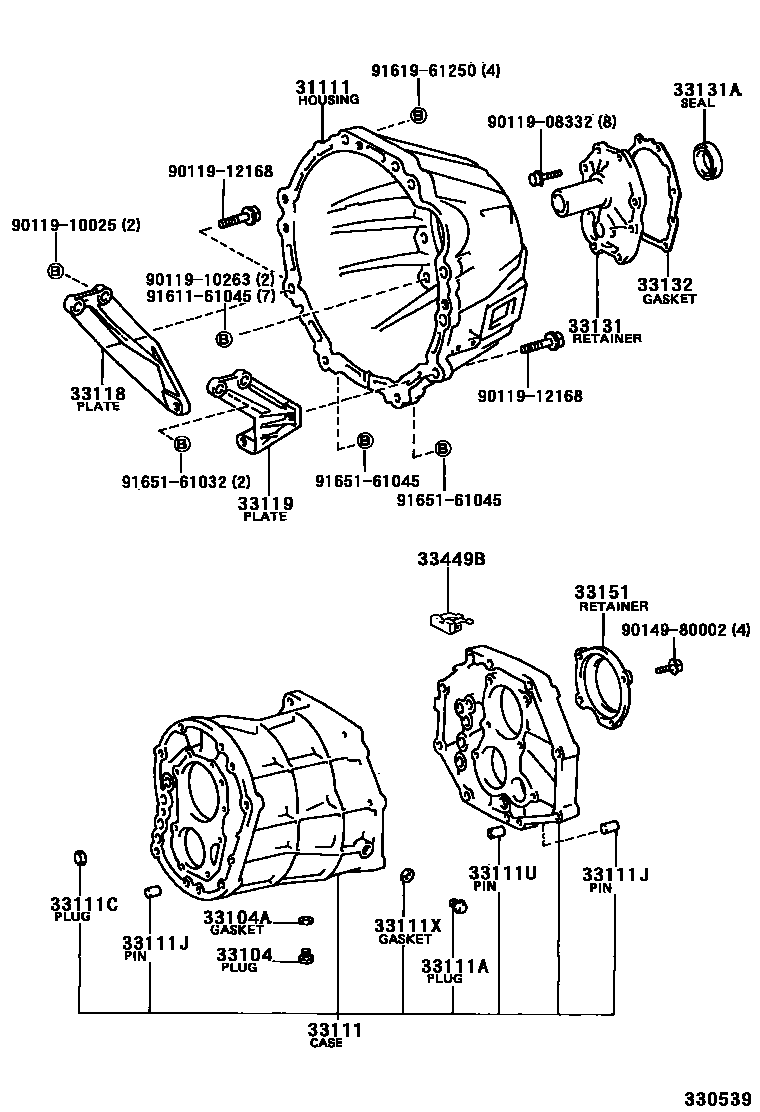

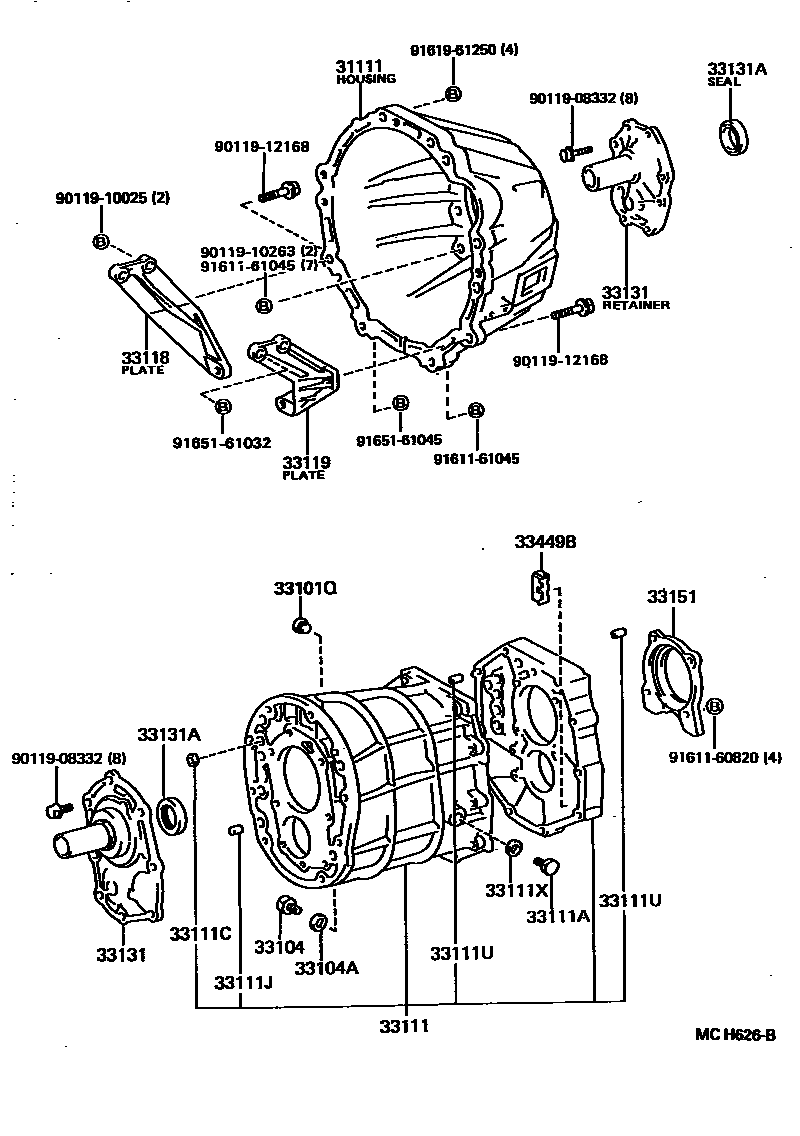

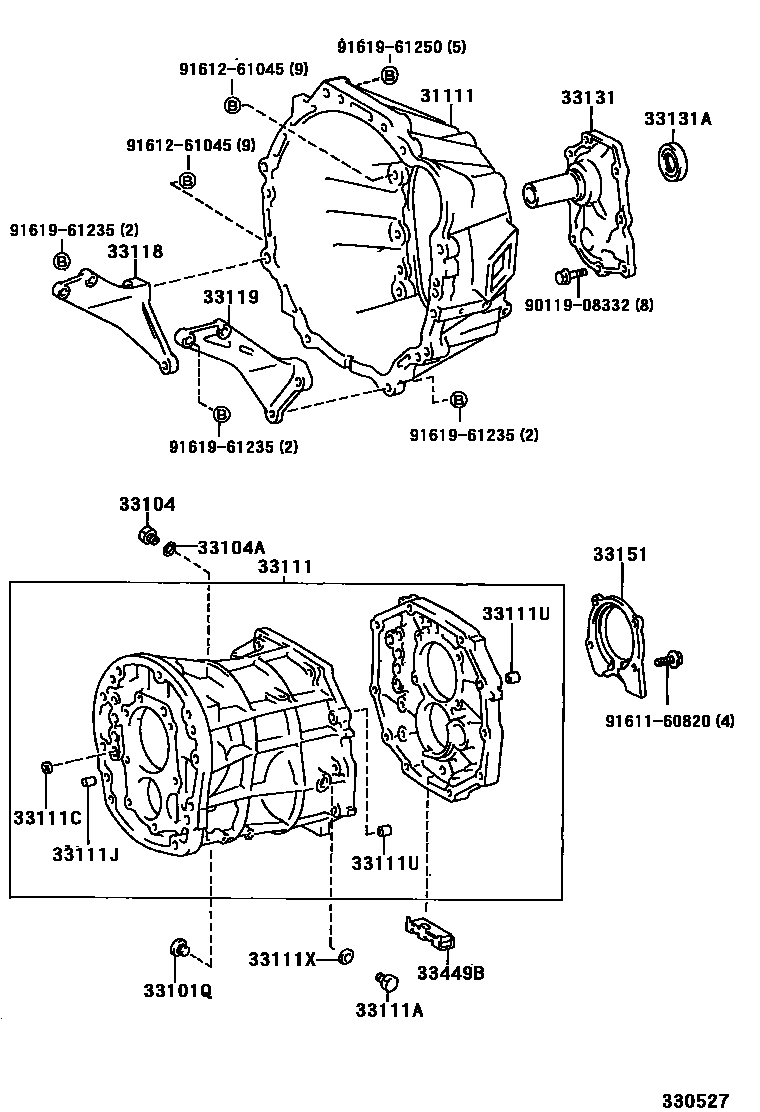

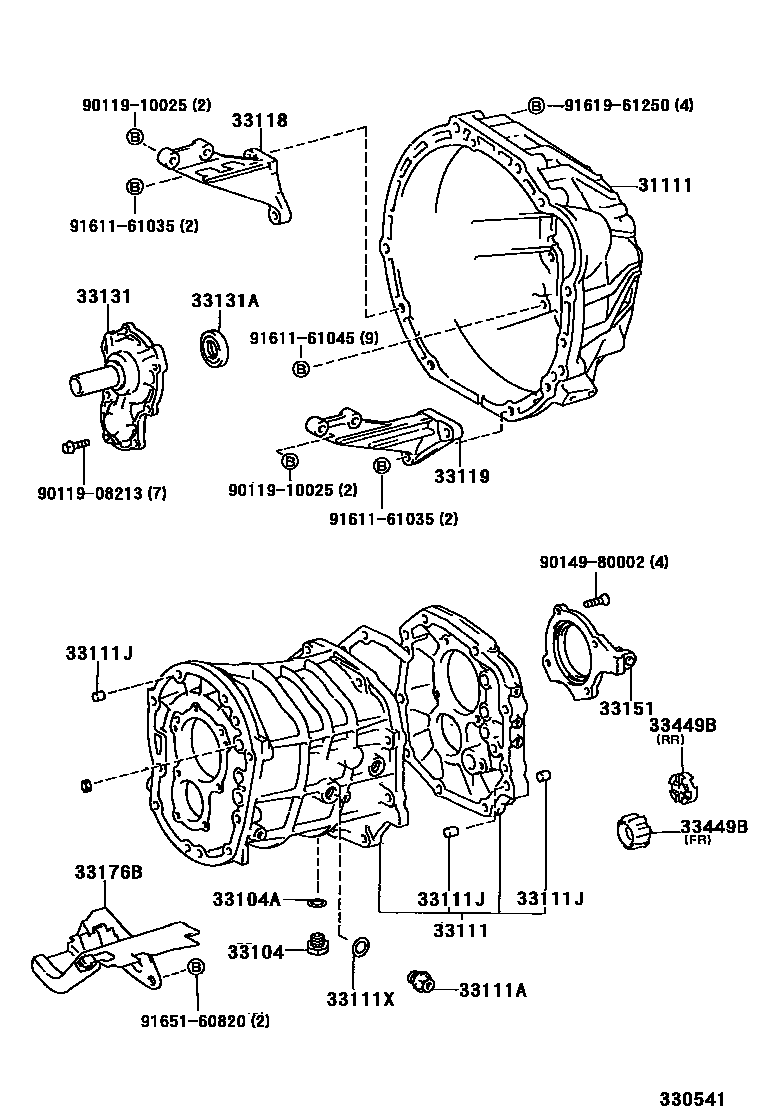

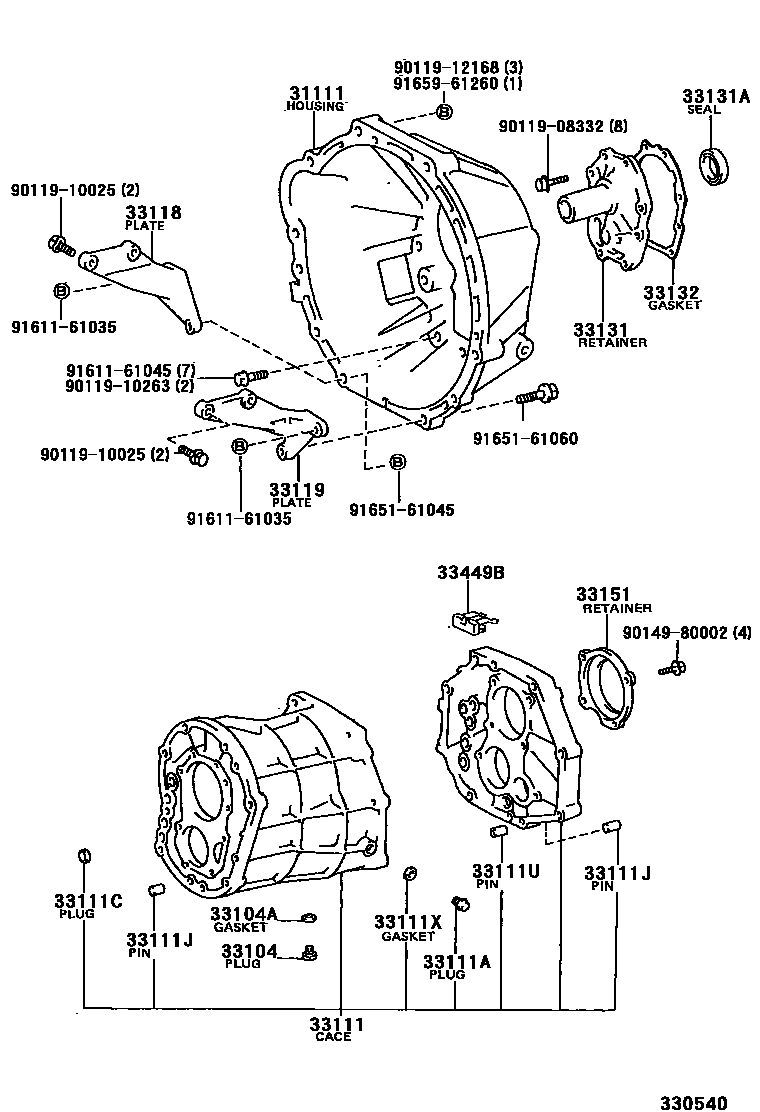

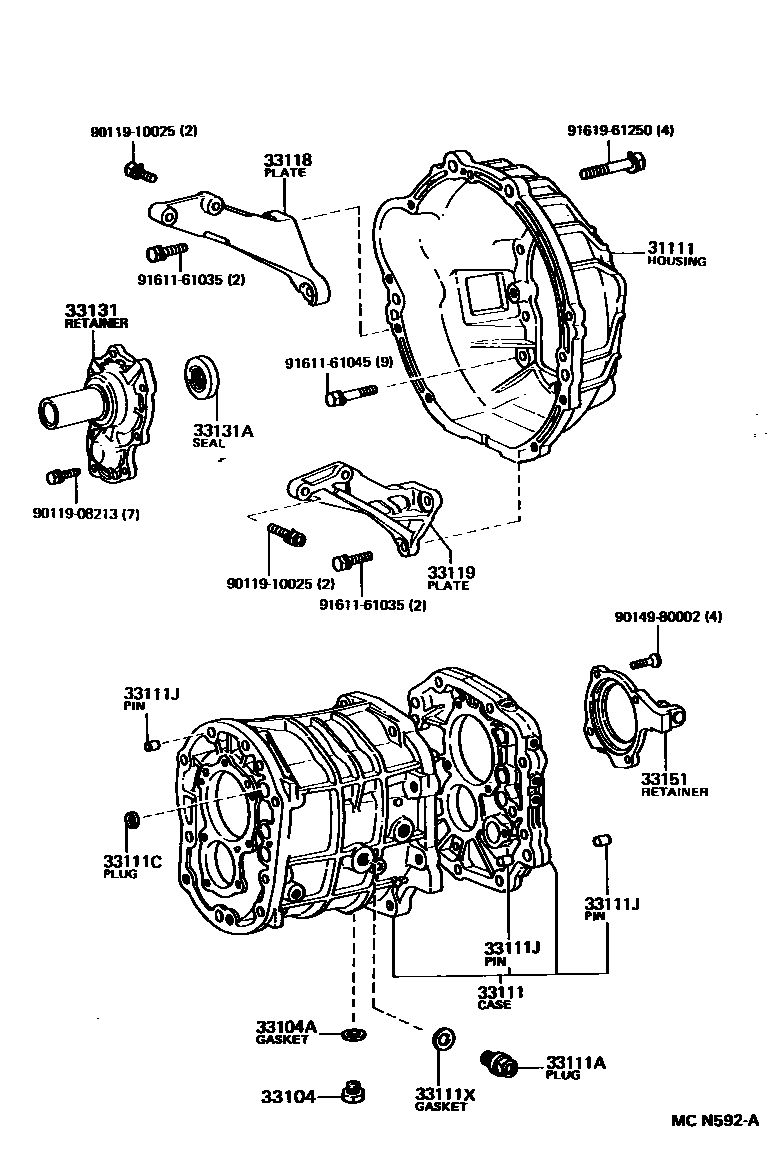

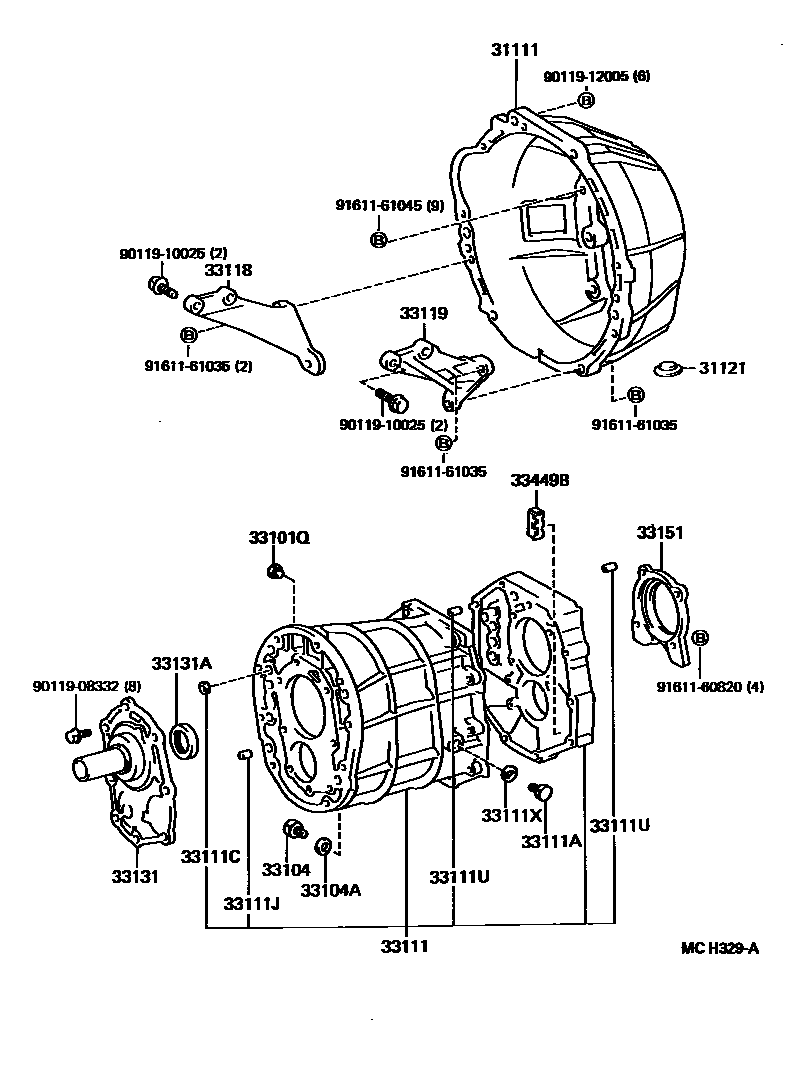

Toyota HILUX EPC diagram 3302, 离合器壳和变速器壳(MTM), with 7 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31111 | clutch housing | 31111-22112 · 31111-22113 · 31111-22114 · 31111-30180 · 31111-35011 · 31111-35031 · 31111-35032 · 31111-35050 · 31111-35060 · 31111-60270 |
| 31121 | No. 1 clutch housing cover | 31121-35020 |
| 33101Q | No. 1 screw plug (for gearbox) | 90341-16013 · 90341-16014 |
| 33104 | Drain plug sub-assembly (MTM) | 90341-18006 · 90341-18057 |
| 33104A | Drain plug gasket (MTM) | 90430-18008 |
| 33111 | Manual transmission housing | 33101-22031 · 33101-22032 · 33101-30070 · 33101-30071 · 33101-35030 · 33101-35031 · 33101-35050 · 33101-35070 · 33101-35080 |
| 33111A | Manual transmission plug | 90341-18002 · 90341-18006 · 90341-18019 |
| 33111C | Screw plug (for gearbox) | 90331-14004 · 90331-17004 · 96411-41800 |
| 33111J | Direct sales (for manual transmission) | 90250-12002 |
| 33111U | Ring pin (for manual transmission) | 90253-15001 |
| 33111X | Gearbox plug gasket | 90430-18008 |
| 33118 | Right reinforcement plate (MTM) | 33118-25020 · 33118-28010 · 33118-35020 · 33118-35030 · 33118-35031 · 33118-35040 · 33118-60050 |
| 33119 | Left reinforcement plate (MTM) | 33119-25020 · 33119-28010 · 33119-35021 · 33119-35030 · 33119-60050 |
| 33131 | Front bearing retainer (MTM) | 33131-22021 · 33131-26020 · 33131-30080 · 33131-35030 · 33131-35031 |
| 33131A | Oil seal (for transmission front bearing retainer) | 90311-30010 · 90311-30014 · 90311-30115 · 90311-32012 |
| 33132 | Front bearing retainer pad (MTM) | 33132-28010 |
| 33151 | Output shaft rear bearing retainer (MTM) | 33107-22010 · 33107-30020 · 33151-35020 · 33151-35030 |
| 33176B | Transmission oil separator (MTM) | 33176-30020 |
| 33449B | derailleur magnet | 33449-26010 · 33449-30010 · 33449-30020 · 33449-35010 · 33449-35030 |
