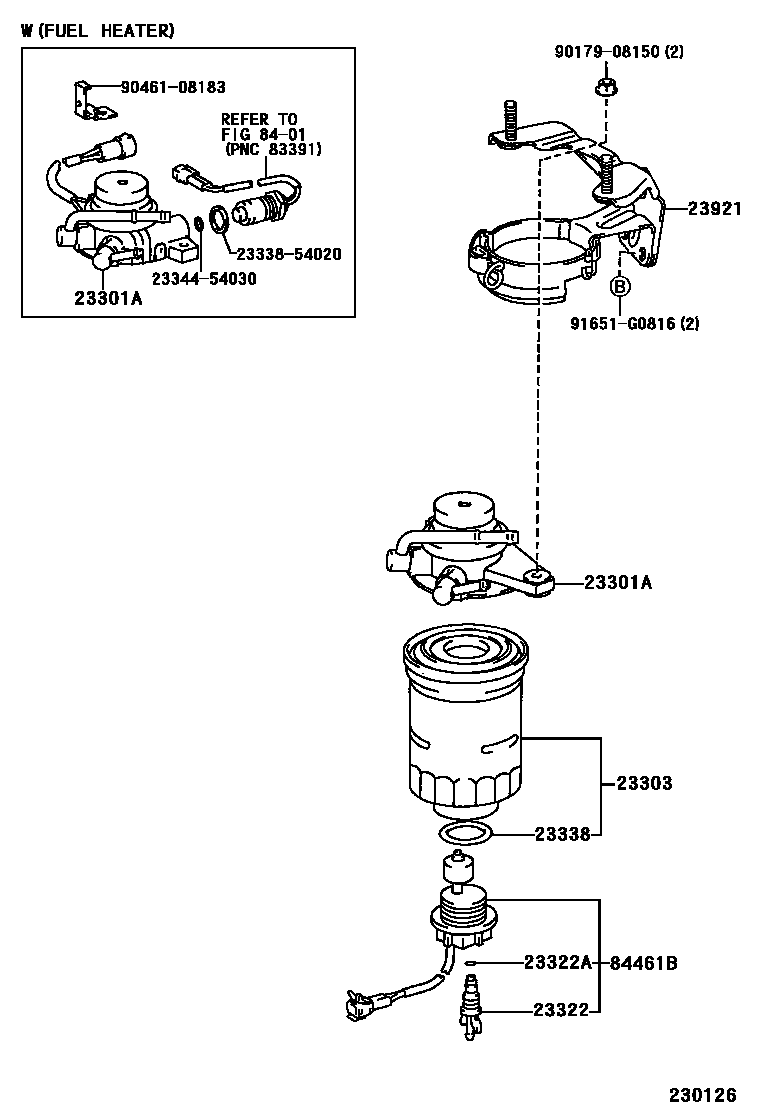

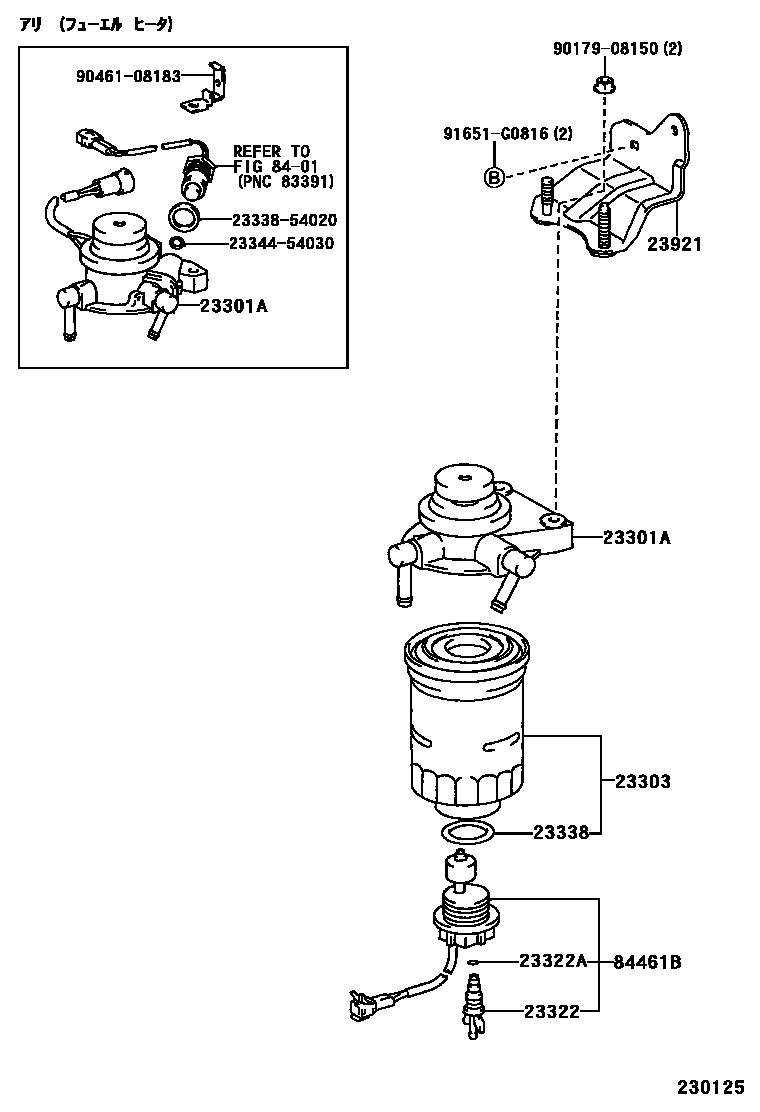

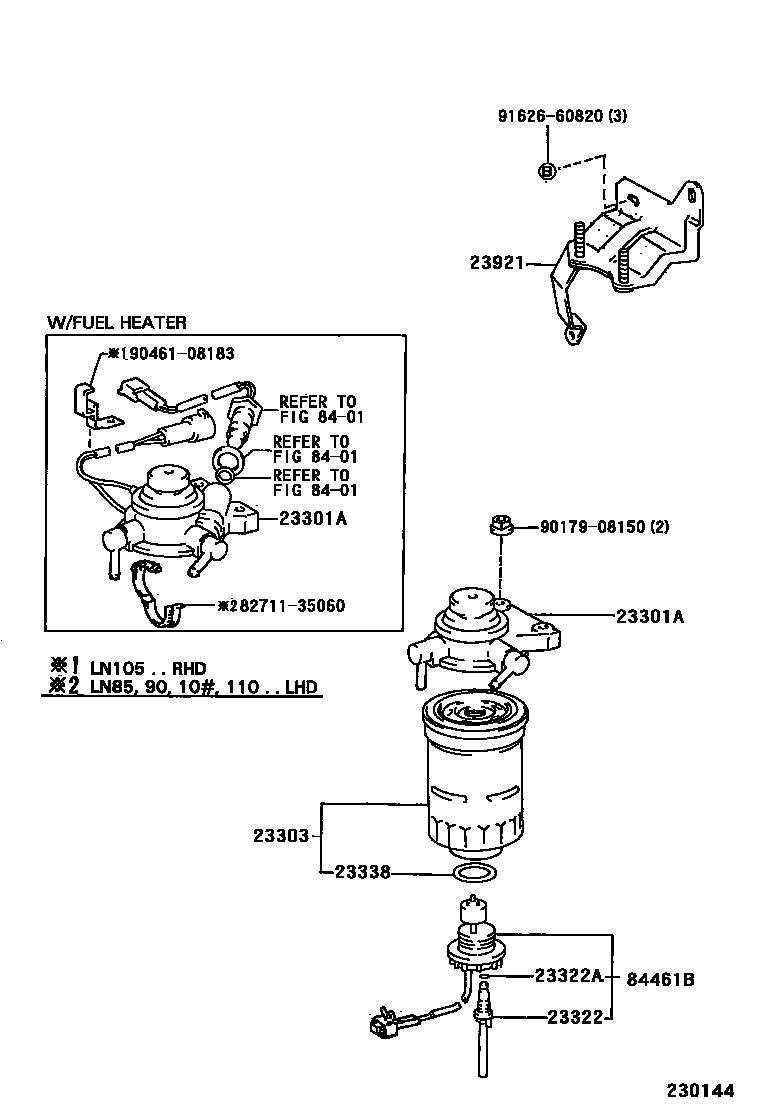

Toyota HILUX fuel filter — Figure 2302
Toyota HILUX EPC diagram 2302, fuel filter, with 4 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23300 | fuel filter assembly | 23300-34100 |
| 23301A | Fuel filter cover assembly | 23301-54420 · 23301-54460 · 23301-54470 · 23301-54520 · 23301-54540 · 23301-67020 · 23301-67030 · 23301-67040 |
| 23303 | Fuel filter element sub-assembly | 23303-64010 · 23303-64020 |
| 23322 | Drain plug (for fuel filter) | 23322-64010 |
| 23322A | O-ring (for drain plug) | 23344-54010 |
| 23338 | Gasket (for warning switch) | 23344-64010 |
| 23921 | Fuel filter support | 23921-54270 · 23921-54280 · 23921-54281 · 23921-54290 · 23921-67010 · 23921-72010 |
| 84461B | Liquid level warning switch | 84461-35050 · 84461-35060 · 84461-35070 |
