Toyota HILUX 燃油泵和燃油管 — Figure 2301

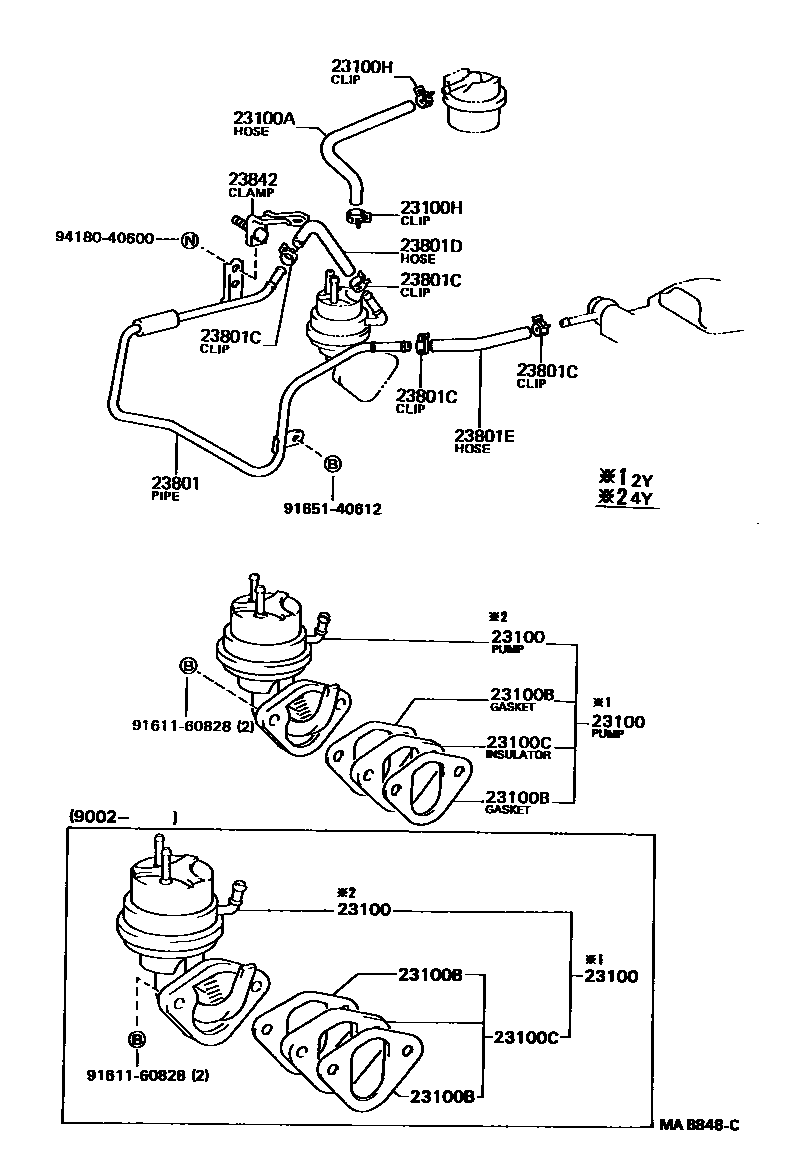

Toyota HILUX EPC diagram 2301, 燃油泵和燃油管, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23100 | fuel pump assembly | 23100-73021 · 23100-79025 · 23100-79026 · 23100-79027 · 23100-79085 |
| 23100A | fuel hose | 95333-06040 |
| 23100B | fuel pump gasket | 90923-05016 · 90923-05022 |
| 23100C | Fuel pump vibration isolation pad | 90923-06008 · 90923-06014 |
| 23100H | Clamp (for fuel hose) | 96132-30600 |
| 23801 | No. 1 carburetor fuel pipe or hose sub-assembly | 23811-71011 |
| 23801C | Clamp (for carburetor fuel hose) | 96132-30600 |
| 23801D | No. 1 fuel line hose | 95333-06010 |
| 23801E | No. 2 fuel line hose | 90445-12141 |
| 23842 | No. 2 fuel pipe (hose) clamp | 23841-71012 |
