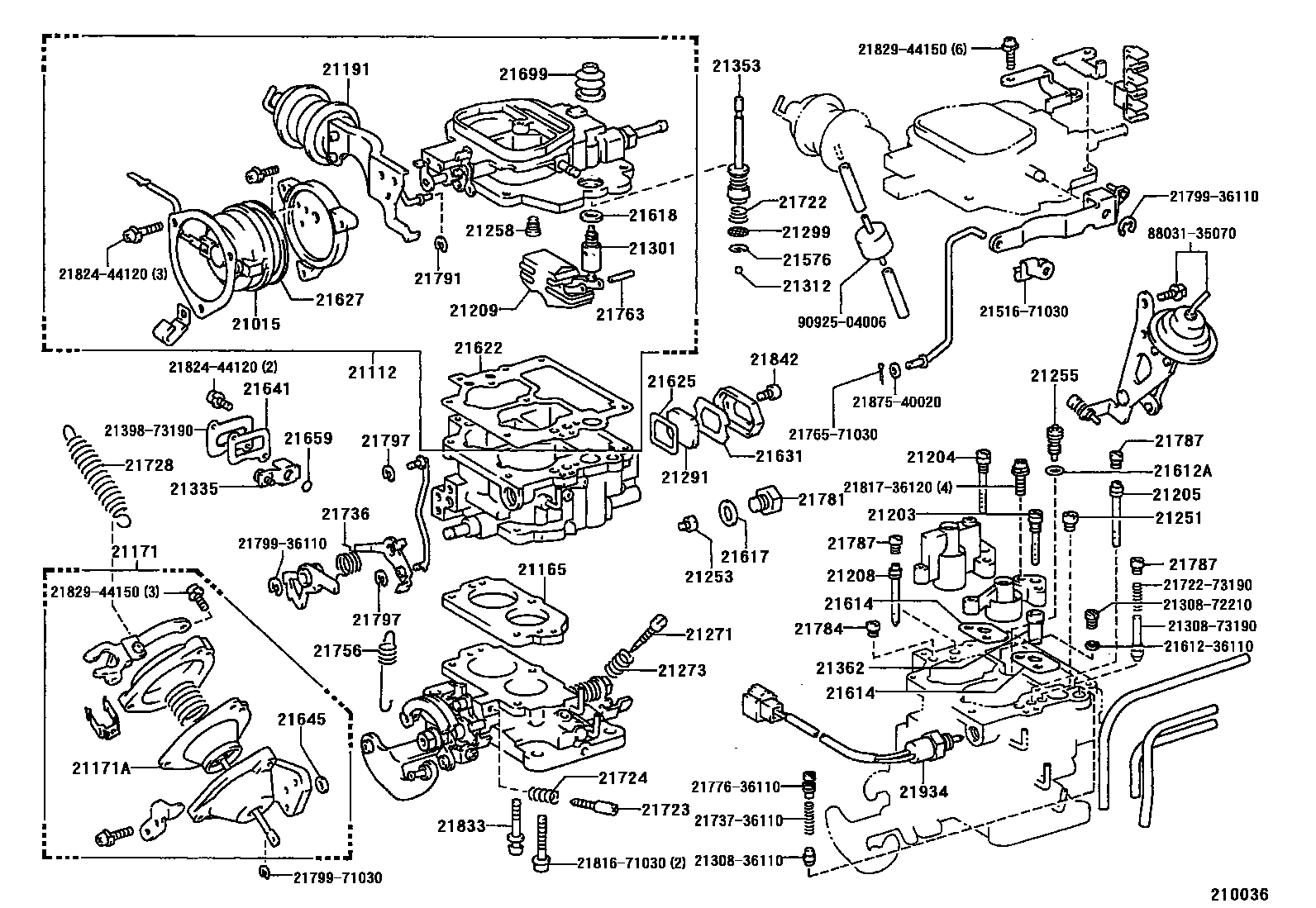

Toyota HILUX 化油器 — Figure 2103
Toyota HILUX EPC diagram 2103, 化油器, with 1 images and 52 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 21015 | Coil housing sub-assembly | 21141-71090 · 21141-72340 |
| 21112 | Air intake bell mouth | 21012-72210 · 21012-72340 · 21012-73200 |
| 21165 | Vibration isolation pad | 21106-71030 · 21106-72250 · 21106-73150 · 21106-73340 |
| 21171 | diaphragm chamber | 21171-72210 · 21171-72340 |
| 21171A | Diaphragm (for diaphragm chamber) | 21173-71030 |
| 21191 | opener | 21039-71030 · 21039-72340 |
| 21203 | First main bleed device sub-assembly | 21203-72210 · 21203-72340 |
| 21204 | Second main bleed device sub-assembly | 21204-73190 |
| 21205 | Idle speed measuring hole assembly | 21205-72210 · 21205-73220 |
| 21208 | Stepped fuel volume hole sub-assembly | 21205-72330 · 21205-73190 |
| 21209 | Float sub-assembly | 21209-73110 |
| 21251 | first main measuring hole | 21251-72210 · 21251-72340 |
| 21253 | Deputy main measuring hole | 21253-73140 · 21253-73290 |
| 21255 | Power measuring hole | 21302-71030 · 21302-72210 |
| 21258 | Idle speed measuring hole | 21249-44280 · 21249-72210 · 21249-73220 |
| 21271 | Idle speed adjustment screw | 21207-34420 |
| 21273 | Throttle adjustment screw | 21272-72250 |
| 21291 | oil level gauge glass | 21291-36120 |
| 21299 | pump filter strainer | 21299-31030 |
| 21301 | Needle valve sub-assembly | 21301-71030 |
| 21312 | steel ball | 21312-40020 |
| 21335 | thermostat valve | 21038-71030 |
| 21353 | pump plunger | 21305-71030 |
| 21362 | First gear main slot sleeve | 21362-71030 |
| 21576 | Pump filter clip | 21576-31030 |
| 21612A | Power gauge hole gasket | 21612-31100 |
| 21614 | Venturi gasket | 21614-71030 · 21614-72250 |
| 21617 | Main oil gallery plug gasket | 21633-44150 |
| 21618 | Needle seat gasket | 21637-71030 |
| 21622 | Air intake bell gasket | 21622-72250 · 21622-73190 |
| 21625 | oil level gauge gasket | 21625-36120 |
| 21627 | Coil housing gasket | 21642-34600 · 21642-72340 |
| 21631 | main duct gasket | 21631-36120 |
| 21641 | Gasket (for thermostat valve cover) | 21626-73190 |
| 21645 | Diaphragm cover gasket | 21638-71030 |
| 21659 | O-ring (for thermostat valve) | 21655-31100 |
| 21699 | Dust boot (for pump plunger) | 21656-71030 |
| 21722 | Pump damping spring | 21735-71030 |
| 21723 | Idle speed adjustment spring | 21723-30030 |
| 21724 | Throttle valve adjustment spring | 21723-71030 |
| 21728 | Throttle return spring | 21728-73190 |
| 21736 | First gear idle cam spring | 21748-36110 |
| 21756 | Return spring (for throttle shaft) | 21727-73190 |
| 21763 | floating lever pin | 21768-73110 |
| 21781 | Main oil gallery screw plug (for carburetor measuring hole) | 21776-44310 |
| 21784 | Idle oil passage plug | 21249-73190 |
| 21787 | Acceleration nozzle plug | 21776-73190 |
| 21791 | No. 1 snap ring (for carburetor connecting rod) | 21797-44050 |
| 21797 | No. 4 snap ring (for carburetor connecting rod) | 21797-44050 |
| 21833 | No. 1 fixing screw (for carburetor body assembly) | 21804-71030 · 21804-73150 |
| 21842 | Fixing screw (for carburetor oil level gauge clamp assembly) | 21832-36120 |
| 21934 | Throttle solenoid valve | 21392-73220 |
