Toyota HILUX carburetor assembly — Figure 2102

Toyota HILUX EPC diagram 2102, carburetor assembly, with 1 images and 4 PNC and OE references.

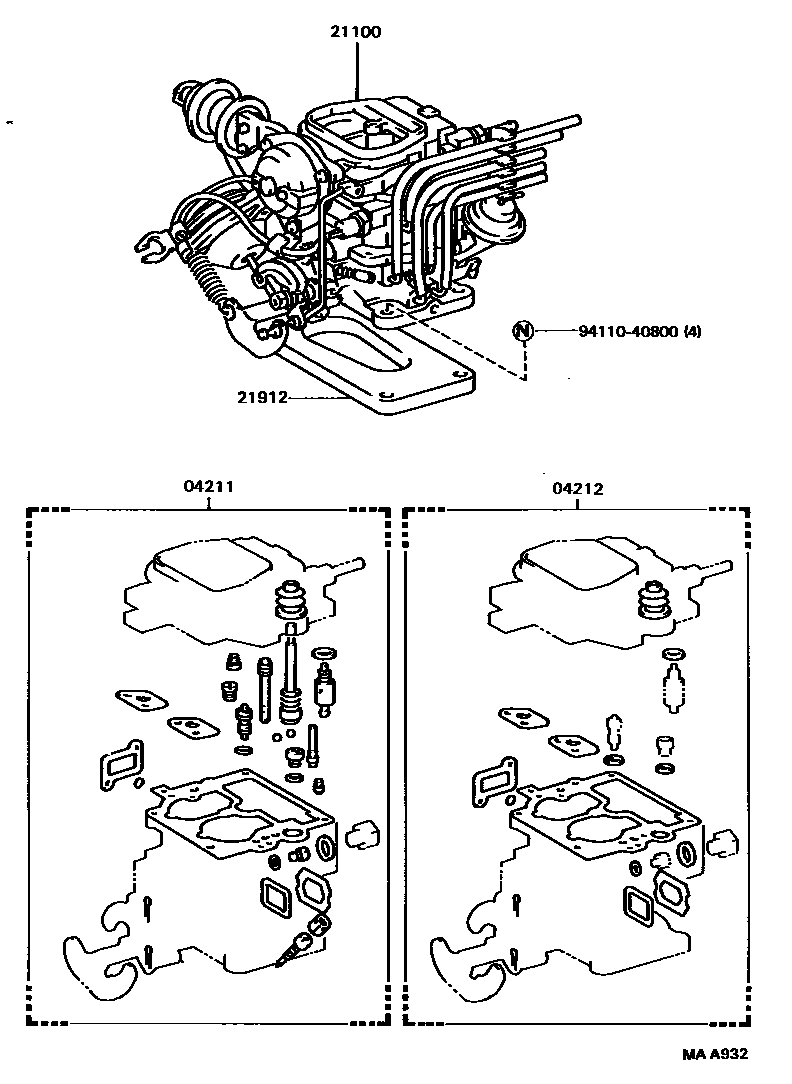

Toyota HILUX carburetor assembly EPC diagram — MAA932
carburetor assembly — MAA932 (198808 – 199408)

PNC and OE references

PNCPart nameOE numbers
04211carburetor components04211-72190 · 04211-72270 · 04211-73230
04212carburetor gasket assembly04212-73071
21100carburetor assembly21100-72270 · 21100-72340 · 21100-73340
21912Carburetor insulation pad21912-71020 · 21912-71021 · 21912-73020
