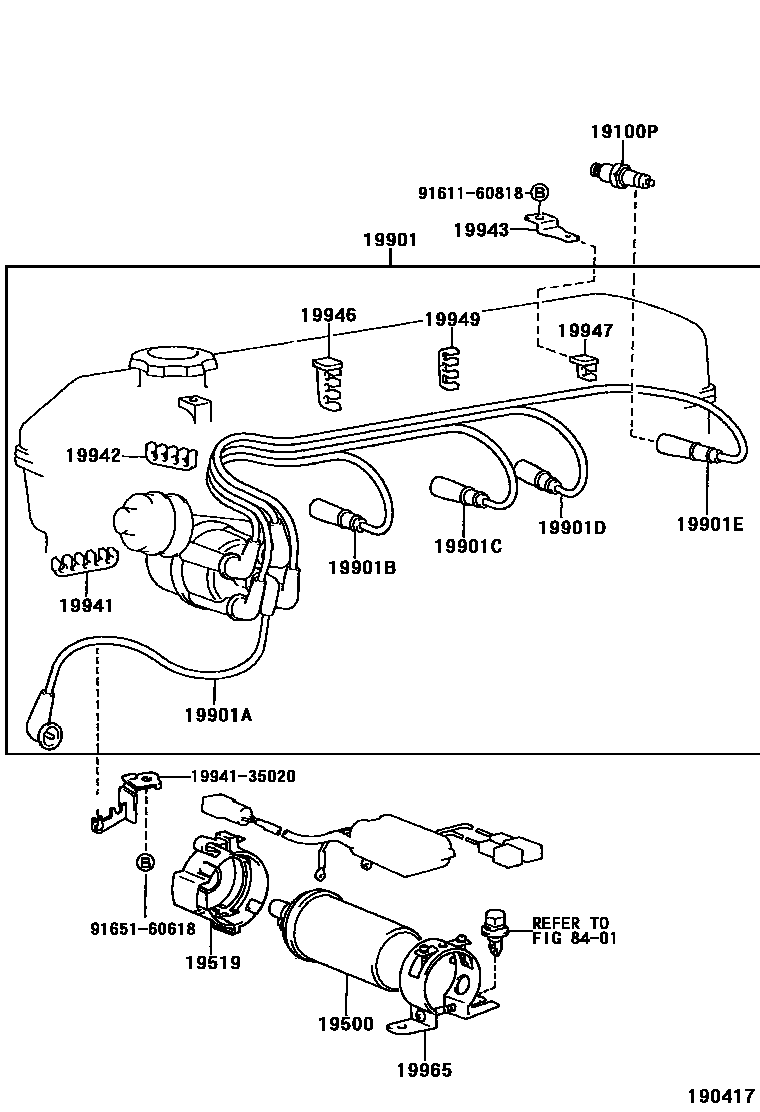

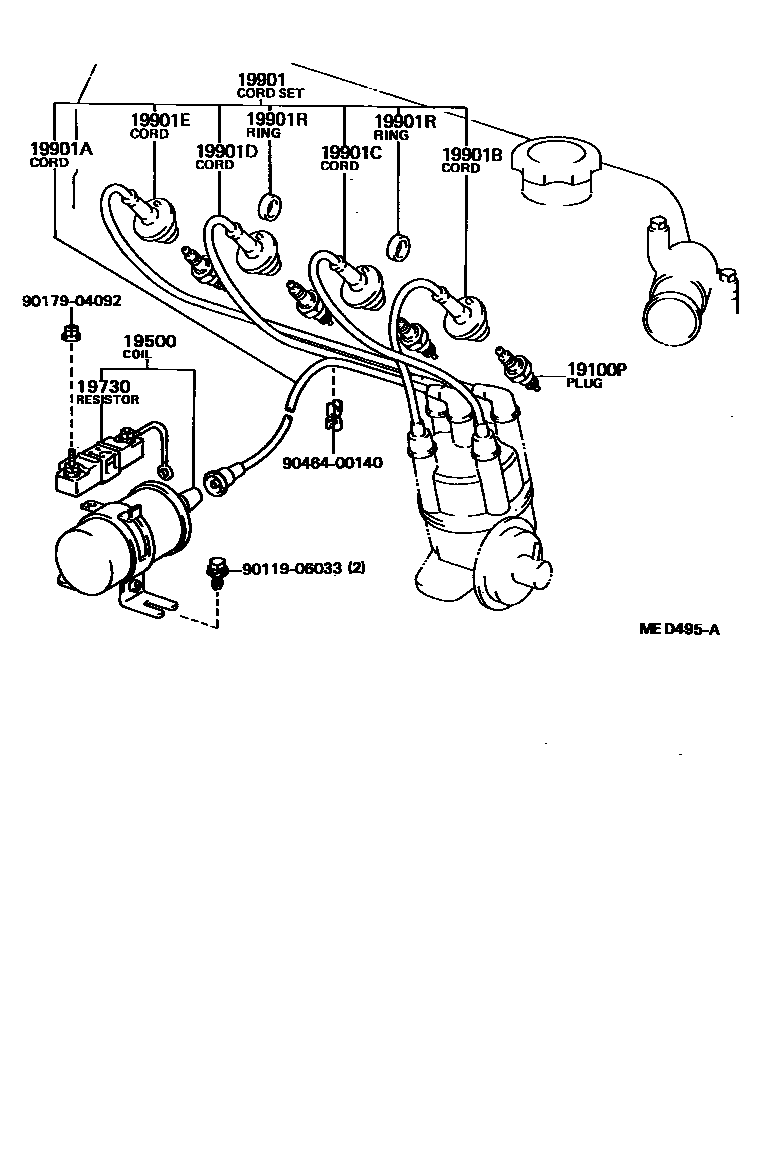

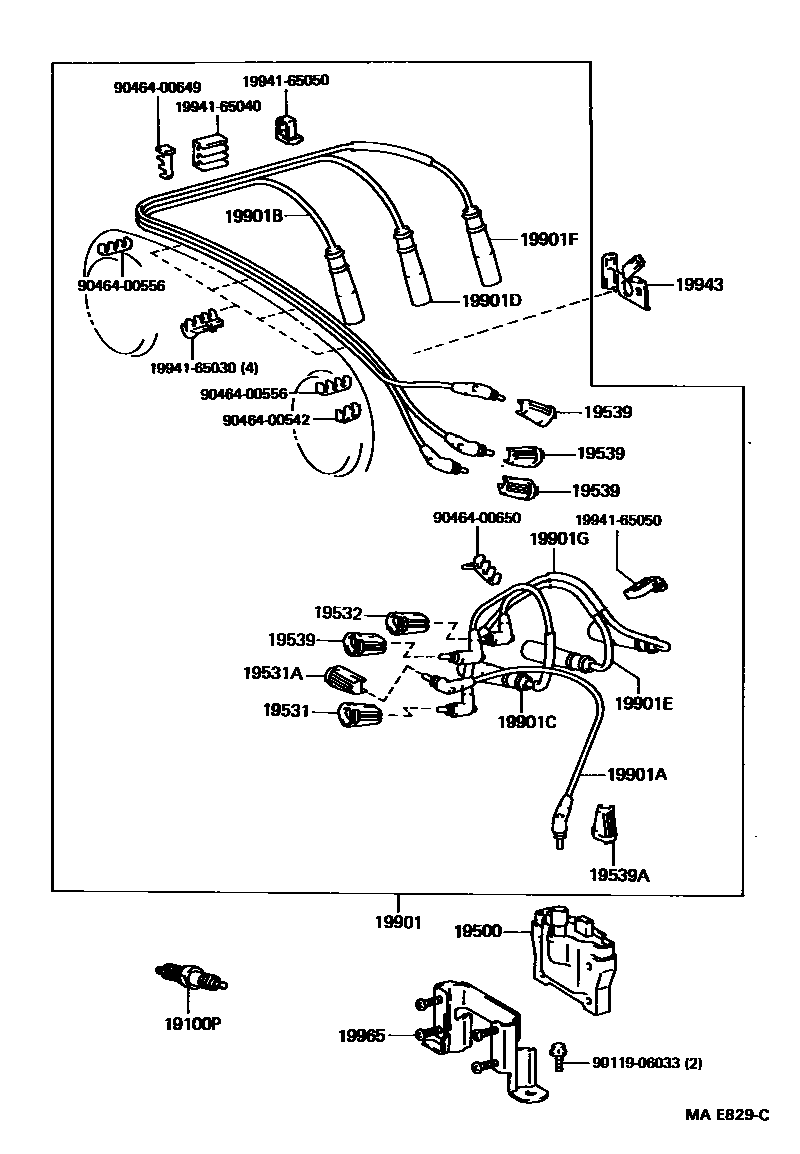

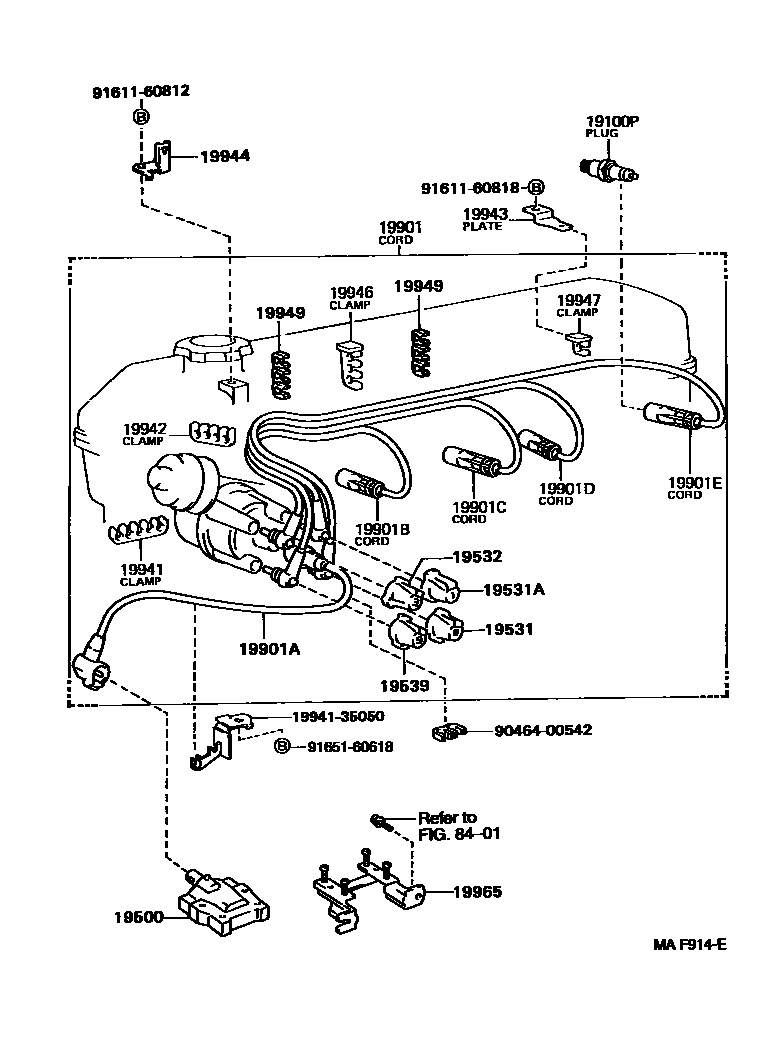

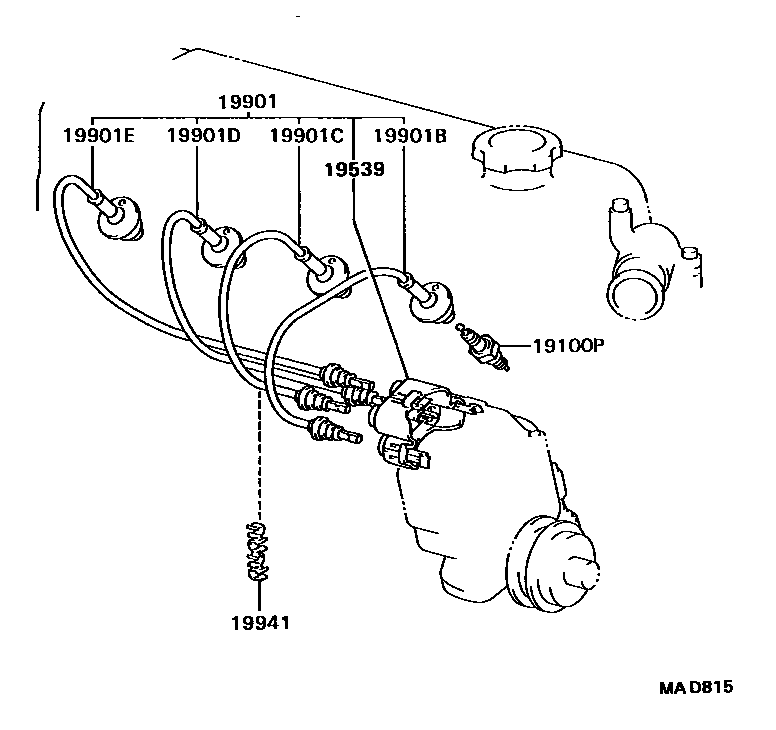

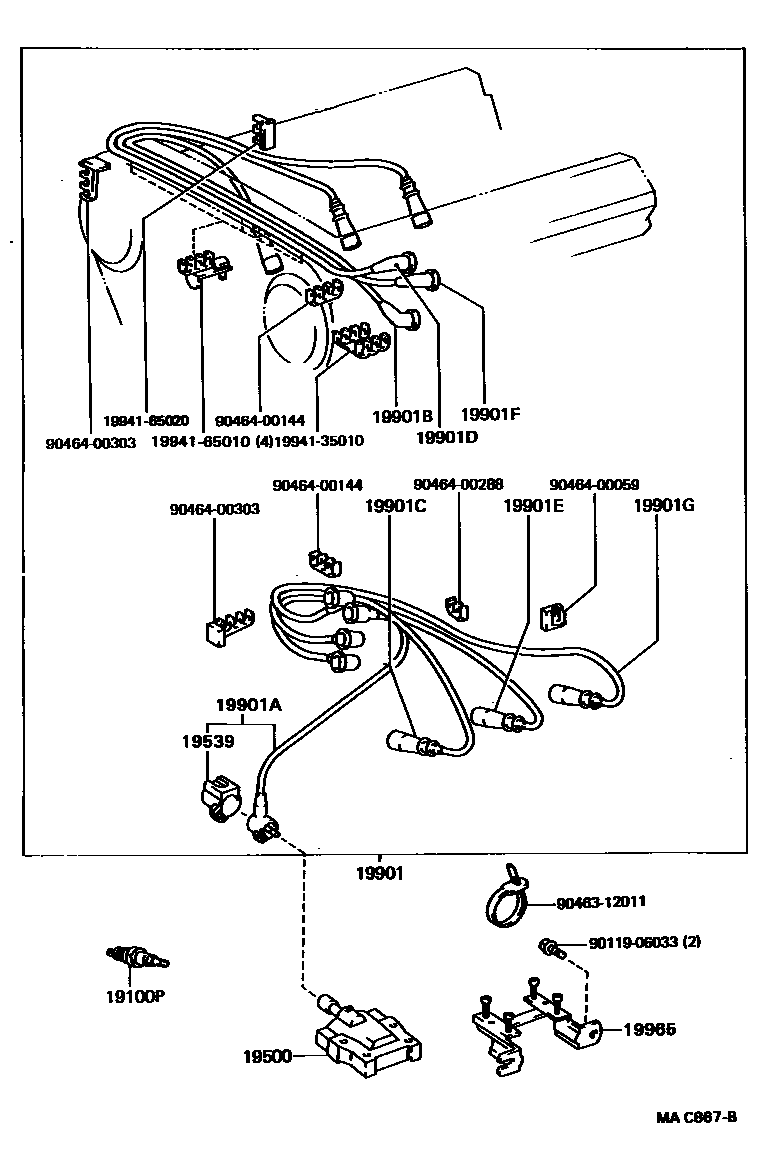

Toyota HILUX 点火线圈和火花塞 — Figure 1901
Toyota HILUX EPC diagram 1901, 点火线圈和火花塞, with 8 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01064 · 90919-01102 · 90919-01176 |
| 19500 | Ignition coil assembly | 90919-02156 · 90919-02185 · 90919-02190 · 90919-02197 |
| 19519 | Ignition coil cover | 19519-28020 |
| 19531 | No. 1 damping wire fixing piece | 19531-46010 · 19531-74020 |
| 19531A | No. 3 damping wire fixing piece | 19531-74010 |
| 19532 | No. 2 damping wire fixing piece | 19532-46010 |
| 19539 | No. 4 damping wire fixing piece | 19539-50010 · 19539-62010 · 19539-65010 · 19539-70010 · 19539-71011 |
| 19539A | No. 5 damping wire fixing piece | 19539-16010 |
| 19730 | Ignition coil resistor | 90919-04033 |

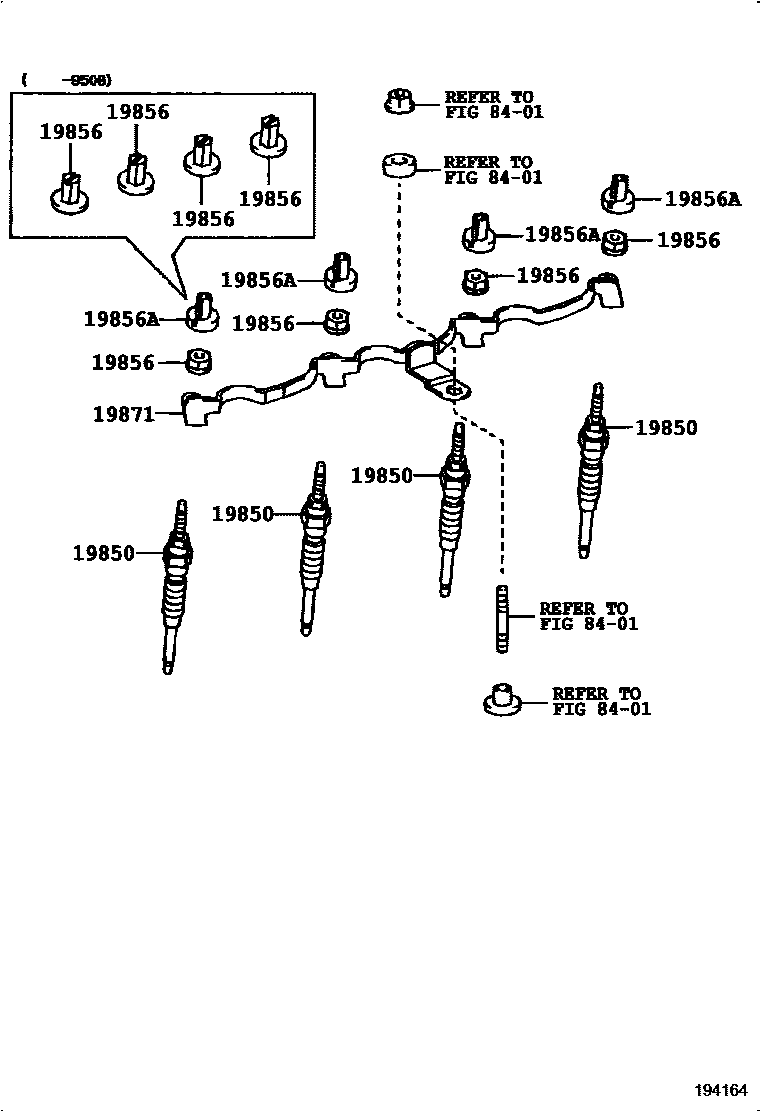

| 19850 | Glow plug assembly | 19850-54090 · 19850-67020 |
| 19850B | Screw seal (for glow plug) | 90189-04024 |
| 19856 | Connecting nut (for glow plug) | 90179-04019 · 90179-04030 |
| 19856A | Screw seal (for glow plug connector) | 90189-04024 |
| 19871 | Glow plug connector No. 1 | 19871-54020 · 19871-67020 |
| 19901 | Coil and spark plug assembly with damper wire | 90919-21341 · 90919-21431 · 90919-21501 · 90919-21528 · 90919-21553 · 90919-21579 · 90919-22258 · 90919-22286 · 90919-22357 |
| 19901A | coil damping line | 19590-65021 · 90919-13227 · 90919-13293 · 90919-13404 · 90919-13419 · 90919-13420 · 90919-13437 · 90919-13455 · 90919-13456 |
| 19901B | No. 1 spark plug damper wire | 90919-12457 · 90919-12469 · 90919-15026 · 90919-15066 · 90919-15080 · 90919-15243 · 90919-15276 · 90919-15352 · 90919-15368 |
| 19901C | No. 2 spark plug damper wire | 90919-12458 · 90919-12470 · 90919-15027 · 90919-15067 · 90919-15081 · 90919-15244 · 90919-15277 · 90919-15353 · 90919-15369 |
| 19901D | No. 3 spark plug damper wire | 90919-12459 · 90919-12471 · 90919-15028 · 90919-15068 · 90919-15082 · 90919-15245 · 90919-15278 · 90919-15354 · 90919-15370 |
| 19901E | No. 4 spark plug damper wire | 90919-12460 · 90919-12472 · 90919-15029 · 90919-15069 · 90919-15083 · 90919-15246 · 90919-15279 · 90919-15355 · 90919-15371 |
| 19901F | No. 5 spark plug damper wire | 90919-15030 · 90919-15280 |
| 19901G | No. 6 spark plug damper wire | 90919-15031 · 90919-15281 |
| 19901R | Rubber spark plug damping wire ring | 90202-11067 |
| 19941 | No. 1 damping wire clip | 90464-00214 · 90464-00555 · 90929-01031 |
| 19942 | No. 2 damping wire clip | 90464-00061 · 90464-00555 |
| 19943 | No. 1 damping wire clip support plate | 19943-35010 · 19943-65020 |
| 19944 | No. 2 damping wire clip support plate | 19944-35020 |
| 19946 | No. 3 impedance wire clip | 90464-00303 · 90464-00693 |
| 19947 | No. 4 impedance wire clip | 90464-00059 · 90464-00685 |
| 19949 | No. 5 impedance wire clip | 90464-00144 · 90464-00556 |
| 19965 | No. 1 ignition coil band | 90919-03111 · 90919-03112 |
