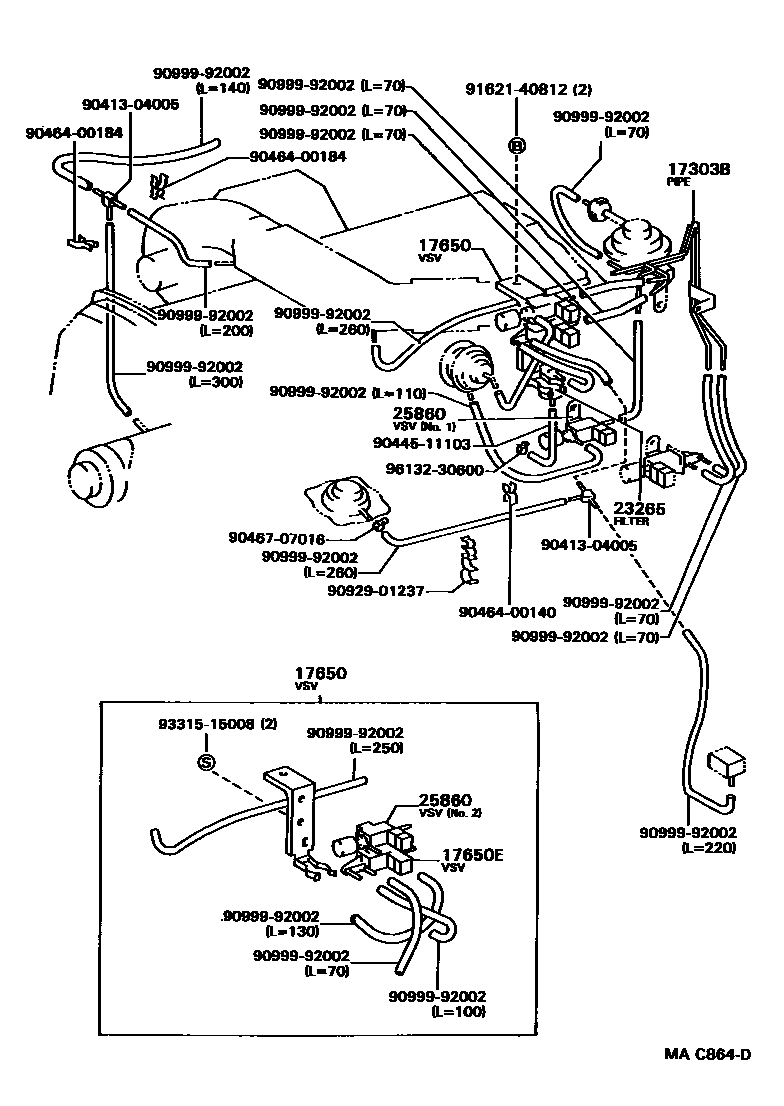

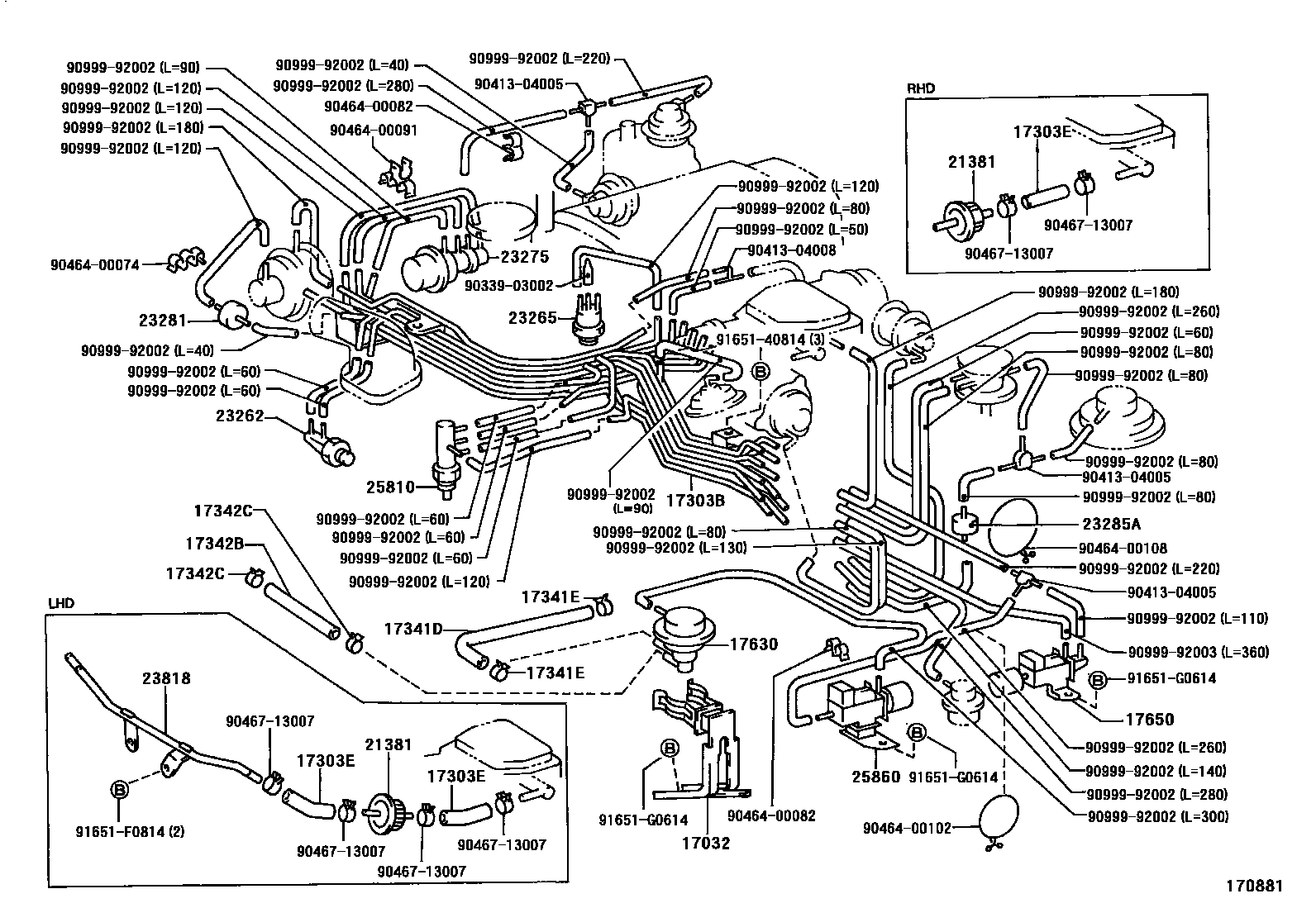

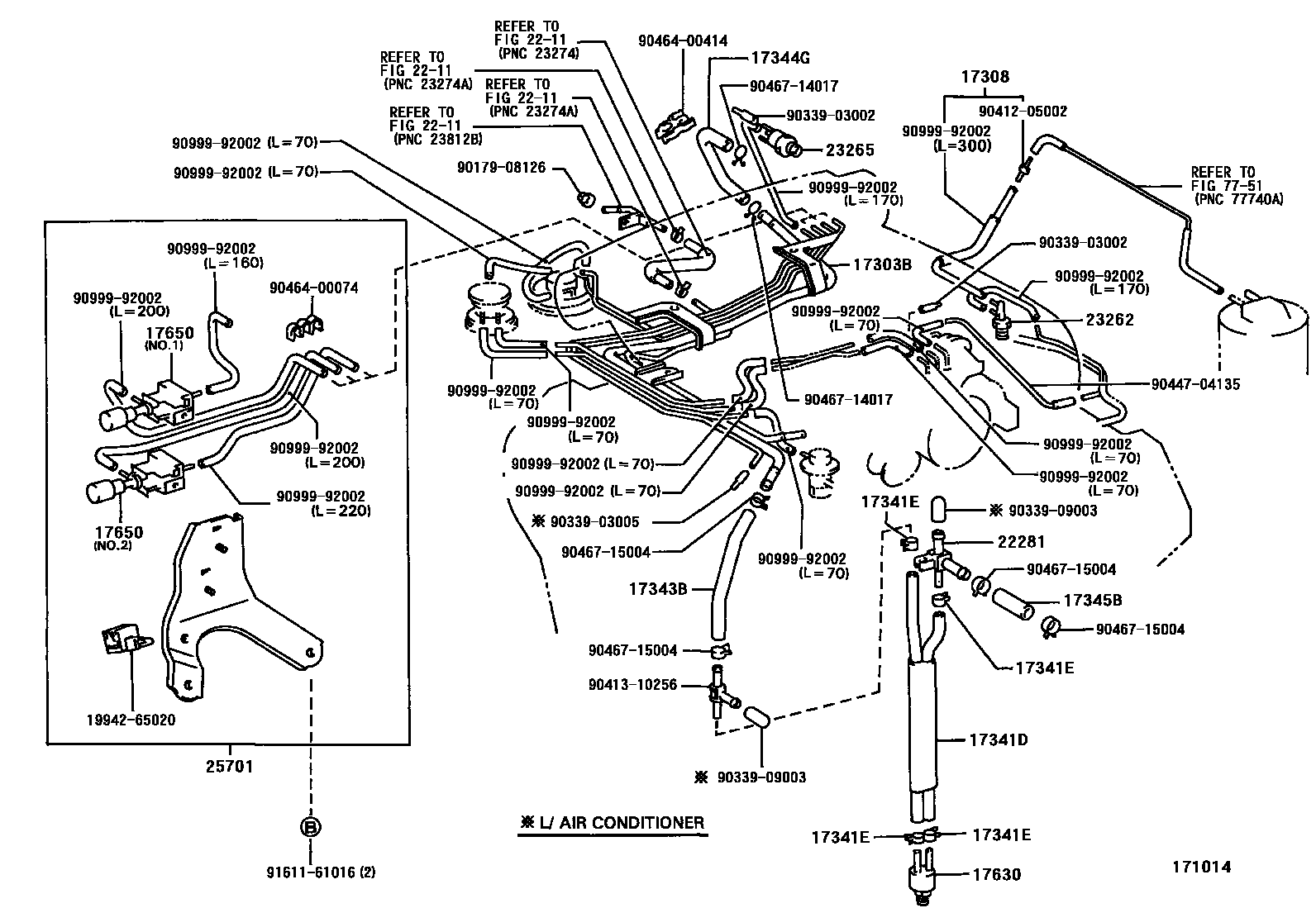

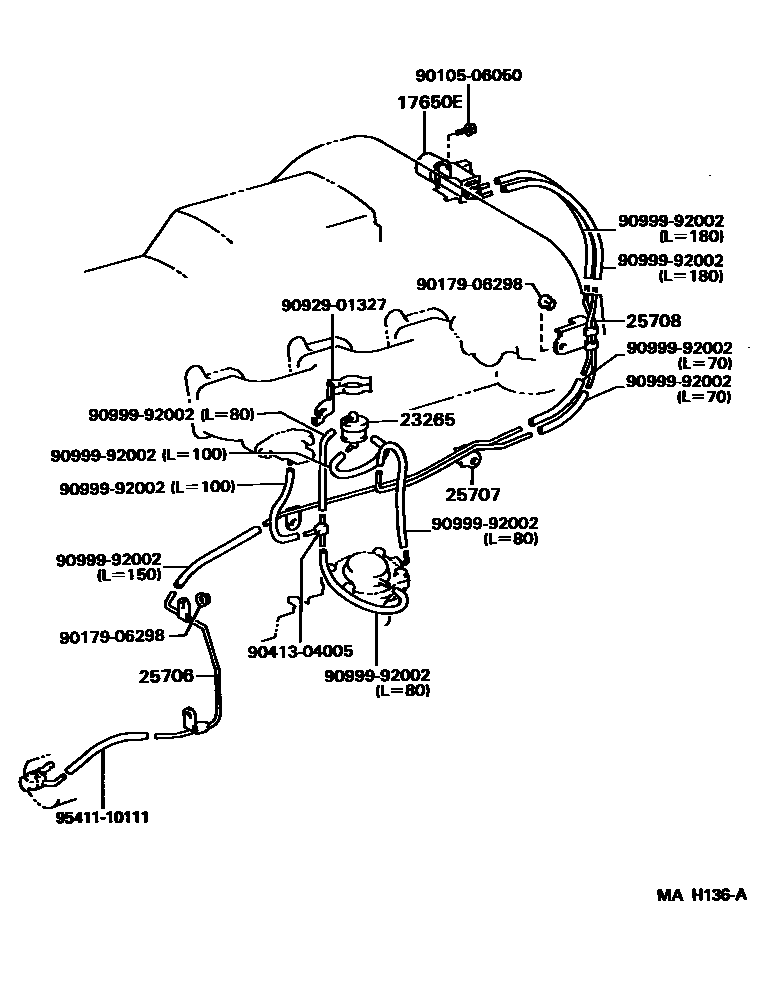

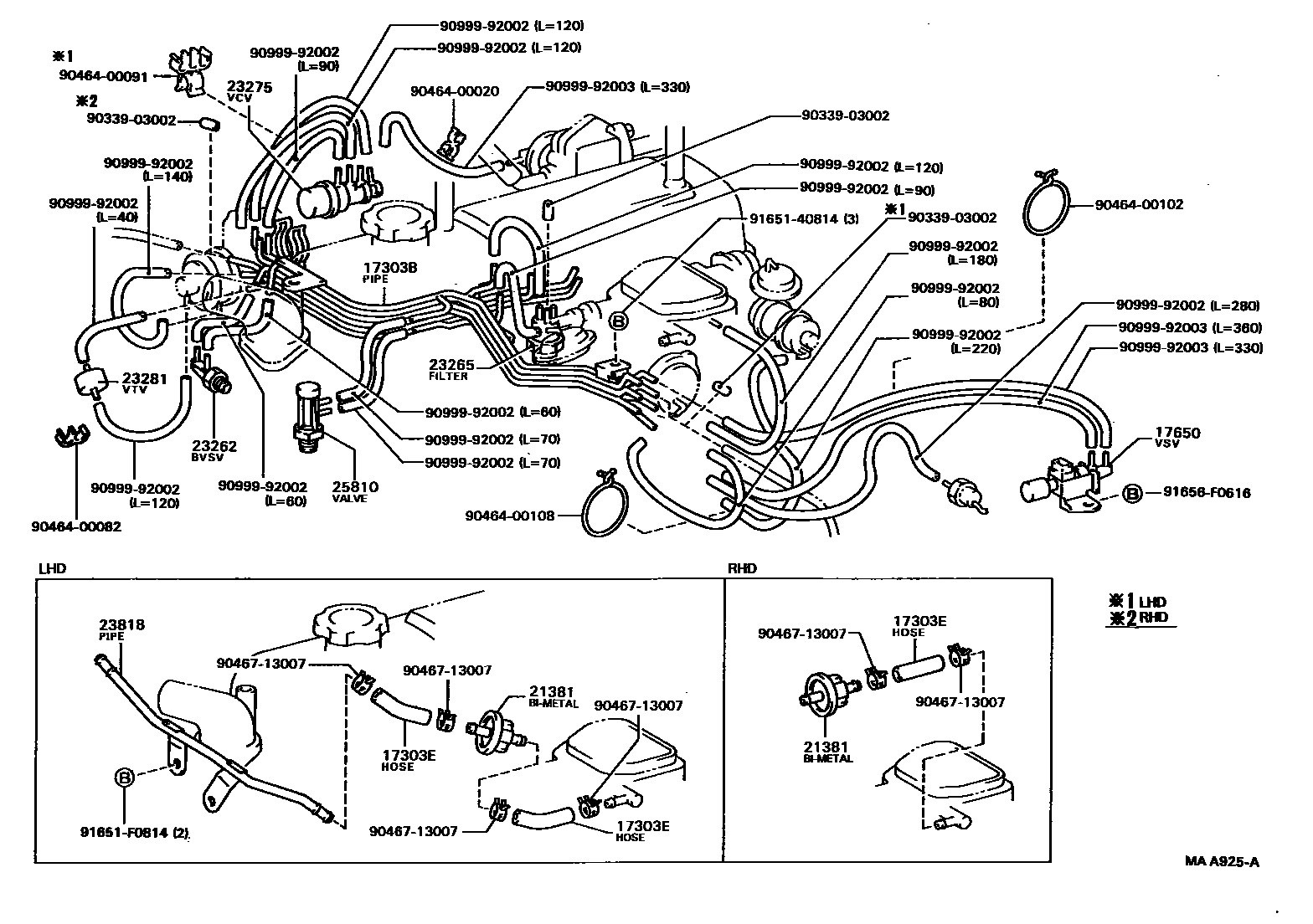

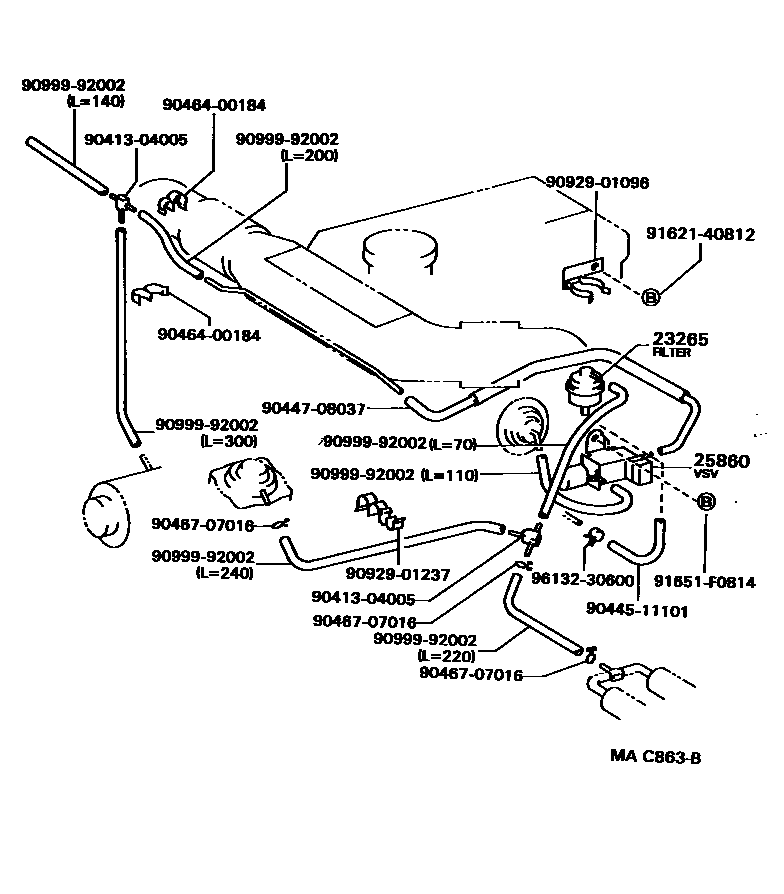

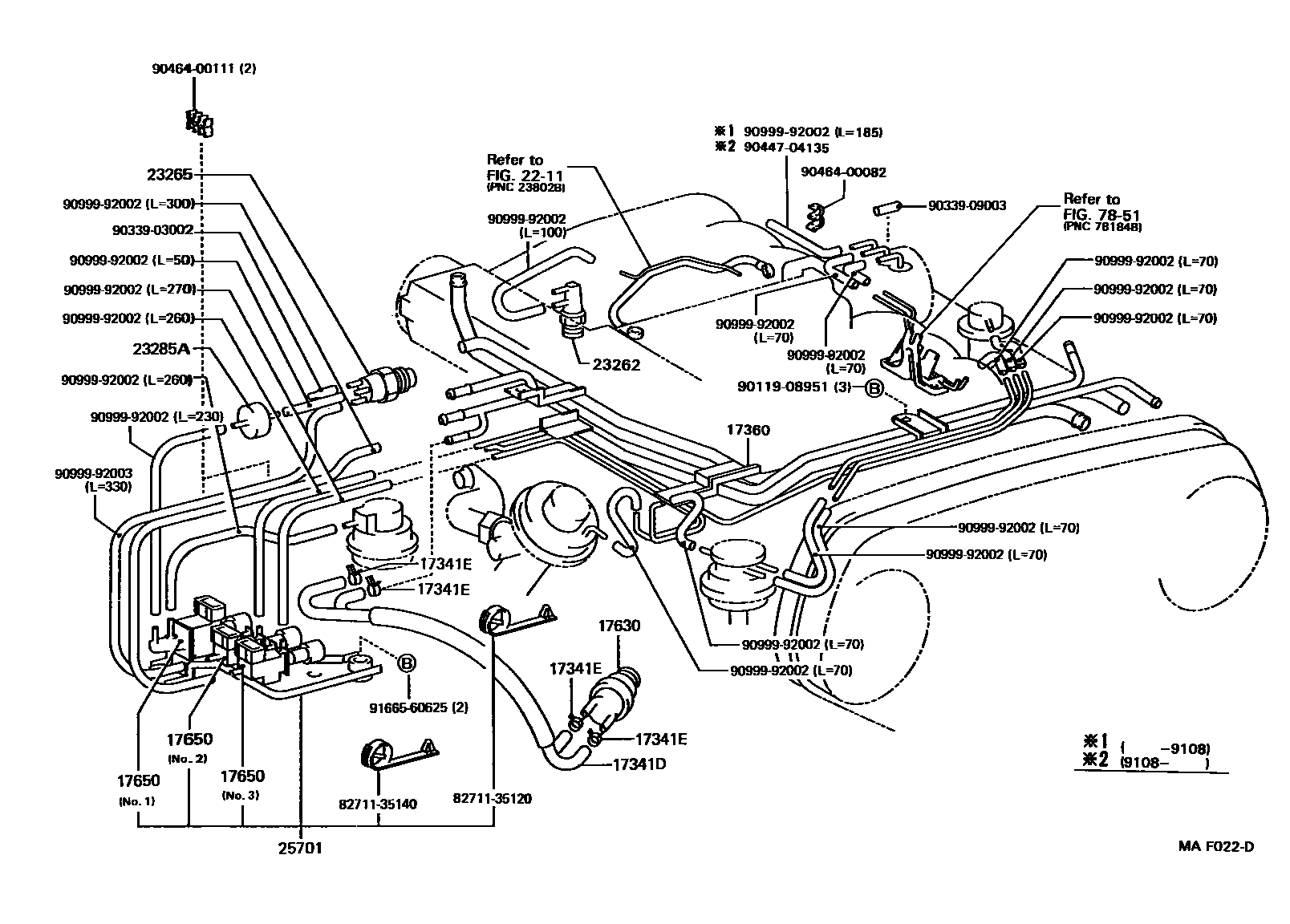

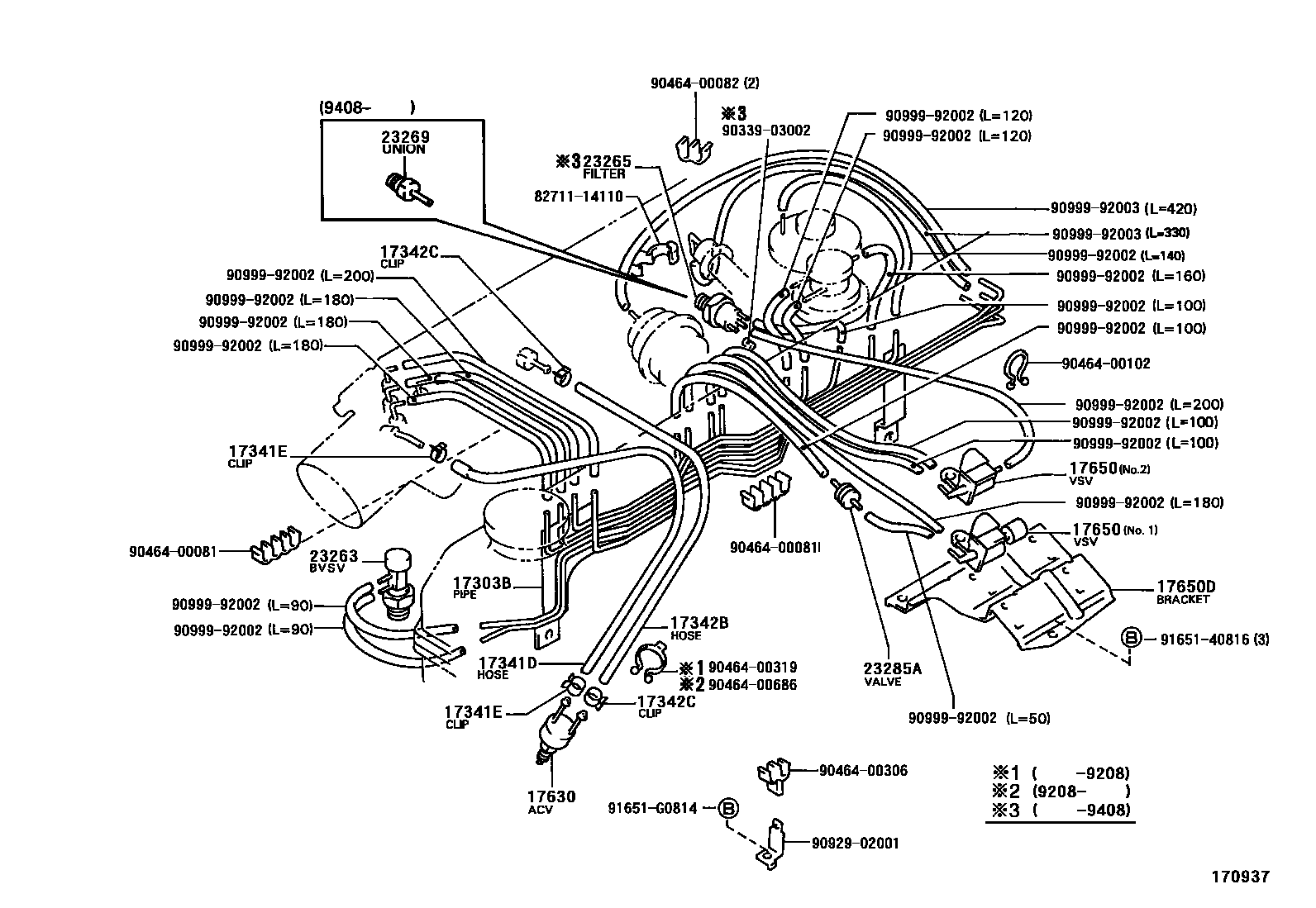

Toyota HILUX vacuum tube — Figure 1708
Toyota HILUX EPC diagram 1708, vacuum tube, with 9 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17032 | Air valve bracket sub-assembly | 17032-73010 |
| 17303B | No. 1 air pipe sub-assembly | 17303-35250 · 17303-54030 · 17303-65020 · 17303-73030 · 17303-73080 |
| 17303E | No. 1 hose (for air pipe) | 90445-14075 · 90445-14079 |
| 17308 | Vacuum hose sub-assembly (for idle boost) | 17308-65010 |
| 17341D | No. 1 hose (for idle boost) | 17341-35180 · 17341-65020 · 17341-65030 · 17341-73060 |
| 17341E | Clamp No. 1 (for idle lift hose) | 90467-15012 · 96132-30400 · 96132-41000 · 96132-41100 |
| 17342B | No. 2 hose (for idle boost) | 17342-35050 · 90445-16040 |
| 17342C | Clamp No. 2 (for idle lift hose) | 90467-15012 · 96132-41000 |
| 17343B | No. 3 hose (for idle speed boost) | 17343-65020 |
| 17344G | No. 4 air hose | 17344-65020 |
| 17345B | No. 5 hose (for idle speed boost) | 17345-65010 |
| 17360 | air pipe assembly | 17360-65021 · 17360-65050 |
| 17630 | Air control valve assembly | 17300-73010 · 17300-73011 · 17630-16040 · 17630-28010 · 17630-74010 |
| 17650 | Vacuum switch valve assembly | 89470-35050 · 89570-35200 · 90910-12073 · 90910-12074 · 90910-12075 · 90910-12084 · 90910-12085 |
| 17650D | Vacuum switch valve bracket | 25861-35020 |
| 17650E | Vacuum switch valve | 90910-12059 · 90910-12126 |
| 21381 | thermostat bimetal | 21381-71050 |
| 22281 | Air delivery pipe joint | 22281-65010 |
| 23262 | No. 1 bimetallic vacuum switch valve | 90925-05044 · 90925-05047 |
| 23263 | No. 2 bimetallic vacuum switch valve | 25820-13010 |
| 23265 | No. 1 gas filter | 90917-11024 · 90917-11027 · 90917-11033 · 90917-11036 |
| 23269 | Connector (for gas filter) | 90404-51010 |
| 23275 | Vacuum control valve No. 1 | 90925-03166 |
| 23281 | Vacuum Transfer Valve No. 1 | 90925-01014 · 90925-01041 |
| 23285A | No. 1 one-way valve | 90917-10049 |
| 23818 | Fuel vapor supply pipe | 23818-71011 · 23818-71012 |
| 25701 | Emission control valve assembly | 25701-65021 · 25701-65040 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-67010 |
| 25707 | No. 2 vacuum transfer pipe sub-assembly | 25707-67020 |
| 25708 | No. 3 vacuum transfer tube sub-assembly | 25708-67020 |
| 25810 | Bimetal valve assembly | 25820-37010 · 90925-02077 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-54010 · 25860-54020 · 25860-73040 |
