Toyota HILUX Air Cleaner — Figure 1703

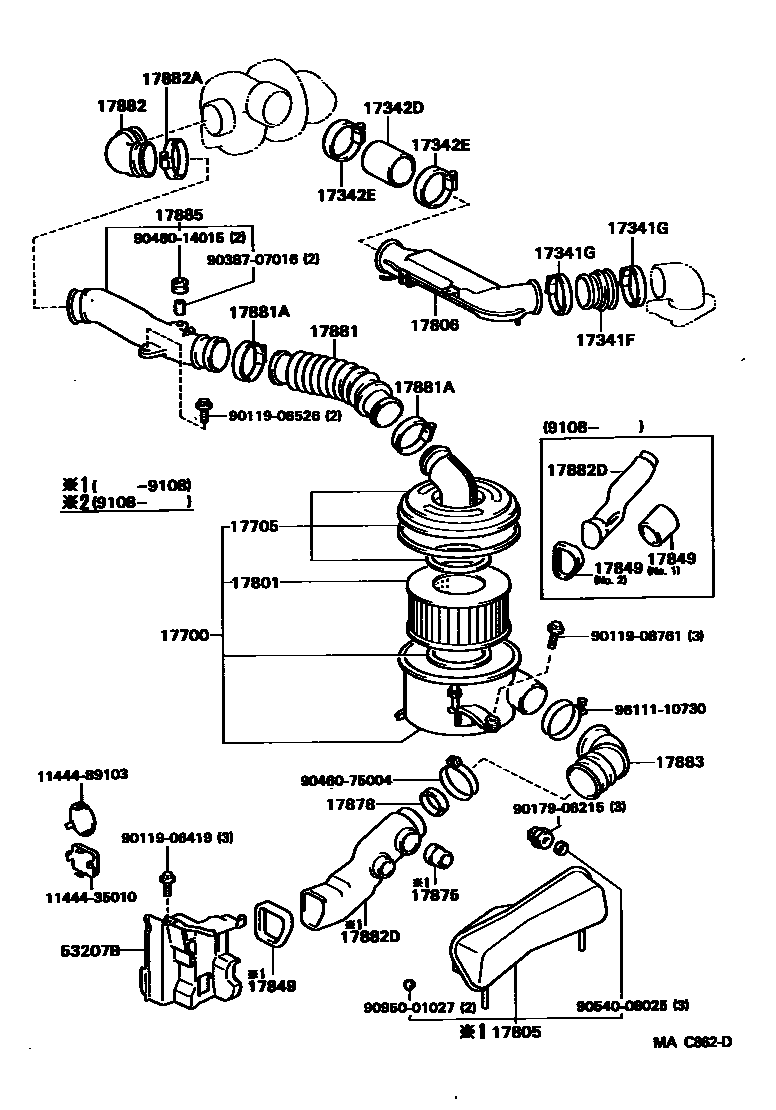

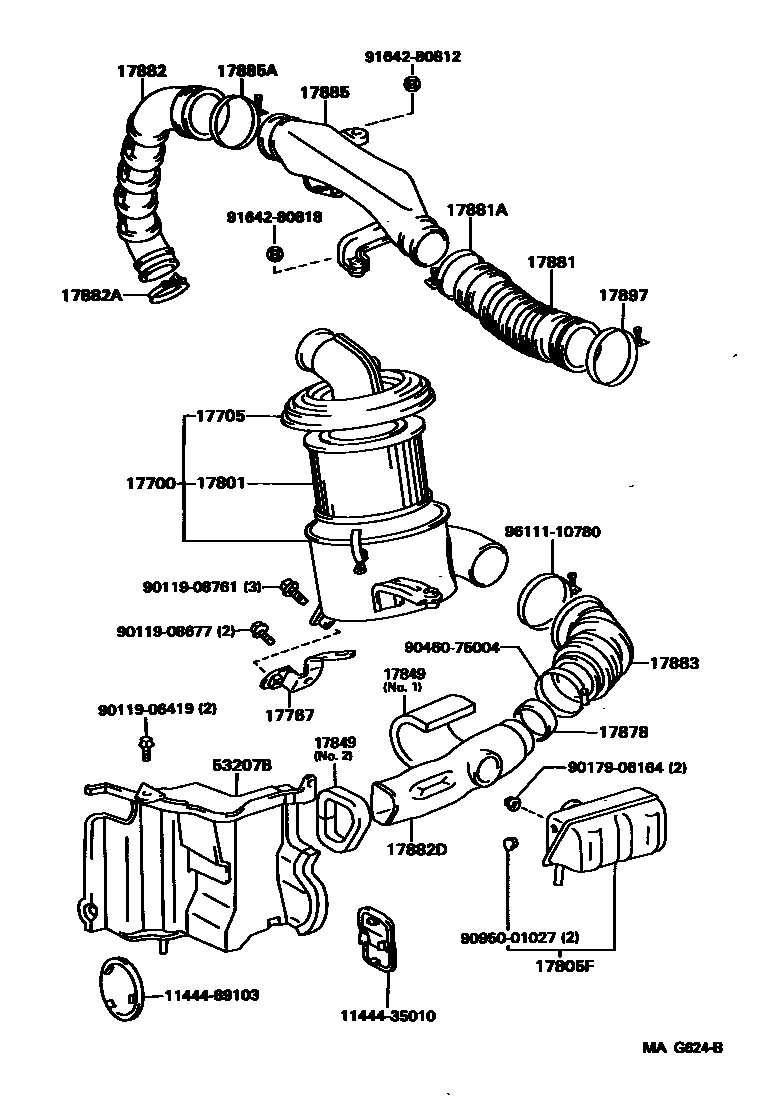

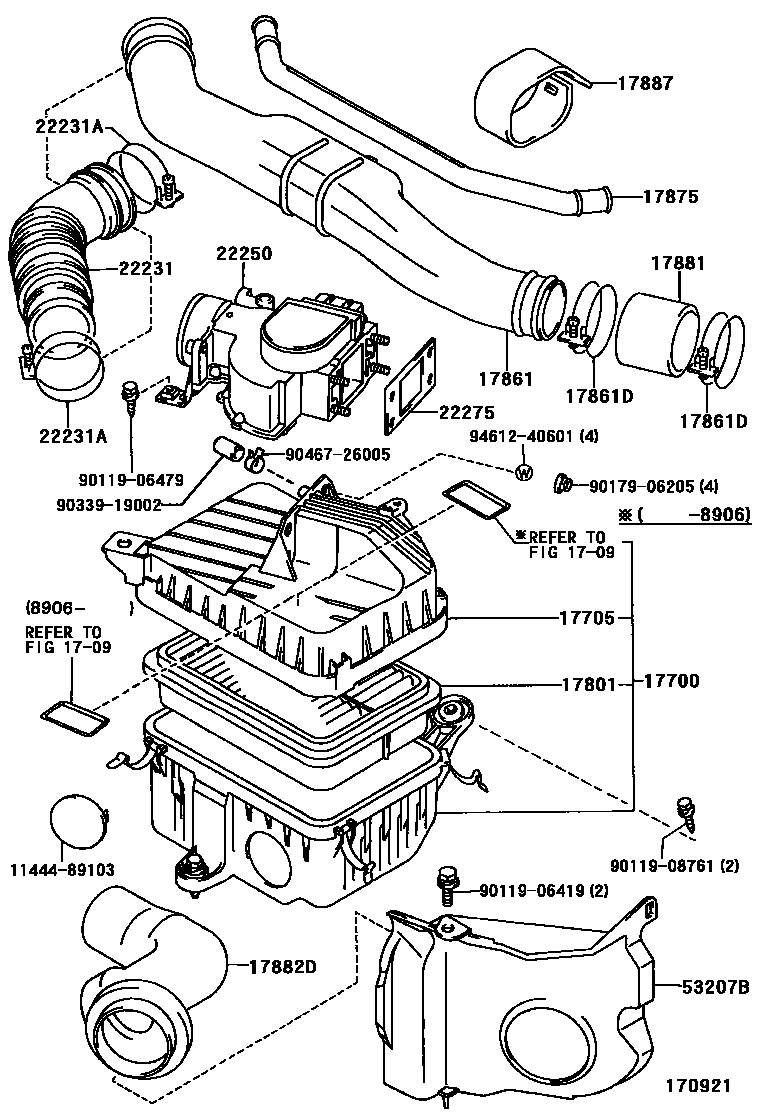

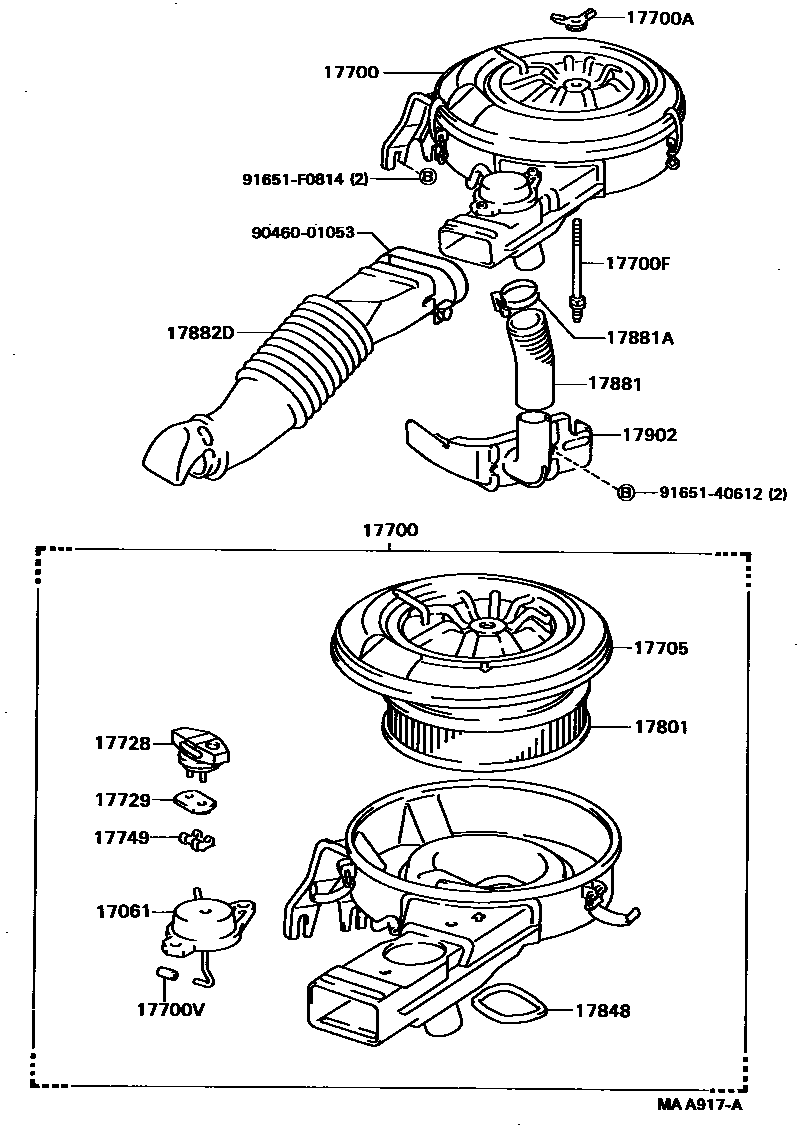

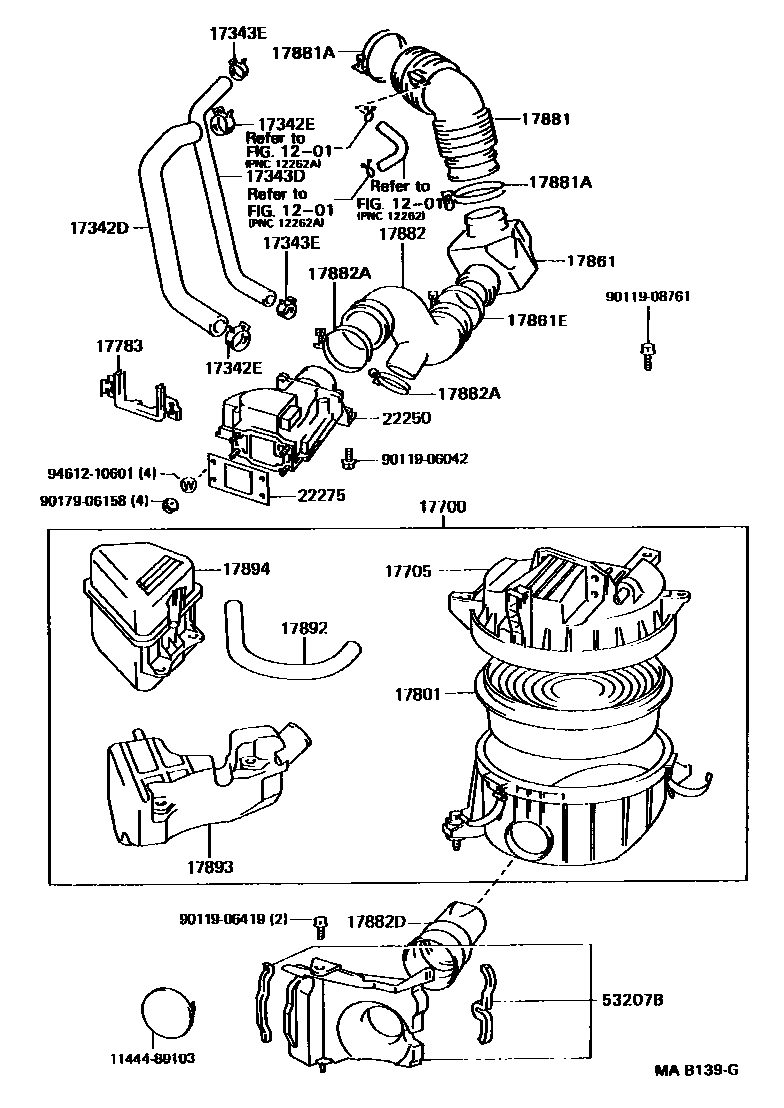

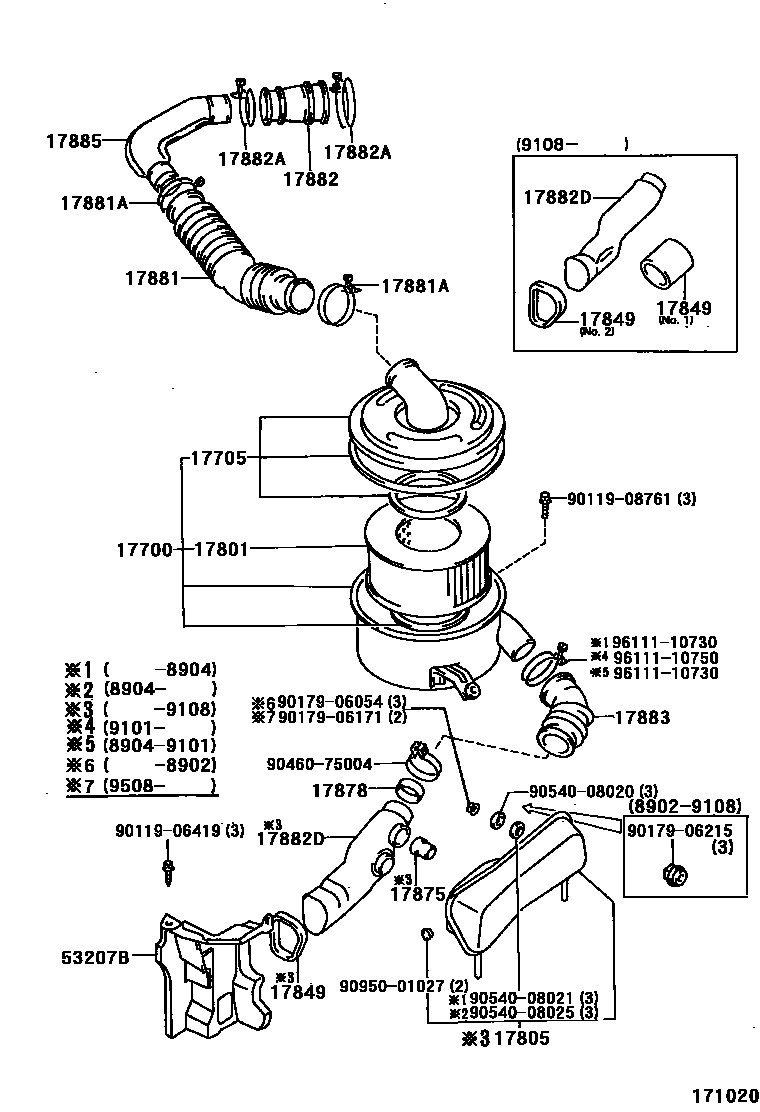

Toyota HILUX EPC diagram 1703, Air Cleaner, with 6 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17061 | Diaphragm sub-assembly | 17061-72010 |
| 17341F | Air hose No. 1 | 17341-54010 |
| 17341G | Clip or clip (for No. 1 air hose) | 90460-67004 · 90460-70002 · 90460-73001 · 90460-75001 · 90467-56001 · 90467-60001 |
| 17342D | Air hose No. 2 | 17342-54010 · 17342-54020 · 17342-65010 |
| 17342E | Clip or clip (for No. 2 air hose) | 90460-65004 · 90460-65008 · 90467-23007 · 90467-53002 |
| 17343D | No. 3 air hose | 17343-65011 |
| 17343E | Hose clamp (for size 3 air hose) | 90467-15004 |
| 17700 | air filter assembly | 17700-35360 · 17700-54470 · 17700-54480 · 17700-54620 · 17700-54621 · 17700-65021 · 17700-65030 · 17700-67090 · 17700-72160 · 17700-72200 · 17700-72201 |
| 17700A | Wing nut (for air cleaner) | 90175-06003 · 90175-06013 |
| 17700F | Stud bolt (for securing air filter) | 90116-06024 |
| 17700V | Bushing (for air cleaner) | 90386-03001 |
| 17705 | Air filter cover sub-assembly | 17705-35170 · 17705-54230 · 17705-54250 · 17705-65010 · 17705-67060 · 17705-72080 |
| 17728 | thermostat valve | 17728-34010 |
| 17729 | thermostat valve gasket | 17729-34010 |
| 17749 | Thermostat valve bracket | 17749-34010 |
| 17767 | air filter bracket | 17771-67010 |
| 17783 | air filter baffle | 17783-65010 |
| 17801 | Air filter element sub-assembly | 17801-34060 · 17801-35020 · 17801-54060 · 17801-67050 · 17801-70020 |
| 17805 | Intake connecting pipe sub-assembly | 17805-35140 · 17805-89106 · 17805-89109 |
| 17805F | Intake resonator sub-assembly | 17805-35120 |
| 17806 | No. 2 air filter pipe assembly | 17103-54100 |
| 17848 | Gasket from air cleaner to carburetor | 17848-35010 |
| 17849 | Intake connecting pipe gasket | 17849-35060 · 17849-35080 · 17849-35090 · 17849-54020 · 17849-89102 · 17849-89104 · 17849-89109 |
| 17861 | Intake connecting pipe | 17861-35080 · 17861-65020 |
| 17861D | Clamp (for air intake connecting pipe) | 90460-75001 · 90460-80001 |
| 17861E | hose clamp | 90460-80001 · 90460-82001 · 96111-10830 |
| 17875 | Intake connecting pipe | 17875-35010 · 17875-89108 |
| 17878 | No. 3 air intake connecting pipe | 17878-89101 |
| 17881 | No. 1 air cleaner hose | 17881-16210 · 17881-35080 · 17881-54340 · 17881-54350 · 17881-65011 · 17881-65020 · 17881-67040 · 17881-74040 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-75001 · 90460-82001 · 96111-10460 · 96111-10620 · 96111-10670 · 96111-10830 |
| 17882 | No. 2 air cleaner hose | 17882-54340 · 17882-54360 · 17882-65010 · 17882-67020 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90460-70002 · 96111-10620 · 96111-10730 · 96111-10800 · 96111-20620 |
| 17882D | Cold air intake hose | 17882-35090 · 17882-35120 · 17882-35130 · 17882-35140 · 17882-89109 · 17882-89114 · 17882-89116 · 17882-89122 · 17882-89126 |
| 17883 | No. 3 air cleaner hose | 17883-35020 · 17883-89107 |
| 17885 | air cleaner tube | 17885-54180 · 17885-54200 · 17885-67010 |
| 17885A | No. 5 air cleaner hose | 96111-10880 |
| 17887 | air cleaner hose cover | 17887-35030 |
| 17892 | Intake resonator hose | 17892-65010 |
| 17893 | Intake resonator | 17893-65011 |
| 17894 | Resonator holder | 17894-65010 |
| 17897 | Hose clamp (for air cleaner) | 96111-10800 |
| 17902 | No. 1 hot air intake sub-assembly | 17895-71010 · 17895-73050 |
| 22231 | throttle body hose | 22231-35030 |
| 22231A | Clip or clip (for throttle body hose) | 96111-10800 |
| 22250 | Intake air flow meter assembly | 22250-35050 · 22250-65010 |
| 22275 | air flow meter gasket | 22275-41010 |
| 53207B | Air conditioning pipe sub-assembly | 53207-35030 · 53207-35031 · 53207-35050 · 53207-35070 · 53207-35080 · 53207-35090 · 53207-89108 · 53207-89110 · 53207-89111 · 53207-89113 · 53207-89115 · 53207-89116 |
