Toyota HILUX Exhaust Pipe — Figure 1702

Toyota HILUX EPC diagram 1702, Exhaust Pipe, with 8 images and 19 PNC and OE references.

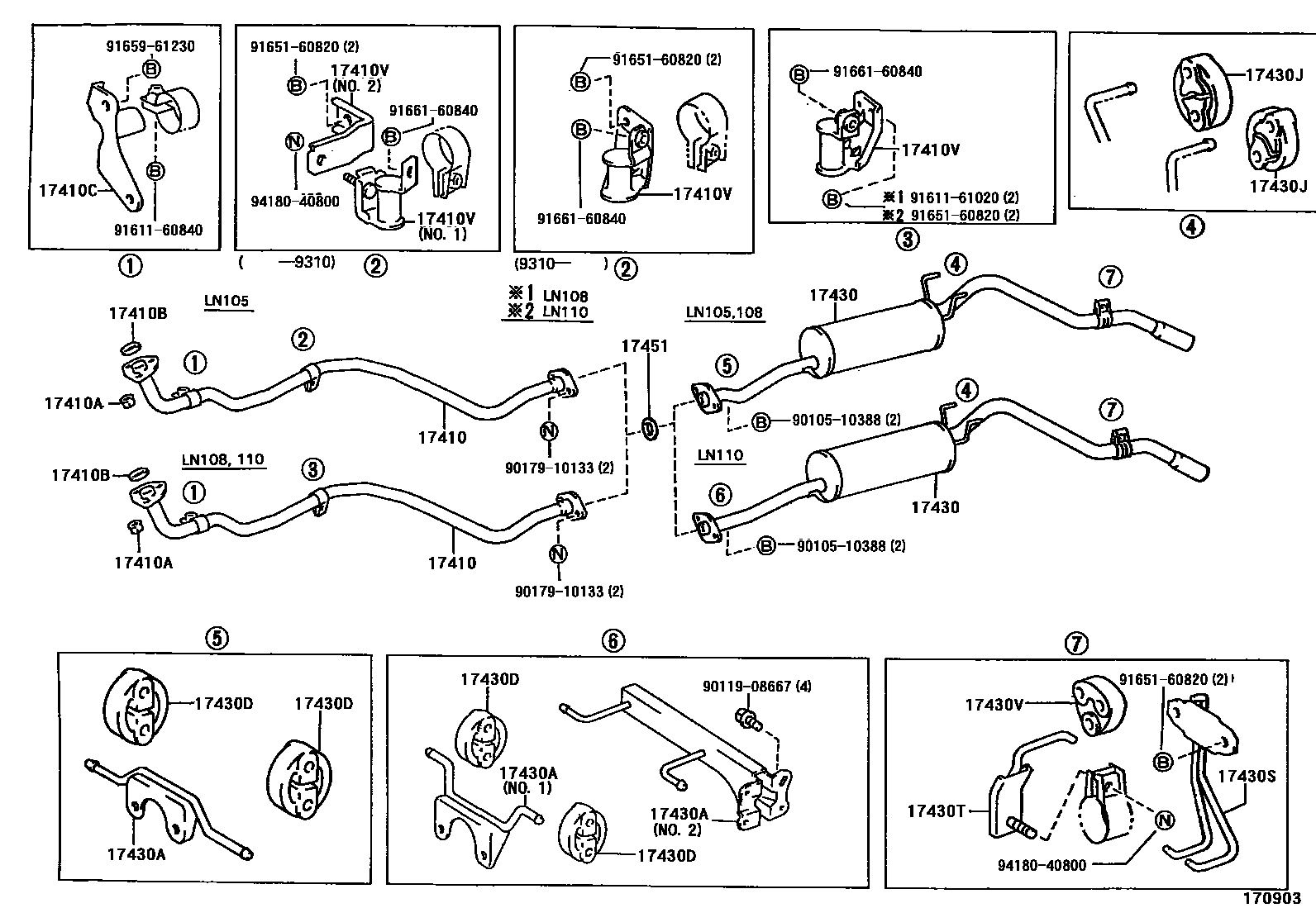

Toyota HILUX Exhaust Pipe EPC diagram — 170903
Exhaust Pipe — 170903 (198808 – 999999)

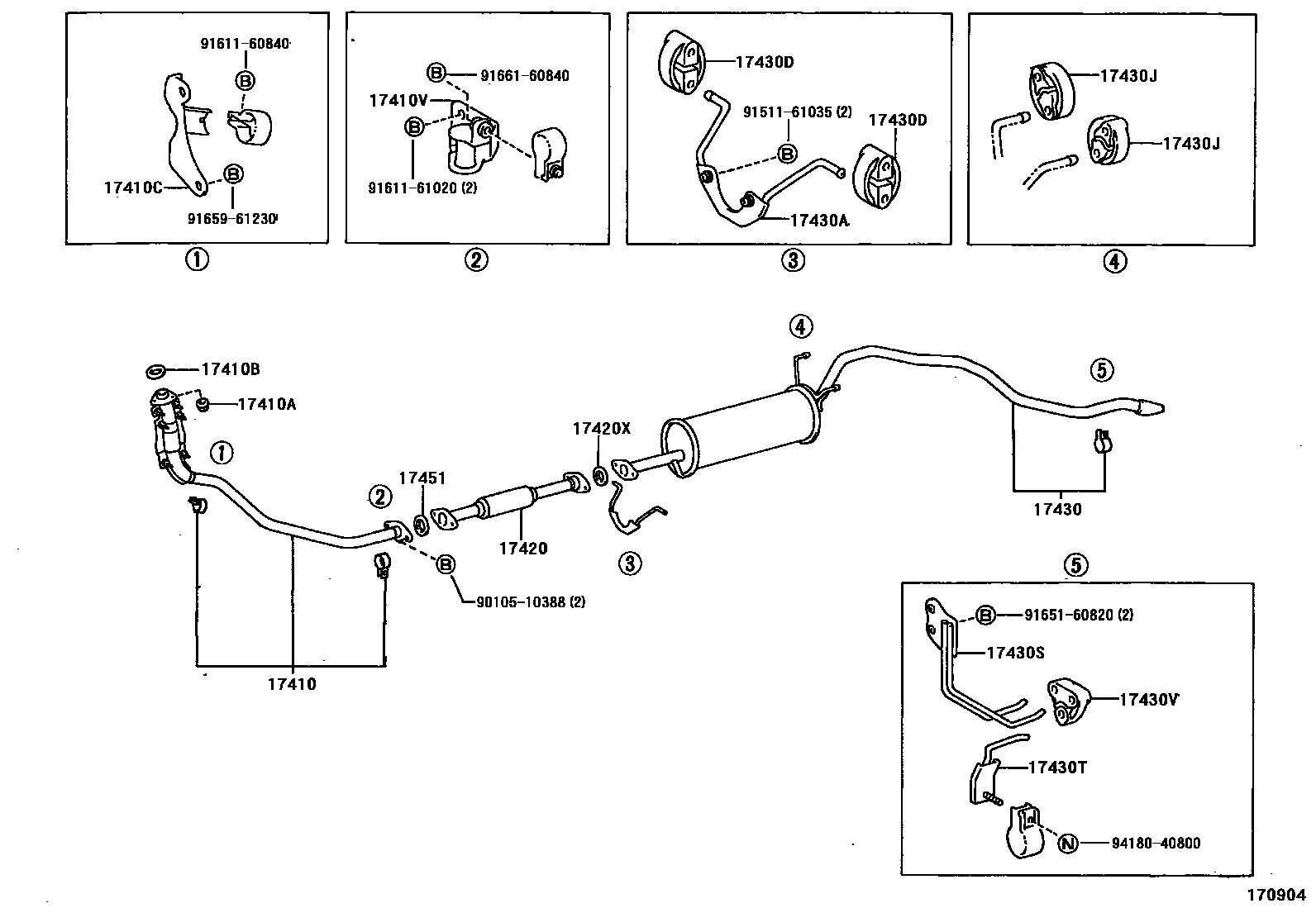

Toyota HILUX Exhaust Pipe EPC diagram — 170904
Exhaust Pipe — 170904 (199001 – 199511)

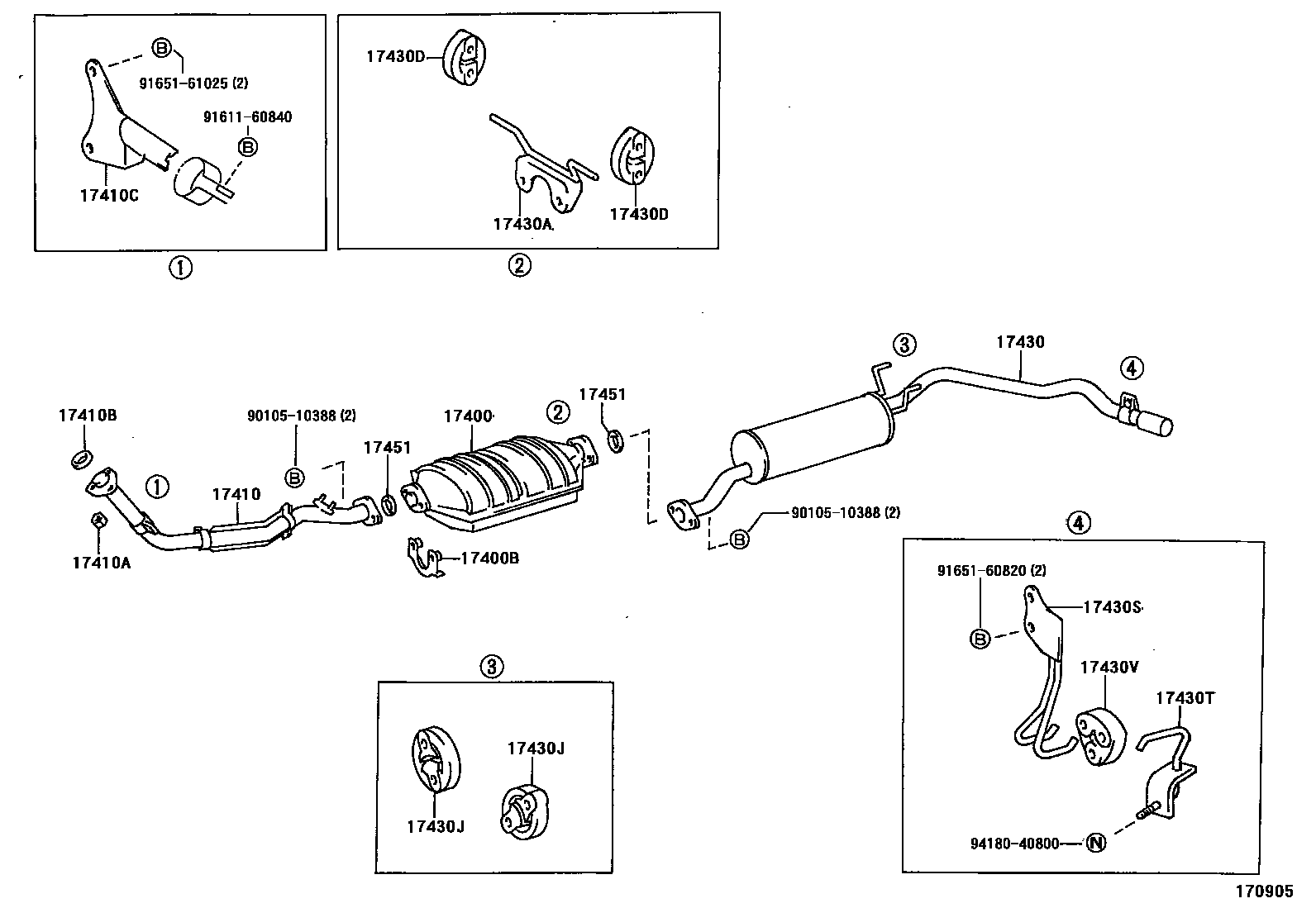

Toyota HILUX Exhaust Pipe EPC diagram — 170905
Exhaust Pipe — 170905 (198908 – 199511)

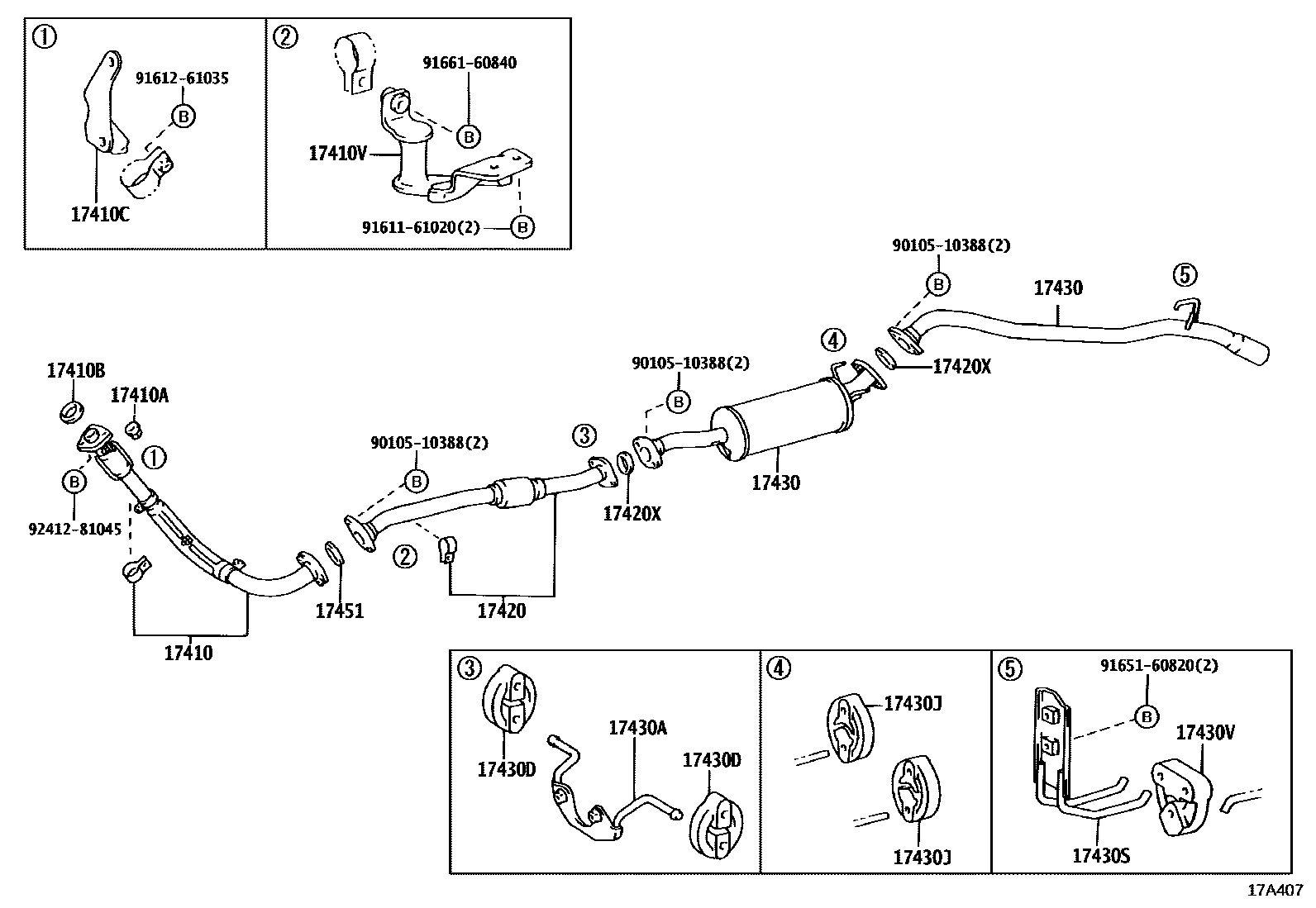

Toyota HILUX Exhaust Pipe EPC diagram — 17A407
Exhaust Pipe — 17A407 (199308 – 199511)

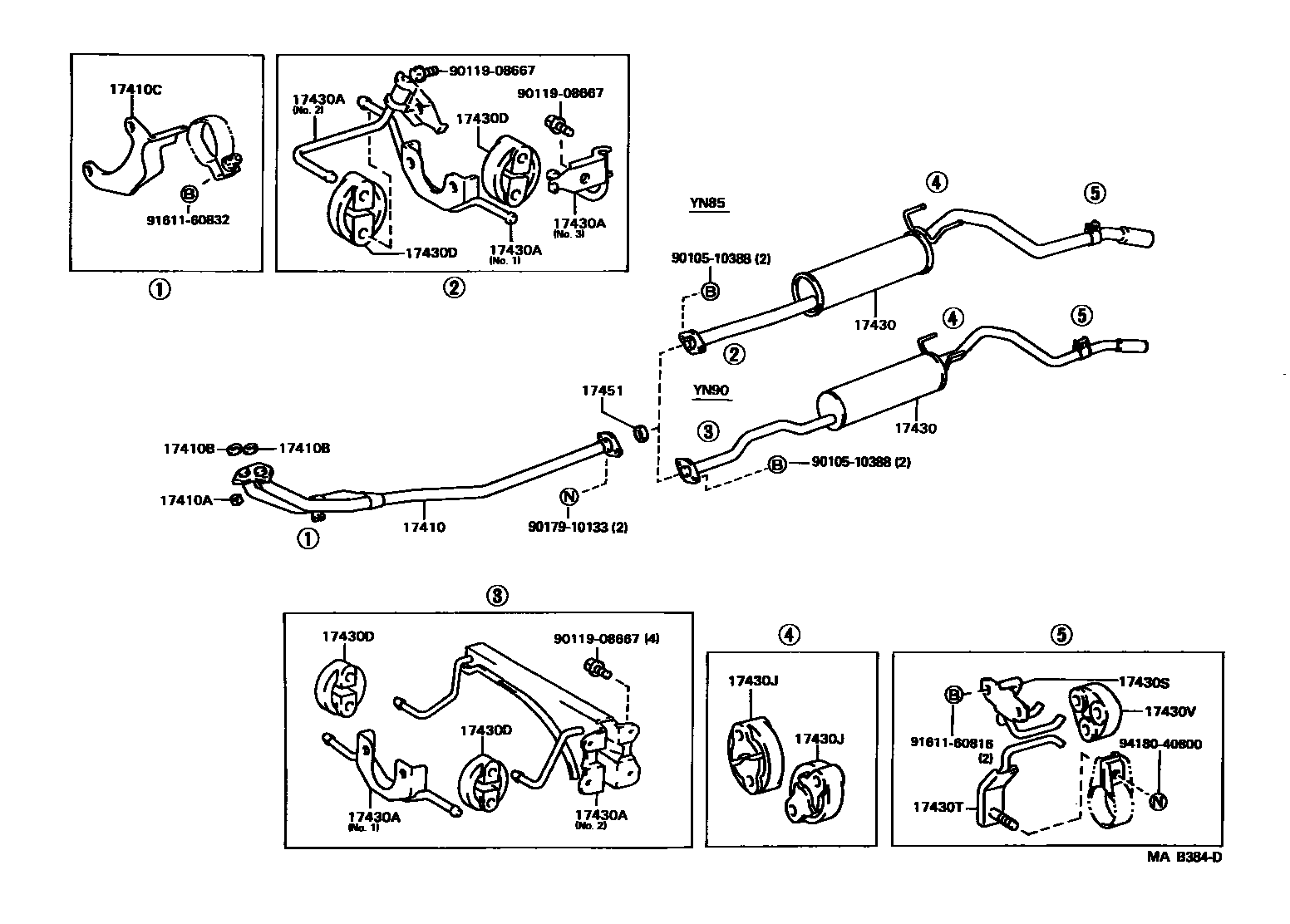

Toyota HILUX Exhaust Pipe EPC diagram — MAB384D
Exhaust Pipe — MAB384D (198808 – 199409)

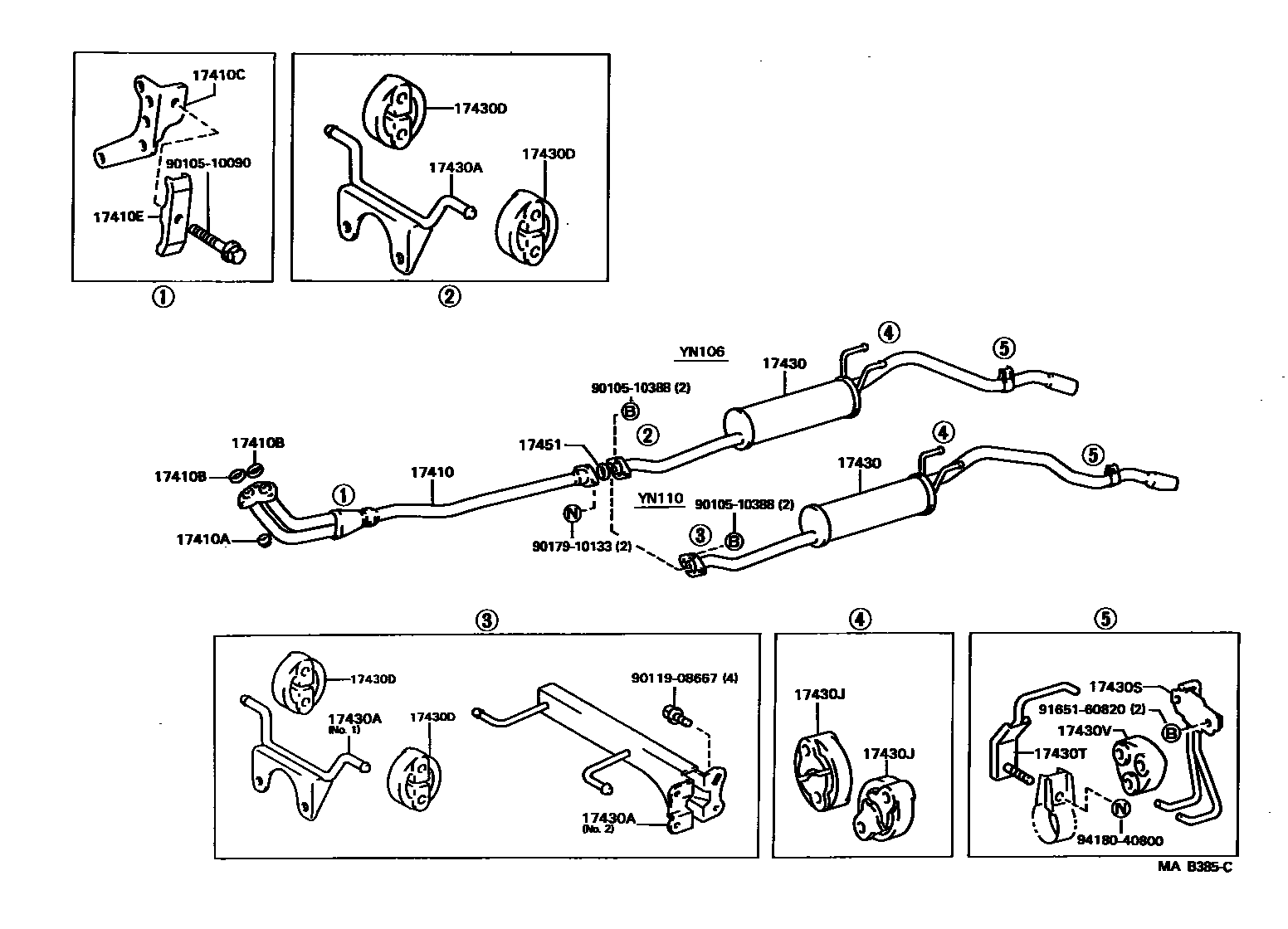

Toyota HILUX Exhaust Pipe EPC diagram — MAB385C
Exhaust Pipe — MAB385C (198808 – 199408)

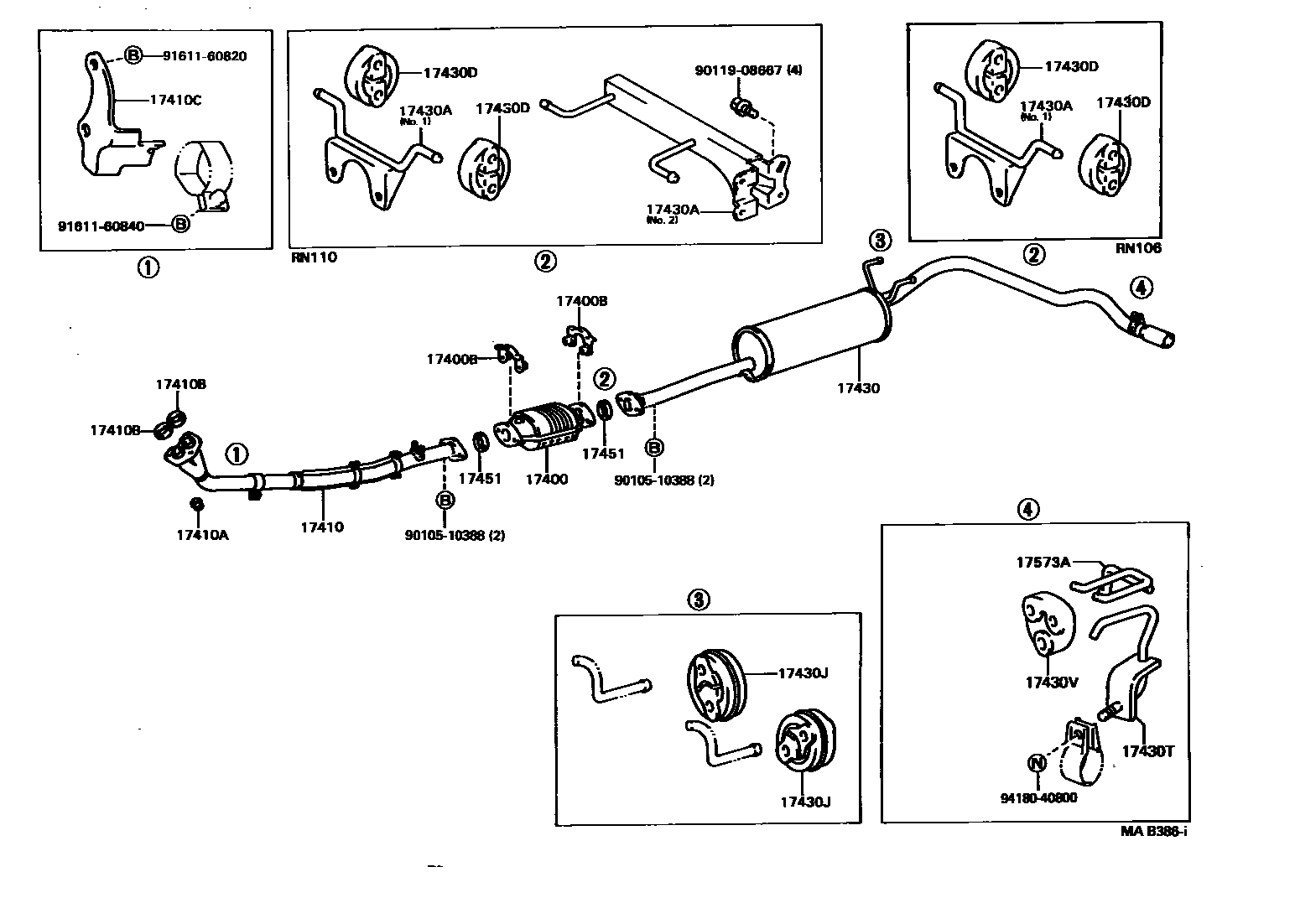

Toyota HILUX Exhaust Pipe EPC diagram — MAB386I
Exhaust Pipe — MAB386I (198808 – 999999)

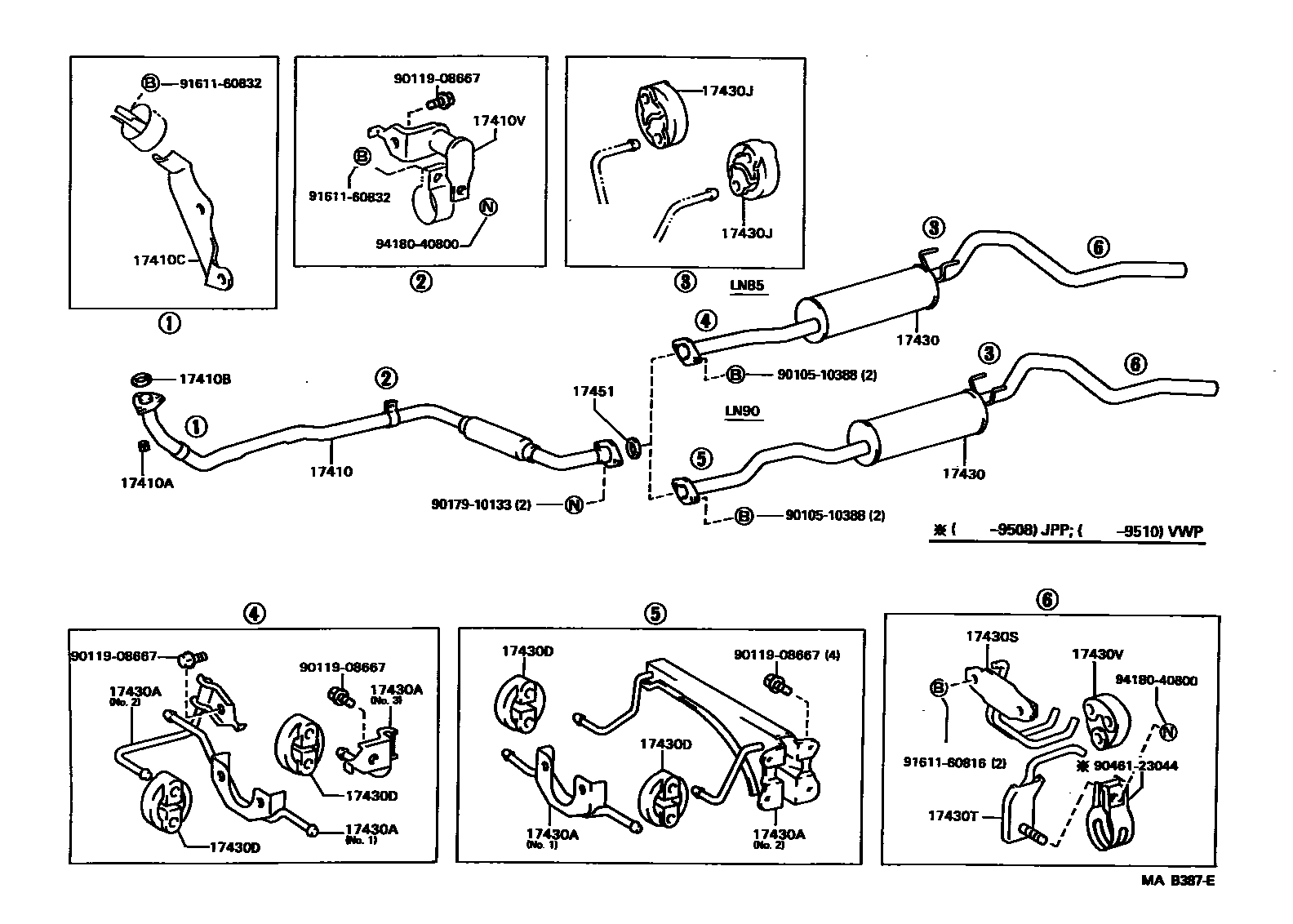

Toyota HILUX Exhaust Pipe EPC diagram — MAB387E
Exhaust Pipe — MAB387E (198808 – 999999)

PNC and OE references

PNCPart nameOE numbers
17400Three-way catalytic converter assembly with catalyst18450-08010 · 18450-35130 · 18450-65020 · 18450-65050 · 18450-75030
17400Bexhaust pipe fixings18495-35060 · 18495-35061 · 18495-38020
17410Front exhaust pipe assembly17410-08020 · 17410-35310 · 17410-35580 · 17410-54670 · 17410-54671 · 17410-54672 · 17410-54720 · 17410-54721 · 17410-54750 · 17410-54751 · 17410-5B080 · 17410-5B130 · 17410-5B170 · 17410-5B171 · 17410-65051 · 17410-65061 · 17410-71130 · 17410-73420 · 17410-73430
17410AExhaust pipe fixing studs and nuts90179-10070
17410BExhaust pipe gasket90917-06038 · 90917-06041 · 90917-06042 · 90917-06064 · 90917-06066 · 90917-06067
17410CFront exhaust pipe bracket (for front)17571-08020 · 17571-35040 · 17571-35041 · 17571-54300 · 17571-54330 · 17571-54360 · 17571-54430 · 17571-65030 · 17571-71050 · 17571-73040
17410ENo. 1 front exhaust pipe clamp (for front)90917-04030
17410VFront exhaust pipe bracket (for rear)17562-35020 · 17562-54110 · 17562-54190 · 17562-54191 · 17562-54260 · 17562-54280 · 17572-54060 · 17572-54080
17420Central exhaust pipe assembly17420-35020 · 17420-35021 · 17420-54090
17420XCenter exhaust pipe liner90917-06045 · 90917-06047 · 90917-06059
17430Exhaust tailpipe assembly17430-35830 · 17430-35831 · 17430-35832 · 17430-35870 · 17430-35871 · 17430-3D180 · 17430-3D181 · 17430-3D190 · 17430-3D191 · 17430-3D220 · 17430-3D221 · 17430-3D230 · 17430-3D231 · 17430-3D440 · 17430-5B040 · 17430-5B041 · 17430-5B042 · 17430-5B043 · 17430-5B100 · 17430-5B101 · 17430-5B120 · 17430-5B121 · 17430-5B160 · 17430-5B161 · 17430-5B240 · 17430-5B420 · 17430-5B500 · 17430-5B610 · 17430-5B611 · 17430-5B630 · 17430-5B830 · 17430-5B840 · 17430-5B850 · 17430-72230 · 17430-72240 · 17430-73310 · 17430-73350 · 17440-54020
17430AExhaust tailpipe bracket (for front)17503-35060 · 17503-35100 · 17503-35120 · 17503-35130 · 17503-71010 · 17503-72090 · 17504-35060 · 17504-35061 · 17504-35090 · 17564-35140 · 17564-35141 · 17564-35150 · 17564-35151 · 17564-54030 · 17564-54031 · 17587-35010 · 17587-71020 · 17588-35010
17430DExhaust tailpipe bolts or rings (for front)17563-35020
17430JExhaust tailpipe bolt or ring (for center)17565-35010 · 17565-35130
17430SExhaust tailpipe bracket (for rear)17505-35040 · 17575-35060 · 17575-35090 · 17575-54020 · 17575-71030
17430TExhaust tailpipe cushion (for rear)17585-35040 · 17585-71010
17430VExhaust tailpipe bolts or rings (for rear)17566-35010 · 17566-35030 · 17566-35060
17451Exhaust pipe gasket90917-06004 · 90917-06025 · 90917-06039 · 90917-06041 · 90917-06044 · 90917-06045 · 90917-06047 · 90917-06059
17573ANo. 3 exhaust pipe bracket17575-35040 · 17575-35100
