Toyota HILUX Manifold — Figure 1701

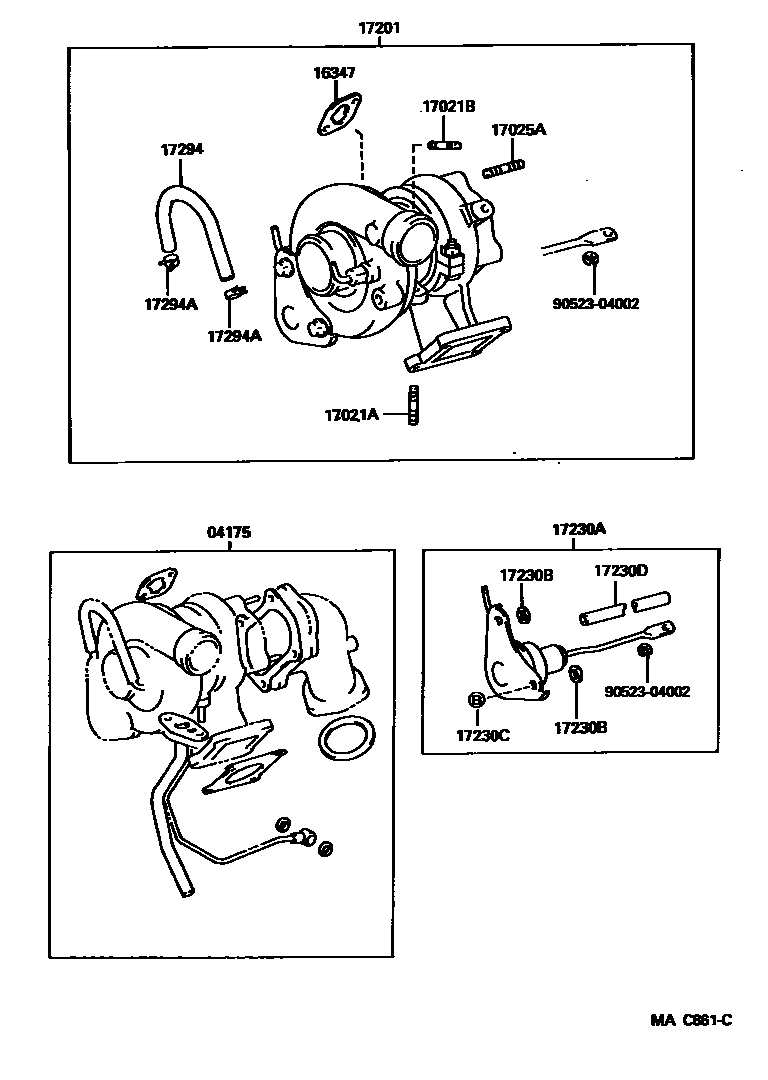

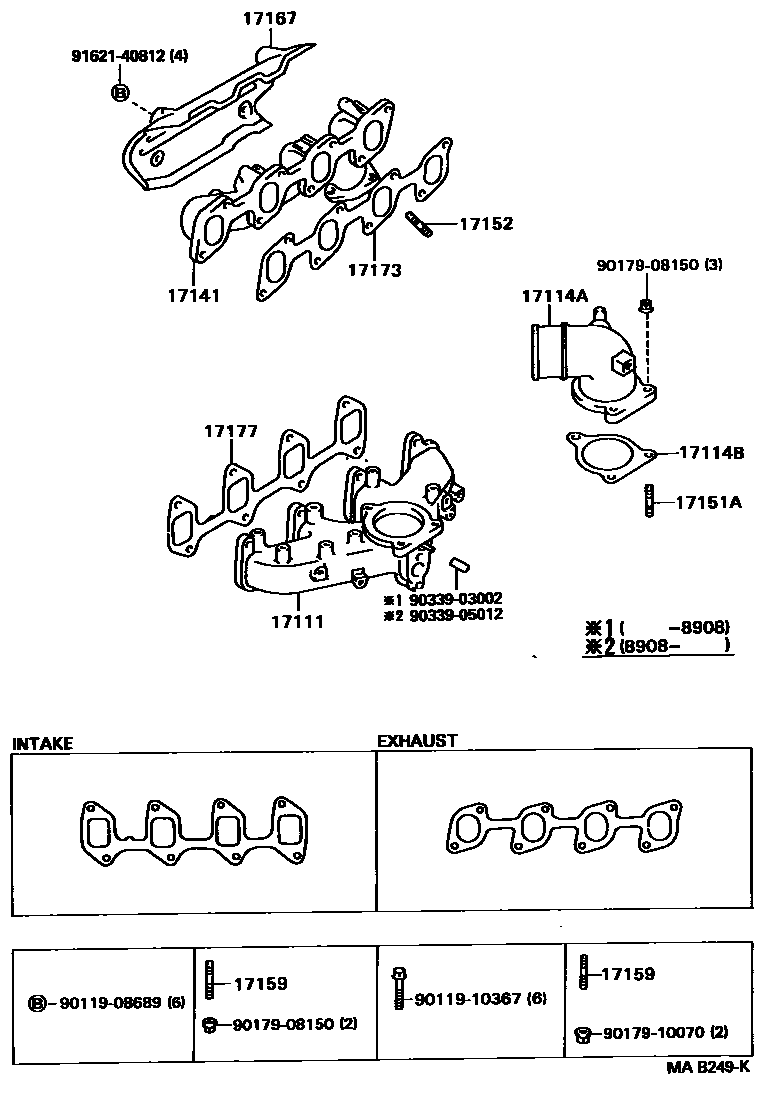

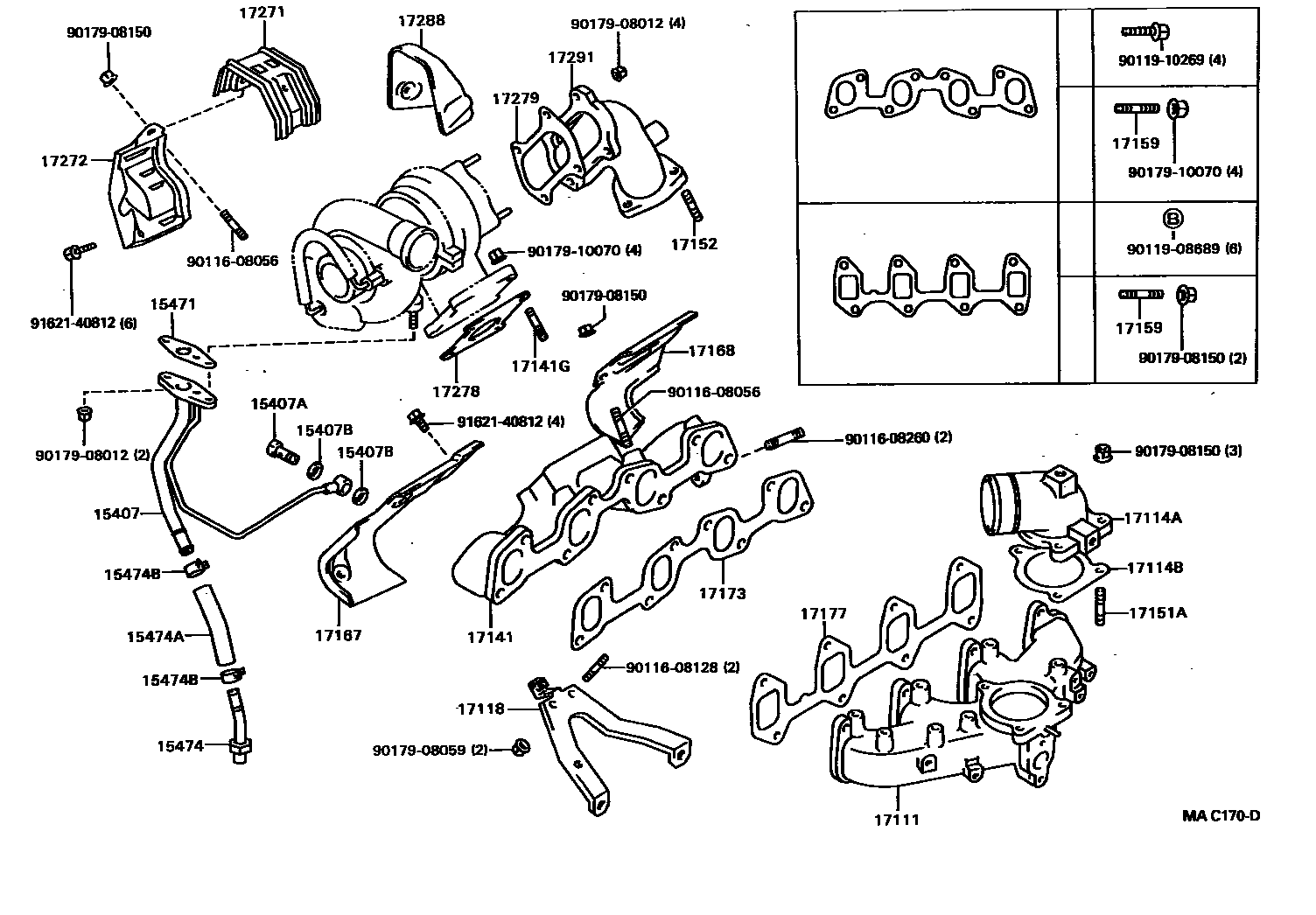

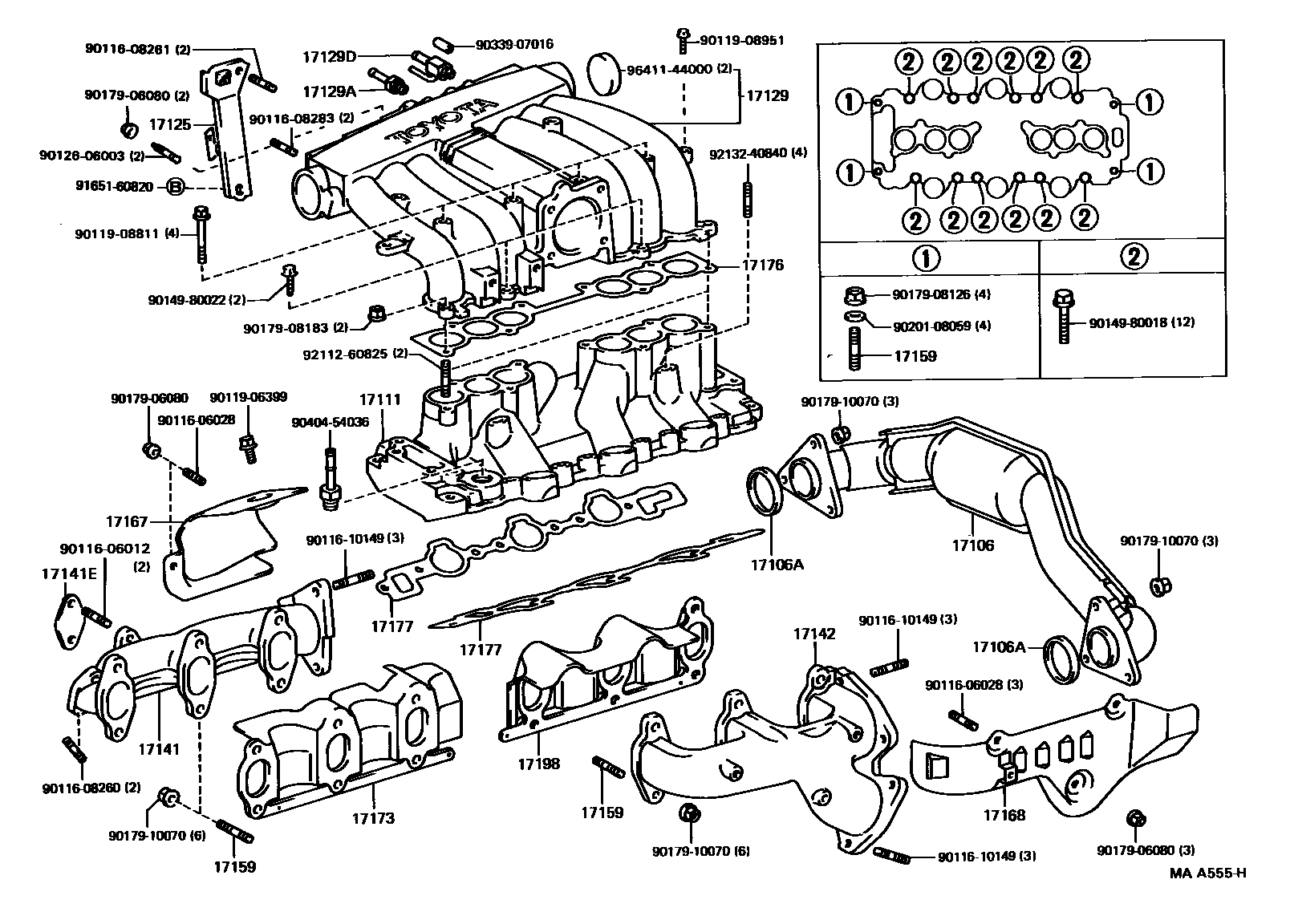

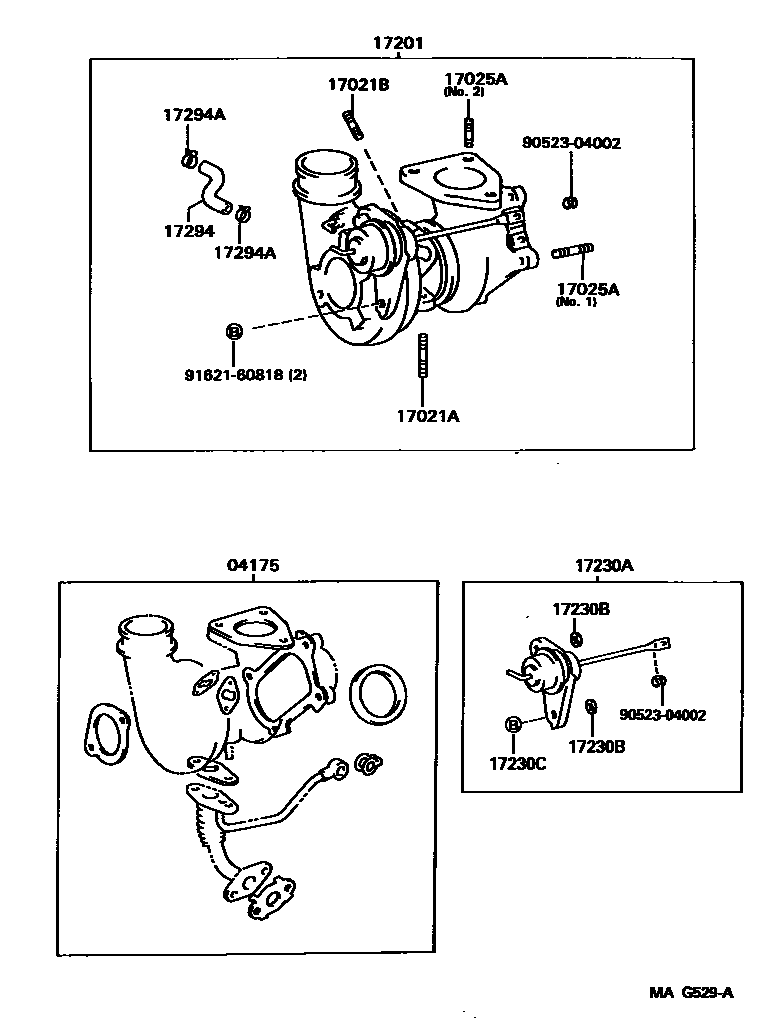

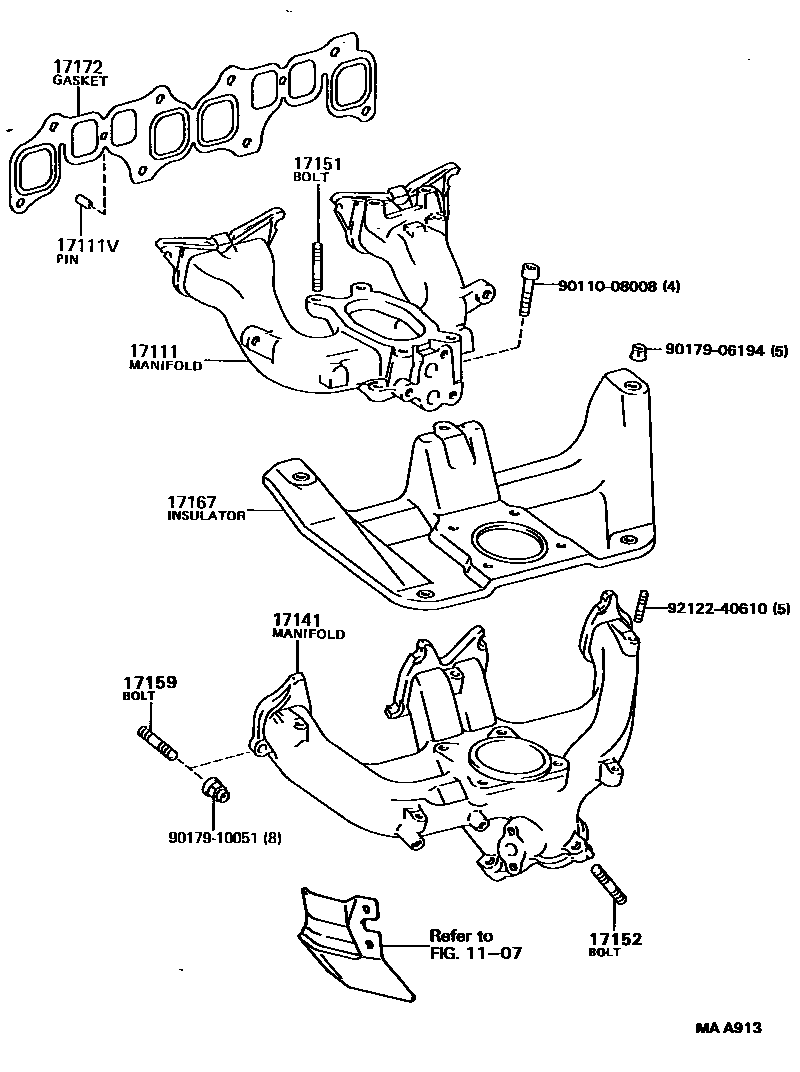

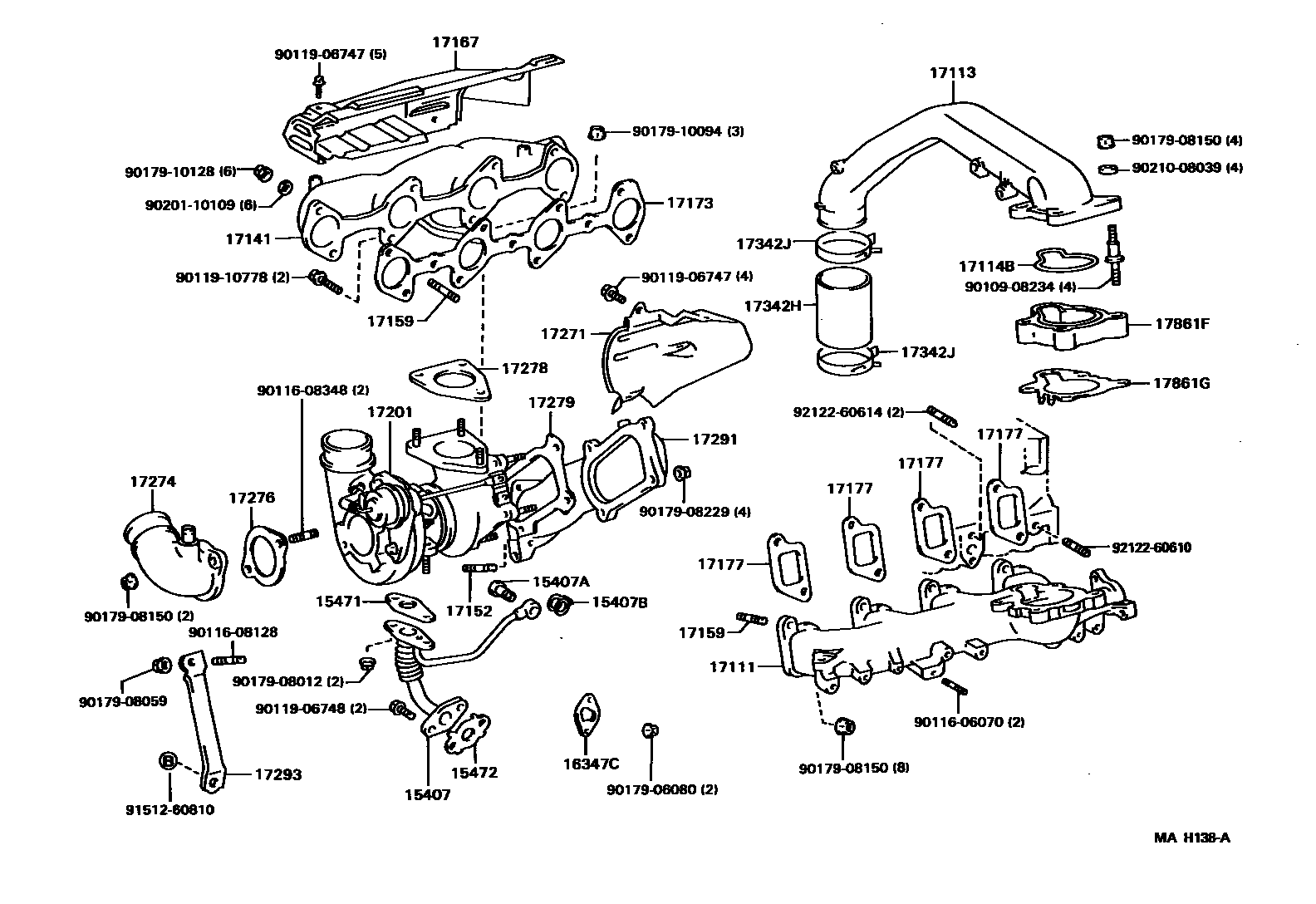

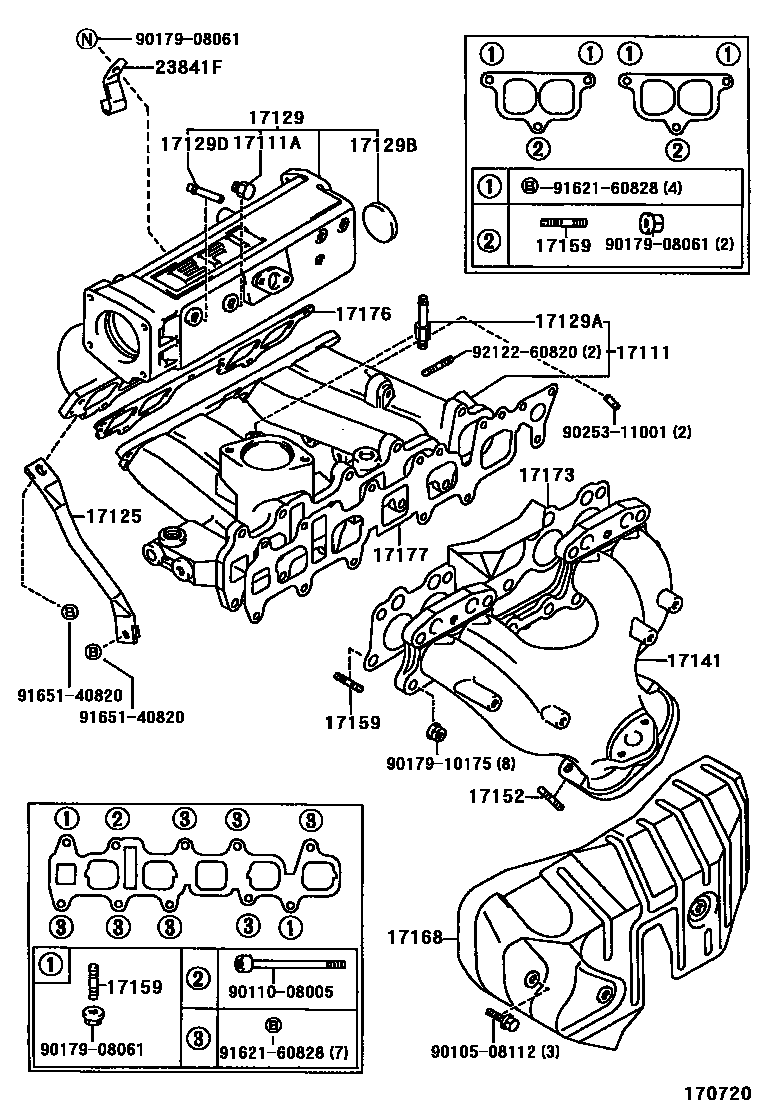

Toyota HILUX EPC diagram 1701, Manifold, with 8 images and 64 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04175 | Turbocharger gasket assembly | 04175-54020 · 04175-54021 · 04175-67010 |
| 15407 | Turbine oil inlet pipe sub-assembly | 15407-54040 · 15407-67010 |
| 15407A | Connector bolt (for turbine oil inlet pipe) | 90401-10006 · 90401-10035 · 90401-12097 · 96341-11000 |
| 15407B | Gasket (for turbine oil inlet pipe) | 90430-10035 · 90904-30004 |
| 15471 | Turbine oil inlet pipe gasket | 15471-58010 |
| 15472 | No. 1 turbine oil outlet pipe gasket | 15472-67010 |
| 15474 | Turbine oil outlet pipe | 15476-54020 |
| 15474A | Turbine oil outlet hose | 15491-54020 |
| 15474B | Clamp or clip (for turbine oil outlet hose) | 90467-26002 · 90467-26003 |
| 16347 | water bypass liner | 16347-42020 |
| 16347C | Liners (for turbine water pipes) | 16347-67010 |
| 17021A | Stud bolts (for bearing housing) | 90116-08158 |
| 17021B | Stud bolt | 90116-06048 |
| 17025A | Stud bolts (for turbine housing) | 90116-08200 · 90116-10175 · 90126-08009 |
| 17106 | Exhaust crossover pipe assembly | 17106-65010 |
| 17106A | Exhaust pipe gasket | 90917-06048 |
| 17111 | Intake Manifold | 17101-35050 · 17101-54091 · 17101-54092 · 17101-54100 · 17101-54101 · 17101-67020 · 17101-67021 · 17111-65900 · 17111-71010 · 17111-71020 |
| 17111A | No. 1 screw plug | 90345-51006 |
| 17111V | Direct pin (for fixing the intake manifold) | 90250-08120 |
| 17113 | intake pipe | 17113-67010 · 17113-67011 |
| 17114A | Intake flange | 17114-54050 · 17114-54060 |
| 17114B | Intake flange gasket | 17116-54020 · 17116-54021 · 17116-67010 |
| 17118 | Manifold stays | 17118-54040 |
| 17125 | No. 1 pressure tank stay | 17125-35030 · 17125-65011 · 17125-65012 |
| 17129 | Intake pressure tank | 17109-35040 · 17109-65012 · 17109-65013 · 17109-65014 · 17109-65020 |
| 17129A | Connector No. 1 | 90404-51060 · 90404-51319 |
| 17129B | Screw plug | 96411-44000 |
| 17129D | Connector No. 2 | 90404-51058 · 90404-51070 · 90406-06001 |
| 17141 | exhaust manifold | 17141-35100 · 17141-35150 · 17141-54100 · 17141-54110 · 17141-54111 · 17141-54140 · 17141-65010 · 17141-65011 · 17141-65021 · 17141-67030 · 17141-71020 |
| 17141E | Exhaust manifold plate | 17148-65010 |
| 17141G | Stud bolts (for turbocharger) | 90116-10094 |
| 17142 | No. 2 exhaust manifold housing | 17142-65011 · 17142-65012 |
| 17151 | Studs (for manifold to carburetor) | 92122-40835 |
| 17151A | Studs (for manifold to venturi) | 90116-08292 · 90116-08293 |
| 17152 | Studs (for manifold to exhaust) | 90116-10058 · 90116-10087 · 90116-10088 · 90116-10146 · 90116-10148 |
| 17159 | Studs (for manifold to cylinder head) | 90116-08172 · 90116-08220 · 90116-08262 · 90116-10063 · 90116-10064 · 90116-10067 · 90116-10140 · 90116-10141 · 90116-10150 · 90126-10017 · 92122-60825 · 92122-80822 · 92132-60820 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-54090 · 17167-54100 · 17167-54120 · 17167-65010 · 17167-65020 · 17167-67020 · 17167-67030 · 17167-71020 |
| 17168 | Exhaust manifold No.2 insulation pad | 17167-35180 · 17168-54030 · 17168-65020 · 17168-65030 |
| 17172 | Gasket (manifold to cylinder head) | 17172-71011 · 17172-73010 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-35120 · 17173-54030 · 17173-54050 · 17173-65020 · 17173-65031 · 17173-67020 |
| 17176 | Gasket (intake surge tank to intake manifold) | 17176-35020 · 17176-65020 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-35030 · 17177-35050 · 17177-54020 · 17177-54021 · 17177-65010 · 17177-67010 |
| 17198 | No. 2 exhaust manifold gasket | 17198-65020 · 17198-65031 |
| 17201 | Turbocharger sub-assembly | 17201-54060 · 17201-67010 |
| 17230A | Compensation actuator assembly with bracket | 17230-59045 · 17230-59055 · 17230-59065 · 17230-69015 |
| 17230B | Flat Washer (for compensating actuator assembly) | 90201-08081 · 90201-08082 · 90201-08086 · 90201-08087 |
| 17230C | Bolt with washer (for compensating actuator assembly) | 91621-60822 |
| 17230D | Hoses (for compensating actuator assembly) | 90445-12111 |
| 17271 | No. 1 turbine vibration isolation pad | 17271-54060 · 17271-67020 |
| 17272 | No. 2 turbine vibration isolation pad | 17272-54040 · 17272-54050 |
| 17274 | Compressor oil inlet elbow pipe | 17274-67010 · 17274-67011 |
| 17276 | Compressor oil inlet gasket | 17276-67010 |
| 17278 | Gasket (turbo to exhaust manifold) | 17278-54020 · 17278-54021 · 17278-67010 |
| 17279 | Turbine outlet elbow gasket | 17279-64010 · 17279-67010 |
| 17288 | No. 3 turbine vibration isolation pad | 17288-54010 · 17288-54011 |
| 17291 | Turbine oil outlet elbow | 17291-54060 · 17291-67030 |
| 17293 | Turbocharger stay | 17293-67010 |
| 17294 | Actuator hose | 90445-12111 · 90445-12219 · 90445-12265 |
| 17294A | Clamp (for actuator hose) | 96132-41100 |
| 17342H | Air hose No. 2 (for turbocharger) | 17342-67010 |
| 17342J | Hose clip (for air intake pipe) | 90467-53002 |
| 17861F | Intake connecting pipe | 17861-67020 |
| 17861G | Intake connecting pipe gasket | 26171-67010 |
| 23841F | fuel hose clamp | 23841-35040 |
