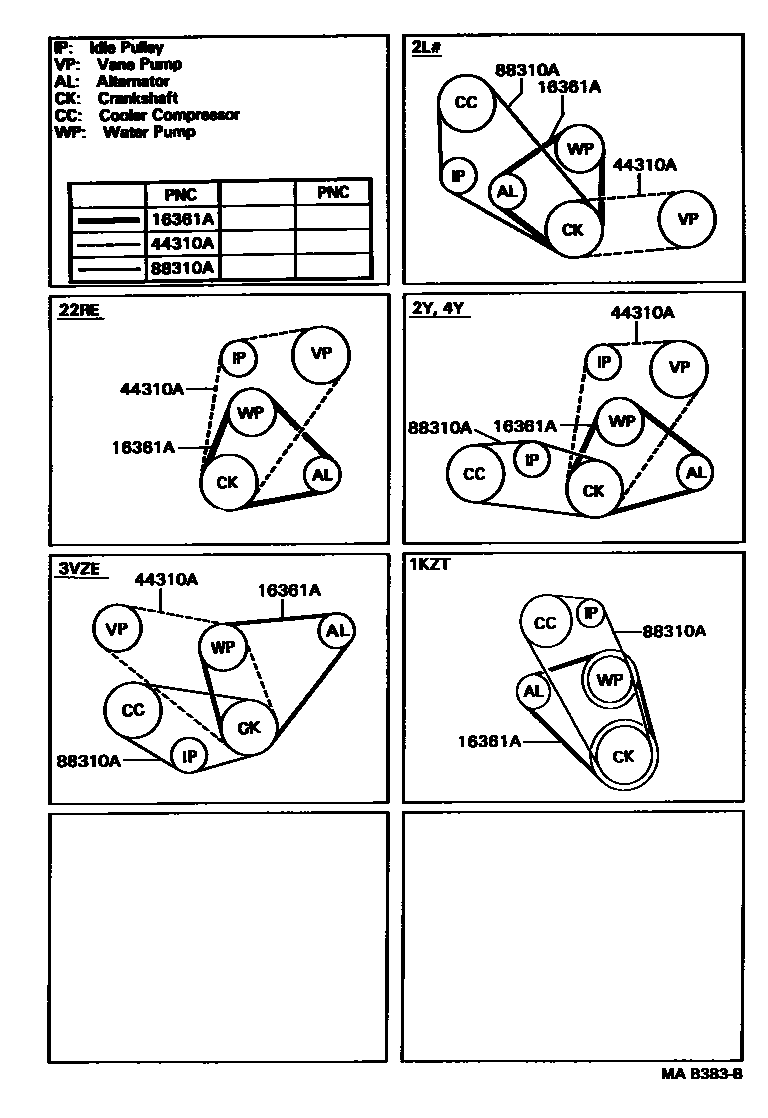

Toyota HILUX V-Belt — Figure 1605
Toyota HILUX EPC diagram 1605, V-Belt, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16361A | V-belts (for fans and generators) | 90916-02194 · 90916-02209 · 90916-02211 · 90916-02384 · 90916-02385 · 99331-10870 · 99364-50830 · 99364-70830 · 99364-80830 |
| 44310A | V-belt (for vane pump) | 90916-02196 · 99332-00830 · 99332-01040 · 99332-01055 · 99332-10865 · 99332-11110 · 99332-11120 · 99332-60865 |
| 88310A | No. 1 V-belt (cooler compressor to crankshaft pulley) | 90916-02397 · 90916-02400 · 99332-00870 · 99332-10870 · 99332-10890 · 99332-11205 · 99332-11260 · 99332-11265 |
