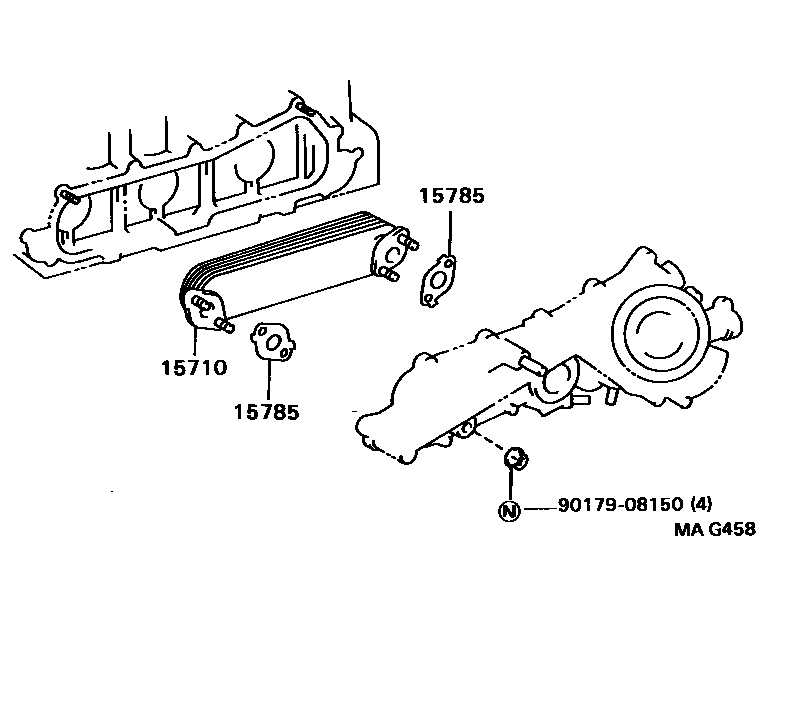

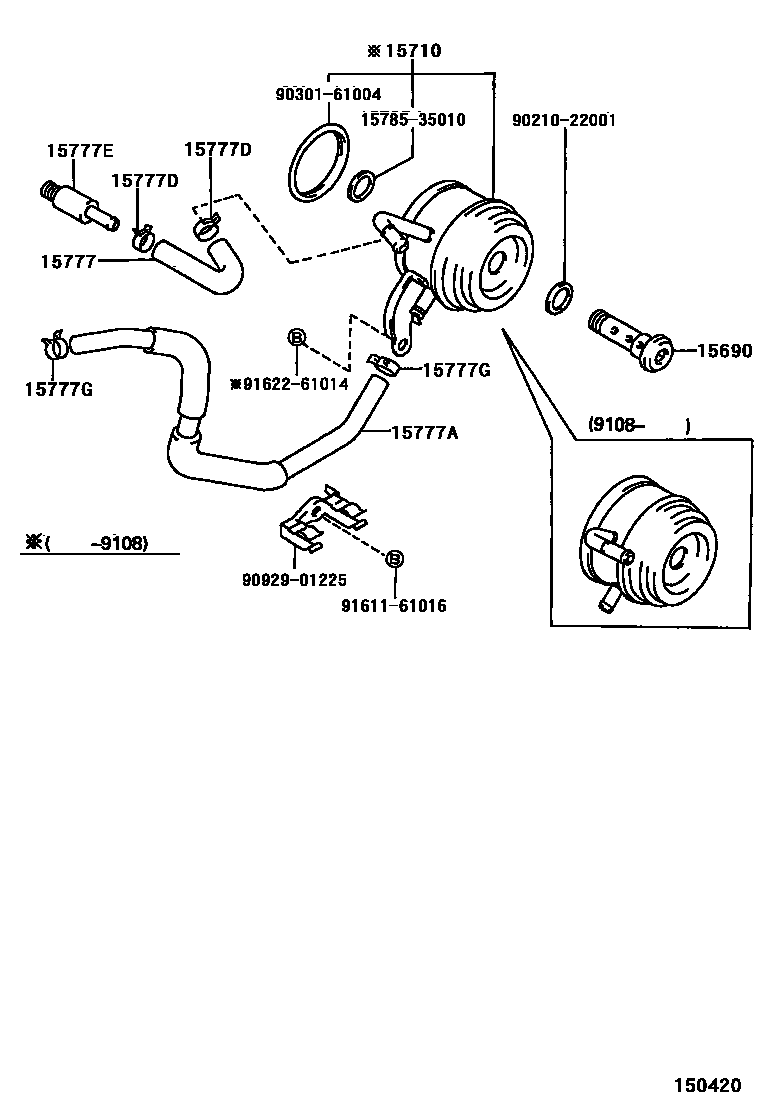

Toyota HILUX Engine Oil Cooler — Figure 1503
Toyota HILUX EPC diagram 1503, Engine Oil Cooler, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15690 | Oil cooler pressure reducing valve assembly | 15690-65020 · 15690-70010 |
| 15710 | Oil cooler assembly | 15710-54050 · 15710-65030 · 15710-65050 · 15710-65051 · 15710-67040 · 15710-73010 · 15710-73012 |
| 15710C | Gasket (for oil cooler) | 15785-54010 |
| 15777 | oil cooler hose | 15777-65010 · 15777-73020 |
| 15777A | oil cooler hose | 15778-65010 · 15778-73020 |
| 15777D | Hose clamp or clip (for oil cooler hose) | 90467-17005 |
| 15777E | Connector | 90404-53066 |
| 15777G | Hose clips or clips | 90467-17005 · 90467-20005 |
| 15785 | oil cooler gasket | 15785-66010 |
