Toyota HILUX Ventilation Hose — Figure 1201

Toyota HILUX EPC diagram 1201, Ventilation Hose, with 6 images and 10 PNC and OE references.

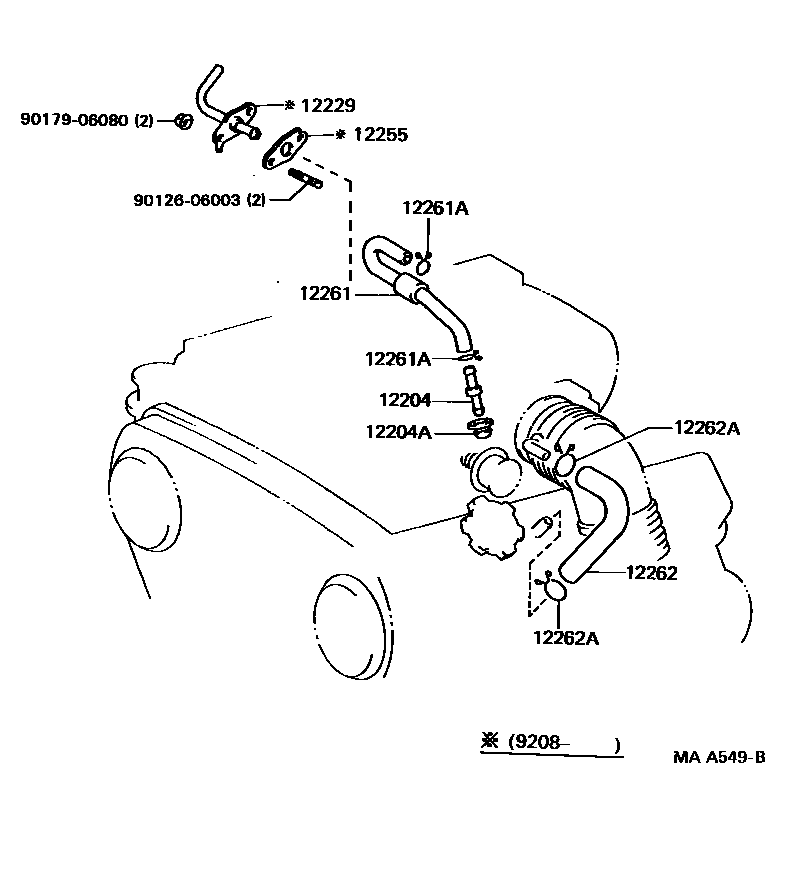

Toyota HILUX Ventilation Hose EPC diagram — MAA549B
Ventilation Hose — MAA549B (198908 – 199511)
Toyota HILUX Ventilation Hose EPC diagram — MAA905
Ventilation Hose — MAA905 (198808 – 199408)

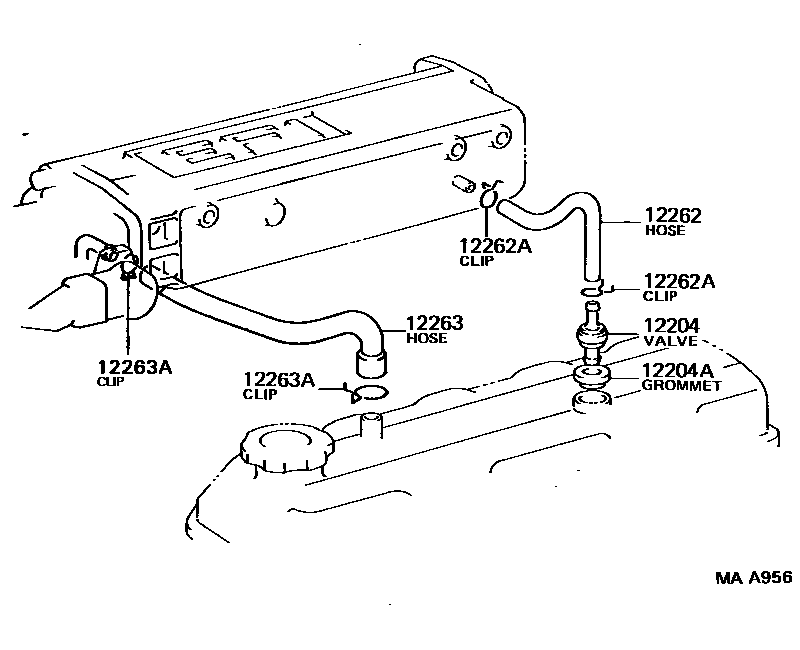

Toyota HILUX Ventilation Hose EPC diagram — MAA956
Ventilation Hose — MAA956 (198808 – 999999)
Toyota HILUX Ventilation Hose EPC diagram — MAB224
Ventilation Hose — MAB224 (198808 – 999999)
Toyota HILUX Ventilation Hose EPC diagram — MAC181
Ventilation Hose — MAC181 (199001 – 199511)
Toyota HILUX Ventilation Hose EPC diagram — MAH055B
Ventilation Hose — MAH055B (199308 – 199511)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-15022 · 12204-35040 · 12204-65010
12204AGasket (for ventilation system)90480-18001 · 90480-18008 · 90480-18180
12229ventilation duct12229-65010 · 12229-67010
12255Ventilation padding12255-65010
12261Ventilation Hose12261-54080 · 12261-54120 · 12261-65010 · 12261-67010 · 12261-72030
12261AClip or clip (for vent hose)90467-14017 · 90467-18003 · 90467-21152 · 90467-22010
12262Ventilation hose No. 212261-35011 · 12262-65011 · 12262-67010 · 12262-71020
12262AClamp (for vent hose No. 2)90467-15006 · 90467-19122
12263No. 3 ventilation hose12262-35060
12263AClip (for ventilation hose)90467-15006 · 90467-19003
