Toyota HILUX 暖风和空调系统 - 真空管 — Figure 8717

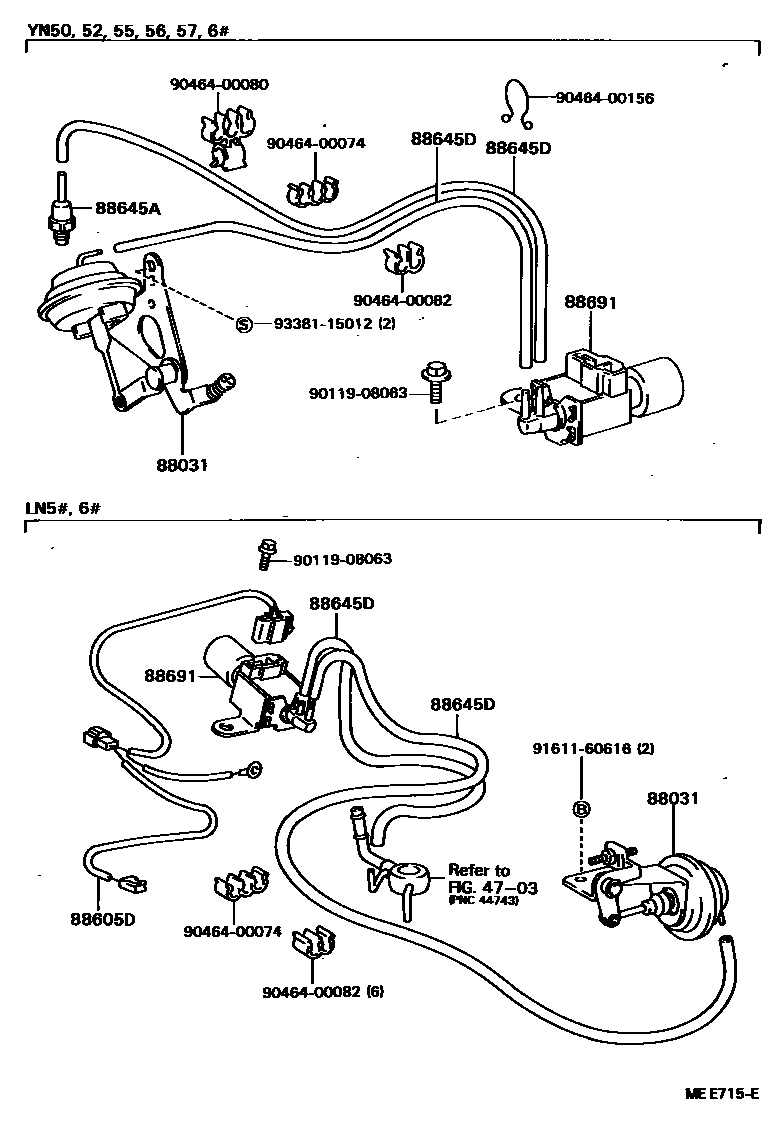

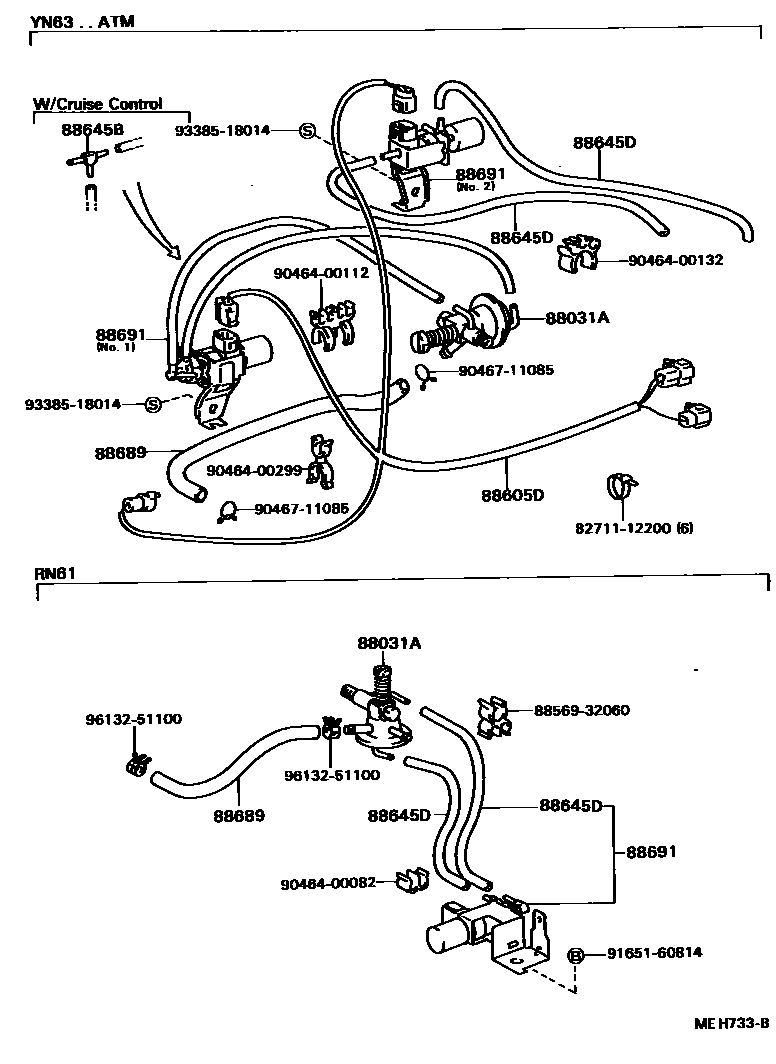

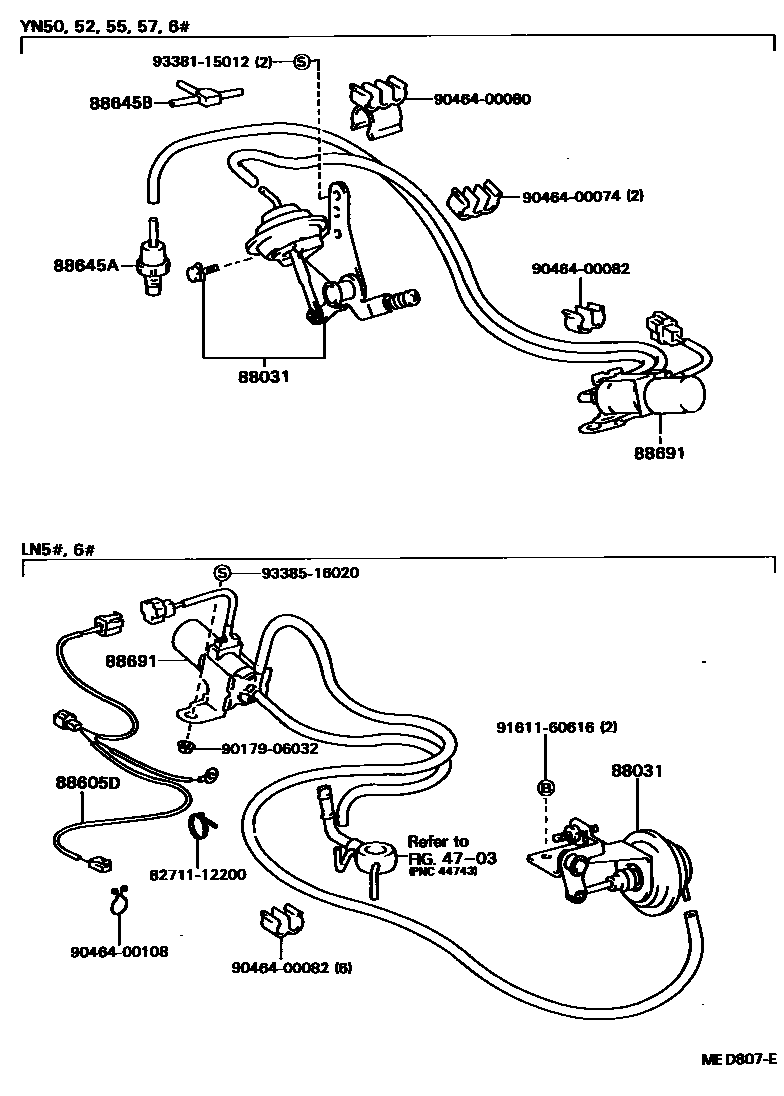

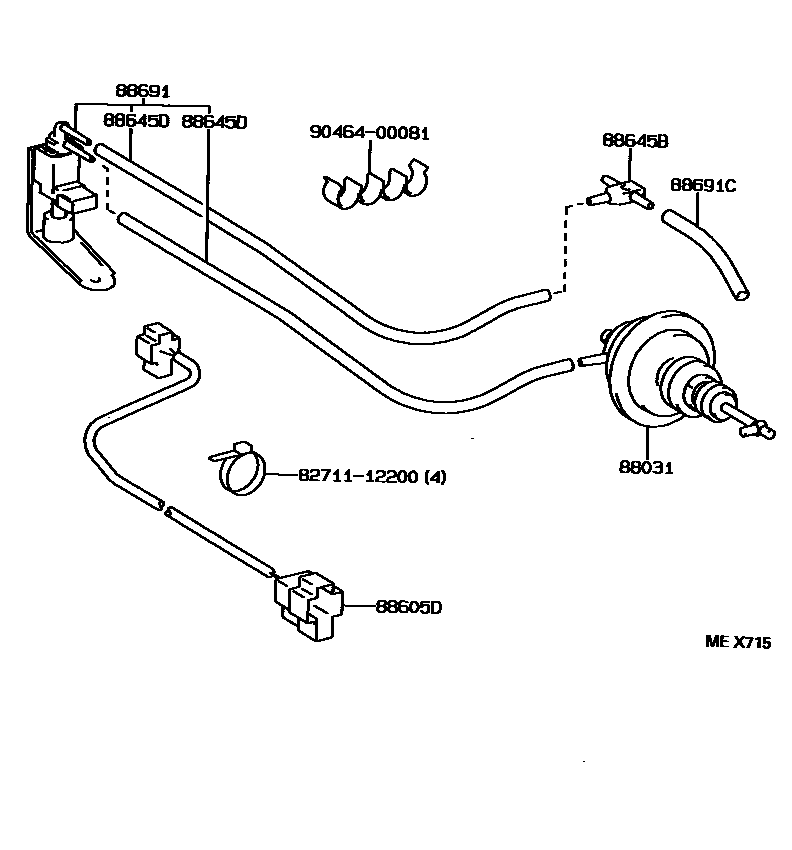

Toyota HILUX EPC diagram 8717, 暖风和空调系统 - 真空管, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88031 | Idle speed lift actuator assembly | 21099-71030 · 88031-30060 · 88031-35040 · 88031-35070 · 88031-35090 · 88031-36012 |
| 88031A | Idle speed lift actuator diaphragm sub-assembly | 88606-28010 · 88606-35020 |
| 88605D | Air conditioning wiring harness | 88648-35100 · 88648-89114 · 88648-89124 |
| 88645A | Connector (for idle lift device) | 90404-51093 · 90917-11022 |
| 88645B | Connector No. 1 (for idle speed lifting device) | 90413-04001 |
| 88645D | Hoses (for idle lift) | 90445-07279 · 90999-92002 · 95411-10030 · 95411-10130 · 95411-10760 · 95411-19930 |
| 88689 | Damper control diaphragm vacuum hose | 17341-73020 · 88689-35010 |
| 88691 | Solenoid valve (for idle speed lifting device) | 88690-87028 · 88690-89117 · 88690-89118 · 88690-89120 · 88690-89122 · 88690-89131 · 88690-89132 · 89570-35200 · 90910-12038 |
| 88691C | Vacuum hose No. 1 (for idle lift) | 90999-92002 |
